산업 등급의 독립 지능형 슈퍼커패시터 기반 무정전 파워 백업 모듈

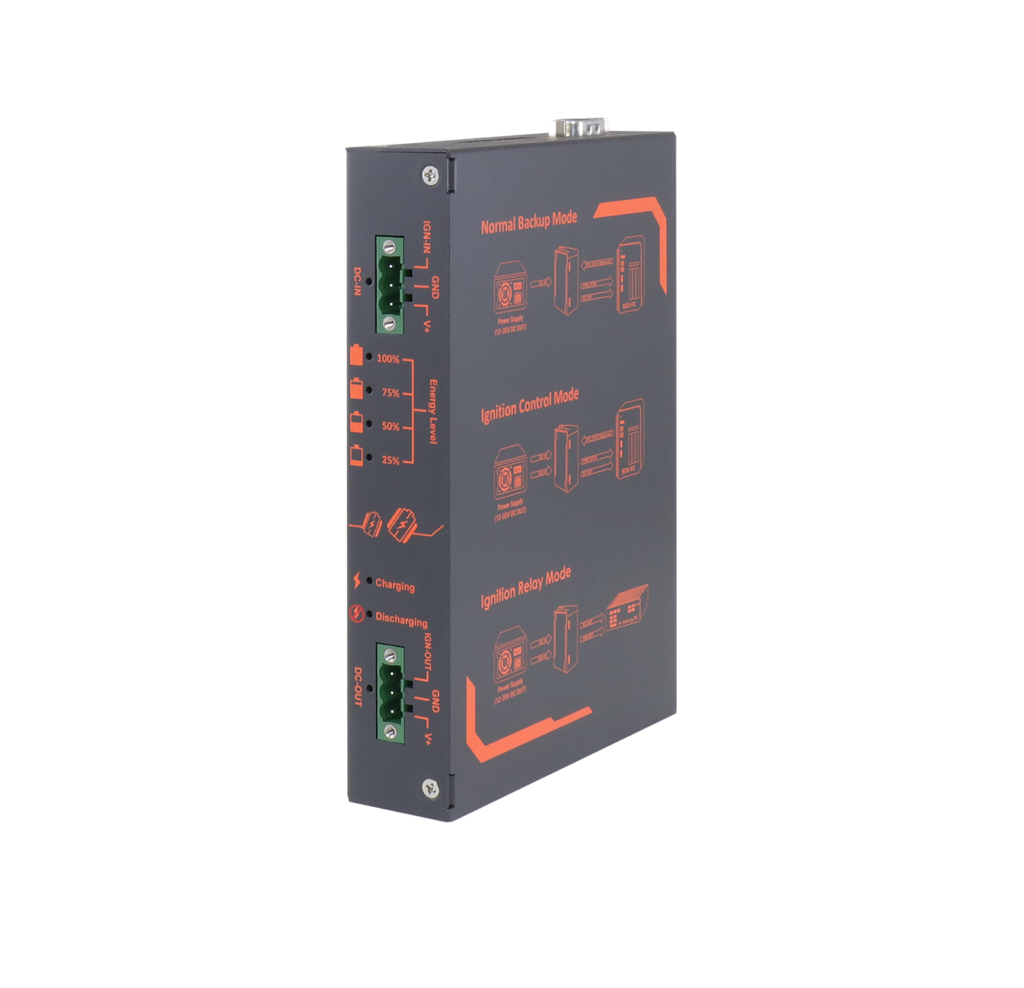

PB-2580J-SA Series 독립형 전원 백업 모듈

Universal standalone power backup module compatible with all box-PCs
Supercapacitor-based, -25 to 65°C wide temperature operation
Up to 2580 watt-second energy capacity
Maximum 180W output power for the connected back-end system
Over 10 years lifespan, and 500,000 charging/ discharging cycles
Patented CAP energy management technology*
Extending back-up time in the event of an unforeseen power outage
Monitoring energy and power consumption to extend operation time for safe system shutdown
Versatile operating mode Normal backup mode Ignition control mode for standard box-PC and in-vehicle controller
*R.O.C Patent No. I598820

Overview

Introduction

PB 시리즈는 정전으로부터 box-PC를 보호할 수 있는 독립형 전원 백업 모듈입니다. 최첨단 슈퍼커패시터 기술을 사용하여 -25°C ~ 65°C의 가혹한 환경에서 작동할 수 있으며 10년 이상 지속되는 매우 높은 내구성을 가지고 있습니다.

PB-9250J-SA와 PB-4600J-SA는 각각 8개와 4개의 370F/3.0V 슈퍼커패시터로 구성되어 있고, PB-2580J-SA는 8개의 100F/2.7V 슈퍼커패시터로 구성되어 있습니다. 각각 9250, 4600 및 2580와트-초 에너지를 제공하여 시스템 백업을 위한 추가 확장된 작동 시간을 제공합니다.

Neousys의 특허 받은 CAP 에너지 관리 기술 덕분에 백엔드 시스템에 최대 180W의 전력을 안정적으로 공급할 수 있으며, 추가 드라이버/소프트웨어를 설치하지 않고도 부팅 및 종료를 자동으로 관리할 수 있습니다. UPS와 유사한 전원 백업 모드 외에도 차내 사용을 위한 두 가지 고급 점화 제어 모드도 제공합니다.

PB-9250J-SA는 표준 박스 PC 또는 차내 컨트롤러와 함께 작동하여 안정적인 전원 공급을 제공하고 IGN 신호 입력에 따라 사용자 구성 가능한 전원 켜기/끄기 지연을 실행할 수 있습니다. 다양한 모드, 자동 종료 제어 및 최대 180W 출력을 특징으로 하는 Neousys PB 시리즈는 대부분의 기성품 박스 PC와 함께 작동할 수 있습니다. 그리고 유지 보수가 필요 없는 에너지 저장 및 무정전 전원 공급 장치와 같은 특성을 갖춘 PB 시리즈는 혹독한 산업 환경에서 정전 시 연결된 백엔드 시스템의 데이터 손실을 방지할 수 있습니다!

The PB series is a standalone power backup module that can protect your box-PC against power outages. Utilizing state-of-the-art supercapacitor technology, it can operate in harsh environments from -25°C to 65°C and have extremely high durability lasting over 10 years.

PB-9250J-SA and PB-4600J-SA are composed of eight and four 370F/ 3.0V supercapacitors, respectively, while PB-2580J-SA is composed of eight 100F/ 2.7V supercapacitors. They each offer 9250, 4600 and 2580 watt-second energy to offer extra extended operation time to backup your system.

Thanks to Neousys’ patented CAP energy management technology, It can reliably supply up to 180W of power to the back-end system and automatically manage boot and shutdown without installing additional drivers/ software. In addition to the UPS-like power backup mode, it also offers two advanced ignition control modes for in-vehicle usage.

PB-9250J-SA can work with either standard box-PC or in-vehicle controller to provide a stable power supply and execute user-configurable power-on/ power-off delay according to IGN signal input. Featuring various modes, automatic shutdown control and up to 180W output power, Neousys PB series can work with most off-the-shelf box-PCs. And with properties such as maintenance-free energy storage and uninterruptible power supply, the PB series can prevent the connected back-end system from data loss during a power outage in harsh industrial environments!

Specifications

Supercapacitor Configuration
Composition	8x 100F, 2.7V supercapacitors
Capacity	2580 watt-second
Expected lifespan	>10 years*
Cycle life	500,000 charging/ discharging cycles*

Power Specification
Input Voltage	12~35 VDC
Input Connector	1x 3-pin pluggable terminal block (V+, GND, IGN_IN)
Output Voltage	Charge mode: DC_IN bypass (DC_OUT = DC_IN) Discharge mode: 12 or 24V
Output Power	Maximum 70W output**
Output Connector	1x 3-pin pluggable terminal block (V+, GND, IGN_OUT)

I/O Interface
COM Port	1x DB9 for 3-wire RS-232
Iso. DIO	1x 10-pin pluggable terminal block for – PWR_BTN# output – SYS_STAT input

Mechanical
Dimension	32.8mm(W) x 176.6mm(H) x 126mm(D)
Weight	0.93kg
Mounting	DIN-rail mounting and wall-mounting

Environmental
Operating Temperature	-25°C ~ 65°C -40°C ~ 85°C with reduced energy capacity
Storage Temperature	-40°C ~ 85°C
Vibration	Operating, MIL.STD-810G, Method 514.6, Category 4
Shock	Operating, MIL.STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC	CE/FCC Class A, according to EN 55032 & EN 55024

* To achieve > 10 years lifespan under 24/7 at 65°C operation, please charge PB-9250J-SA to 6525J energy level using the 4.8x SuperCAP Lifetime Extension setting (please refer to the user manual for details). Once the rated lifetime or cycle life has been reached, the capacity of supercapacitor may decrease up to 30% and ESR may increase up to 100% from initial values.
** Backup time for uninterruptible operation may be reduced when sustaining a back-end system with high power consumption. Please consult with Bemax Technology if your computer accepts only constant-voltage input.
*** To ensure PB-9250J and PB-4600J’s power backup operation functions as intended, please contact Bemax Technology technical support if your connecting back-end system accepts only constant voltage input.

LIST

Ordering Information

PB-2580J-SA

Standalone intelligent supercapacitor-base power backup module with 2580 W.s energy capacity
