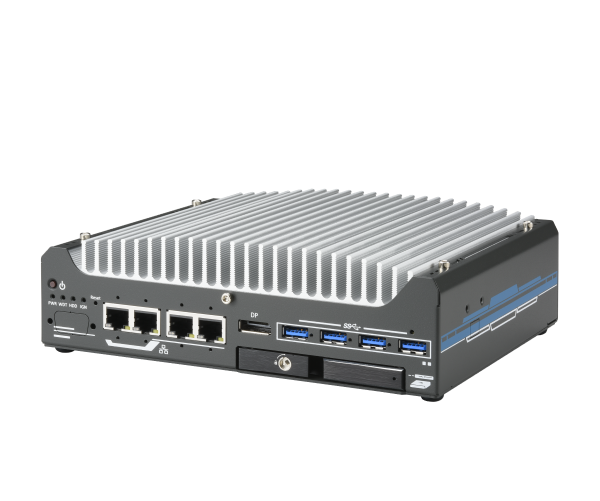

Nuvo-9531 산업용컴퓨터 13/12세대 Fanless PC (New!)

212 x 165 x 63 mm low-profile design
Intel® 13th/12th-Gen Core™ 35W/ 65W LGA1700 CPU
Rugged, -25°C to 60°C fanless operation
4x 2.5GbE with optional PoE+ and 4x USB3.2 Gen 1 with screw-lock
M.2 2280 Gen4x4 NVMe and 1x hot-swappable HDD tray for storage
4-CH isolated DI and 4-CH isolated DO
VGA + DP dual display outputs
Optional ignition power control

Overview

Introduction

Nuvo-9531은 Intel 13th/12th-Gen Alder Lake 플랫폼에 기반한 슬림형 팬리스 임베디드 컴퓨터 가운데 하나입니다. 212 x 165 x 63mm 크기로 로봇 암(협동로봇)과 AMR 애플리케이션과 같은 제한된 공간에 적합합니다. 컴팩트한 크기에도 불구하고 Nuvo-9531은 성능 문제에 있어 타협하지 않습니다. Intel의 7nm 공정으로 만들어진 Intel 13th/12th-Gen 프로세서에는 Intel의 이전 10th 또는 11th-Gen 플랫폼에 비해 최대 2배 더 높은 성능을 제공할 수 있도록 최대 24 코어/32 스레드를 가지고 있습니다. Nuvo-9531은 다양한 산업용 애플리케이션에 맞는 궁극의 컴퓨팅을 제공할 수 있는 컴팩트 팬리스 임베디드 컴퓨터입니다.

Nuvo-9531에는 풍부한 I/O 기능이 있습니다. 특징으로서 다중 카메라 연결을 위한 4개의 GbE 및 4개의 USB3.2 Gen1 포트가 있습니다. 또한, 최대 7000MB/초의 읽기/쓰기 속도를 지원하는 최신 NVMe SSD용M.2 Gen4 x4 NVMe 슬롯과 시스템을 끄거나 케이스를 분해하지 않고도 스토리지 드라이브를 탈착할 수 있는 HDD/SSD Hot-Swap Tray를 갖추고 있습니다. 무선 통신 요구에 맞춰 Wifi나 4G/5G를 설치할 수 있는 2개의 mPCIe 및 M.2 E-Key 슬롯이 있습니다. 또한, Nuvo-9531에는 사용자의 애플리케이션 요구에 맞춰 4개의 DIO, 2개의 COM 포트 및 듀얼 디스플레이 출력을 지원합니다.

컴팩트 임베디드 컴퓨터로서 Nuvo-9531은 우수한 컴퓨팅 능력과 풍부한 I/O 연결성을 제공합니다. 특히, 설치 공간이 제한되어 있는 다양한 산업용 애플리케이션에 적합한 Nuvo-9531는 산업 시장에 맞는 이상적인 컴팩트 팬리스 컴퓨터입니다.

Nuvo-9531 is one of the most compact fanless embedded computers based on the Intel 13th/12th-Gen platform. Measuring just 212 x 165 x 63 mm, it can fit into restricted spaces, such as in robotic arm and AMR applications. Despite its compact size, Nuvo-9531 does not compromise on performance. Built on the advanced Intel 7 process, Intel 13th Gen processors have up to 24 cores/ 32 threads to deliver up to 2x the performance when compared to previous Intel 10th or 11th Gen platforms. Nuvo-9531 is a compact fanless embedded computer that offers the ultimate computing for various industrial applications.

Nuvo-9531 has rich I/O functions. It features four 2.5GbE with optional PoE+ PSE and four USB3.2 Gen1 ports for multiple camera connectivity for machine vision and surveillance applications. In addition, it features a Gen4 x4 M.2 NVMe slot for the latest NVMe SSDs that supports read/ write speeds up to 7000 MB/s; a hot-swappable HDD tray to hot-swap the storage drive without turning off the system or dismantling the chassis; two mPCIe and one M.2 E key slots to install WiFi or 5G/ 4G wireless communication modules. The system is also equipped with 8x DIO, 2x COM ports, and dual display outputs for your industrial embedded application needs.

As a compact embedded computer, Nuvo-9531 delivers excellent computing performance and offers an abundance of I/O connections. It is suitable for a variety of industrial applications, especially when installation space is limited.

Nuvo-9531 제작 블로그 링크입니다.(클릭)

Specifications

System Core
Processor	Supporting Intel® 12th-Gen Alder Lake Core™ CPU (LGA1700 socket, 35W/ 65W TDP) – Intel® Core™ i9-12900E/ i9-12900TE – Intel® Core™ i7-12700E/ i7-12700TE – Intel® Core™ i5-12500E/ i5-12500TE – Intel® Core™ i3-12100E/ i3-12100TE – Intel® Pentium® G7400E/ G7400TE – Intel® Celeron® G6900E/ G6900TESupporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) – Intel® Core™ i9-13900E/ i9-13900TE – Intel® Core™ i7-13700E/ i7-13700TE – Intel® Core™ i5-13500E/ i5-13400E/ i5-13500TE – Intel® Core™ i3-13100E/ i3-13100TE
Chipset	Intel® H610E platform controller hub
Graphics	Integrated Intel® UHD Graphics 770 (32EU) / 730 (24EU)
Memory	Up to 32GB non-ECC DDR4 3200 SDRAM (one SODIMM slot)
TPM	Supports dTPM 2.0

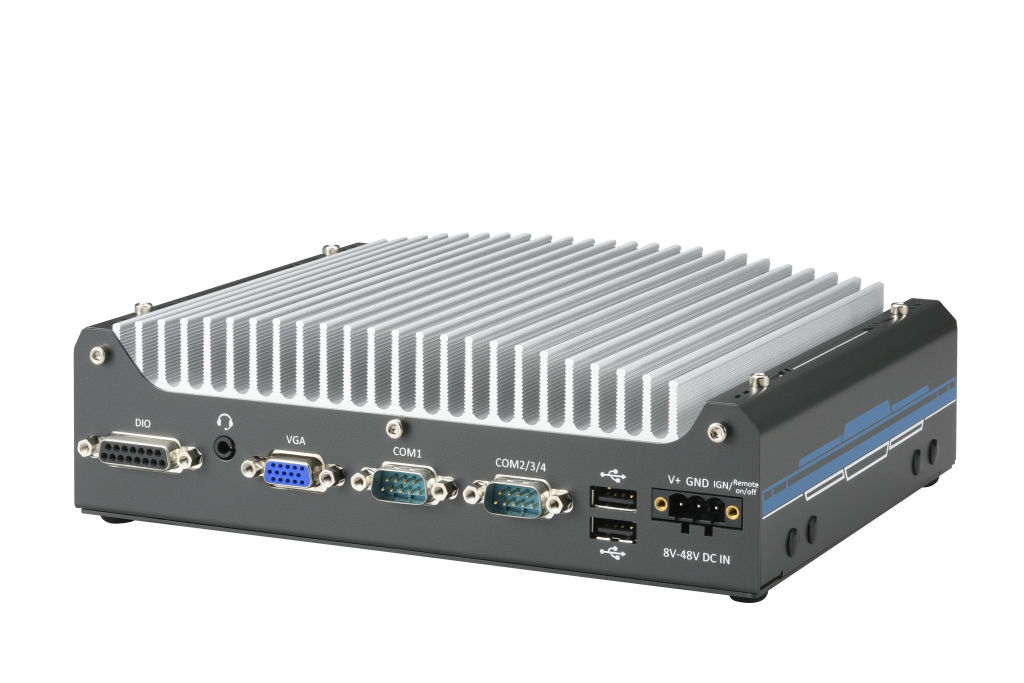

I/O Interface
Ethernet	4x 2.5GBASE-T Ethernet ports by Intel® I226-IT GbE controllers
PoE+	Optional IEEE 802.3at PoE+ PSE for 4×2.5GbE ports 100 W total power budget
USB	4x USB 3.2 Gen1 (5 Gbps) ports 2x USB 2.0 ports
Video Port (Integrated Graphics)	1x VGA output, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution
Serial Port	1x software-programmable RS-232/422/485 ports (COM1) 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2)
Audio	1x 3.5 mm jack for mic-in and speaker-out
Isolated	4-CH isolated DI and 4-CH isolated DO

Expansion Bus
Mini PCI Express	2x full-size mini PCI Express sockets with internal SIM sockets
M.2 E key	1x M.2 2230 E key socket for WiFi5, WiFi6 or Google edge TPU module

Storage interface
SATA HDD	1x hot-swappable 2.5″ HDD/ SSD tray for 7mm HDD/ SSD
M.2	1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD

Power Supply
DC Input	1x 3-pin pluggable terminal block for 8 to 48V DC input with optional ignition power control

Mechanical
Dimension	212 mm (W) x 165 mm (D) x 63 mm (H)
Weight	2.5kg
Mounting	Wall-mount (standard) or DIN-rail mount (optional)

Environmental
Operating temperature	with 35W CPU -25°C ~ 60°C * with 65W CPU (installation of the optional fan kit is recommended) -25°C ~ 60°C /*
Storage temperature	-40°C ~ 85°C
Humidity	10% ~ 90% , non-condensing
Vibration	MIL-STD-810H, Method 514.8, Category 4
Shock	MIL-STD-810H, Method 516.8, Procedure I
EMC	CE/FCC Class A, according to EN 55032 & EN 55035

* For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
** For 65W CPUs, the optional fan kit is recommended for operating at ambient temperatures higher than 50°C.

LIST

Ordering Information

Nuvo-9531

Intel® 13th/12th-Gen Core™ i9/ i7/ i5/ i3 compact fanless computer with 4x 2.5GbE , 4x USB3.2 Gen 1 and a hot-swappable HDD tray

Optional 802.3at PoE+ PSE for 4x 2.5GbE ports

Optional ignition power control

Optional Accessories

PA-160W-OW

160W AC-DC power adapter 20V/8A; 18AWG/120cm; cord end terminals for terminal block, operating temperature: -30°C to 70°C

PA-280W-ET2

280W AC/DC power adapter 24V/ 11.67A ; 16AWG/ 100cm; cord end terminals for terminal block, operating temperature : -30°C to 60°C.(recommended for 65W CPU)

DINRAIL-31

DIN-rail mounting assembly for Nuvo-9531 series

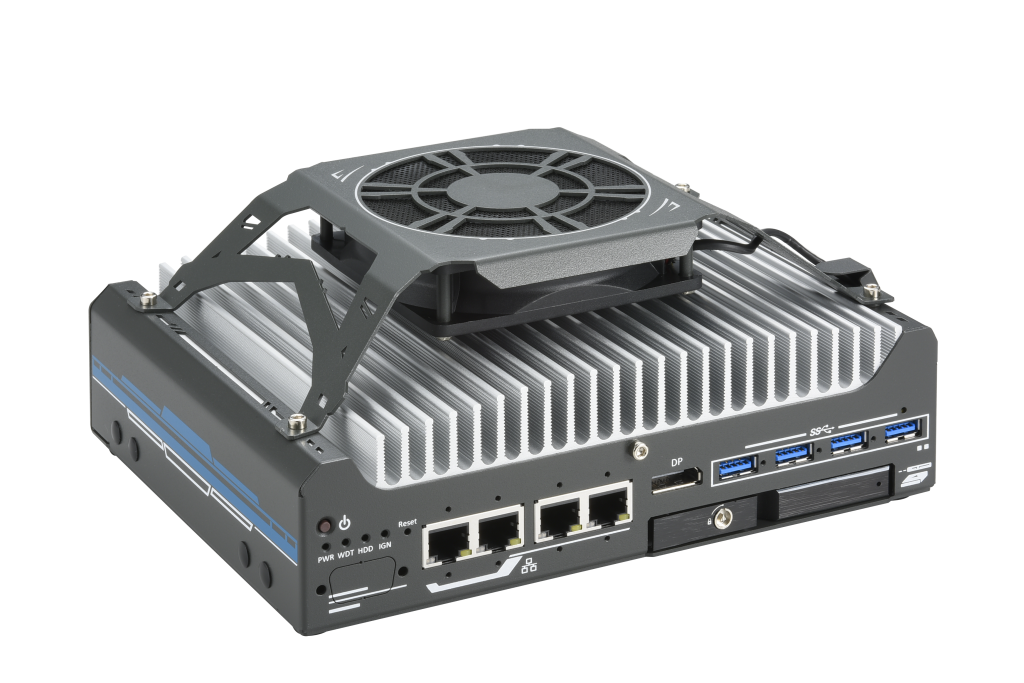

Fan kit

Fan kit with 80mm x 80mm fan for Nuvo-9531 series
