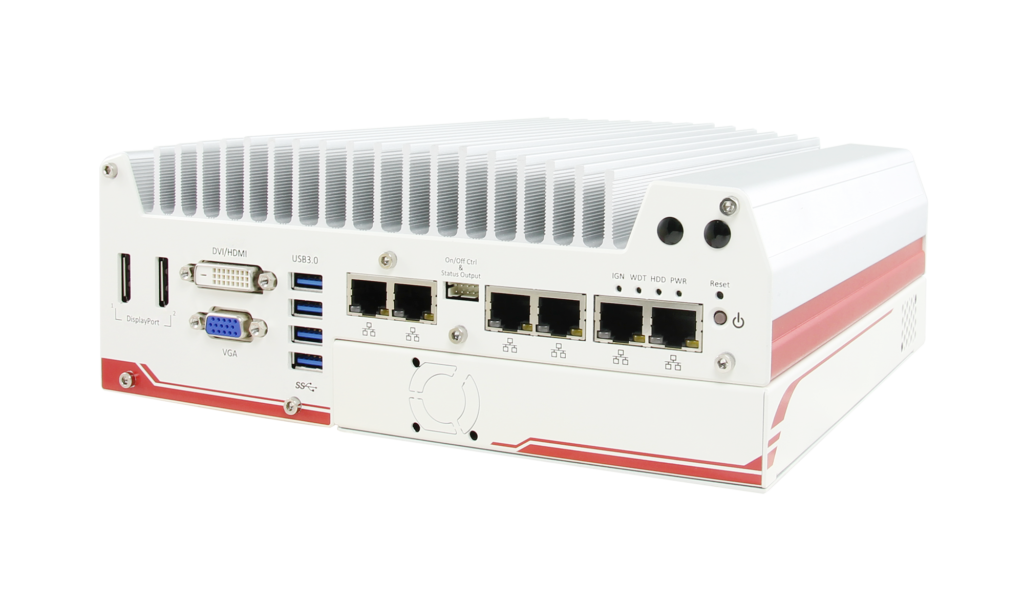

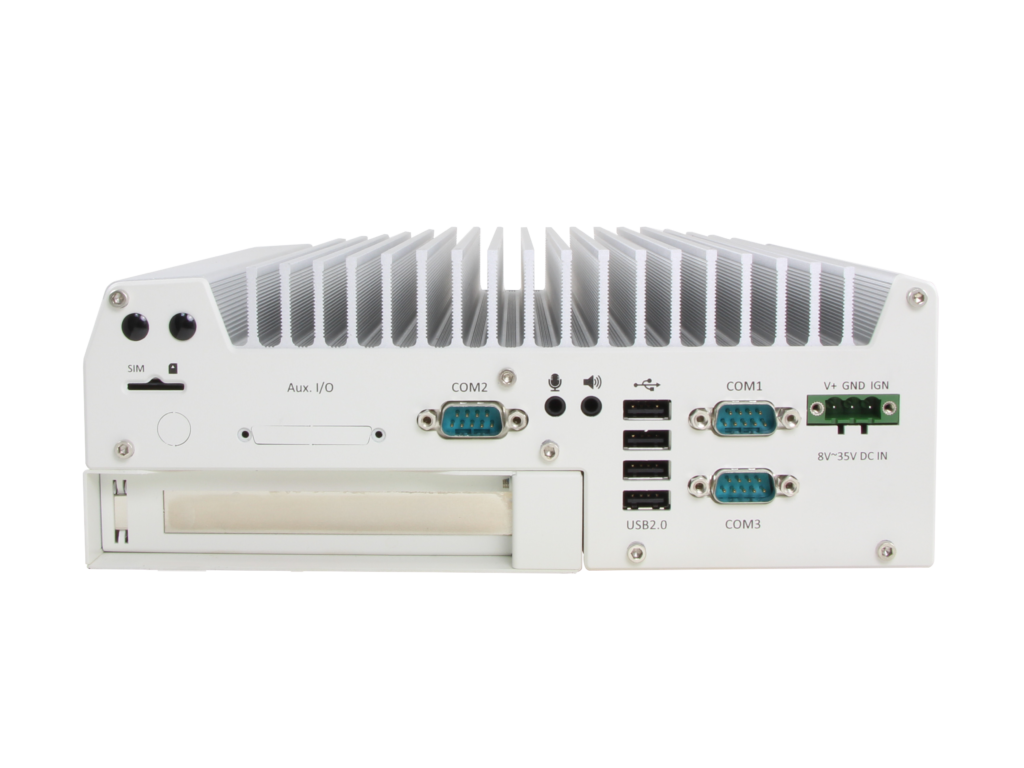

Nuvo-5000 series 차세대 견고한 팬리스 PC

Intel® 6th-Gen Core™ i7/i5/i3 팬리스 임베디드 컴퓨터, GbE 6개, 확장 카세트, MezIO™ 인터페이스

Nuvo-5000 series 차세대 견고한 팬리스 PC

  • Supports Intel® 6th Gen Core™ i7/i5/i3 35W/65W LGA1151 CPU
  • Patented Cassette for PCI/PCIe add-on card accommodation (* R.O.C Patent No. M456527)
  • MezIO™ interface for easy function expansion
  • Rugged, -25°C to 70°C fanless operation
  • Up to 6x GigE ports, supporting 9.5 KB jumbo frame
  • Up to 32 GB, DDR4-2133 SODIMM
  • Accommodates two 2.5″ SATA HDD/SSD with RAID 0/1
  • VGA/DVI/DP triple independent display, supporting 4K2K
Overview
Introduction

첨단 기술을 갖춘 Nuvo-5000은 성능과 범용성을 제공하는 Neousys의 러기드 팬리스 임베디드 컨트롤러입니다. 소켓 타입 6th-Gen Core™ 프로세서를 지원하여 애플리케이션 성능 니즈에 따라 CPU를 선택할 수 있으며, Neousys의 효율적인 쿨링 설계 덕분에 -25°C~70°C의 광범위한 작동 온도를 제공합니다.



Gigabit Ethernet, USB3.0/ USB2.0, COM 포트, VGA/DVI/DP 트리플 디스플레이 출력을 포함해 애플리케이션을 위한 많은 임베디드 I/O 기능을 제공하며, I/O가 충분하지 않을 경우, Neousys의 특허받은 카세트를 통해 기존의 PCIe/PCI카드를 설치하여 I/O를 확장할 수 있습니다.



뿐만 아니라, Nuvo-5000에는 Neousys MezIO™ 인터페이스가 내장되어 있습니다. 특허받은 MezIO™ 설계로 인해 I/O확장을 위한 가성비 높고 안정적인 Neousys만의 팬리스 임베디스 시스템으로 강화됩니다. MezIO™ 모듈은 다양화된 버티컬 시장에 맞게 애플리케이션 지향적 기능을 선사합니다.

Neousys Nuvo-5000은 6th-Gen Intel® CPU, 특허받은 카세트, MezIO™를 탑재하여 모든 산업용 애플리케이션 니즈에 맞는 강력하면서도 다양한 컨트롤러를 완성합니다!



Integrating cutting-edge technologies, Nuvo-5000 is Neousys’ next-generation rugged fanless embedded controller with performance and versatility. It supports socket-type 6th-Gen Core™ processors so one can choose a CPU according to application performance needs while Neousys’ efficient heat-dissipating design offers true -25°C to 70°C wide temperature range operation.

With plenty of embedded I/O functions for applications including Gigabit Ethernet, USB3.0/ USB2.0, COM ports, VGA/DVI/DP triple display outputs and if that’s not enough, Neousys’ patented Cassette offers I/O expansion by installing an off-the-shelf PCIe/PCI card.

On top of all that, Nuvo-5000 further incorporates Neousys MezIO™ interface. The patented design enhances Neousys’ fanless embedded system with a cost-effective and reliable way for I/O expansion. The MezIO™ module can deliver application-oriented functions for diversified vertical markets.

Neousys Nuvo-5000 features 6th-Gen Intel® CPU, patented Cassette and MezIO™ to create a powerful and yet diverse controller for all your industrial application needs!

Specifications
System Core
Processor Core™ i7-6700 (8M Cache, 3.4/4.0 GHz, 65W TDP)*
Core™ i5-6500 (6M Cache, 3.2/3.6 GHz, 65W TDP)*
Core™ i3-6100 (3M Cache, 3.7 GHz, 51W TDP)*
Pentium® G4400 (3M Cache, 2.4 GHz, 54W TDP)*
Celeron® G3900 (2M Cache, 2.8 GHz, 51TDP)*
Core™ i7-6700TE (8M Cache, 2.4/3.4 GHz, 35W TDP)
Core™ i5-6500TE (6M Cache, 2.3/3.3 GHz, 35W TDP)
Core™ i3-6100TE (4M Cache, 2.7 GHz, 35W TDP)
Pentium® G4400TE (3M Cache, 2.4 GHz, 35W TDP)
Celeron® G3900TE (2M Cache, 2.3 GHz, 35W TDP)
Chipset Intel® Q170 Platform Controller Hub
Graphics Integrated Intel® HD Graphics 530 (Core™ i7/i5/i3)
Integrated Intel® HD Graphics 510 (Pentium®)
Memory Up to 32 GB DDR4-2133 SDRAM by two SODIMM sockets
AMT Supports Intel® AMT 11
TPM Supports TPM 2.0

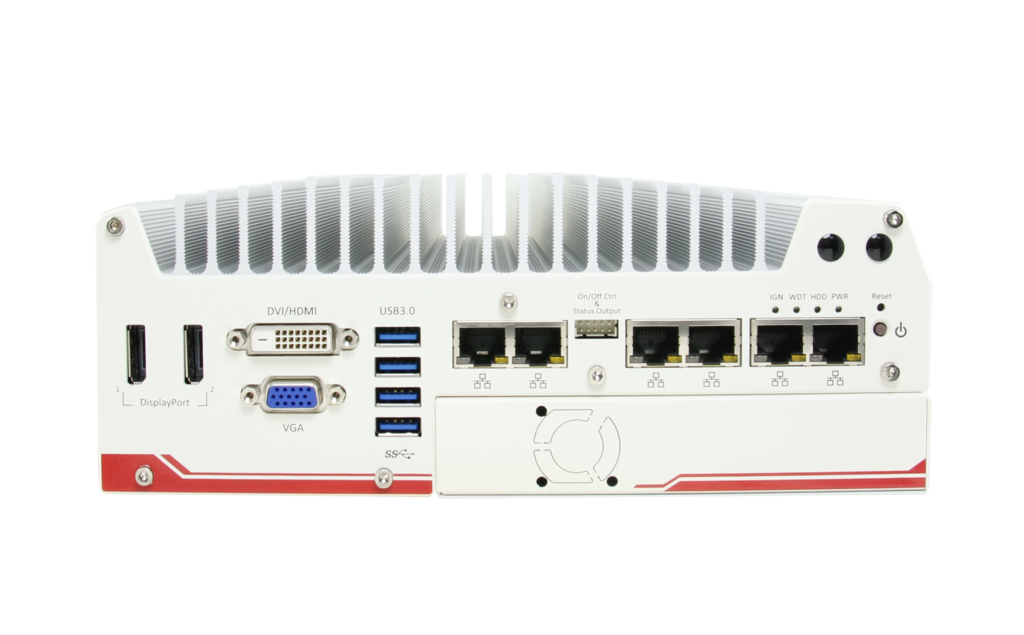

Front-panel I/O Interface
Ethernet 2x Gigabit Ethernet ports by Intel® I219 and I210 (Nuvo-5002E/P)
6x Gigabit Ethernet ports by Intel® I219 and 5x I210 (Nuvo-5006E/P)
PoE+ Optional IEEE 802.3at PoE+ PSE for GbE Port 3 ~ Port 6, 80 W
total power budget
USB 4x USB 3.0 ports via native XHCI controller
4x USB 2.0 ports
Video Port 1x stacked VGA + DVI-D connector
2x DisplayPort connectors, supporting 4K2K resolution
Serial Port 2x software-programmable RS-232/422/485 port (COM1 & COM2)
1x RS-232 port (COM3)
Audio 1x mic-in and 1x speaker-out



Storage Interface
SATA Interface 2x internal SATA port for 2.5″ HDD/SSD installation, supporting RAID 0/1
mSATA 1x full-size mSATA port (mux with mini-PCIe)



Expansion Bus
PCI/PCI Express 1x PCI slot in Cassette (Nuvo-5002P/5006P)
1x PCIe x16 slot @ Gen3, 8-lanes PCIe signals in Cassette
(Nuvo-5002E/5006E)
Mini PCI-E 1x mini PCI-E socket with front-accessible SIM socket
1x mini PCI-E socket with internal SIM socket
(mux with mSATA)
Expandable I/O 1x MezIO™ expansion port for Neousys MezIO™ modules



Power Supply
DC Input 1x 3-pin pluggable terminal block for 8~35VDC DC input
Remote Ctrl. &
Status Output		 1x 10-pin (2×5) wafer connector for
remote on/off control and status LED output



Mechanical
Dimension 240 mm (W) x 225 mm (D) x 90 mm (H)
Weight 4.4 Kg (including 2.5″ HDD and DDR4 SODIMM)
Mounting Wall-mount (standard) or DIN-Rail mount (optional)



Environmental
Operating Temperature i7-6700TE, i5-6500TE, i3-6100TE, Pentium G4400TE (35W TDP)
-25°C ~ 70°C **
i7-6700, i5-6500, i3-6100 (65W/51W TDP)
-25°C ~ 70°C */** (configured as 35W mode)
-25°C ~ 50°C */** (configured as 65W/51W mode)
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
Shock Operating, 50 Grms, Half-sine 11 ms Duration
(w/ SSD, according to IEC60068-2-27)
EMC CE/FCC Class A, according to EN 55022 & EN 55024



* The 100% CPU loading is applied using Passmark® BurnInTest 8.1. For detail testing criteria, please contact Neousys Technology.
**For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required
