Intel® 6th -Gen Core™ i7/i5/i3 컴팩트 팬리스 임베디드 컴퓨터, GbE 3개

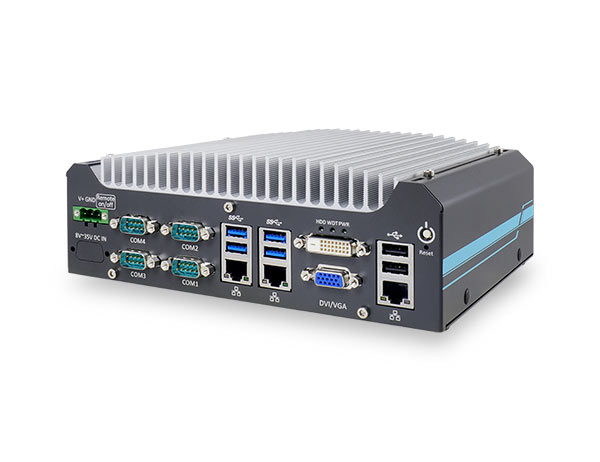

Nuvo-5501 Intel 6세대 코어 i7/ i5 i3 산업용컴퓨터

Compact 221 x 173 x 76 mm footprint
Supports Intel® 6th-Gen Core™ i7/ i5/ i3 LGA 1151 socket CPU
Rugged, -25°C to 70°C fanless operation
3x GbE and 4x USB 3.0 ports
2x RS-232/ 422/ 485 ports and 2x RS-232 ports
VGA + DVI dual display outputs
Accommodates one 3.5″ HDD or 2.5″ HDD/ SSD Optional 8-CH isolated DI and 8-CH isolated DO

Overview

Introduction

Nuvo-5501 시리즈는 비용과 공간을 의식한 소형 팬리스 임베디드 컴퓨터를 특징으로 합니다. 인텔 스카이레이크 플랫폼이 기반이 된 이 제품은 극한 환경에서도 최첨단 성능과 안정적인 작동을 제공하기 위해 설계되었습니다. LGA 1151 소켓은 사용자가 애플리케이션 요구에 맞추기 위해 6세대 인텔 코어 i에서 Celeron 라인업까지 35W CPU를 유연하게 선택할 수 있도록 제공합니다.

Nuvo-5501은 스카이레이크 LGA 1151 소켓 CPU를 지원하는 가장 컴팩트한 팬리스 임베디드 컨트롤러로, 221 x 173 x 76mm에 불과해 제한된 공간에 쉽게 배치할 수 있습니다. 소형 인클로저에서 Nuvo-5501은 3개의 GbE, 4개의 USB 3.0 그리고 4개의 COM 포트를 포함한 풍부한 전면 액세스가 가능한 I/O를 특징으로 합니다. 최신 스토리지 용량과 호환되는 3.5″ HDD를 위한 충분한 공간도 있습니다.

소형 Nuvo-5501은 성능과 신뢰성을 훼손하지 않는 비용 효율적인 솔루션으로, 다양한 산업용 애플리케이션에 이상적인 임베디드 컨트롤러로 자리매김하고 있습니다.

Nuvo-5501 series features compact fanless embedded computer for the cost and space conscious. Based on Intel® Skylake platform, it is designed to provide cutting-edge performance and reliable operation in extreme environment. Its LGA 1151 socket offers users the flexibility to select a 35W CPU from 6th-Gen Intel® Core™ i to Celeron® lineup to suit application needs.

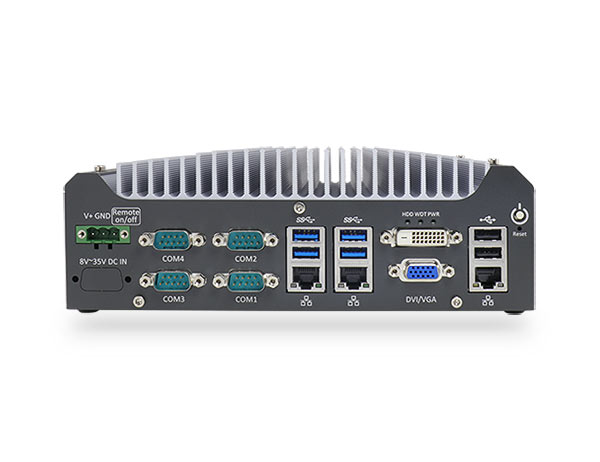

Nuvo-5501 is the most compact fanless embedded controller supporting Skylake LGA 1151 socket CPUs, measuring just 221 x 173 x 76 mm, it is easy to deploy in restricted spaces. In its compact enclosure, Nuvo-5501 features rich, front-accessible I/Os including 3x GbE, 4x USB 3.0 and 4x COM ports. There is even enough room for a 3.5” HDD compatible with the latest storage capacities.

The compact Nuvo-5501 is a cost-effective solution that does not compromise on performance and reliability, making it the ideal embedded controller for various industrial applications.

Specifications

System Core
Processor	Supports following CPUs Intel® Core™ i7-6700TE (8M Cache, 2.4/ 3.4 GHz, 35W TDP) Intel® Core™ i5-6500TE (6M Cache, 2.3/ 3.3 GHz, 35W TDP) Intel® Core™ i3-6100TE (4M Cache, 2.7 GHz, 35W TDP) Intel® Pentium® G4400TE (3M Cache, 2.4 GHz, 35W TDP) Intel® Celeron® G3900TE (2M Cache, 2.3 GHz, 35W TDP)
ChipSet	Intel® H110 platform controller hub
Graphics	Integrated Intel® HD 530/510 controller
Memory	Up to 16GB DDR4-2133 (single SO-DIMM)

I/O Interface
Ethernet Port	1x Gigabit Ethernet port 2x Gigabit Ethernet port
Serial Port	2x software-programmable
USB	4x USB3.0 ports 2x USB2.0 ports

Storage interface
SATA HDD	1x internal SATA port for 3.5″ HDD or 2.5″ HDD/ SSD
mSATA	1x full-size mSATA socket

Power Supply
DC Input	1x 3-pin pluggable terminal block for 8~35 VDC power input

Expansion Bus/ Internal I/O Interface
mini-PCIe	1x full-size mini PCI Express socket
M.2	1x M.2 B key socket for 3G/4G options with SIM socket
USB	1x internal USB2.0 port
Remote Ctrl. & Status Output	1x 2×6-pin 2.0mm pin-header connector for remote on/off control and status LED output

Mechanical
Dimension	221 x 173 x 76 mm
Weight	2.8 kg (incl. CPU, memory and HDD)
Mounting	Wall-mount (standard) or DIN-rail mount (optional)

Environmental
Operating temperature	-25°C ~ 70°C /*
Storage temperature	-40°C ~ 85°C
Humidity	10%~90%, non-condensing
Vibration	Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
Shock	Operating, 50 Grms, half-sine 11 ms duration (w/ SSD, according to IEC60068-2-27)
EMC	CE/FCC Class A, according to EN 55022 & EN 55024

* The 100% CPU loading is applied using Passmark® BurnInTest 8.1. For detail testing criteria, please contact Neousys Technology.
**For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required
