공장 자동화를 위한 가성비 뛰어난 AI 플랫폼, NVIDIA® 200W GPU와 Intel® 9세대/8세대 Core™ 프로세서 지원

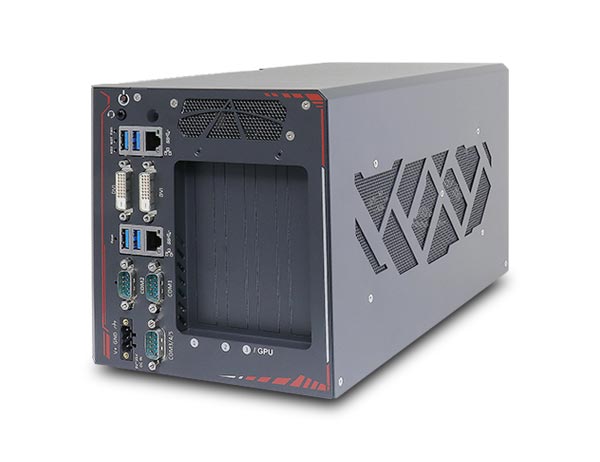

Nuvo-8111 Intel® 9/8세대 박스 PC

Intel® 9th/ 8th-Gen Core™ i7/ i5/ i3, Pentium® and Celeron® LGA1151 CPU
Supports NVIDIA® GPU up to 200W TDP
An additional x4 PCIe, and a PCI slot for add-on cards
-25°C to 60°C wide-temperature operation

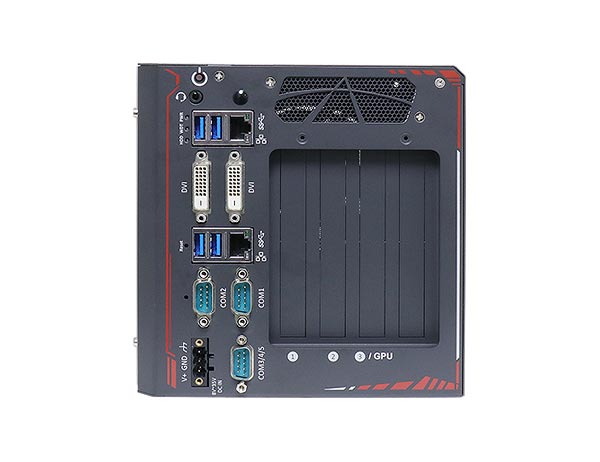

2x GbE, 4x USB 3.1 Gen1 and 5x COM ports
Dual DVI display outputs
Up to 2x 2.5″ SATA HDD/ SSD accommodation and 1x mSATA socket

Overview

Introduction

Nuvo-8111 시리즈는 RTX 3060/3060Ti와 같은 첨단 200W NVIDIA® 그래픽 카드를 지원하도록 특별히 설계된 3개의 확장 슬롯을 갖춘 비용 효율적인 박스 PC입니다. 새로운 GPU 가속 애플리케이션을 위해 FP32에서 최대 20TFLOPS의 엄청난 GPU 성능을 제공하여 공장 자동화, 이미지 인식, 제품 검사, 픽 앤 플레이스 로봇 등의 성능과 효율성을 높입니다.

Nuvo-8111 시리즈는 Intel® 9/8세대 Core™ 프로세서와 H310 칩셋을 활용합니다. GPU 카드를 수용하기 위한 x16 Gen3 PCIe 슬롯 1개와 DIO, AIO, 통신 또는 모션 제어 카드와 같은 산업용 I/O 카드를 위한 추가 1개의 x4 PCIe 및 1개의 PCI 슬롯이 있습니다. 2개의 GbE, 4개의 USB 3.1 Gen1 및 5개의 COM 포트를 포함하여 전면에서 접근 가능한 I/O가 있어 랙에 장착하거나 캐비닛 내부에 배치할 때 쉽게 접근할 수 있습니다. 스토리지 측면에서 시스템은 2.5” SATA SSD/HDD 2개와 mSATA SSD를 수용할 수 있는 mSATA 소켓 1개를 지원합니다.

Neousys Nuvo-8111은 기존 생산 및 공장 자동화에 대한 에지 AI 수요가 지속적으로 증가함에 따라 이러한 요구를 충족하고자 합니다. 최첨단 및 공장 현장에 인공 지능을 제공하는 데 중요한 역할을 하는 중급 및 고급 GPU 지원, 확장 기능, 작고 견고한 디자인을 갖춘 Nuvo-8111은 의심할 여지 없이 자동화를 위한 가장 비용 효율적인 AI 플랫폼입니다.

Nuvo-8111 series is a cost-effective box-PC with 3 expansion slots designed specifically to support an advanced mid to high-end 200W NVIDIA® graphics card, such as an RTX 3060/ 3060 Ti, to offer stunning edge AI performance. Offering tremendous GPU power up to 20 TFLOPS in FP32 for emerging GPU-accelerated applications, they boost the performance and efficiency of factory automation, image recognition, product inspection, pick and place robots, etc.

Nuvo-8111 series leverages an Intel® 9th/ 8th-Gen Core™ processor with H310 chipset. It has one x16 Gen3 PCIe slot for accommodating a GPU card, and an additional x4 PCIe and a PCI slot for industrial I/O cards such as DIO, AIO, communication or motion control card. It features front-accessible I/Os including two GbE, four USB 3.1 Gen1 and five COM ports for easy access when it is rack-mounted or placed inside a cabinet. Storage-wise, the system supports two 2.5” SATA SSDs/ HDDs plus one mSATA socket to house an mSATA SSD.

As edge AI demand continues to grow for traditional production and factory automation, Neousys Nuvo-8111 seeks to fulfill this need. With mid to high-end GPU support, expansion capability, compact and rugged design that plays an important role in bringing artificial intelligence to the edge and factory floors, the Nuvo-8111 is no doubt the most cost-effective AI platform for automation in its class!

Specifications

System Core
Processor	Supporting Intel® 9th/ 8th-Gen Core™ CPU (LGA1151 socket) – Intel® Core™ i7-9700TE/ i7-8700/ i7-8700T – Intel® Core™ i5-9500TE/ i5-8500/ i5-8500T – Intel® Core™ i3-9100TE/ i3-8100*/ i3-8100T – Intel® Pentium® G5400T (4M Cache, 3.1GHz, 35W TDP) – Intel® Celeron® G4900T (2M Cache, 2.9GhHz, 35W TDP)
Chipset	Intel® H310 platform controller hub
Graphics	Integrated Intel® UHD graphics 630, or independent NVIDIA® RTX 3060/ 3060 Ti via x16 PEG port
Memory	Up to 32 GB DDR4 2666 SDRAM (one SODIMM slots)

I/O Interface
Ethernet Port	1x Gigabit Ethernet port by Intel® I219-LM 1x Gigabit Ethernet port by Intel® I210-IT
USB 2.0	1x USB 2.0 port with Type-A connector (internal) 2x USB 2.0 port with 2×8 pins box header (internal)
USB 3.2	4x USB 3.2 Gen1 (5 Gbps) ports
Video Port	2x DVI-D connector, supporting 1920 x 1200 resolution
Serial Port	1x software-programmable RS-232/ 422/ 485 port (COM1) 1x software-programmable RS-422/ 485 port (COM2) 3x 3-wire RS-232 ports (COM3/ COM4/ COM5)
Audio	1x 3.5 mm jack for mic-in and speaker-out

Storage interface
SATA HDD/ SSD	2x internal SATA ports for 2.5” HDD/ SSD installation
mSATA	1x full-size mSATA port

Internal Expansion Bus
PCI Express	1x PCIe x16 slot @Gen3, 16-lane (for GPU installation) 1x PCIe x4 slot @Gen2, 4-lane signal
PCI	1x 33MHz/ 32-bit 5V PCI slot
mSATA	1x full-size mSATA socket (mux with USB 2.0 signals)

Power Supply
DC Input	1x 3-pin pluggable terminal block for 24V DC input

Mechanical
Dimension	174 mm (W) x 330 mm (D) x 174 mm (H)
Weight	4.5kg
Mounting	Optional wall-mount bracket

Environmental
Operating Temperature	-25°C to 60°C**
Storage Temperature	-40°C ~85°C
Humidity	10%~90% , non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC	CE/FCC Class A, according to EN 55032 & EN 55035

LIST

Ordering Information

Nuvo-8111

Intel® 9th/ 8th-Gen Core™ i7/ i5/ i3 expansion box PC with 2x PCIe and 1x PCI, supporting NVIDIA® 200W graphics card

Optional Accessories

PA-280W-ET2

280W AC/DC power adapter 24V/11.67A; 16AWG/100cm; cord end terminals for terminal block, operating temperature : -30°C to 60°C

Wmkit-H-Nuvo8111

Wall mounting assembly for Nuvo-8111 series, horizontal type
