Intel® 9th/8th-Gen Core™ i7/i5/i3 확장형 산업용 컴퓨터, PCIe/PCI 슬롯 최대 5개

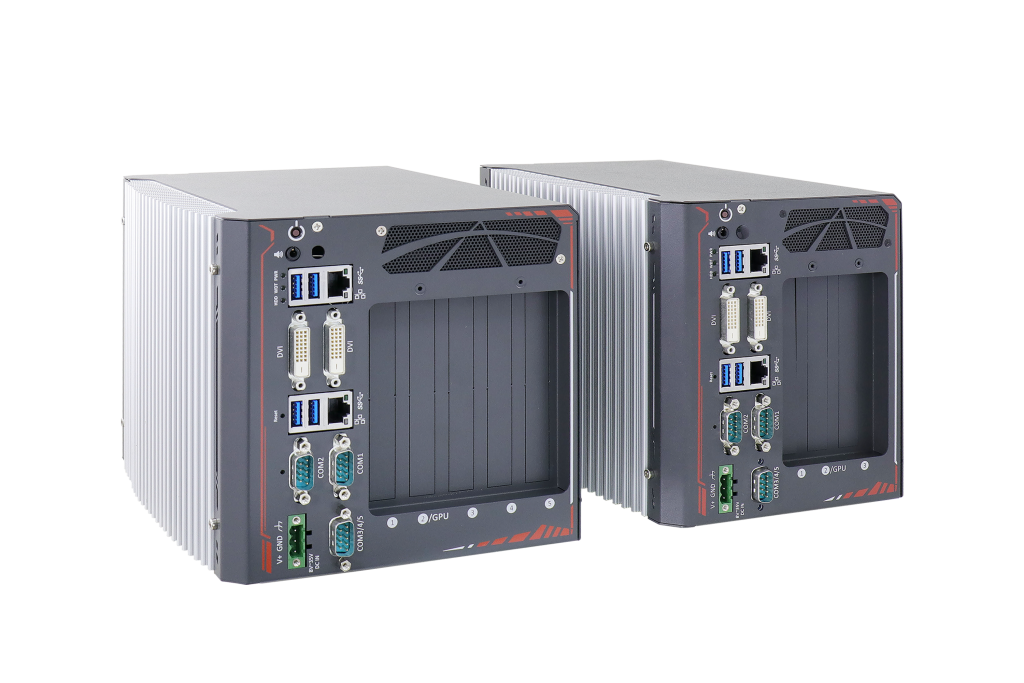

Nuvo-8000 Series Intel® 9/8세대 박스 PC

Supports Intel® 9th/ 8th-Gen Core™ i7/ i5/ i3, Pentium® and Celeron® LGA1151 CPU
Up to five expansion slots, a mixed combination of x16 PCIe, x4 PCIe, and PCI slots
Dedicated heat dissipation for -25°C to 60°C wide-temperature operation
2x GbE, 4x USB 3.1 Gen1 and 5x COM ports
Dual DVI display outputs
Up to 2x 2.5″ SATA HDD/ SSD accommodation and 1x mSATA socket
Wall-mounting and rack-mounting available

Overview

Introduction

Nuvo-8000 시리즈 시스템은 부피가 큰 랙 마운트 또는 월 마운트 IPC 시스템을 완벽하게 대체할 수 있는 최대 5개의 확장 슬롯을 갖춘 비용 효율적인 박스 PC입니다. H310 칩셋과 함께 Intel® 9/8세대 Core™ i 데스크톱 프로세서를 활용하여 기존 IPC와 동일한 컴퓨팅 성능을 제공하지만, 저렴한 가격으로 훨씬 더 작은 설치 공간을 사용합니다.

Nuvo-8000 시리즈에는 다양한 확장 구성을 갖춘 4가지 모델이 있습니다. 산업 자동화 또는 머신 비전 애플리케이션 요구사항에 가장 적합한 최대 3개의 PCIe 슬롯이 있는 시스템으로 선택할 수 있습니다. 2개의 GbE, 4개의 USB 3.1 Gen1 및 5개의 COM 포트를 포함하여 전면 액세스 가능한 I/O를 갖추고 있어 랙에 장착하거나 캐비닛 내부에 배치할 때 쉽게 액세스 할 수 있습니다. 스토리지 측면에서 Nuvo-8000 시리즈 시스템에는 2.5” SATA SSD/HDD 2개와 mSATA 소켓 1개가 있어 다양한 스토리지 디바이스를 지원합니다. 또한 이 시스템은 125W NVIDIA® GPU를 지원하여 최신 딥러닝 애플리케이션을 위한 TFLOPS 컴퓨팅 성능을 제공할 수 있습니다.

Nuvo-8000 시리즈 시스템은 산업 요구 사항을 충족하도록 설계되었습니다. 기존의 IPC 확장 기능을 유지하고 산업 수준의 신뢰성과 함께 매우 컴팩트한 폼 팩터로 다양한 애플리케이션 요구사항을 충족합니다.

Nuvo-8000 series systems are cost-effective box-PCs with up to 5 expansion slots that can perfectly replace your bulky rack-mount or wall-mount IPC systems. Leveraging Intel® 9th/ 8th-Gen Core™ i desktop processor with H310 chipset, it delivers the same computing power as traditional IPCs but in a much more compact footprint with a budgetary price.

There are four models in the Nuvo-8000 series with various expansion configurations. Customers can choose from a compact 3-slot PCIe system to a 5-slot system with up to three PCIe slots or up to four PCI slots, that best suit their industrial automation or machine vision application needs. It features front-accessible I/Os including two GbE, four USB 3.1 Gen1 and five COM ports that make it easier to access when it is rack-mounted or placed inside a cabinet. Storage wise, Nuvo-8000 series systems have two 2.5” SATA SSD/ HDD and one mSATA socket to support various storage devices. The system can also support a 125W NVIDIA® GPU to offer TFLOPS computing power for modern deep-learning applications.

Nuvo-8000 series systems are designed with satisfying industrial demands in mind. Retaining traditional IPC expansion capabilities and fulfilling diverse application requirements in an extremely compact form-factor with industrial-grade reliability

Specifications

System Core
	Nuvo-8003	Nuvo-8023	Nuvo-8032	Nuvo-8041
Processor	Supporting Intel® 9th/ 8th-Gen Core™ CPU (LGA1151 socket) – Intel® Core™ i7-9700TE/ i7-8700/ i7-8700T – Intel® Core™ i5-9500TE/ i5-8500/ i5-8500T – Intel® Core™ i3-9100TE/ i3-8100*/ i3-8100T – Intel® Pentium® G5400T (4M Cache, 3.1GHz, 35W TDP) – Intel® Celeron® G4900T (2M Cache, 2.9GhHz, 35W TDP)
Chipset	Intel® H310 platform controller hub
Graphics	Integrated Intel® UHD Graphics 630, or independent 125W GPU via x16 PEG port
Memory	Up to 32 GB DDR4 2666 SDRAM (one SODIMM slot)

I/O Interface
Ethernet Port	1x Gigabit Ethernet port by Intel® I219-LM 1x Gigabit Ethernet port by Intel® I210-IT
Video Port	2x DVI-D connectors, each supporting 1920×1200 resolution
Serial Port	1x software-programmable RS-232/ 422/ 485 ports (COM1) 1x software-programmable RS-422/ 485 ports (COM2) 3x 3-wire RS-232 ports (COM3/ COM4/ COM5)
USB	4x USB 3.1 Gen1 (5 Gbps) ports 1x USB 2.0 port with Type-A connectors(internal) 2x USB 2.0 port with 2×8 pins box header(internal)
Audio	1x 3.5 mm jack for mic-in and speaker-out

Storage Interface
SATA HDD	2x internal SATA ports for 2.5” HDD/ SSD installation
mSATA	1x full-size mSATA port (mux with mini-PCIe)

Expansion Bus
PCI/PCI Express	1x PCIe x16 slot @Gen3, 16-lanes 1x PCIe x8 slot @Gen2, 4-lanes 1x PCIe x4 slot @Gen2, 1-lane	1x PCIe x16 slot @Gen3, 16-lanes 1x PCIe x4 slot @Gen2, 2-lanes 1x PCIe x4 slot @Gen2, 1-lane	1x PCIe x16 slot @Gen3, 16-lanes 1x PCIe x8 slot @Gen2, 4-lanes	1x PCIe x16 slot @Gen3, 16-lanes
PCI	–	2x 33MHz/ 32-bit 5V PCI slots	3x 33MHz/ 32-bit 5V PCI slots s	4x 33MHz/ 32-bit 5V PCI slots
mSATA	1x full-size mSATA socket (mux with USB 2.0 signals)

Power Supply
DC Input	1x 3-pin pluggable terminal block for 8~35VDC DC input

Mechanical
Dimension	150 mm (W) x 236mm (D) x 174 mm (H)	184 mm (W) x 236 mm (D) x 174 mm (H)	184 mm (W) x 236 mm (D) x 174 mm (H)	184 mm (W) x 236 mm (D) x 174 mm (H)
Weight	3 Kg	3.6 Kg	3.6 Kg	3.6 Kg
Mounting	Wall-mount (standard) DIN-Rail mounting (optional) Rack-mount (optional)

Environmental
Operating Temperature	-25°C ~ 60°C
Storage Temperature	-40°C ~85°C
Humidity	10%~90% , non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC	CE/FCC Class A, according to EN55032 & EN55035

*Due to thermal limitations, 65W CPUs will be configured to operate in 35W mode by default.

LIST

Ordering Information

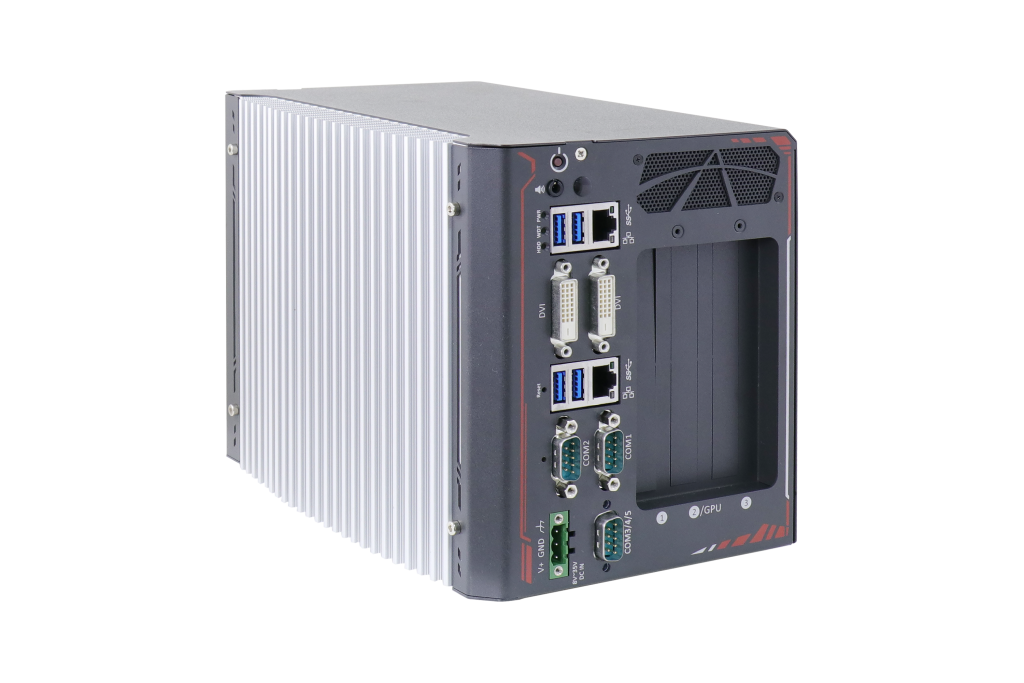

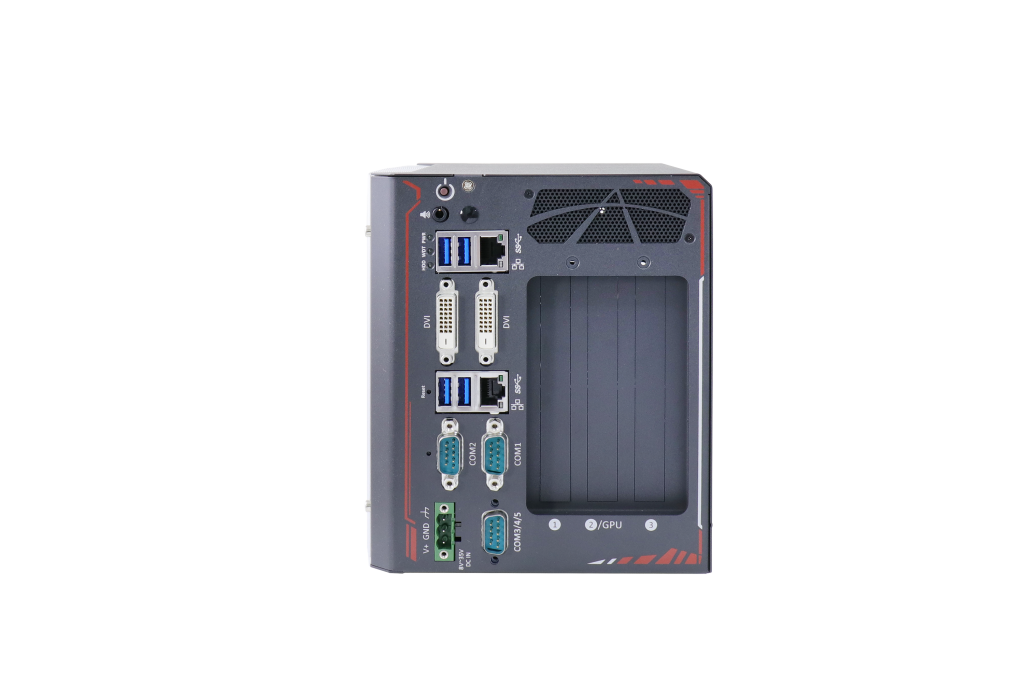

Nuvo-8003

Intel® 9/ 8th-Gen Core™ i7/ i5/ i3 fanless rugged Box-PC with 3x PCIe expansion slots

Nuvo-8023

Intel® 9/ 8th-Gen Core™ i7/ i5/ i3 fanless rugged Box-PC with 3x PCIe and 2x PCI expansion slots

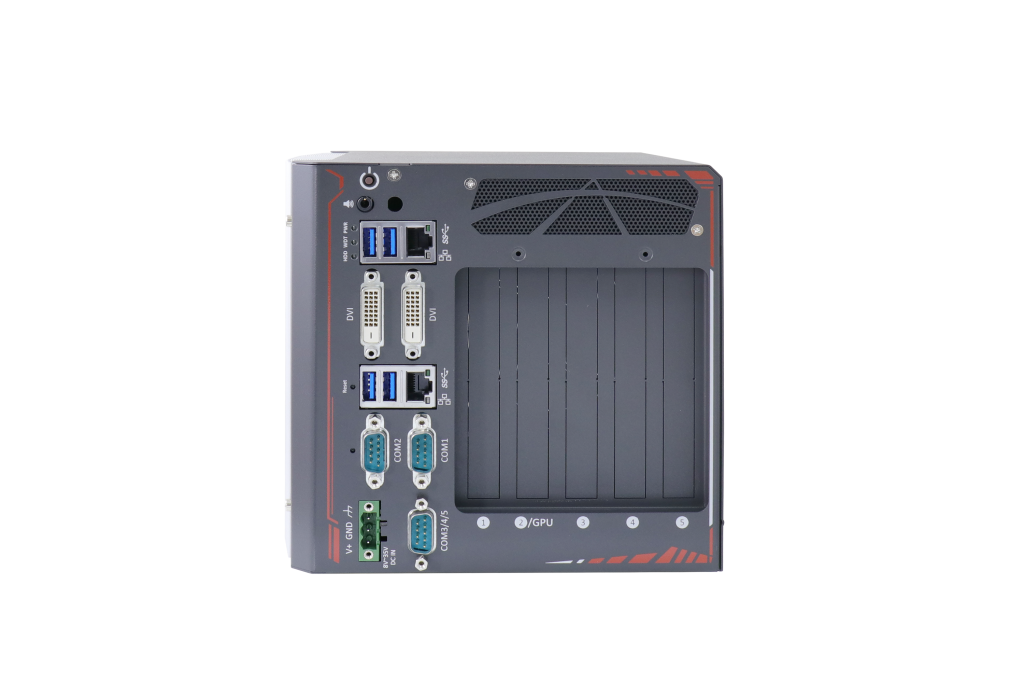

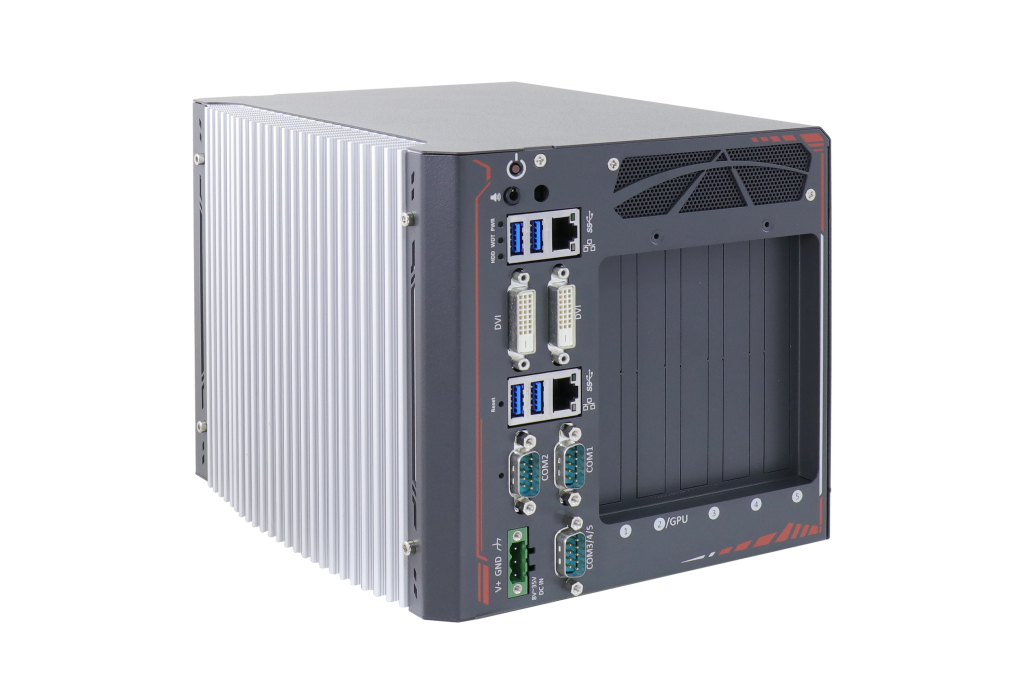

Nuvo-8032

Intel® 9/ 8th-Gen Core™ i7/ i5/ i3 fanless rugged Box-PC with 2x PCIe and 3x PCI expansion slots

Nuvo-8041

Intel® 9/ 8th-Gen Core™ i7/ i5/ i3 fanless rugged Box-PC with 1x PCIe and 4x PCI expansion slots

Optional Accessories

PA-120W-OW

120W AC/DC power adapter, 20V/6A; 18AWG/120cm; cord end terminals for terminal block, operating temperature : -30 to 70°C

PA-160W-OW

160W AC/DC power adapter 20V/ 8A; 18AWGx4C/ 120cm, cord end terminals for terminal block, operating temperature : -30°C to 70 °C

PA-280W-ET2

280W AC/DC power adapter 24V/ 11.67A ; 16AWG/ 100cm; cord end terminals for terminal block, operating temperature : -30°C to 60°C

Fankit-92

Fan assembly for Nuvo-8000, 92x92x25 mm

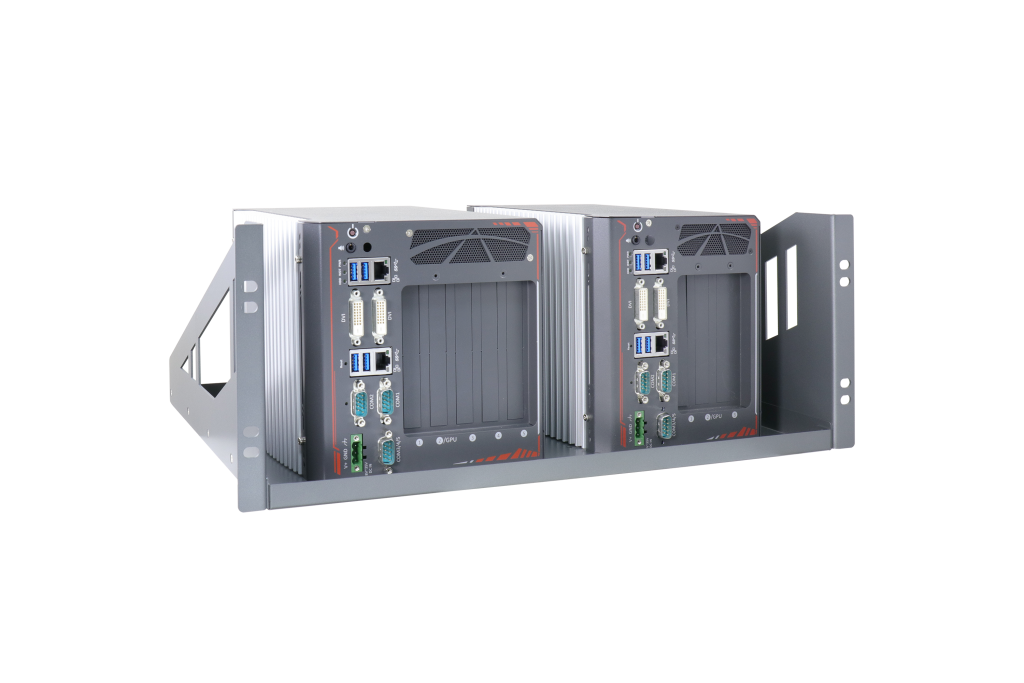

Rmkit-Nuvo6000

Rack mounting assembly for Nuvo-6000/ 8000 series
