8-port RS-232/ 422/ 485 MezIO™ Module
Specifications
| MezIO-C180 / MezIO-C181 | |
|---|---|
| # of Port | 4x RS-232/ 422/ 485, 4x RS-232 // 4x RS-232/ 422/ 485, 4x RS-422/ 485 |
| Baud Rate | 50 bps to 921600 bps |
| FIFO | 256-byte TX and RX FIFOs |
| ESD Protection | 8 kV |
| Interface Signals | RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422: TxD+, TxD-, RxD+, RxD-, GND RS-485: Data+, Data-, GND |
| Connector | 68-pin SCSI-II female connector |
| OS Support | Windows 7/ 8/ 8.1/ 10 and Linux kernel 2.6.32 or later |
Ordering Information

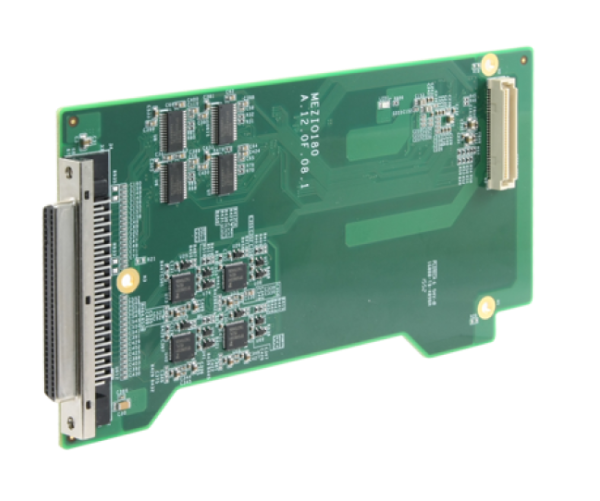

MezIO-C180-50
4x RS-232/ 422/ 485 and 4x RS-232 ports MezIO™ module, for Nuvo-7000/ Nuvo-5000/ POC-500/ POC-300 Series
MezIO-C180-12
4x RS-232/ 422/ 485 and 4x RS-232 ports MezIO™ module, for POC-120 series

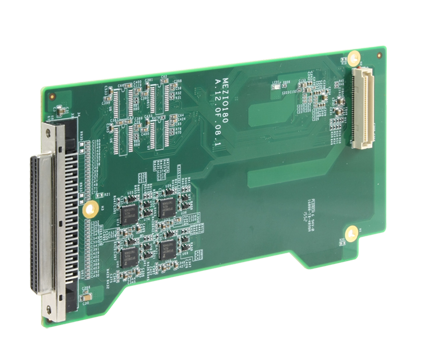

MezIO-C181-50
4x RS-232/ 422/ 485 and 4x RS-422/ 485 ports MezIO™ module, for Nuvo-7000/ Nuvo-5000/ POC-500/ POC-300 Series
MezIO-C181-12
4x RS-232/ 422/ 485 and 4x RS-422/ 485 ports MezIO™ module, for POC-120 series
Cbl-S68M-8DB9M-50CM
SCSI-68(M) to 8x DB-9(M) cable, 50 cm
