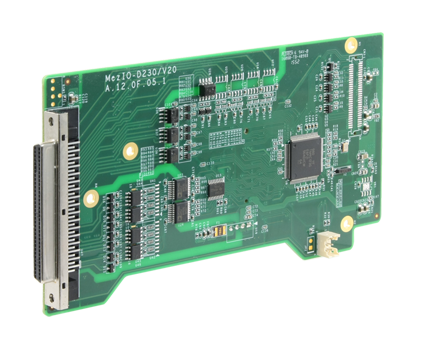

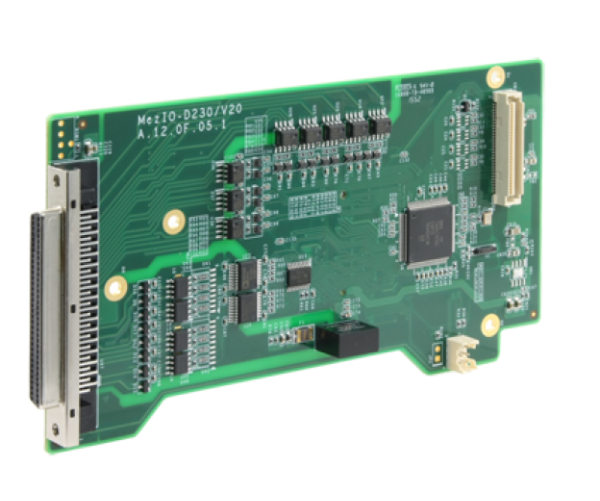

16/ 8-CH Isolated Digital I/O MezIO™ Module
Specifications
| MezIO-D230 / MezIO-D220 | |
|---|---|
| Isolated Digital Input | |
| # of Port | 16 / 8 |
| Logic Level | Logic high: 5 to 24 VDC ; Logic low: 0 to 1.5 VDC |
| Isolation Voltage | 2500 Vrms |
| Operation Mode | Polling, COS |
| Isolated Digital Output | |
|---|---|
| # of Port | 16 / 8 |
| Operation Voltage |
Up to 24 VDC |
| Sink Current | 500 mA for each channel (100% duty) |
| Isolation Voltage | 2500 Vrms |
| Operation Mode | Polling, COS |
Ordering Information
MezIO-D230-50
16-CH isolated DI and 16-CH isolated DO MezIO™ module, for Nuvo-7000/ Nuvo-5000/ POC-500/ POC-300 Series
MezIO-D230-12
16-CH isolated DI and 16-CH isolated DO MezIO™ module, for POC-120 series
MezIO-D220-50
8-CH isolated DI and 8-CH isolated DO MezIO™ module, for Nuvo-7000/ Nuvo-5000/ POC-500/ POC-300 Series
MezIO-D220-12
8-CH isolated DI and 8-CH isolated DO MezIO™ module, for POC-120 series
Cbl-S68M-S68M-100CM
SCSI-68(M) to SCSI-68(M) cable, 100 cm
TB-10
