Supports dual NVIDIA RTX™ series 350W GPUs 지원하는 산업용 Fanless PC

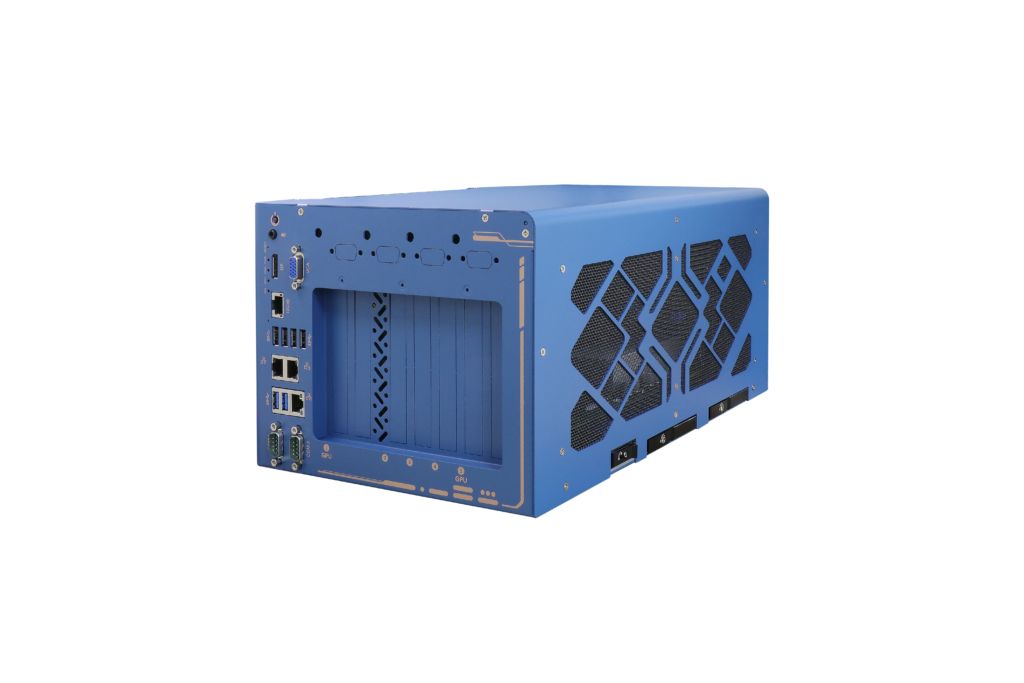

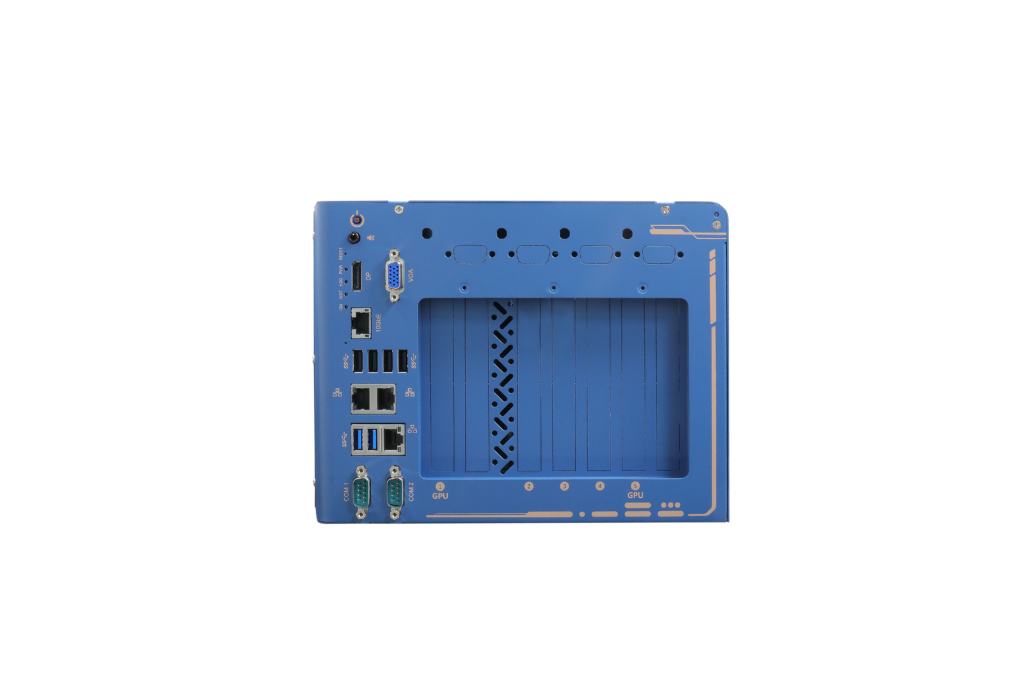

Nuvo-10208GC GPU 산업용 PC (New!)

Supports dual NVIDIA RTX™ series 350W GPUs with patent-pending locking mechanism
Intel® 13th/12th-Gen Core™ 35W/ 65W LGA1700 CPU
Up to 64G DDR5 4800 with Intel R680E PCH (2x SODIMM)
Three x8, Gen3 PCIe slots (x4 signal) for add-on cards
2x 2.5GbE and 1x GbE and 1x optional 10GBASE-T Ethernet
1x internal M.2 NVMe, 2x 2.5″ SATA trays and 1x optional NVMe tray
Support 8 to 48V wide-range DC input with ignition power control
Rugged, -25°C to 60°C operation

Overview

Introduction

Nuvo-10208GC는 자율 주행, 비전 검사 및 감시 어플리케이션에 맞춰 FP32에서 최대 97 TFLOPS의 GPU 성능을 제공할 수 있도록 듀얼 RTX 40 시리즈/RTX A6000/A4500 GPU 카드를 지원하는 Intel® 13/12세대 러기드 엣지 AI 플랫폼입니다.

최대 24 코어와 32 스레드의 Intel® 13/12세대 CPU로 구동되는 산업용 컴퓨터 Nuvo-10208GC는 이전 Intel 10세대 또는 11세대 플랫폼에 비해 최대 2배의 컴퓨팅 성능을 제공합니다. 극심한 온도 조건에서 전반적 시스템 성능을 최적화할 수 있도록 CPU 및 2개의 350W GPU에 입증된 열 분산 설계를 가지고 있습니다. Nuvo-10208GC는 더 크고 더 무거운 NVIDIA® RTX™ 40 시리즈의 견고한 장착을 위해 GPU를 섀시에 고정시키는 혁신적인 GPU 잠금 브래킷 설계를 특징으로 합니다. 또다른 특징으로는 온로드 및 오프로드 차량용 어플리케이션에 극도로 견고한 안정성을 보장하는 Neousys의 특허 받은 댐핑 브래킷이 있습니다.

산업용 컴퓨터 Nuvo-10208GC는 또한 2.5GbE/GbE 3개, USB3.2 Gen2 6개, M.2 M-Key 2280 Gen4x4 NVMe socket 1개 같은 다양한 I/O, RAID 0/1 성능의 듀얼 SATA Hot swap tray, 듀얼 디스플레이 포트 및 기능 확장을 위한 추가 PCIe 슬롯 3개 등을 통합했습니다. 더욱이, 옵션 사양으로 고대역폭 데이터 전송을 위한 추가 10G 이더넷 포트 1개, 그리고 데이터 고속 저장용 탈착 가능한 데이터 스토리지 M.2 2280 NVMe tray 1개를 선택할 수 있습니다.

Intel의 13/12세대 플랫폼, 풍부한 I/O 인터페이스가 있는 입증된 써멀 및 러기드 메커니즘 설계를 활용한 Nuvo-10208GC는 다양한 산업용 엣지 AI 어플리케이션에 맞춰 전례없이 뛰어난 GPU 및 CPU 컴퓨팅 파워를 제공하는 러기다이즈드 엣지 AI 플랫폼입니다.

Nuvo-10208GC is an Intel® 13th/ 12th-Gen rugged edge AI platform supporting dual RTX 40 series/ RTX A6000/A4500 GPU cards to offer GPU performances up to 97 TFLOPS in FP32 for autonomous driving, vision inspection and surveillance applications

Powered by Intel® 13th/ 12th-Gen CPU with up to 24 cores and 32 threads, Nuvo-10208GC offers up to twice the performance when compared to previous Intel 10th or 11th Gen platforms. It inherits proven thermal dissipation design for the CPU and two 350W GPUs to optimize overall system performance in harsh temperature conditions. To secure the bigger and heavier NVIDIA RTX™ 40 series GPU, Nuvo-10208GC features innovative, patent-pending GPU locking brackets to fasten GPUs to the chassis. It also features Neousys’ patented damping bracket to guranatee rock-solid reliability for on-road and off-road in-vehicle applications.

Nuvo-10208GC also incorporates an abundance of I/Os such as 3x 2.5GbE/GbE, 6x USB3.2 Gen2, 1x M.2 M key 2280 Gen4x4 NVMe, dual SATA trays with RAID 0/1 capability, dual display ports and three additional PCIe slots for function expansion. Moreover, it’s equipped with one optional 10G Ethernet port for high-bandwidth data transmission, and one optional M.2 2280 NVMe tray for high-speed, removable data storage. Utilizing Intel’s 13th/ 12th-Gen platform, proven thermal and rugged mechanical designs with rich I/O interfaces, Nuvo-10208GC is a ruggedized edge AI platform that offers unprecedented GPU and CPU computing power for various industrial edge AI applications.

Specifications

System Core
Processor	Supporting Intel® 13th-Gen Core™CPU (LGA1700 socket, 65W/ 35W TDP) – Intel® Core™ i9-13900E/ i9-13900TE – Intel® Core™ i7-13700E/ i7-13700TE – Intel® Core™ i5-13500E/ i5-13400E/i5-13500TE – Intel® Core™ i3-13100E/ i3-13100TESupporting Intel® 12th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) – Intel® Core™ i9-12900E/ i9-12900TE – Intel® Core™ i7-12700E/ i7-12700TE – Intel® Core™ i5-12500E/ i5-12500TE – Intel® Core™ i3-12100E/ i3-12100TE – Intel® Pentium® G7400E/ G7400TE – Intel® Celeron® G6900E/ G6900TE
Chipset	Intel® R680E Platform Controller Hub
Graphics	Integrated Intel® UHD Graphics 770 (32EU) / 730 (24EU)
Memory	Up to 64GB ECC/ non-ECC DDR5 4800 SDRAM (two SODIMM slots)
AMT	Supports Intel vPro/ AMT 16.0
TPM	Supports dTPM 2.0

I/O Interface
Ethernet	2x 2.5G Ethernet by I226-IT and 1x Gigabit Ethernet by I219-LM
10G Ethernet	Optional 1x 10GBASE-T port by Marvell AQC113CS, supporting NBASE-T (5G/ 2.5G) and 1000BASE-T
USB 3.2	6x USB 3.2 Gen2x1 (10 Gbps) ports
USB 2.0	1x USB 2.0 ports (internal for dongle use)
Serial Port	2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2)
Video Port (Integrated Graphics)	1x VGA output, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution
Audio	1x 3.5 mm jack for mic-in and speaker-out

Storage Interface
SATA HDD	2x hot-swappable HDD trays for 2.5″ HDD/ SSD installation(support RAID 0/ 1)
M.2	1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD Optional 1x M.2 2280 M key tray (PCIe Gen4 x4) for NVMe SSD

Expansion Bus
PCI Express	2x PCIe x16 slot@Gen4, 8-lanes 3x PCIe x8 slot@Gen3, 4-lanes
M.2	1x M.2 2242/3052 B key socket with internal SIM sockets
mini-PCIe	2x full-size mini PCI Express sockets with internal SIM sockets

Power Supply
DC Input	3-pin+ 4-pin pluggable terminal block for 8~48V DC input with ignition control

Mechanical
Dimension	268 mm (W) x 400 mm (D) x 196 mm (H)
Weight	6.5 kg
Mounting	Wall-mounting with damping bracket

Environmental
Operating Temperature	With 35W CPU and dual NVIDIA® 350W GPU -25°C to 60°C * with 65W CPU and dual NVIDIA® 350W GPU -25°C ~ 60°C /* (with optional fan kit) -25°C ~ 50°C /* (without optional fan kit)
Storage Temperature	-40°C ~ 85°C
Humidity	10%~90% , non-condensing
Vibration	MIL-STD-810H, Method 514.8, Category 4
Shock	MIL-STD-810H, Method 516.8, Procedure I
EMC	CE/ FCC Class A, according to EN 55032 & EN 55035

* For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
** For 65W CPUs, the optional fan kit is recommended for operating at ambient temperatures higher than
50°C.

LIST

Ordering Information

Nuvo-10208GC

Industrial-grade Edge AI Platform supporting dual NVIDIA® RTX series 350W GPU Cards, Intel® 13th/12th-Gen Core™ processor with 3x additional PCIe slots

Optional 10GbE and M.2 2280 M key tray (PCIe Gen4 x4)

Optional Accessories

AccsyBx-FAN-Nuvo10208GC

Fan assembly for Nuvo-10208GC series, 92x92x25 mm

TY-NVMe- Nuvo10208GC

M.2 NVMe 2230/42/60/80 SSD Tray

Cblkit-GPWR-N10108C_N10208GC

GPU power cable kit compatible with RTX A4000, A5000, and RTX A6000 for the Nuvo-10208GC. Wafer ATX3.0 PCIe 5.0

12VHPWR(12+4P) to x2 Wafer 4.2 6P + 2P, Black, 20AWG, -20°C to +80°C, Length: 35cm

Optional 1x10GbE

PA-600W-ENC

600W AC/DC power adapter 24V/25A; cord end terminals for terminal block, operating temperature : -20°C to 70°C.

PA-1000W

AC/DC power supply providing 1000W output power for 90V – 264V AC input voltage and offers rated voltage 24V
