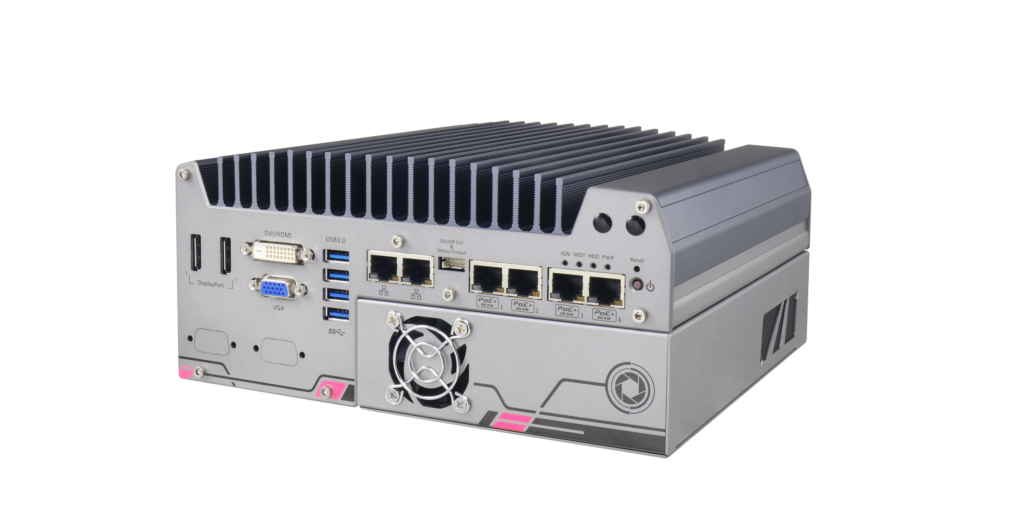

Nuvis-5306RT Series 강력한 머신 비전 컨트롤러

Intel® 6th-Gen Skylake 머신 비전 컨트롤러, 비전 특화 I/O, 실시간 컨트롤 및 GPU 컴퓨팅

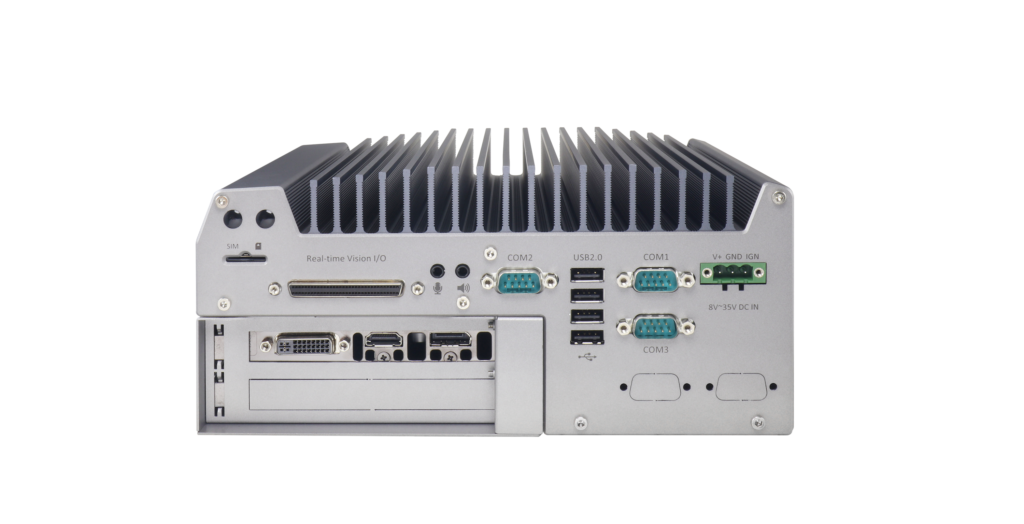

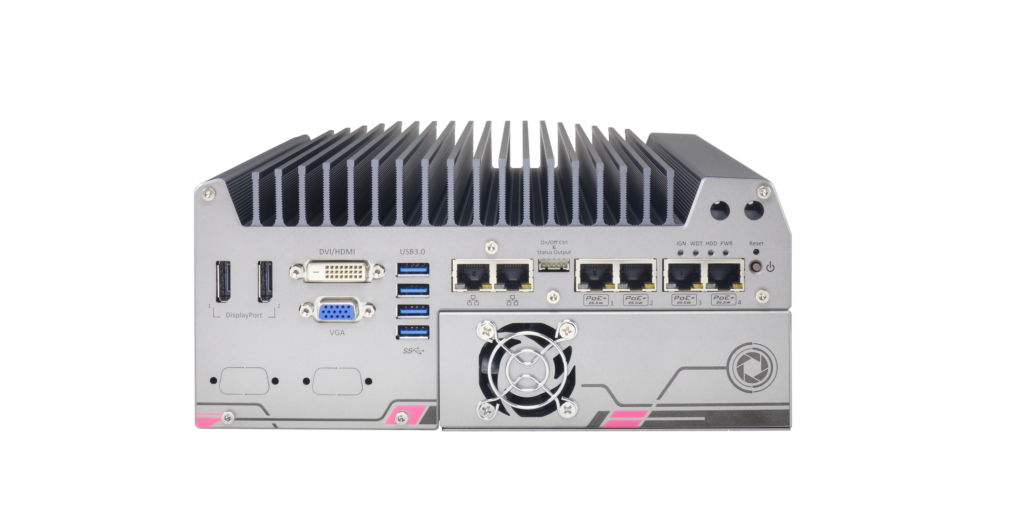

Nuvis-5306RT Series 강력한 머신 비전 컨트롤러

  • Intel® 6th Gen Core™ i7/i5 65W/35W CPU, up to 32 GB DDR4
  • Integrated vision-specific I/O
  • 4-CH CC/CV lighting controller
  • 4-CH camera trigger outputs
  • 1-CH quadrature encoder input
  • 8-CH isolated DI and 8-CH isolated DO
  • Patented MCU-based, real-time I/O control by DTIO V2 and NuMCU
  • Built-in camera interfaces
  • 4-CH IEEE 802.3at Gigabit PoE+ ports4-CH IEEE 802.3at Gigabit PoE+ ports
  • 4-CH USB 3.0 ports
  • Supports NVIDIA GTX 1050 for GPU-accelerated MV

지금까지 구축된 가장 강력한 비전 컨트롤러를 소개합니다. Nuvis-5306RT는 뛰어난 컴퓨팅 성능, 내장 카메라 인터페이스 및 실시간 비전별 I/O 컨트롤러를 비롯한 컴팩트한 설치 공간에 머신 비전 애플리케이션에 필요한 모든 기능을 통합합니다.

고품질 이미지를 보장하기 위해 MV 시스템은 조명, 카메라, 액추에이터 및 센서 장치 간의 정확한 상호작용이 필요합니다. Nuvis-5306RT는 LED 조명 컨트롤러, 카메라 트리거, 인코더 입력, PWM 출력 및 디지털 I/O를 통합하여 모든 비전 장치를 연결하고 제어합니다. 모든 비전 별 I/O는 Neousys의 특허받은 MCU 기반 아키텍처와 DTIO/NuMCU 펌웨어에 의해 관리되어 마이크로 2차 실시간 I/O 제어를 보장합니다.

컴퓨팅 성능은 비전 시스템의 또 다른 중요한 요건이다. Intel® 6세대 CoreTM i7/i5 CPU가 제공하는 놀라운 성능 외에도, Nuvis-5306RT는 NVIDIA® GeForce® GTX 1050 GPU를 추가로 수용하여 GPU 가속 비전 라이브러리 또는 딥 러닝 비전 소프트웨어를 활용할 수 있습니다. 내장 PoE+와 USB 3.0 인터페이스, 카메라링크와 CoaXPress을 위한 확장성이 결합하여, Nuvis-5306RT는 까다로운 MV 애플리케이션을 위한 이상적인 플랫폼입니다.

Introducing the most powerful vision controller ever built! Nuvis-5306RT integrates every single function you need for machine vision applications in a compact footprint, including exceptional computing power, built-in camera interfaces and real-time vision-specific I/O control.

To ensure high quality images, a MV system requires accurate interaction between lighting, camera, actuator and sensor devices. Nuvis-5306RT integrates LED lighting controller, camera trigger, encoder input, PWM output and digital I/O, to connect and control all the vision devices. All the vision-specific I/O are managed by Neousys’ patented MCU-based architecture and DTIO/NuMCU firmware to guarantees microsecond-scale real-time I/O control.

Computing power is another crucial requirement for a vision system. In addition to the remarkable performance brought by its Intel® 6th Gen Core™ i7/i5 CPU, Nuvis-5306RT can further accommodate NVIDIA® GeForce® GTX 1050 GPU to leverage GPU-accelerated vision library or deep-learning vision software. Combining built-in PoE+ and USB 3.0 interfaces and the expandability for CameraLink and CoaXPress, Nuvis-5306RT is the ideal platform for demanding MV applications.

System Core
Processor Supports 6th-Gen Intel® Core™ LGA1151 CPU
– Intel® Core™ i7-6700
(8M Cache,3.4/4.0 GHz, 65W TDP)
– Intel® Core™ i5-6500
(6M Cache, 3.2/3.6 GHz, 65W TDP)
– Intel® Core™ i7-6700TE
(8M Cache, 2.4/3.4 GHz, 35W TDP)
– Intel® Core™ i5-6500TE
(6M Cache, 2.3/3.3 GHz, 35W TDP)
Chipset Intel® Q170 Platform Controller Hub
Graphics Integrated Intel® HD Graphics 530
Memory Up to 32 GB DDR4-2133 SDRAM
by two SODIMM sockets
AMT Supports AMT 11.0
TPM Supports TPM 1.2


Vision-Specific I/O Interface
LED Lighting Controller 4-CH LED lighting controller output, supporting
– Constant current mode
(up to 1 A per channel, 100 kHz dimming control)
– Constant voltage mode
(24 VDC, 100 kHz dimming control)
Camera Trigger 4-CH camera trigger output (12 VDC output)
Encoder Input 1-CH quadrature encoder input (A/B/Z)
Isolated Digital Output 4-CH isolated high-speed digital output (<2 us transient time, for strobe/PWM)
4-CH isolated high-current digital output (up to 500 mA rated current)
Isolated Digital Input 8-CH isolated high-speed digital input (<2 us transient time)
Real-time I/O Control Patented MCU-based real-time I/O control
with DTIO V2 or OpenMCU firmware


General I/O Interface
Ethernet Port 6x Gigabit Ethernet ports by
Intel® I219 and 5x I210
PoE+ IEEE 802.3at PoE+ PSE on GigE Port
3 ~ Port 6, 80 W total power budget
USB 3.0 4x USB 3.0 ports via native XHCI
controller, 1000 MB/s total bandwidth
USB 2.0 4x USB 2.0 ports
Video Port 1x stacked VGA + DVI-D connector
2x DisplayPort connectors, supporting 4K2K resolution
Serial Port 2x software-programmable
RS-232/422/485 port (COM1 & COM2)
1x RS-232 port (COM3)
Audio 1x Mic-in and 1x Speaker-out


Storage Interface
SATA HDD 2x Internal SATA port for 2.5” HDD/SSD
installation, supporting RAID 0/1
mSATA 1x full-size mSATA port (mux with mini-PCIe)


Expansion Bus
PCI/PCI Express 1x PCIe x16 slot @ Gen3, 8-lanes
PCIe signals in Cassette, supporting
– 75W NVIDIA® GeForce® GTX 1050 GPU card
– COTS CameraLink and CoaXPress camera interface card
Mini PCI-E 1x internal mini PCI Express socket
with front-accessible SIM socket
1x internal mini PCI Express socket
with internal SIM socket (mux with mSATA)


Power Supply
DC Input 1x 3-pin pluggable terminal block for 8~35VDC DC input
Remote Ctrl. &
Status Output
1x 10-pin (2×5) wafer connector for
remote on/off control and status LED output


Dimension 240 mm (W) x 225 mm (D) x 111 mm (H)
Weight 4.9 kg (incl. CPU, GPU, memory and HDD)
Mounting Wall-mount by mounting bracket or optional rack-mount kit


Operating Temperature with i7-6700TE, i5-6500TE (35W TDP)
-25°C ~ 60°C **
with i7-6700, i5-6500 (65W TDP)
-25°C ~ 60°C */
** (configured as 35W CPU mode)
-25°C ~ 50°C */
** (configured as 65W CPU mode)
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
Shock Operating, 50 Grms, Half-sine 11 ms Duration
(w/ SSD, according to IEC60068-2-27)
EMC CE/FCC Class A, according to EN 55022 & EN 55024


* For i7-6700 running at 65W mode, the high operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
**For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required.
