Nuvo-6000 series 산업용 팬리스 PC

Intel® 6th-Gen Skylake Core™ i7/i5 팬리스 임베디드 컴퓨터, PCIe/PCI 확장 슬롯 최대 5개

Nuvo-6000 series 산업용 팬리스 PC

  • Supports 6th-Gen Intel® Core™ i7/i5/i3, Pentium and Celeron® LGA1151 CPU

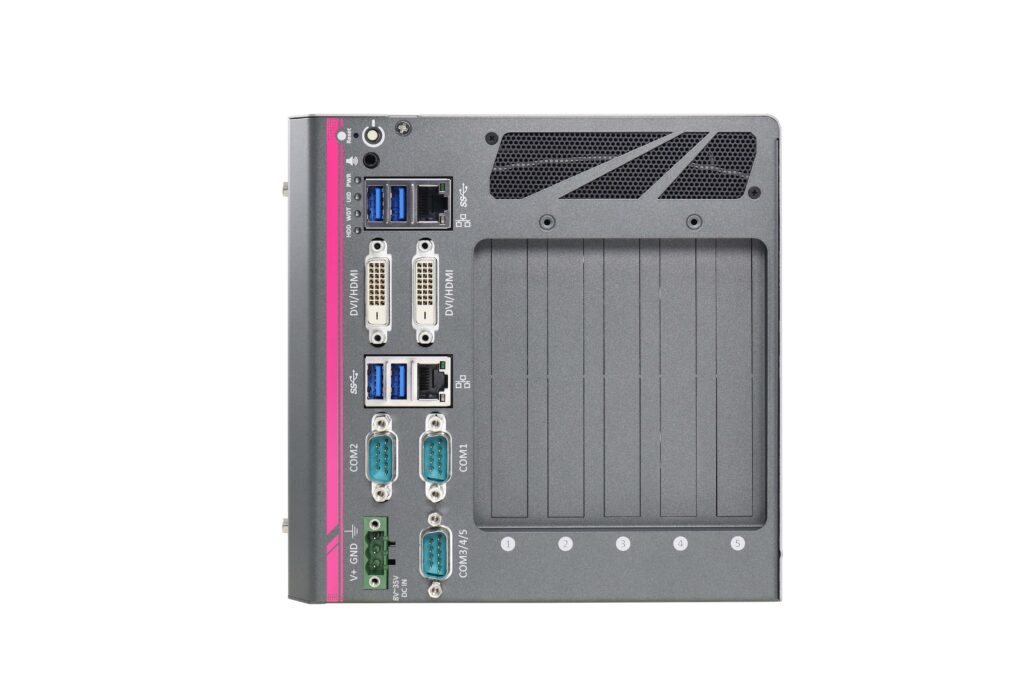

  • Up to five expansion slots x16 PCIe, x8 PCIe and three PCI slots (Nuvo-6032) x16 PCIe and x8 PCIe slots (Nuvo-6002)
  • Rugged, -25 °C to 60 °C fanless operation
  • 2x GbE, 4x USB 3.0 and 5x COM ports
  • Dual DVI display outputs
  • Up to 3x 2.5″ SATA accommodation and 1x mSATA socket
  • Wall-mounting, DIN-rail mounting and rack-mounting available
  • Automatic temperature sensing and fan control (optional)
Overview
Introduction

Nuvo-6000 시리즈는 부피가 큰 Rack 마운트 또는 Wall 마운트 IPC 시스템의 완벽한 대체재입니다. Intel® 6th-Gen Skylake 플랫폼을 활용하여, 기존의 IPC와 동일한 컴퓨팅 파워를 제공하지만 보다 컴팩트하면서 팬리스 PC의 우수성을 유지합니다.

Nuvo-6000 시리즈는 LGA1151 Socket 타입 CPU를 지원하므로, Core™ i7에서 Celeron®까지 원하는 성능과 비용에 맞게 선택할 수 있습니다. 최대 5개까지 사용 가능한 슬롯은 대부분의 IPC와 동일한 수준의 확장성을 부여합니다. GbE 포트 2개, USB 3.1 Gen1 포트 4개, COM 포트 5개를 포함한 전면 액세스 가능한 I/O 설계를 적용하여 Nuvo-6000을 캐비닛이나 Rack 안에 설치했을 때 보다 편리하게 접근할 수 있습니다.

Nuvo-6000에 적용된 Neousys의 검증된 팬리스 설계는 모든 상황에서 탁월한 안정성을 선사합니다. 또한 다양한 마운팅 옵션으로 데스크탑, 캐비닛, 19인치 Rack에도 설치할 수 있습니다. 비슷한 성능과 비용에 더 나은 폼팩터와 안정성을 갖춘 Nuvo-6000 시리즈는 산업용 컴퓨터의 새 지평을 열고 있습니다.

Nuvo-6000 series is the perfect replacement of your bulky rack-mount or wall-mount IPC systems. Leveraging Intel® 6th-Gen Skylake platform, It delivers the same computing power as traditional IPCs, but in a more compact form-factor and fanless operation.

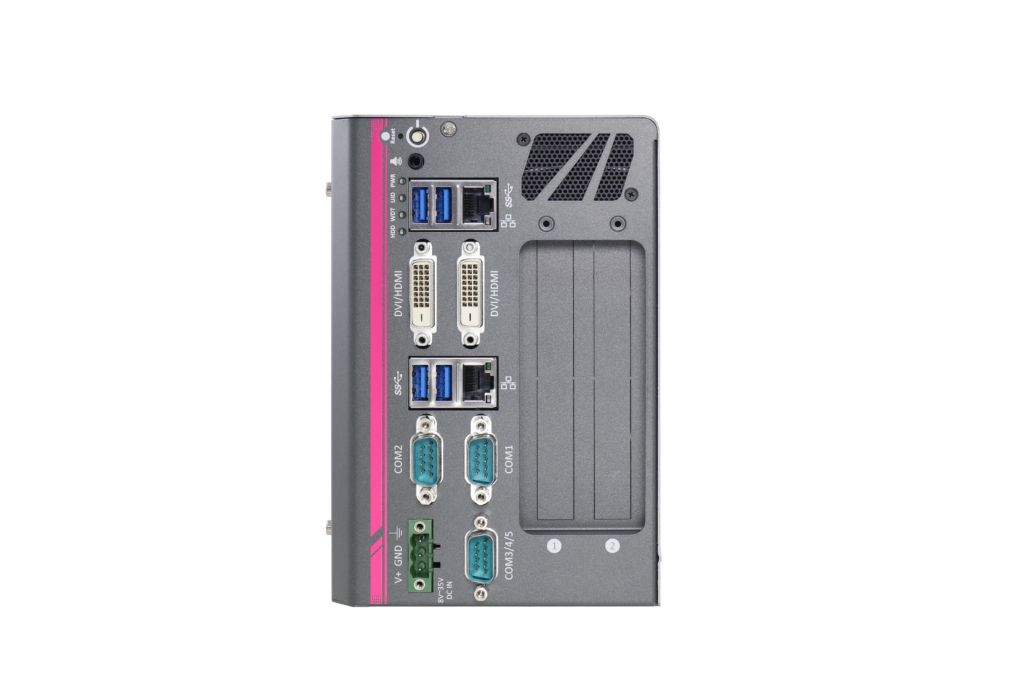

Nuvo-6000 series supports LGA1151 socket-type CPU, thus you can choose from Core™ i7 to Celeron® depending on your performance and cost consideration. Its 5-slot capacity gives the same level of expandability as most IPCs. The front-accessible I/O design, including 2 GbE, 4 USB 3.0 and 5 COM ports, makes it easier to access your Nuvo-6000 when it’s placed inside a cabinet or a rack.

Neousys’ proven fanless design on Nuvo-6000 presents extraordinary reliability in all circumstances. And its versatile mounting options make it fit for desktop, cabinet or a 19″ rack. With similar performance and cost, better form-factor and reliability, Nuvo-6000 series is speaking for itself on the new horizon of industrial computer.

Specifications
System Core
Processor Supports 6th-Gen Intel® Core™, Pentium® and
Celeron® LGA1151 CPU
Core™ i7-6700TE (8M Cache, 2.4/3.4 GHz, 35W TDP)
Core™ i5-6500TE (6M Cache, 2.3/3.3 GHz, 35W TDP)
Core™ i3-6100TE (4M Cache, 2.7 GHz, 35W TDP)
Pentium® G4400TE (3M Cache, 2.4 GHz, 35W TDP)
Celeron® G3900TE (2M Cache, 2.3 GHz, 35W TDP)
Chipset Intel® H110 Platform Controller Hub
Graphics Integrated Intel® HD 530/510 Controller
Memory Up to 16 GB DDR4-2133 by one SODIMM socket



I/O Interface
Ethernet Port 1x Gigabit Ethernet port by Intel® I219-LM
1x Gigabit Ethernet port by Intel® I210-IT
Video Port 2x DVI-D connectors for DVI outputs,
supporting 1920×1200 resolution
Serial Port 2x Software-programmable RS-232/422/485 ports
3x 3-wire RS-232 ports
USB 4x USB 3.0 ports
Audio 1x Speaker-out



Expansion Bus/ Internal I/O Interface
Remote Ctrl. & Status Output 1x 2×6-pin 2.0mm pin-header connector for remote on/off control and status LED output
PCI Express 1x PCIe x16 slot @ Gen3, 16-lanes PCIE signals
1x PCIe x8 slot @ Gen2, 4-lanes PCIE signals
PCI 3x 33MHz/32-bit PCI slots(only for Nuvo-6032)



Power Supply
DC Input 1x 3-pin pluggable terminal block for 8~35V DC input



Storage Interface
SATA 3x SATA ports for 2.5″ HDD/SSD installation
(Nuvo-6032)
1x SATA port for 2.5″ HDD/SSD installation
(Nuvo-6002)
mSATA 1x full-size mSATA socket



Mechanical
Dimension 184 mm (W) x 225 mm (D) x 174 mm (H)
(Nuvo-6032)
124 mm (W) x 225 mm (D) x 174 mm (H)
(Nuvo-6002)
Weight 3.5 Kg (Nuvo-6032)
2.8 Kg (Nuvo-6002)
Mounting Wall-mounting (standard)
DIN-Rail mounting (optional)

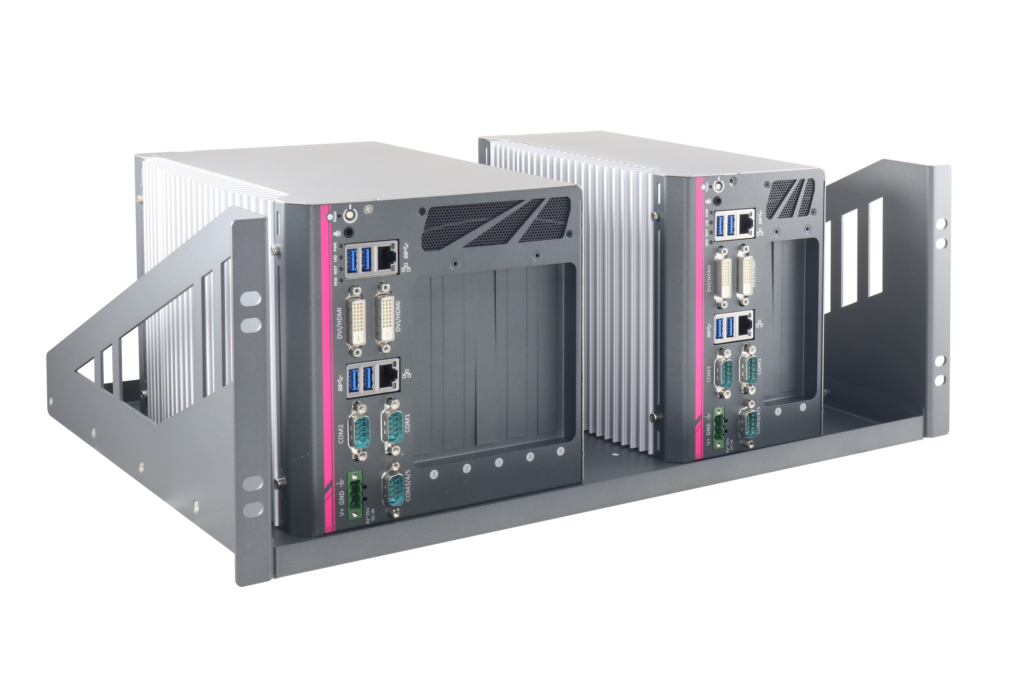

rack-mounting (optional)



Environmental
Operating Temperature -25°C ~ 60°C */**
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
Shock Operating, 50 Grms, Half-sine 11 ms Duration
(w/ SSD, according to IEC60068-2-27)
EMC CE/FCC Class A, according to EN 55022 & EN 55024



* The 100% CPU loading is applied using Passmark® BurnInTest 8.1. For detail testing criteria, please contact Neousys Technology.
**For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required
