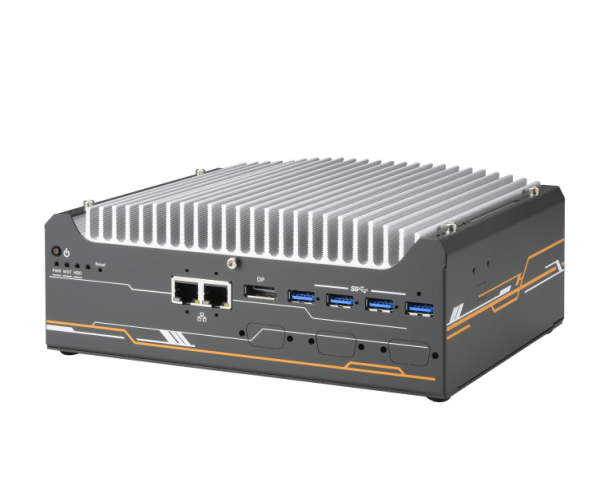

Nuvo-9501 산업용 14/13/12세대 Fanless PC
- Intel® 14th/13th/12th-Gen Core™ 35W/ 65W LGA1700 CPU
- Compact 212 x 165 x 80 mm footprint
- Rugged, -25°C to 60°C fanless operation (Nuvo-9505D only)
- Up to 32GB DDR4 3200 SODIMM
- 2x 2.5GbE and 4x USB3.2 Gen 1 with screw-lock
- Supports 1x M.2 2280 Gen4 x4 NVMe and 1x 3.5″/2.5″ SATA HDD/SSD storage
- 4-CH isolated DI and 4-CH isolated DO (Nuvo-9505D only)
- VGA + DP dual display outputs
Nuvo-9501은 Intel® 12th/13th/14th 세대 Alder Lake 플랫폼에 기반한 가성비 높은 컴팩트 임베디드 산업용 팬리스 컴퓨터입니다. 최신 Intel 7 프로세스가 내장된 Intel 12th/13th 세대 프로세서는 이전 세대 플렛폼(Intel 10th/11th 세대)과 비교해 최대 1.8배 향상된 성능을 제공하며 최대 16코어/24스레드를 갖추고 있습니다. Nuvo-9501은 뛰어난 가성비, 컴팩트함을 갖추고도 다양한 산업 애플리케이션을 위한 최상의 컴퓨팅 성능을 제공하는 강력한 산업용 팬리스 컴퓨터입니다.
산업용 팬리스 컴퓨터 Nuvo-9501은 듀얼2.5GbE 포트, 듀얼 디스플레이 포트 및 4개의 USB 3.2 포트를 비롯하여 일반적인 산업 요구에 맞는 필수 I/O 기능을 제공합니다. 또한, 최대 7000MB/s 읽기/쓰기 속도의 최신 NVMe SSD를 위한 PCIe Gen4 x4 M.2 NVMe 슬롯도 주요한 특징입니다. 그리고 데이터 수집 또는 영상 감시 애플리케이션 같은 대용량 스토리지 요구에 적합한 2.5” 또는 3.5” HDD 스토리지까지 지원합니다. 아울러, WiFi와 5G/4G 무선 통신 모듈을 설치하는데 필요한 2개의 mPCIe 및 1개의 M.2 E Key 슬롯도 제공합니다.
산업용 팬리스 컴퓨터 Nuvo-9501은 가성비 높고 컴팩트한 임베디드 컴퓨터로서 우수한 컴퓨팅 성능을 전달하며 고객의 요구 및 비용 합리성을 충족하는데 필요한 I/O 연결성을 제공합니다. 산업용 팬리스 컴퓨터 Nuvo-9501은 다양한 산업 애플리케이션에 매우 적합한 산업용 컴퓨터 입니다.
Nuvo-9501 is a cost-effective compact fanless embedded computers based on the Intel 14th/13th/12th-Gen platform. Built on the advanced Intel 7 process, Intel 13th Gen processors offer up to 24 cores/ 32 threads to deliver up to 2x the performance when compared to previous Intel 10th or 11th Gen platforms. Nuvo-9501 is a cost-effective, compact and yet powerful fanless embedded computer that offers the ultimate computing for various industrial applications.
Nuvo-9501 offers essential I/O functions for general industrial needs including dual 2.5GbE ports, dual display ports and four USB3.2 ports. In addition, it features a Gen4 x4 M.2 NVMe slot for the latest NVMe SSDs with read/ write speeds up to 7000 MB/s. Also, it supports a 2.5” or 3.5” HDD storage for high capacity storage needs such as data collection or surveillance applications. It also offers two mPCIe and one M.2 E key slots for installing WiFi or 5G/ 4G wireless communication modules.
As a cost-effective and compact embedded computer, Nuvo-9501 delivers excellent computing performance and offers essential necessary I/O connectivityons to meet customers’ needs and cost. It is suitable for a variety of industrial applications.
System Core | |
---|---|
Processor |
Supporting Intel® 14th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP)
Supporting Intel® 13th-Gen Core™ CPU[1] (LGA1700 socket, 65W/ 35W TDP)
Support Intel® 12th-Gen Core™ CPU (LGA1700 socket, 35W/ 65W TDP) |
Chipset | Intel® H610E platform controller hub |
Graphics | Integrated Intel® UHD Graphics 770 (32EU) / 730 (24EU) |
Memory | Up to 32GB non-ECC DDR4 3200 SDRAM (one SODIMM slot) |
TPM | Supports fTPM 2.0 |
I/O Interface | |
---|---|
Ethernet | 2x 2.5GBASE-T Ethernet ports by Intel® I226-V GbE controllers (Nuvo-9501) 2x 2.5GBASE-T Ethernet ports by Intel® I226-IT GbE controllers (Nuvo-9505D) |
USB | 4x USB 3.2 Gen1 (5 Gbps) ports 2x USB 2.0 ports |
Video Port (Integrated Graphics) |

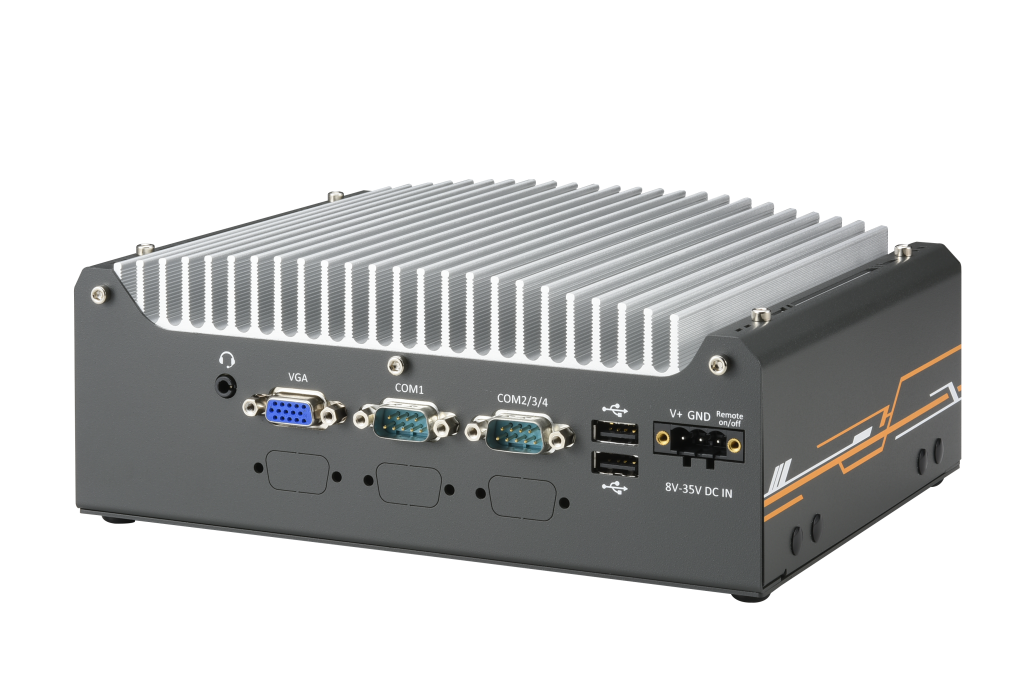

1x VGA output, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution |
Serial Port | 1x software-programmable RS-232/422/485 ports (COM1) 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2) |
Audio | 1x 3.5 mm jack for mic-in and speaker-out |
Expansion Bus | |
---|---|
Mini PCI Express | 2x full-size mini PCI Express sockets with internal SIM sockets |
M.2 E key | 1x M.2 2230 E key socket for WiFi5, WiFi6 or Google edge TPU module |
Storage interface | |
---|---|
SATA HDD | 1x internal SATA port for 3.5″ HDD or 2.5″ HDD/ SSD |
M.2 | 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD |
Power Supply | |
---|---|
DC Input | 1x 3-pin pluggable terminal block for 8-35V DC input with remote on/off control |
Mechanical | |
---|---|
Dimension | 212mm (W) x 165 mm (D) x 80 mm (H) |
Weight | 2.5kg |
Mounting | Wall-mount (optional) or DIN-rail mount (optional) |
Environmental | |
---|---|
Operating temperature | With 35W CPU -10°C to 60°C * (Nuvo-9501) -25°C to 60°C * (Nuvo-9505D) With 65W CPU (installation of the optional fan kit is recommended) -10°C to 60°C */** (Nuvo-9501) -25°C to 60°C */** (Nuvo-9505D) |
Storage temperature | -40°C ~ 85°C |
Humidity | 10% ~ 90% , non-condensing |
Vibration | MIL-STD-810H, Method 514.8, Category 4 |
Shock | MIL-STD-810H, Method 516.8, Procedure I |
EMC | CE/FCC Class A, according to EN 55032 & EN 55035 |
* For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
** For 65W CPUs, the optional fan kit is recommended for operating at ambient temperatures higher than 50°C
Intel® 13th/12th-Gen Core™ compact fanless computer with 2x 2.5GbE and 4x USB3.2
Intel® 13th/12th-Gen Core™ compact fanless computer with 2x 2.5GbE, 4x USB3.2 and 8x isolated DIO
160W AC-DC power adapter 20V/8A; 18AWG/120cm; cord end terminals for terminal block, operating temperature: -30°C to 70°C.
280W AC/DC power adapter 24V/ 11.67A ; 16AWG/ 100cm; cord end terminals for terminal block, operating temperature : -30°C to 60°C.(recommended for 65W CPU)
Wall mount assembly for Nuvo-9501 series
DIN-rail mounting assembly for Nuvo-9501 series

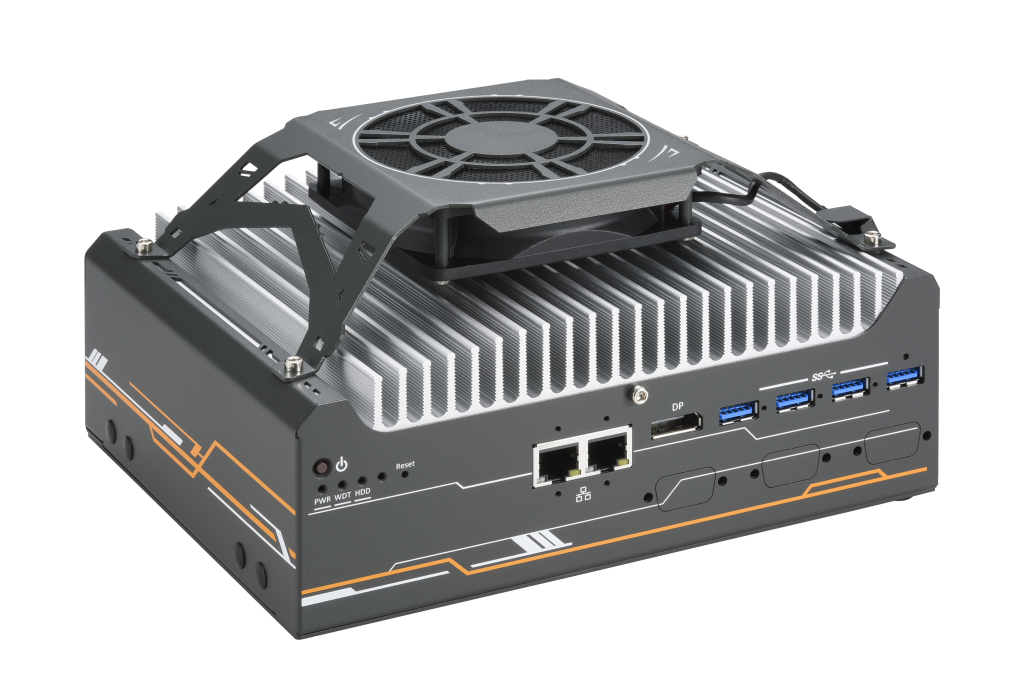

Fan kit with 92mm x 92mm fan for Nuvo-9501 serie
