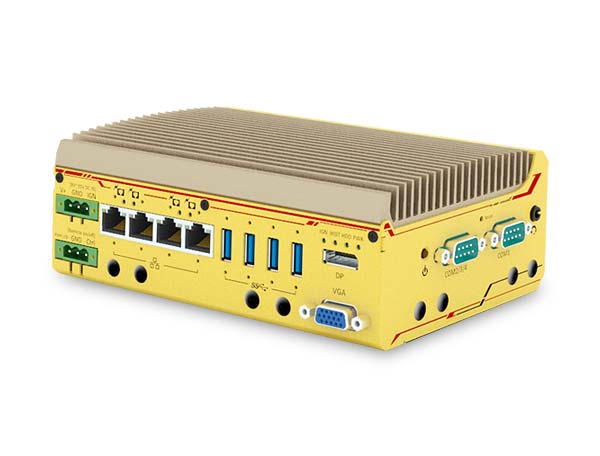

POC-551VTC 산업용 Compact PC

AMD Ryzen™ V1000 울트라 컴팩트 인비어클 컨트롤러, PoE+, DIO, Isolated CAN Bus

POC-551VTC 산업용 Compact PC

  • AMD Ryzen™ embedded V1605B quad-core 15W CPU
  • -40°C to 70°C rugged wide temperature fanless operation
  • Four IEEE 802.3at PoE+ ports with screw-lock
  • One isolated CAN bus port for in-vehicle communication
  • One M.2 socket and three mPCIe sockets
  • M.2 2280 M key NVMe (Gen3 x2) socket for fast storage access
  • 4-CH isolated DI and 4-CH isolated DO
  • 8~35V DC input with built-in ignition power control
  • E-Mark(E13 No. 10R-0615611) and EN 50155/ EN 45545 certificate
Overview
Introduction

POC-551VTC는 유사한 폼팩터에서 지금껏 본 적 없는 성능을 제공하는 차세대 울트라 컴팩트 팬리스 인비어클 컨트롤러입니다.



산업용 팬리스 컴퓨터 POC-551VTC는 AMD Ryzen™ V1000시리즈 쿼드코어/8스레드 프로세서(V1605B)를 탑재하여 이전 POC 시리즈 대비 최대 3배의 CPU 성능을 선사합니다. 또한 다양한 인비어클 어플리케이션을 위해 뛰어난 성능, 탁월한 안정성, 그리고 경제성까지 겸비하고 있습니다.



산업용 팬리스 컴퓨터 POC-551VTC는 IP 카메라와 같은 장치에 각각 25W 전력을 공급하는 4개의 802.3at PoE+ 포트를 제공합니다. 무선 연결은 오늘날의 인비어클 애플리케이션에 필수요소로서, 1개의 M.2와 3개의 mini-PCIe Socket이 내장된 산업용 팬리스 컴퓨터 POC-551VTC는 인비어클 애플리케이션에 더욱 적합합니다. 또한 인비어클 통신을 위한 CAN Bus, 센서/액추에이터 컨트롤을 위한 Isolated DIO를 갖추고 있습니다.



점화 전원 컨트롤과 광범위 DC 입력의 결합에 우월한 성능이 더해진 산업용 팬리스 컴퓨터 POC-551VTC는 모든 인비어클 애플리케이션의 니즈를 충족시키는 매우 컴팩트한 사이즈의 완벽한 솔루션입니다.

POC-551VTC is the next generation ultra-compact, fanless in-vehicle controller offering performances never-seen-before in this form factor.

Featuring AMD Ryzen™ Embedded V1000 4-core/ 8-thread processor(V1605B), POC-551VTC delivers up to 3x times the CPU performance compared to previous POC series. It combines finesse performance, extraordinary reliability and affordability for versatile in-vehicle applications.

POC-551VTC offers four 802.3at PoE+ ports to supply 25W power to device such as IP cameras. As wireless connectivity is essential for modern invehicle application, POC-551VTC with built-in one M.2 and three mini-PCIe are more applicable for in-vehicle use nowadays. It also integrates CAN bus for in-vehicle communication, and isolated DIO for sensor/ actuator control.

Combining ignition power control and wide-range DC input along with superior performance, POC-551VTC can provides perfect solution for all your in-vehicle application needs in an extremely compact size!

Specifications
System Core
Processor AMD Ryzen™ V1605B CPU
( 4C/ 8T, 2M Cache, 2.0/ 3.6 GHz, 12W – 25W TDP)
Graphics Vega GPU with 6 compute units
Memory Up to 16 GB DDR4-2400 SDRAM by one SODIMM sockets
TPM Supports TPM 2.0
Panel I/O Interface

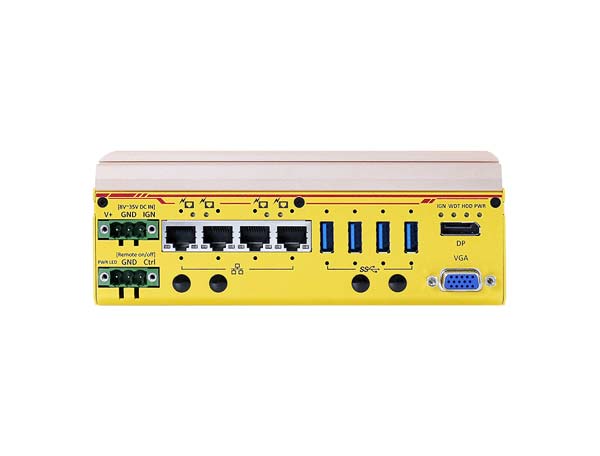

Ethernet 4x Gigabit Ethernet ports by Intel® I350-AM4 controller
POE 4xIEEE 802.3at Gigabit PoE+ ports by Intel® I350-AM4

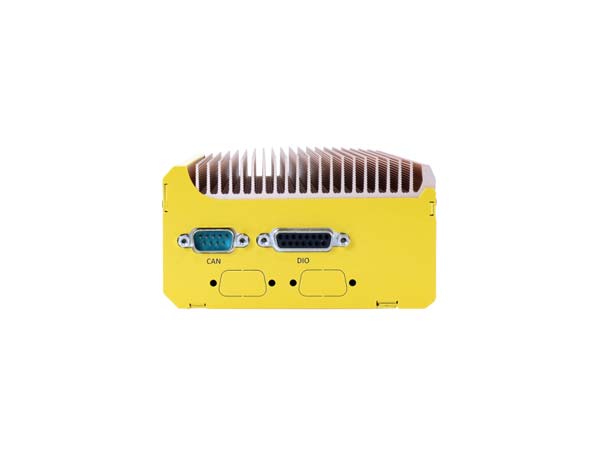

CAN Bus 1x CAN 2.0 port
Isolated DIO 4x Isolated DI and 4x Isolated DO
USB 4x USB 3.0 ports with screw-lock
Video Port 1x VGA connector, supporting 1920 x 1200 resolution
1x DisplayPort connector, supporting 4096 x 2160 resolution

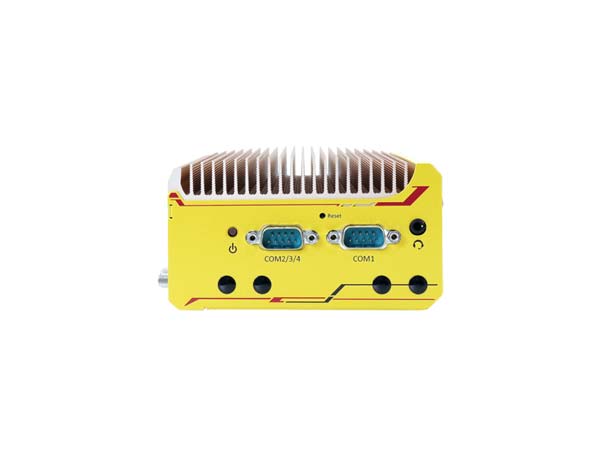

Serial Port 1x software-programmable RS-232/ 422/ 485 ports (COM1)
3x 3-wire RS-232 ports (COM2/ 3/ 4) or 1x RS-422/ 485 port(COM2)
Audio 1x 3.5 mm jack for mic-in and speaker-out



Storage Interface
M.2 1x M.2 2280 M key NVMe socket (PCIe Gen3/ x2) installation
mSATA 1x full-size mSATA port



Expansion Bus
Mini PCIe 3x full-size mini PCI Express socket with internal SIM socket
M.2 1x M.2 2242 B key socket for 3G/ 4G option with USIM support



Power Supply
DC Input 1x 3-pin pluggable terminal block for 8~35VDC DC input
Remote Ctrl.& LED Output 1×3-pin pluggable terminal block for remote control and PWR LED output



Mechanical
Dimension 64 mm (W) x 116 mm (D) x 176 mm (H)
Weight 1.3 kg
Mounting Wall-mount (standard) or DIN-rail mount (optional)
Environmental
Operating Temperature -40°C ~ 70°C*
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration IEC61373:2010, Category 1, Class B Body mounted (part of EN50155)
Shock IEC61373:2010, Category 1, Class B Body mounted (part of EN50155)
EMC EN 50155, EN45545, E-Mark for in-vehicle applications

CE/FCC Class A, according to EN 55032 & EN 55024



* For sub-zero and over 60°C operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.



Ordering Information
POC-551VTC

AMD Ryzen™ V1605B ultra-compact In-vehicle controller with PoE+, DIO and isolated CAN bus

Ordering Information
PA-120W-OW

120W AC/DC power adapter 20V/6A; 18AWG/120cm; cord end terminals for terminal block, operating temperature: -30 to 70°C.

PA-60W-OW

60W AC/DC power adapter with 12V, 5A DC output, cord end terminals for terminal block. operating temperature: -30 to 60 °C.

Optional Cellular Module
NSIO-LTE-7455

Cat. 6 LTE embedded socket modem
