러기드 엣지 AI GPU 컴퓨팅 플랫폼, 120W NVIDIA® GPU 및 Intel® 8th-Gen Core™ 프로세서 지원

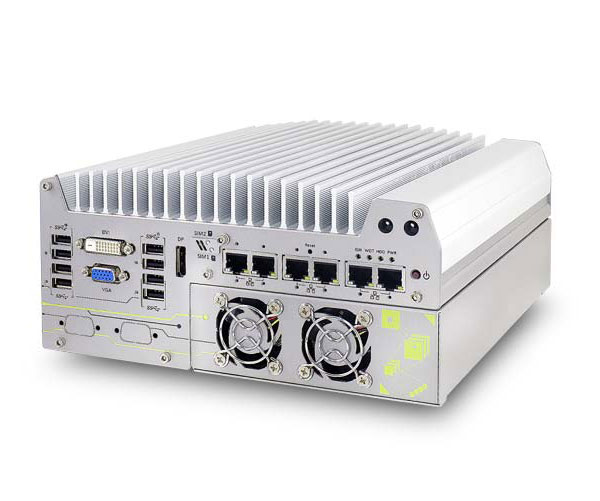

Nuvo-7160GC Series 산업용 GPU 지원 팬리스 PC

Supports NVIDIA® GPU graphics card up to 120W TDP
Patented thermal design to allow -25°C to 60°C wide temperature range operation
Intel® 8th-Gen Core™ hexa-core 35W/ 65W LGA1151 CPU
6x GigE ports, supporting 9.5 KB jumbo frame
M.2 2280 M key socket (Gen3 x4) supporting NVMe SSD or Intel® Optane™ memory
4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
Accommodates two 2.5″ SATA HDD/ SSD with RAID 0/ 1 support
Compatible with MezIO™ interface for function expansion
Patented ventilation design* for graphics card

Overview

Introduction

산업용 팬리스 컴퓨터 Nuvo-7160GC는 자율주행, 안면인식, 머신비전과 같은 현대적인 기계학습 애플리케이션을 위해 설계된 강화형 GPU 지원 에지 Computing 플랫폼입니다. 이 제품은 120W GPU를 지원하여, 추론을 위한 4~6개의 TFLOP Computing 성능을 제공하고, 인텔 8세대 커피레이크 코어 6-코어/12-스레드 CPU에 더하여, 이전 세대보다 최대 50% 향상된 CPU 성능을 제공합니다.

Neousys의 특허받은 카세트 디자인과 기발한 통풍 메커니즘 덕분에, 산업용 팬리스 컴퓨터 Nuvo-7160GC는 GPU에서 발생하는 열을 효과적으로 소멸시킬수 있습니다. 스마트 팬 제어를 특징으로 하는 강력한 팬으로 흡입구에서 배기까지 유도된 공기 흐름을 도입하여, 이 제품은 120W GPU가 100% GPU 로딩 아래에 60°C 의 주변 온도에서 작동할 수 있도록 합니다.

산업용 팬리스 컴퓨터 Nuvo-7160GC는 제한된 설치 공간에 USB 3.1 Gen2/Gen1, GbE, COM 및 MezIOTM 인터페이스와 같은 풍부한 I/O 기능을 통합합니다. 또한 2000MB/s 이상의 디스크 읽기/쓰기 속도를 위한 최첨단 M.2 NVMe SSD 기술 또는 궁극적인 시스템 가속을 위한 인텔 Optane 메모리를 활용합니다. 산업용 팬리스 컴퓨터 Nuvo-7160GC는 우수한 CPU와 GPU 성능을 결합하여, 신흥 에지 Computing 을 위한 이상적인 솔루션이 될 것 입니다.

Nuvo-7160GC is a ruggedized GPU-aided edge computing platform designed for modern machine learning applications such as autonomous driving, facial recognition and machine vision. It supports up to a 120W GPU, delivering 4~6 TFLOPS computing power for inference, as well as Intel® 8th-Gen Coffee Lake Core™ 6-core/ 12-thread CPU, offering up to 50% CPU performance enhancement over previous generations.

Thanks to Neousys’ patented Cassette design and ingenious ventilation mechanism, Nuvo-7160GC can effectively dissipate the heat generated by the GPU. By introducing the guided airflow from intake to exhaust with powerful fans featuring smart fan control, it allows a 120W GPU to operate at 60°C ambient temperature under 100% GPU loading.

Nuvo-7160GC incorporates rich I/O functions such as USB 3.1 Gen2/ Gen1, GbE, COM and MezIO™ interface in its restricted footprint. It also leverages cutting-edge M.2 NVMe SSD technology for over 2000MB/s disk read/ write speed or Intel® Optane™ memory for the ultimate system acceleration. Neousys Nuvo-7160GC is the ideal solution for emerging edge computing by combining exceptional CPU and GPU performances.

Specifications

System Core
Processor	Supporting Intel® 8th-Gen Coffee Lake 6-core CPU (LGA1151 socket, 35W/ 65W TDP) – Intel® Core™ i7-8700/ i7-8700T – Intel® Core™ i5-8500/ i5-8500T – Intel® Core™ i3-8100/ i3-8100T – Intel® Pentium® G5400/ G5400T – Intel® Celeron® G4900/ G4900T
ChipSet	Intel® Q370 platform controller hub
Graphics	Integrated Intel® UHD Graphics 630
Memory	Up to 64 GB DDR4 2666/ 2400 SDRAM (two SODIMM slots)
AMT	Supports AMT 12.0
TPM	Supports TPM 2.0

I/O Interface
Ethernet Port	6x Gigabit Ethernet ports by I219 and 5x I210
POE+	Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 100 W total power budget
USB	4x USB 3.1 Gen2 (10 Gbps) ports 4x USB 3.1 Gen1 (5 Gbps) ports
Serial Port	2x software-programmable RS-232/422/485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4)
Audio	1x 3.5 mm jack for mic-in and speaker-out

Internal Expansion Bus
PCI/PCI Express	1x PCIe x16 slot@Gen3, 16-lanes PCIe signals in Cassette for installing an NVIDIA® graphics card up to 120W TDP (Max. graphics card dimension is 188 mm(L) x 121 mm(W), dual slot allocation)
Mini PCI-E	1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA)
M.2	1x M.2 2242 B key socket with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module
Expandable I/O	1x MezIO™ expansion port for Neousys MezIO™ modules

Mechanical
Dimension	240 mm (W) x 225 mm (D) x 111 mm (H)
Weight	4.5 Kg (including CPU, GPU, memory and HDD)
Mounting	Wall-mount mounting bracket

Storage interface
SATA HDD	2x internal SATA ports for 2.5″ HDD/ SSD installation, supporting RAID 0/1
M.2	1x M.2 2280 M key socket (PCIe Gen3/ x4) for NVMe SSD or Intel® Optane™ memory installation
mSATA	1x full-size mSATA port (mux with mini-PCIe)

Power Supply
DC Input	1x 3-pin pluggable terminal block for 8~35VDC DC input
Remote Ctrl. & LED Output	1x 3-pin pluggable terminal block for remote control and PWR LED output

Environmental
Operating temperature	with 35W CPU and NVIDIA® Tesla P4/ T4 -25°C ~ 60°C *With 65W CPU and NVIDIA® Tesla P4/ T4 -25°C ~ 60°C /** (configured as 35W TDP) -25°C ~ 50°C /* (configured as 65W TDP)
Storage temperature	-40°C ~ 85°C
Humidity	10% ~ 90% , non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, functional shock=50g
EMC	CE/FCC Class A, according to EN 55032 & EN 55024

* For i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
**For sub-zero operating temperature, a wide temperature range HDD or Solid State Disk (SSD) is required.

LIST

Ordering Information

Nuvo-7160GC

Intel® 8th-Gen Core™ GPU-computing platform with 6x GbE and MezIO™, supporting selected NVIDIA® 120W GPU

Supported MezIO™ Modules

Neousys MezIO™ module offers computer signals, power rails and control signals via a high-speed connector. It transforms Neousys embedded systems into application-specific systems with application-oriented I/Os such as RS-232/422/485, isolated DIO and ignition power control.

Option of 802.3at PoE+ for GbE port 3 ~ port 6

Accessories

PA-280W-OW 280W AC/DC power adapter
