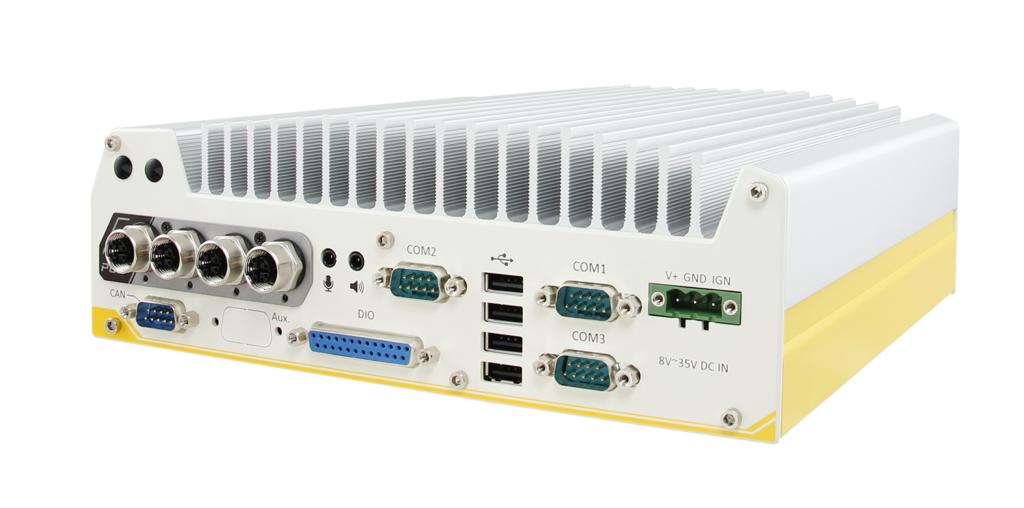

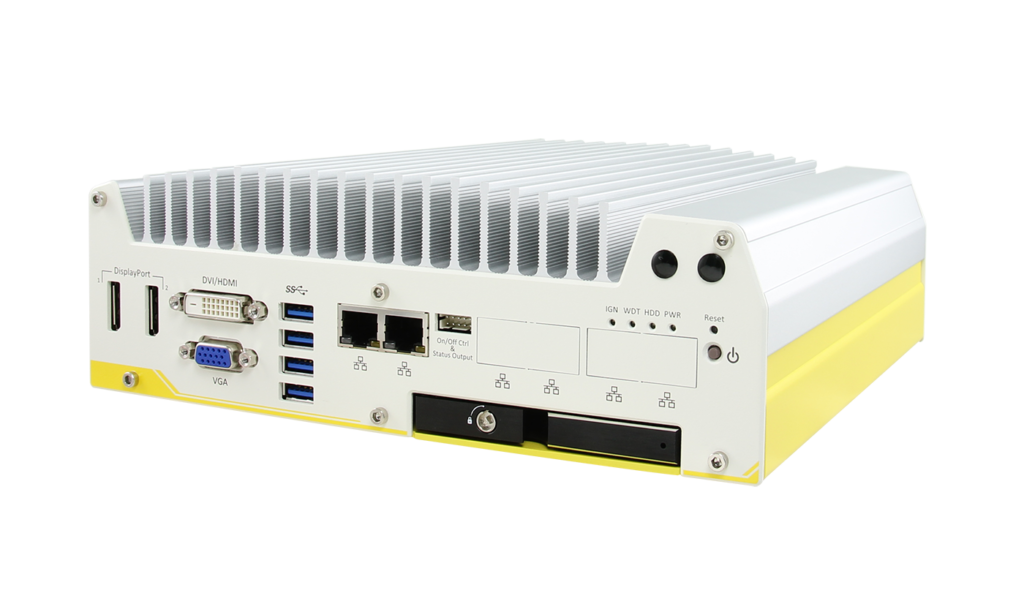

Nuvo-5100VTC 차세대 산업용 팬리스 PC

Intel® 6th-Gen Skylake Core™ i7/i5/i3 인비어클 팬리스 임베디드 컴퓨터, M12 PoE+ 포트 4개, DIO, CAN Bus, RAID 및 EN50155 인증

Nuvo-5100VTC 차세대 산업용 팬리스 PC

  • Supports Intel® 6th-Gen Core™ i7/i5/i3 LGA1151 CPU
  • 4x 802.3at Gigabit PoE+ ports via M12 connectors
  • On-board CAN bus for in-vehicle communication
  • 4-CH isolated DI and 4-CH isolated DO
  • 2x SATA ports for two 2.5″ SATA HDD/SSD, with one hot-swappable HDD tray, supporting RAID 0/1
  • 4x full-size mini-PCIe sockets with SIM support
  • 8~35V wide-range DC input with built-in ignition control
  • EN 50155/ EN45545 certificate & E13 No. 10R-0514321
Overview
Introduction

Nuvo-5100VTC는 EN50155 인증을 거친 최상의 인비어클 팬리스 임베디드 컨트롤러입니다. Intel® 6th-Gen Core™ CPU를 탑재하여, 다양한 인비어클 애플리케이션을 위한 뛰어난 컴퓨팅 성능을 보여줍니다.



산업용 팬리스 컴퓨터 Nuvo-5100VTC는 연결된 디바이스에 25W 전력을 공급하는 4개의 802.3at PoE+ 포트가 M12(x-coded) 커넥터를 이용해 체결되어, 충격/진동이 있는 거친 환경에서도 매우 튼튼한 커넥티비티를 보장합니다. RJ-45커넥터의 Gigabit Ethernet 포트 2개는 데이터 통신이 가능합니다. 또한 3G/4G/WIFI 통신을 위해 상응하는 모듈을 4개의 내부 mini PCIe Socket에 장착하여 사용할 수 있습니다.



뿐만 아니라, 산업용 팬리스 컴퓨터 Nuvo-5100VTC는 차량용 CAN 시스템, 개별 ECU 또는 다른 차량용 디바이스와 통신하기 위해 CAN Bus를 탑재했습니다. 또한 센서/액추에이터 컨트롤을 위한 Isolated DIO, 차량 전원 컨트롤, 듀얼 드라이브 RAID 스토리지를 갖추고 있는 산업용 팬리스 컴퓨터 Nuvo-5100VTC는 모든 인비어클 애플리케이션 니즈를 만족할 수 있는 컨트롤러입니다.



Nuvo-5100VTC is a state-of-the-art in-vehicle fanless embedded controlloer in compliant with EN50155 certificate. Featuring Intel® 6th-Gen Core™ CPU, it exhibits superb CPU and GPU performance for various in-vehicle applications.

Nuvo-5100VTC offers four 802.3at PoE+ ports to supply 25W power to the connected device. They are implemented using M12, x-coded connectors, which guarantee extremely rugged connectivities in shocking/vibrating environments. Two more Gigabit Ethernet ports by RJ-45 are available for data communication. You can also utilize four internal mini-PCIe sockets with corresponding modules for 3G/4G/WIFI communication.

In addition, Nuvo-5100VTC integrates CAN bus for communicating with in-vehicle CAN bus system, individual ECUs or other automotive devices. There is also an isolated DIO for sensor/ actuator control, ignition power control and dual-drive RAID storage which makes Nuvo-5100VTC simply the controller that can satisfy all your in-vehicle application needs.

Specifications
System Core
Processor Supports Intel® Core™ i7/i5/i3 LGA1151 CPU
-Core™ i7-6700TE(8M Cache, 2.4/3.4 GHz, 35W TDP)
-Core™ i5-6500TE(6M Cache, 2.3/3.3 GHz, 35W TDP)
-Core™ i3-6100TE(4M Cache, 2.7 GHz, 35W TDP)
Chipset Intel® Q170 Platform Controller Hub
Graphics Integrated Intel® HD Graphics 530
Memory Up to 32 GB DDR4-2133 SDRAM by two SODIMM sockets
AMT Supports AMT 11.0
TPM Supports TPM 2.0



I/O Interface
Ethernet 2x Gigabit Ethernet ports by Intel® I219 and I210
PoE+ 4x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210, – M12 x-coded connector (Nuvo-5100VTC)
CAN 1x CAN 2.0 port
Isolated DIO 4x isolated DI and 4x isolated DO
USB 4x USB 3.0 ports via native XHCI controller
4x USB 2.0 ports
Video Port 1x stacked VGA + DVI-D connector
2x DisplayPort connectors, supporting 4K2K resolution
Serial Port 2x software-programmable RS-232/422/485 port (COM1 & COM3)

1x RS-232 port (COM2)
Audio 1x Mic-in and 1x Speaker-out



Storage Interface
SATA HDD 1x hot-swappable HDD tray for 2.5” HDD/SSD installation
1x Internal SATA port for 2.5” HDD/SSD installation,
supporting RAID 0/1
mSATA 1x full-size mSATA port (mux with mini-PCIe)



Expansion Bus
Mini PCI-E 1x full-size mini-PCIe socket with panel-accessible SIM socket
1x full-size mini-PCIe socket with internal SIM socket
(mux. with mSATA)
2x full-size mini-PCIe sockets (USB signals only) with internal
SIM sockets



Power Supply
DC Input 1x 3-pin pluggable terminal block for 8~35VDC DC input
Remote Ctrl. &
Status Output
1x 10-pin (2×5) wafer connector for
remote on/off control and status LED output



Mechanical
Dimension 240 mm (W) x 225 mm (D) x 79 mm (H)
Weight 3.3 Kg
Mounting Wall-mount with damping brackets (Standard) or

DIN-rail mount (optional)



Environmental
Operating Temperature -40°C ~ 70°C */**
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration IEC61373:2010, Category 1,
Class B Body mounted (part of EN50155)
Shock IEC61373:2010, Category 1,
Class B Body mounted (part of EN50155)
Certification EN 50155/ EN45545
E-Mark (Nuvo-5108VTC)
CE/ FCC Class A, according to EN 55022, EN 55024 & EN 55032



* The CPU loading is applied using Passmark® BurnInTest 8.0. For detail testing criteria, please contact Neousys Technology.
**For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required.
