인비어클 엣지 AI GPU 컴퓨팅 플랫폼, NVIDIA® RTX 3070 GPU 및 Intel® Xeon® E3 v5 또는 6th-Gen Core™ 프로세서 지원

Nuvo-6108GC-IGN 산업용 PC 차량용 Fanless PC

Supports Intel® Xeon® E3 v5 or 6th-Gen Core™ i7/ i5 LGA1151 CPU
Supports NVIDIA® GPU (up to 250W TDP)
Patented thermal design for -25 °C to 60 °C rugged operation*
Two x8, Gen3 PCIe slots for add-on cards
Dual GbE ports and four USB3.0 ports
Three 2.5″ SATA hard drives with RAID 0/ 1/ 5 support
Patented easy-swap trays* for HDD replacement
Automatic temperature sensing and fan control
Patented damping brackets* to withstand 1 Grms vibration
+Built-in ignition control

Overview

Introduction

Nuvo-6108GC-IGN은 고급 그래픽카드를 지원하는 세계 최초의 산업용 차량 내 엣지 AI GPU 컴퓨팅 플랫폼 중 하나입니다. 이 제품은 250W NVIDIA GPU를 수용하여 AI(인공지능) 추론, VR, 자율주행 및 CUDA 컴퓨팅과 같은 새로운 GPU 가속 응용 프로그램에 연료를 공급하도록 설계되었습니다.

인텔 C236 칩셋을 활용하여, Nuvo-6108GC-IGN 차내 엣지 AI 플랫폼은 최대 32GB ECC/non-ECC DDR4 메모리로 Xeon® E3 v5 또는 6세대 Gen 코어 i7/ i5 CPU를 지원합니다. 이 제품은 기가비트 이더넷, USB 3.0 및 시리얼 포트와 같은 일반 컴퓨터 I/O를 통합합니다. GPU 설치를 위한 x16 PCIe 포트 외에, Nuvo-6108GC 시리즈는 또한 2개의 x8 PCIe 슬롯이 있어 데이터 수집/분석 및 통신을 위한 대역폭이 높은 추가 고성능 확장 카드를 더 설치할 수 있습니다.

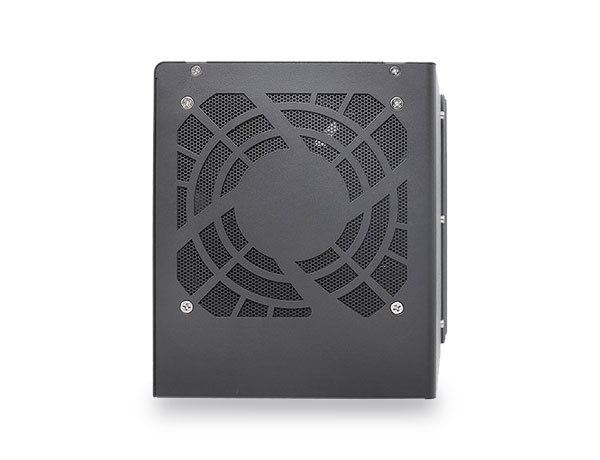

Nuvo-6108GC-IGN은 250W GPU의 높은 전력 소비량과 과도 전력을 처리할 수 있는 정교한 전력 설계를 갖추고 있습니다. 또한 산업 환경에 대한 안정적인 GPU 성능을 갖추기 위해, Nuvo-6108GC 시리즈는 GPU에 의해서 발생하는 열을 효과적으로 소멸시키기 위해 튜닝된 냉기 흡입구인 Neousys의 특허받은 설계를 활용합니다. 이 독특한 디자인은 100% GPU 로딩 아래 60°C에서 작동을 보장하므로, Nuvo-6108GC 시리즈는 까다로운 필드(차내 조건 등) 애플리케이션에 대해 매우 신뢰할 수 있습니다.

새로워진 Nuvo-6108GC-IGN 차내 GPU 컴퓨터는 점화 전원 제어 기능이 내장되어 있으며, 2.5인치 드라이브 3개 중 2개는 단순한 HDD/SSD 교체를 위한 특허 쉬운 Neousys의 트레이와 함께 제공됩니다.

Nuvo-6108GC-IGN is one of the world’s first industrial-grade in-vehicle edge AI GPU computing platform supporting high-end graphics cards. It’s designed to fuel emerging GPU-ccelerated applications, such as AI(artificial intelligence) inference, VR, autonomous driving and CUDA computing by accommodating 250W NVIDIA® GPU.

Leveraging Intel® C236 chipset, Nuvo-6108GC-IGN in-vehicle edge AI computing platform supports Xeon® E3 v5 or 6th-Gen Core™ i7/ i5 CPU with up to 32 GB ECC/ non-ECC DDR4 memory. It incorporates general computer I/O like Gigabit Ethernet, USB3.0 and serial ports. In addition to the x16 PCIe port for GPU installation, Nuvo-6108GC series also has two x8 PCIe slots so you can install additional high performance expansion card with high bandwidths for data collections/ analytics and communication.

Nuvo-6108GC-IGN comes with sophisticated power design to handle heavy power consumption and power transient of a 250W GPU. Furthermore, to have reliable GPU performance for industrial environments, Nuvo-6108GC series utilizes Neousys’ patented design*, a tuned cold air intake to effectively dissipate the heat generated by GPU. This unique design guarantees operation at 60°C under 100% GPU loading, making Nuvo-6108GC series extremely reliable for demanding field (such as in-vehicle condition) applications.

The new Nuvo-6108GC-IGN in-vehicle GPU computer features built-in ignition power control and two of its three 2.5″ drives come with Neousys’ patented easy-swap trays for simple HDD/ SSD replacement.

Specifications

System Core
Processor	Supports Intel® Xeon® E3 V5 and 6th-Gen Core™ LGA 1151 CPU -Intel® Xeon® Processor E3-1275 v5 (8M Cache, 3.6/ 4.0 GHz)* -Intel® Xeon® Processor E3-1268L v5 (8M Cache, 2.4/ 3.4 GHz) -Intel® Core™ i7-6700 (8M Cache, 3.4/ 4.0 GHz)* -Intel® Core™ i5-6500 (6M Cache, 3.2/ 3.6 GHz)* -Intel® Core™ i7-6700TE (8M Cache, 2.4/ 3.4 GHz) -Intel® Core™ i5-6500TE (6M Cache, 2.3/ 3.3 GHz)
Memory	Up to 32 GB ECC/ non-ECC DDR4-2133
Graphics	Independent GPU via x16 PEG port, or integrated Intel® HD 530 controller
Chipset	Intel® C236 Platform Controller Hub

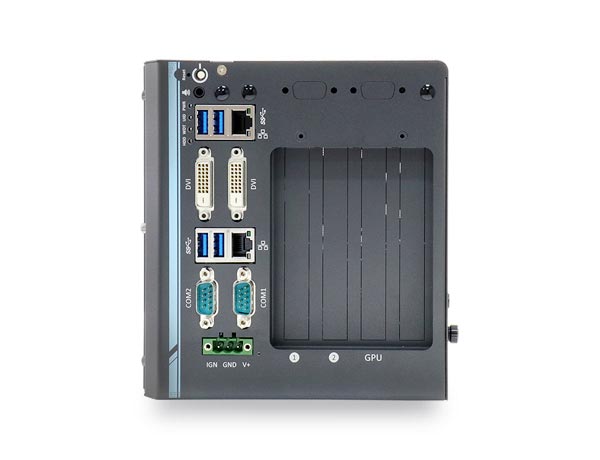

I/O Interface
Ethernet	1x Gigabit Ethernet port by Intel I219-LM 1x Gigabit Ethernet port by Intel I210-IT
Native Video Port	2x DVI-D connectors for DVI outputs,supporting 1920×1200 resolution
Serial Port	2x Software-programmable RS-232/ 422/ 485 ports
USB	4x USB 3.0 ports
Audio	1x Speaker-out

Expansion Bus/ Internal I/O Interface
PCI Express	1x PCIe x16 slot @ Gen3, 16-lanes PCIE signals for GPU 2x PCIe x8 slot @ Gen3, 4-lanes PCIE signals
M.2	1x M.2 B key socket for 3G/4G options with SIM socket
mini-PCIe	1x full-size mini PCI express socket
Remote Ctrl. & Status Output	1x 2×6-pin 2.0mm pin-header connector for remote on/off control and status LED output

Storage Interface
SATA	2x easy-swap HDD trays for 2.5″ HDD/SSD installation 1x Internal SATA port for 2.5″ HDD/ SSD installation, supporting RAID 0/ 1/ 5

Power Supply
DC Input	24 VDC
Input Connector	3-pin pluggable terminal block for DC input (IGN/ GND/ V+)

Mechanical
Dimension	178 mm (W) x 360 mm (D) x 174 mm (H)
Weight	4.7 kg (incl. CPU, GPU, memory and HDD)
Mounting	Wall-mounting with damping brackets

Environmental
Operating Temperature	-25°C ~ 60°C with 100% CPU/GPU loading /*
Storage Temperature	-40°C ~ 85°C
Humidity	10%~90% , non-condensing
Vibration	Operating, 1 Grms, 5-500 Hz, 3 Axes (w/ GPU, fan and HDD), according to IEC60068-2-64)
EMC	CE/ FCC Class A, according to EN 55022, EN 55024 & EN 55032

* The CPU and GPU loading are applied using Passmark® BurnInTest 8.0 with 35 TDP CPU. Operating Temperature degrades with higher TDP CPU. For detail testing criteria, please contact Neousys Technology
** For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required.

LIST

Ordering Information

Nuvo-6108GC-IGN

Industrial-grade GPU computing platform supporting up to 250W NVIDIA® GPU Card, Intel® Xeon® E3 v5 and 6th-Gen Core™ processor with built-in ignition control and 2x easy-swap trays

Optional Accessories

PA-280W-OW

280W AC/DC power adapter 24V/11.67A; 16AWG/100cm; Cord end terminals for terminal block, operating temperature : -30 to 60 °C

PA-480W-DIN

480W AC-DC power adapter DIN-rail mount, 24V 20A, 90~264VAC/127~370VDC, terminal block, -20 to70°C, Meanwell SDR-480-24
