Intel® 6th-Gen Core™ i7/i5/i3 Skylake in-vehicle fanless embedded computer with 8x PoE+ ports, DIO, CAN bus and RAID

Nuvo-5108VTC 차세대 산업용 PC

Supports Intel® 6th-Gen Core™ i7/i5/i3 LGA1151 socket-type CPU
Up to 8x 802.3at Gigabit PoE+ ports via RJ45 connectors
On-board CAN bus for in-vehicle communication
4-CH isolated DI and 4-CH isolated DO
2x SATA ports with one hot-swappable HDD tray, supporting RAID 0/1
4x full-size mini-PCIe sockets with SIM support
8~35V wide-range DC input with built-in ignition power control
E13 No. 10R-0514321 certificate

Overview

Introduction

Nuvo-5108VTC는 E-Mark 인증서를 준수하는 최첨단 차세대 산업용 PC 팬리스 임베디드 컴퓨터입니다. 인텔 6세대 코어 CPU를 장착한 이 제품은 다양한 차내 애플리케이션을 위해 탁월한 CPU 및 GPU 성능을 자랑합니다.

연결된 장치에 25W 전원을 공급하기위해 Nuvo-5104VTC는 4개의 PoE+ 포트를 제공하는 반면, Nuvo-5108VTC 8개의 802.3at PoE+ 포트를 제공합니다. 데이터 통신을 위해 기가비트 이더넷 포트를 2개 더 사용 가능합니다. 또한 3G/4G/WIFI 통신에 대응하는 모듈을 장착한 내부 미니 PCIe 소켓 4개를 활용할 수 있습니다.

게다가 Nuvo-5108VTC는 차내 CAN Bus 시스템, 개별적인 ECU 또는 다른 자동차 장치와 통신하기 위해 CAN Bus를 통합하고, 센서/액츄에이터 컨트롤용 DIO도 분리되어 있습니다. 지능형 점화 전원 컨트롤과 이중 드라이브 RAID 스토리지를 결합한 Nuvo-5108VTC는 심플하게 애플리케이션이 요구하는 모든 것들을 만족시킬 수 있습니다.

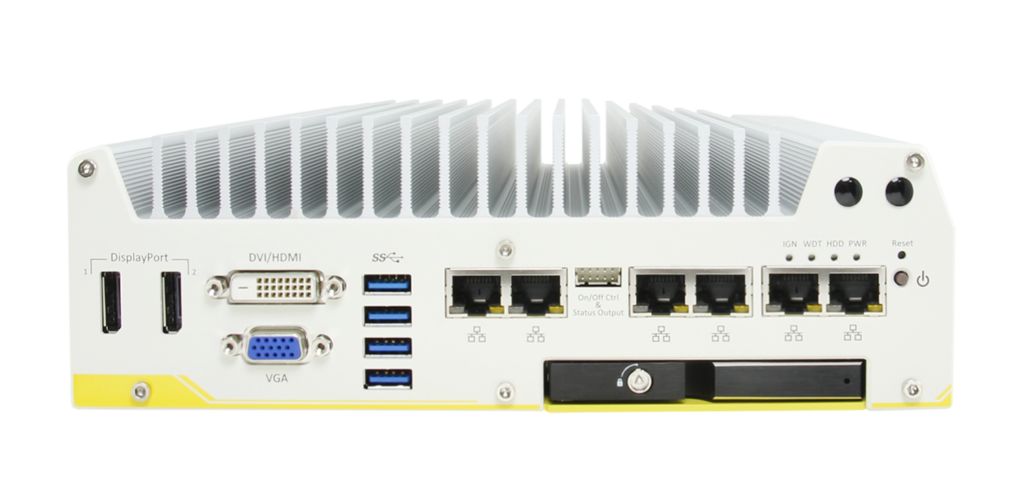

Nuvo-5108VTC is a state-of-the-art in-vehicle fanless embedded computer in compliant with E-Mark certificate. Featuring Intel® 6th-Gen Core™ CPU, it exhibits superb CPU and GPU performance for various in-vehicle applications.

Nuvo-5108VTC offers eight 802.3at PoE+ ports, while Nuvo-5104VTC offer four PoE+ ports, to supply 25W power to the connected device. Two more Gigabit Ethernet ports are available for data communication. You can also utilize four internal mini-PCIe sockets with corresponding modules for 3G/4G/WIFI communication.

In addition, Nuvo-5108VTC integrates CAN bus for communicating with in-vehicle CAN bus system, individual ECUs or other automotive devices, and an isolated DIO for sensor/actuator control. Combing Neousys’ intelligent ignition power control and dual-drive RAID storage, Nuvo-5108VTC series is simply the one to satisfy all your application demands.

Specifications

System Core
Processor	Supports Intel® Core™ i7/i5/i3 LGA1151 CPU -Core™ i7-6700TE(8M Cache, 2.4/3.4 GHz, 35W TDP) -Core™ i5-6500TE(6M Cache, 2.3/3.3 GHz, 35W TDP) -Core™ i3-6100TE(4M Cache, 2.7 GHz, 35W TDP)
Chipset	Intel® Q170 Platform Controller Hub
Graphics	Integrated Intel® HD Graphics 530
Memory	Up to 32 GB DDR4-2133 SDRAM by two SODIMM sockets
AMT	Supports AMT 11.0
TPM	Supports TPM 2.0

I/O Interface
Ethernet	2x Gigabit Ethernet ports by Intel® I219 and I210
PoE+	8x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 RJ45 connector
CAN	1x CAN 2.0 port
Isolated DIO	4x isolated DI and 4x isolated DO
USB	4x USB 3.0 ports via native XHCI controller 4x USB 2.0 ports
Video Port	1x stacked VGA + DVI-D connector 2x DisplayPort connectors, supporting 4K2K resolution
Serial Port	2x software-programmable RS-232/422/485 port (COM1 & COM2) 1x RS-232 port (COM3)
Audio	1x Mic-in and 1x Speaker-out

Storage Interface
SATA HDD	1x hot-swappable HDD tray for 2.5” HDD/SSD installation 1x Internal SATA port for 2.5” HDD/SSD installation, supporting RAID 0/1
mSATA	1x full-size mSATA port (mux with mini-PCIe)

Expansion Bus
Mini PCI-E	1x full-size mini-PCIe socket with panel-accessible SIM socket 1x full-size mini-PCIe socket with internal SIM socket (mux. with mSATA) 2x full-size mini-PCIe sockets (USB signals only) with internal SIM sockets

Power Supply
DC Input	1x 3-pin pluggable terminal block for 8~35VDC DC input
Remote Ctrl. & Status Output	1x 10-pin (2×5) wafer connector for remote on/off control and status LED output

Mechanical
Dimension	240 mm (W) x 225 mm (D) x 79 mm (H)
Weight	3.3 Kg
Mounting	Wall-mount with damping brackets (Standard) or DIN-rail mount (optional)

Environmental
Operating Temperature	-25°C ~ 70°C /*
Storage Temperature	-40°C ~ 85°C
Humidity	10%~90% , non-condensing
Vibration	IEC61373:2010, Category 1, Class B Body mounted (part of EN50155)
Shock	IEC61373:2010, Category 1, Class B Body mounted (part of EN50155)
EMC	EN 50155/ EN45545 E-Mark (Nuvo-5108VTC) CE/ FCC Class A, according to EN 55022, EN 55024 & EN 55032

* The CPU loading is applied using Passmark® BurnInTest 8.0. For detail testing criteria, please contact Neousys Technology.
**For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required.
