4x M12 PoE+ & 15mm 2.5” HDD/SSD를 지원하는 Intel® Elkhart Lake Atom® x6425E 차량용 팬리스 컴퓨터

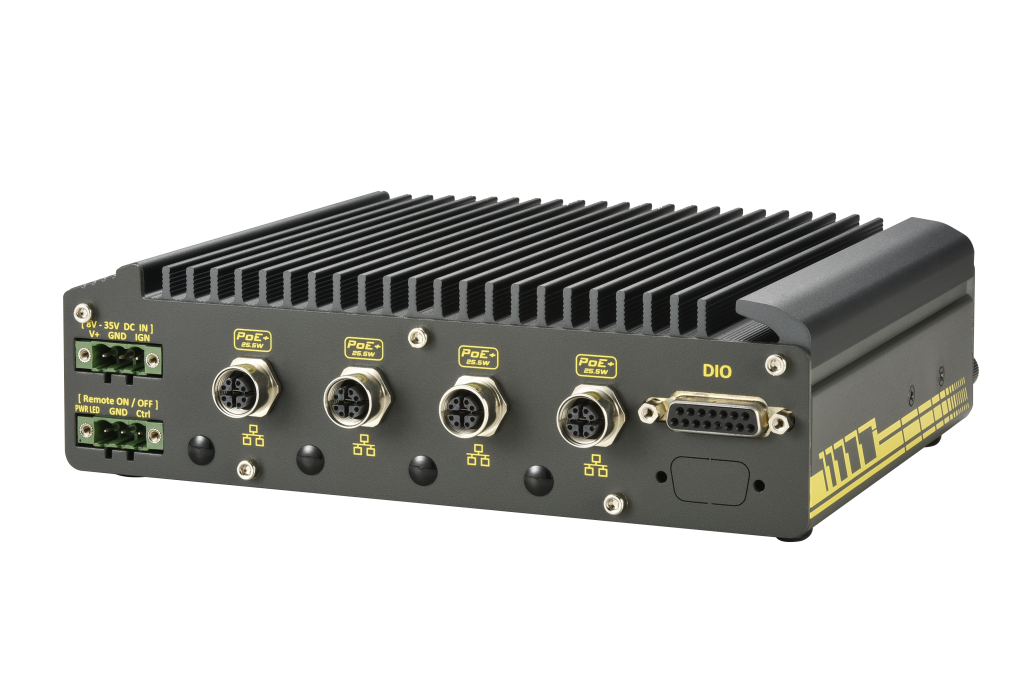

Nuvo-2610VTC Elkhart Lake Atom 소형 팬리스 차량용
- Intel® Elkhart Lake Atom® x6425E quad-core 2.0GHz/ 3.0GHz 12W processor
- Rugged -40°C to 70°C fanless operation, compliant with EN 50155 Class OT4
- 4x PoE+ GbE ports via M12 x-coded connectors
- 1x front-accessible 2.5" 15mm HDD tray and 1x M.2 2280 SATA SSD
- 1x M.2 3042/3052 B Key for 4G/5G mobile broadband
- 2x full-size mini-PCIe sockets for WIFI/CAN/GNSS modules
- 8-35V wide-range DC input with built-in ignition power control
- E-Mark certified and EN 50155 EMC compliant
Overview
Introduction
Nuvo-2610VTC 시리즈는 최대 15mm 높이의 HDD/SSD를 지원하는 M12 Gigabit PoE+ 커넥터 4개와 전면 액세스 가능한 2.5″ HDD 트레이 1개를 통합한 견고한 Intel®Atom® 기반 차량용 컴퓨터입니다. 모바일 게이트웨이, 데이터 로거에서 네트워크 비디오 레코더(NVR)에 이르기까지 온로드, 오프 하이웨이 또는 철도 애플리케이션과 같은 다목적 애플리케이션을 수행하도록 설계되었습니다.
Intel® Elkhart Lake Atom® x6425E 쿼드코어 CPU를 탑재한 Nuvo-2610VTC 시리즈는 이전 세대에 비해 CPU 성능이 1.8배 향상되었습니다. 강력한 이더넷 연결을 제공하기 위해 Nuvo-2610VTC 시리즈는 M12 x 코드 커넥터를 통해 4개의 기가비트 PoE+ 포트와 나사 잠금 메커니즘이 있는 2개의 USB 3.1 포트를 제공합니다. Nuvo-2610VTC에는 시스템 스토리지용 내부 M.2280 SATA SSD 외에도 최대 15mm 높이와 5TB 용량의 2.5″ SATA HDD/SSD를 수용할 수 있는 전면 액세스 가능한 2.5″ HDD 트레이가 하나 있습니다. 내부 확장을 위해 WiFi, GNSS, CAN 모듈용 미니 PCIe 소켓 2개와 4G/5G 모바일 광대역 모듈용 M.23042/3052 B 키 소켓 1개를 제공합니다.
다양한 차량 내 전개 조건을 충족하기 위해 Nuvo-2610VTC 시리즈는 세 가지 변형으로 제공됩니다. Nuvo-2610VTC 외에도 Nuvo-2611이 있다.VTC에는 열차 내 전력 공급 중단이나 전압 변동을 견딜 수 있도록 SuperCAP UPS가 내장되어 있으며, 전원이 차단되었을 때 적절한 셧다운을 위해 시스템을 유지할 수 있습니다. 누보-2612VTC는 맞춤형 열 솔루션으로 AI 가속기 모듈을 수용할 수 있는 3세대 x2 PCIe 슬롯을 추가하기 위한 카세트 모듈을 가지고 있습니다. AI 가속기로 지능형 비디오 분석을 위한 팬리스 GPU 컴퓨터 또는 인식 기능을 갖춘 데이터 로거가 됩니다.
Intel Atom® 쿼드코어 x6425E, -40°C~70°C 팬리스 작동, 점화 제어 기능이 있는 광범위한 DC 입력, 4G LTE/5G NR 모바일 광대역 연결을 통합함으로써 Nuvo-2610VTC 시리즈는 애프터마켓의 차량용 차량 내 애플리케이션에 이상적인 견고한 다목적 차량용 컴퓨터입니다. 견고한 M12 PoE+ 연결 및 SuperCAP UPS 내장 Nuvo-2610VTC 시리즈는 트럭, 화물 차량 및 철도 차량과 같은 오프 하이웨이 애플리케이션의 가혹하고 불안정한 전기 환경을 견딜 수 있습니다.
The Nuvo-2610VTC series is a rugged Intel® Atom®-based in-vehicle computer that incorporates four M12 Gigabit PoE+ connectors and one front-accessible 2.5″ HDD tray, supporting up to 15mm height HDD/SSD. It is designed to fulfill multi-purpose applications such as on-road, off-highway, or railway applications from mobile gateways, data loggers, to network video recorders (NVR).
Powered by Intel® Elkhart Lake Atom® x6425E quad-core CPU, the Nuvo-2610VTC series delivers 1.8x the CPU performance when compared with the previous generation, Nuvo-2510VTC. To provide robust Ethernet connectivity, the Nuvo-2610VTC series offers four Gigabit PoE+ ports via M12 x-coded connectors and one USB 3.1 port with the screw-lock mechanism. In addition to the internal M.2 2280 SATA SSD for system storage, Nuvo-2610VTC also has one front-accessible 2.5″ HDD tray accommodating a 2.5″ SATA HDD/SSD with up to 15mm height and 5TB capacity. For internal expansion, it provides two mini-PCIe sockets for WiFi, GNSS, and CAN modules plus one M.2 3042/3052 B Key socket for 4G/5G mobile broadband module.
To meet versatile in-vehicle deployment conditions, the Nuvo-2610VTC series comes in three variants. In addition to Nuvo-2610VTC, the Nuvo-2611VTC is equipped with an embedded SuperCAP UPS to withstand power interruptions or voltage fluctuations on the train and can sustain the system for a proper shutdown when the power is cut-off. The Nuvo-2612VTC has a Cassette module for an additional Gen3 x2 PCIe slot that can accommodate an AI accelerator module with a tailor-made thermal solution. With the AI accelerator, it becomes a fanless GPU computer for intelligent video analytics or a data logger with perception capability.
By integrating an Intel Atom® quad-core x6425E, -40°C to 70°C fanless operations, wide-range DC input with ignition control, and 4G LTE / 5G NR mobile broadband connectivity, the Nuvo-2610VTC series is an ideal rugged, multi-purpose, in-vehicle computer for aftermarket on-road in-vehicle applications. With rugged M12 PoE+ connectivity and built-in SuperCAP UPS, the Nuvo-2610VTC series can withstand harsh and unstable electrical environments for off-highway applications such as trucks, cargo vehicles, and rolling stock.
Specifications
| System Core | |
|---|---|
| Processor | Intel® Elkhart Lake Atom® x6425E quad-core 2.0GHz/3.0GHz 12W processor |
| Graphics | Integrated Intel® UHD Graphics |
| Memory | Up to 32GB DDR4-3200 SDRAM by one SODIMM socket |
| Panel I/O Interface | |
|---|---|

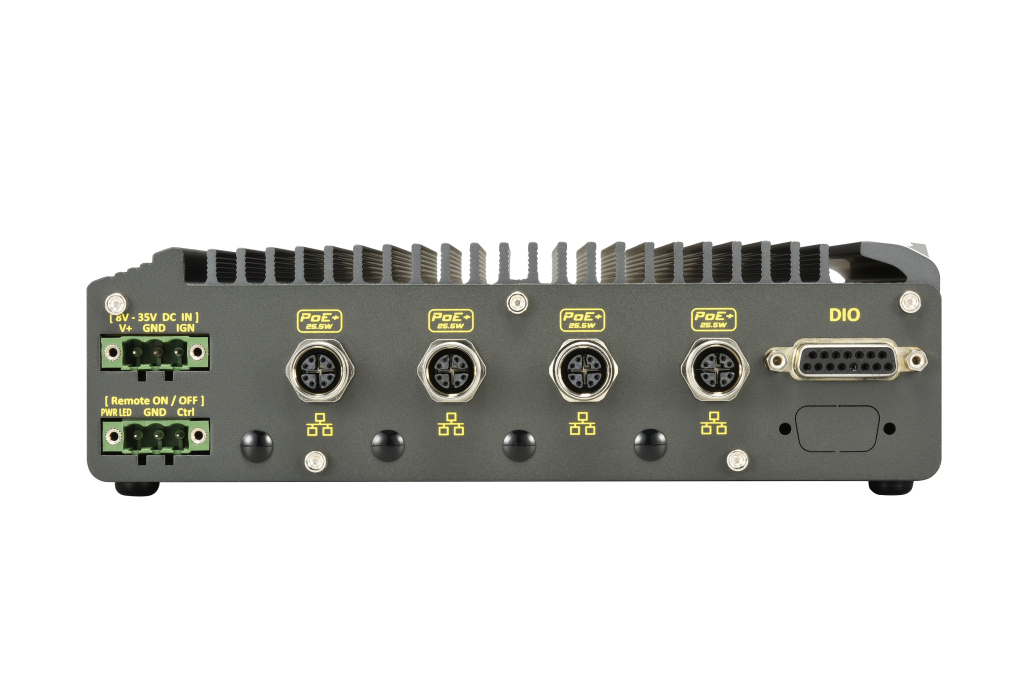

| PoE | 4x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 via M12 x-coded connectors |

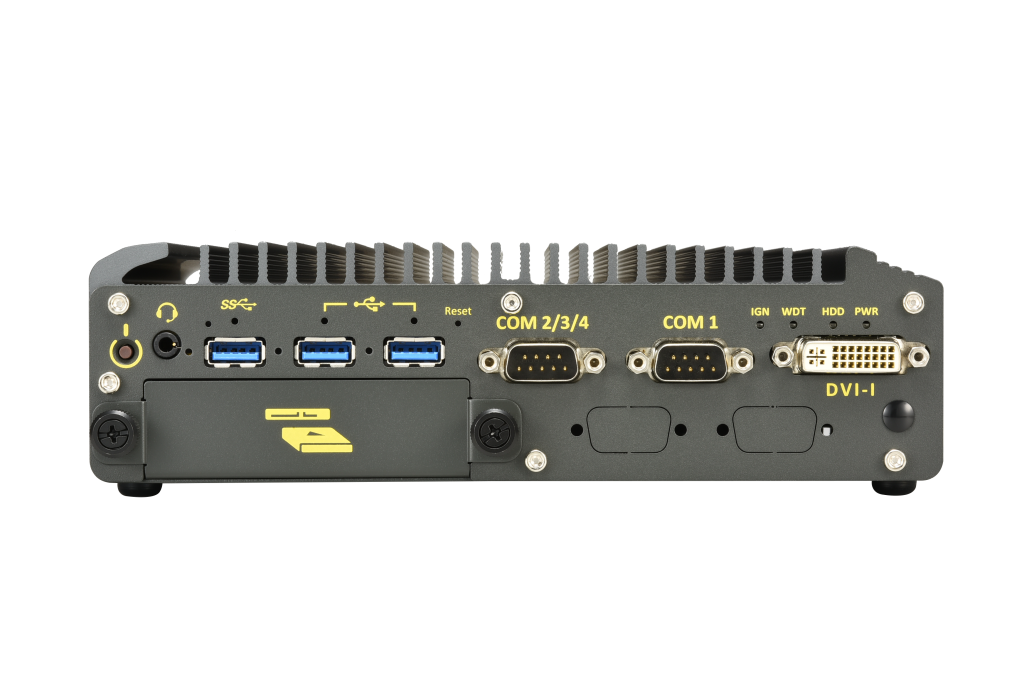

| Video Port | VGA and DVI dual display outputs via DVI-I connector |
| USB | 1x USB 3.1 gen1 ports with screw-lock 2x USB 2.0 port with screw-lock |
| Serial Port | 1x isolated RS-485 port with 15 kV ESD protection (COM1) 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 (COM2) |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| Isolated DIO | 4-CH isolated DI and 4-CH isolated DO |
| Expansion Bus | |
|---|---|
| PCI Express | 1x PCIe x4 slot @Gen3, 2-lane PCIe signal in Cassette (Nuvo-2612VTC only) |
| Mini-PCIe | 1x full-size mini PCI Express socket with PCIe and USB 2.0 signal 1x full-size mini PCI Express socket with USB 2.0 signal |
| M.2 | 1x M.2 3042/3052 B key (USB 3.1 + USB 2.0) for 4G/5G module with dual internal micro SIM socket |
| Storage Interface | |
|---|---|
| M.2 SATA | 1x M.2 2280 M key (SATA interface only) socket for SATA SSD installation |
| SATA HDD | 1x front-accessible HDD tray for 2.5″ HDD/ SSD installation (up to 15mm height) |
| Power Supply | |
|---|---|
| DC Input | 1x 3-pin pluggable terminal block for 8V to 35V DC input with built-in ignition power control (IGN/GND/V+) |
| Remote Ctrl. & LED Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Power Backup | |
|---|---|
| Capacity | 2500 watt-second (Nuvo-2611VTC only) |
| Mechanical | |
|---|---|
| Dimension | 205 mm (W) x 156 mm (D) x 58 mm (H) (Nuvo-2610VTC) 205 mm (W) x 156 mm (D) x 86 mm (H) (Nuvo-2611VTC, Nuvo-2612VTC) |
| Weight | 1.9 kg (Nuvo-2610VTC) 2.5 kg (Nuvo-2611VTC) / 2.3 kg (Nuvo-2612VTC) |
| Mounting | Damping bracket (default) Wall-mount (optional) |
| Environmental | |
|---|---|
| Operating temperature | -40°C ~ 70°C* |
| Storage temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.7, Category 4 (pending) IEC61373:2010, Category 1, Class B Body Mounted (part of EN 50155) (pending) |
| Shock | Operating, MIL-STD-810G, Method 516.7, Procedure I (pending) IEC61373:2010, Category 1, Class B Body Mounted (part of EN 50155) (pending) |
| EMC | E-Mark**, EN 50121 (EN 50155 EMC) CE/FCC ClassA, according to EN 55032 & EN 55035 |
* For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required.
** Nuvo-2610VTC and Nuvo-2612VTC are the only models in the Nuvo-2600VTC series that have been certified to comply with E-Mark.
Ordering Information
Nuvo-2610VTC
Intel® Elkhart Lake Atom® x6425E in-vehicle fanless computer with M12 PoE+ and 15mm 2.5” HDD/SSD support
Nuvo-2611VTC
Elkhart Lake Atom® x6425E in-vehicle fanless computer with M12 PoE+, 15mm 2.5” HDD and built-in SuperCAP UPS

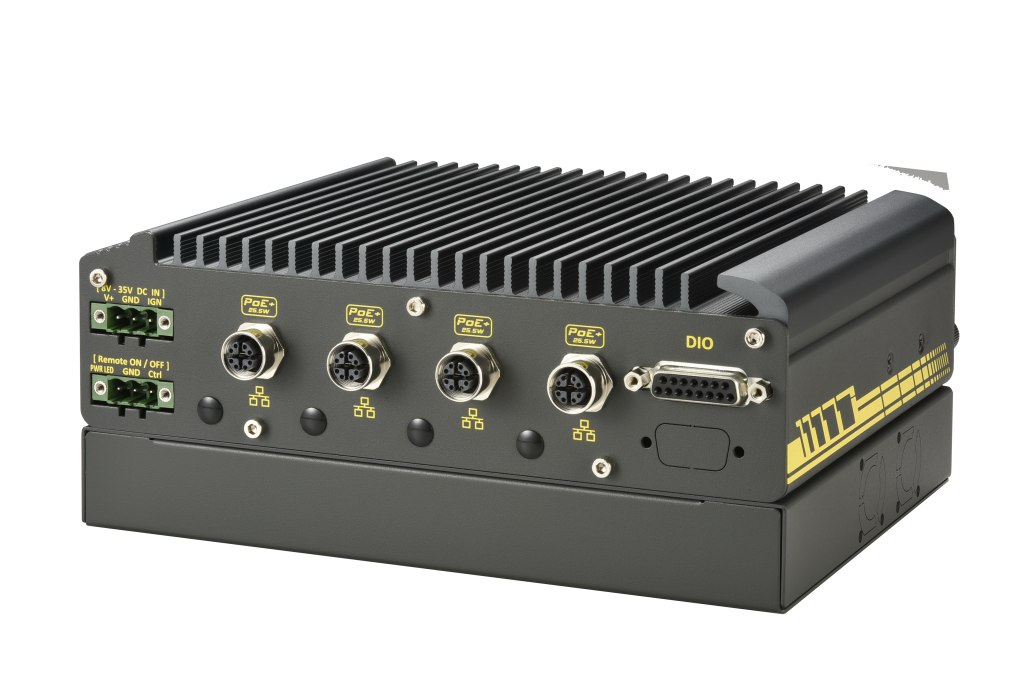

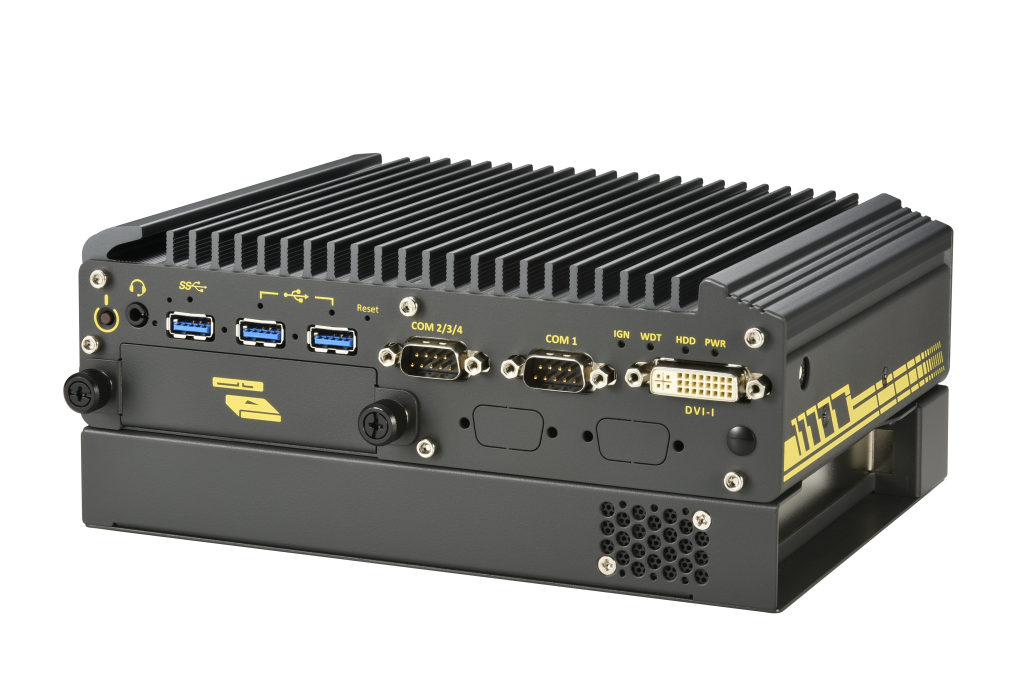

Nuvo-2612VTC
Intel® Elkhart Lake Atom® x6425E in-vehicle fanless computer with M12 PoE+, 15mm 2.5” HDD and single-slot PCIe Cassette
Optional Accessories
PA-120W-OW
120W AC/DC power adapter 20V/6A; 18AWG/120cm; cord end terminals for terminal block, operating temperature: -25 to 70°C
PA-160W-OW
160W AC-DC power adapter 20V/8A; 18AWG/120cm; cord end terminals for terminal block, operating temperature: -25 to 70°C.
Fankit-25
Single fan kit for the PCIe cassette of Nuvo-2600 and Nuvo-2610VTC series, including one 25x25mm fan and screws
Wmkit-Nuvo-2600
Wall mounting kit for Nuvo-2600 and Nuvo-2610VTC series, including wall mount brackets and screws
