NVIDIA® Orin™ NX로 구동되는 드론용 경량 미션 컴퓨터
FLYC-300 Series NVIDIA® Orin™ NX 드론용 초소형 컴퓨터 (Upcoming)
- Weighs only 297g for on-board installation
- Up to 100 TOPS GPU by Jetson Orin NX
- Supports multiple camera and sensor interfaces
- - 2x GbE and 2x USB3 for RGB/ Infrared/ hyperspectral cameras and lidar/ radar
- - 2x GMSL2 for HDR/ 3D cameras
- Built-in UART and CAN to interact with flight controller
- 1x M.2 2230 for storage and 4G/5G communication ready
- Supports 4S-14S drone battery pack
Overview
Introduction
FLYC-300은 드론 및 UAV 애플리케이션용으로 맞춤 제작된 NVIDIA Jetson Orin NX 기반 미션 컴퓨터입니다. 드론의 비행 안정화 및 제어를 담당하는 비행 컨트롤러와 일치하고 협력하도록 설계된 FLYC-300은 드론의 진정한 자율성을 부여하는 다용도 센서와 자율 항법, 장애물 회피, 물체 감지 및 추적과 같은 고급 애플리케이션을 결합한 강력한 100 TOPS의 AI 성능을 제공합니다.
RGB, 초분광, 적외선, 라이다 및 3D 카메라와 같은 카메라 및 센서의 다양한 요구에 맞춰진 FLYC-300은 각각 2개의 이더넷, USB 3.2, GMSL2 포트를 포함한 다양한 연결 옵션을 제공합니다. 드론 이미지 수집, 영상감시, 인프라 모니터링과 같은 실시간 비디오 분석 애플리케이션에 이상적입니다. FLYC-300은 미션 컨트롤러로서 드론의 비행 컨트롤러와의 원활한 통신을 위해 사용자가 설정할 수 있는 UART, 이더넷, CAN 포트를 갖추고 있습니다. 또한 XT30 DC-IN 커넥터를 통해 4S에서 14S까지 배터리 팩의 폭넓은 범위의 전압 입력이 가능합니다. 이 시스템은 이미지, 동영상, 데이터를 실시간 전송하기 위한 5G/4G 모듈 설치도 지원합니다.
NVIDIA Jetson 기반 AI 플랫폼인 FLYC-300은 카메라, 온도센서, 적외선 센서와 같은 비전 디바이스와 결합하여 무인 시스템을 한 단계 더 끌어올릴 수 있습니다. FLYC-300을 탑재한 지능형 자율 UAV 시스템은 강화된 운용 효율성, 위험 감소, 실시간 정보 제공이 가능하여, 가치있는 자산이 될 것입니다.297그램의 초경량 설계로 다양한 디바이스 연결이 가능한 FLYC-300은 실제 애플리케이션과 통합하고 배포할 준비가 되어 있습니다.
FLYC-300 is an NVIDIA Jetson Orin NX based mission computer tailor-made for drone and UAV applications. Designed to coincide and collaborate with the flight controller that is responsible for stabilizing and controlling drone’s flight, FLYC-300 fuels compelling 100 TOPS AI performance combining versatile sensors to empower true autonomy of drone and advance applications such as autonomous navigation, obstacle avoidance, object detection and tracking.
Catering to the diverse needs of cameras and sensors like RGB, hyperspectral, infrared, LiDAR, and 3D cameras, FLYC-300 boasts a versatile array of connectivity options, including two Ethernet, two USB3.2, and two GMSL2 ports. Making it ideal for real-time video analytics applications such as drone imagery collection, environmental monitoring, infrastructure monitoring. To command the flight of drone, FLYC-300 can communicate seamlessly with the flight controller through configurable UART, Ethernet, and CAN ports. It also accommodates a wide voltage input range from 4S to 14S battery packs via the XT30 DC-IN connector. The system is compatible and supports installation of 5G/ 4G modules for real-time transmission of images, videos, and data.
FLYC-300 can elevate unmanned systems to another level by combining vision devices with a powerful NVIDIA Jetson-based AI platform. Intelligent autonomous UAV systems can deliver enhanced operational effectiveness, risk reduction, and real-time information, making them a valuable repertoire. With its 297 grams ultralightweight design, versatile connectivity, FLYC-300 is ready for integration and deployment into real-world applications.
Specifications
| System Core | |
|---|---|
| Processor | NVIDIA® Jetson Orin™ NX system-on-module (SOM), comprising NVIDIA® Ampere GPU and ARM Cortex CPU |
| Memory | 8GB/ 16GB LPDDR5 @ 3200 MHz on SOM |
| External I/O Interface | |
|---|---|
| GMSL2 | 2x GMSL2 FAKRA Z connector, supporting 2x 1920×1080 @ 60 FPS or 1x 2880×1860 @ 30 FPS camera input |
| Ethernet port |
1x Gb Ethernet port by NVIDIA 1x 2.5Gb Ethernet port by Intel® I225-IT |
| USB | 1x USB 3.2 Gen2 (10 Gbps) port 1x USB 3.2 Gen1 (5 Gbps) port |
| SD Card | 1x Micro SD Card Slot |
| Native Video Port | 1x DisplayPort connector |
| Internal I/O Interface | |
|---|---|
| USB Type-C | 1x USB Type-C (for debug only) |
| USB | 1x USB 2.0 |
| CAN Bus | 1x CAN bus 2.0 |
| I2C | I2C |
| GPIO | Isolated 2x DI, 4x DO |
| UART | 1x UART |
| Storage Interface | |
|---|---|
| M.2 | 1x M.2 2230 M key socket NVMe interface (Gen4 x4) |
| Expansion Bus | |
|---|---|
| M.2 | 1x M.2 3042/3052 B key with internal micro SIM socket |
| Power Supply | |
|---|---|
| DC Input | XT-30 for 12V to 60V DC input Supports 4S-14S battery pack |
| Mechanical | |
|---|---|
| Dimension | 124mm x 123mm x 29.8mm (Excluded enclosure) 124mm x 123mm x 30.5mm (Included enclosure) |

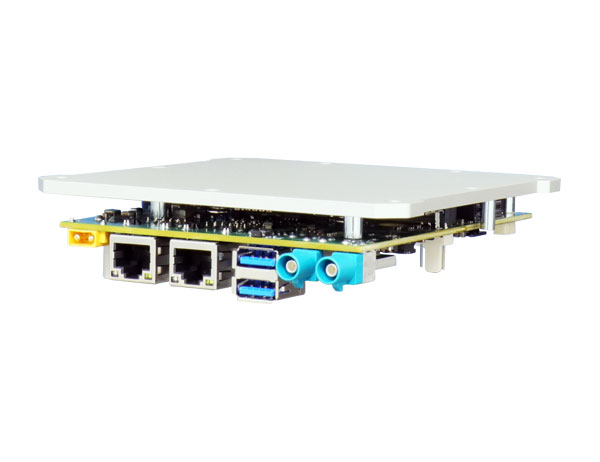

| Weight | 297g (Excluding enclosure) 345g (Including enclosure) |
| Mounting | Wall Mount |
| Fan | Optional external-accessible 65mm x 65mm fan for system heat dissipation |
| Environmental | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating temperature |
|
||||||||||||
| Storage Temperature | -40°C ~ 85°C | ||||||||||||
| Humidity | 10% ~ 90% , non-condensing | ||||||||||||
| Vibration | Operating, MIL-STD-810H, Method 514.6, Category 4 | ||||||||||||
| Shock | Operating, MIL-STD-810H, Method 516.6, Procedure I, Table 516.6-II | ||||||||||||
| Safety | EN62368-1 | ||||||||||||
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 | ||||||||||||
* For sub-zero operating temperature, a wide temperature SSD is required.
** Conduction must be utilized by securing the FLYC’s heat spreader to a aluminum surface.
Ordering Information
FLYC-300-JON8
Lightweight Drone Mission Computer with NVIDIA OrinTM NX 8GB and M.2 2230 Storage
FLYC-300-JON8-EC

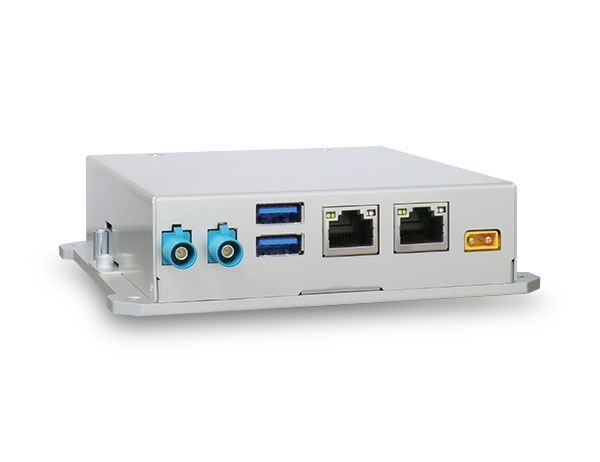

Lightweight Drone Mission Computer with NVIDIA OrinTM NX 8GB, M.2 2230 Storage and Enclosure
FLYC-300-JON16
Lightweight Drone Mission Computer with NVIDIA OrinTM NX 16GB and M.2 2230 Storage
FLYC-300-JON16-EC
Lightweight Drone Mission Computer with NVIDIA OrinTM NX 16GB, M.2 2230 Storage and Enclosure
Optional Accessories
AccsyBx-FAN-FLYC-300
Fan assembly for FLYC-300
Cblkit-FLYC-300
Cblkit-FLYC-300
