EN50155 및 EN45545 19인치 랙 마운트 철도 GPU 컴퓨터(NVIDIA® 2000 ADA 포함), 인텔® 14세대/13세대/12세대 코어™ 프로세서 지원, 43V ~ 160V DC 입력(단독)

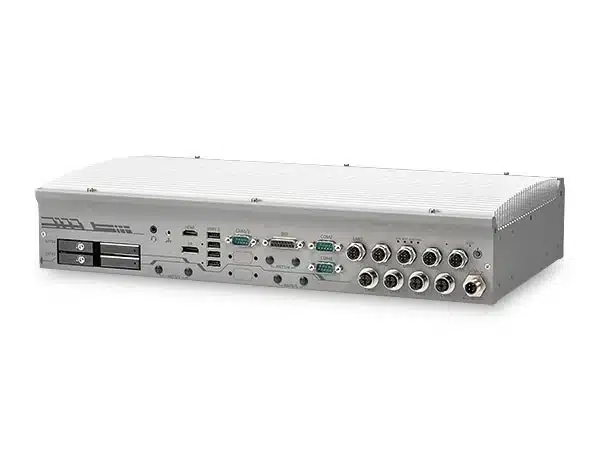

GT-92RL-H, NVIDIA® RTX 2000 ADA 지원 철도용 GPU컴퓨터(NEW)

Compliant with EN 50155 mandatory tests and EN 45545-2
Intel® 14th/ 13th/ 12th-Gen LGA1700 processor (35W/65W)
Fanless GPU computer with NVIDIA® RTX 2000 ADA
2U 19” chassis for rack-mount or wall-mount
43V to 160V wide-range DC input via M12 K-Coded connector
9x GbE ports via M12 X-Coded connectors
1x M.2 2280 M key with PCIe-Gen 4x4 for NVMe storge
2x full-size mPCIe sockets for MVB modules
-40°C to 55°C wide-temperature fanless operation

Overview

Introduction

Neousys의 산업용 Fanless PC GT-92RL-H는 19인치 랙 마운트형, 광범위 온도 지원, 팬리스 GPU 컴퓨터로, Intel® 14세대/13세대/12세대 플랫폼과 NVIDIA® RTX 2000 ADA를 활용하여 뛰어난 CPU 및 GPU 성능을 제공합니다.

고성능과 유연한 카메라 확장 기능 덕분에, 산업용 Fanless PC GT-92RL-H는 팬터그래프 및 궤도 게이지 모니터링, 열차 객실 내 영상 분석, 선로 객체 식별, 터널 검사 등 실시간 응답이 필요한 멀티 카메라 애플리케이션에 최적화되어 있습니다.

산업용 Fanless PC GT-92RL-H는 -40°C부터 55°C까지 안정적인 시스템 작동을 보장하는 검증된 열 설계를 갖추고 있습니다. 시스템 전체와 70W GPU 카드 모두 패시브 쿨링 방식으로 냉각되며, 110V DC 전원 입력을 지원하고 EN 50155 및 EN 45545 인증을 획득하여 철도 환경에서도 신뢰성 높은 운영이 가능합니다.

또한, 8개의 GigE 카메라(또는 IP 카메라)와 4개의 USB3 카메라를 지원하여, 다양한 비전 기반 AI 애플리케이션에 적합합니다.

저장 장치 확장성도 뛰어나며, 최대 7,000MB/s의 초고속 읽기/쓰기 속도를 제공하는 M.2 2280 Gen4x4 NVMe 슬롯 1개와 2개의 2.5인치 SATA HDD/SSD 슬롯을 지원해 데이터 저장 용량을 유연하게 확장할 수 있습니다.

산업용 Fanless PC GT-92RL-H는 강력한 성능과 폭넓은 I/O 포트를 갖춘 철도 차량용 최적의 엣지 AI 추론 플랫폼입니다.

GT-92RL-H is a 19″ rack mount, wide-temperature, fanless GPU computer that delivers excellent CPU and GPU performance by leveraging Intel® 14th/ 13th/ 12th-Gen platform and NVIDIA® RTX 2000 ADA.Thanks to its high-performance and flexible camera expansion, GT-92RL-H is ideal for multi-camera applications requiring real time responses, e.g., pantograph and track gauge monitoring, video analytics in train carriages, track object identification, and tunnel inspection, etc.

GT-92RL-H has a proven thermal design to guarantee reliable system operation from -40°C to 55°C. It features a passive-cooling design for the system and 70W GPU card. Supporting eight GigE cameras (or IP cameras) and four USB3 cameras, GT-92RL-H is ideal for various vision-based AI applications on rolling stocks with its 110V DC input design and EN 50155/ EN 45545 certifications.

It also provides flexible data storage options, including one M.2 2280 Gen4x4 NVMe providing up to 7000 MB/s extreme read/write speeds and two 2.5″ SATA HDD/SSD to expand storage capacity.

With performance enhancements and comprehensive I/Os, GT-92RL-H is the perfect edge AI inference platform for rolling stock applications.

#GT-92RL-H #산업용PC #Fanless PC #철도용컴퓨터 #Edge AI

Specifications

System Core
Processor	Supporting Intel® 14th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP)[1][2] – Intel® Core™ i9-14900/ i9-14900T – Intel® Core™ i7-14700/ i7-14700T – Intel® Core™ i5-14500/ i5-14400/ i5-14500T – Intel® Core™ i3-14100/ i3-14100T Supporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) – Intel® Core™ i9-13900E/ i9-13900TE – Intel® Core™ i7-13700E/ i7-13700TE – Intel® Core™ i5-13500E/ i5-13400E/ i5-13500TE – Intel® Core™ i3-13100E/ i3-13100TE Support Intel® 12th-Gen Core™ CPU(LGA1700 socket, 35W/ 65W TDP) – Intel® Core™ i9-12900E/ i9-12900TE – Intel® Core™ i7-12700E/ i7-12700TE – Intel® Core™ i5-12500E/ i5-12500TE – Intel® Core™ i3-12100E/ i3-12100TE – Intel® Pentium® G7400E/ G7400TE – Intel® Celeron® G6900E/ G6900TE
Chipset	Intel® R680E platform controller hub
Graphics	Integrated Intel® UHD Graphics 770 (32EU)
Acceleration GPU	NVIDIA® RTX 2000 ADA
Memory	Up to 64 GB ECC/ non-ECC DDR5 4800 SDRAM (two SODIMM slots)
AMT	Supports Intel vPro/ AMT 16.0
TPM	Supports dTPM 2.0

I/O Interface
Ethernet	1x GbE Ethernet by Intel I219-LM via M12 x-coded connector(with WoL) 8x GbE Ethernet by Intel I350-AM4 via M12 x-coded connectors
POE+	None
CAN Bus	2x isolated CAN 2.0 port, supporting SocketCAN in Linux
USB	4x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors
Video Port	1x HDMI 1.4, supporting 4096×2160 resolution 1x DisplayPort, supporting 4096 x 2304 resolution
Serial Port	2x isolated 3-wire RS232/ 422/ 485 port (COM1/ COM2)
Isolated DIO	4-CH isolated DI and 4-CH isolated DO
Audio	1x 3.5 mm jack for mic-in and speaker-out

Storage Interface
SATA HDD	2x hot-swappable HDD trays for 2.5″ HDD/ SSD installation, supporting RAID 0/ 1
M.2	1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD

Internal Expansion Bus
Mini PCI Express	2x full-size mini PCI Express socket with SIM slot

Power Supply
DC Input	43V to 160V DC input (M12 K-coded)

Mechanical
Dimension	440mm (W) x 250mm (D) x 88mm (H) (excl. rack-mount bracket)
Weight	8.0 kg
Mounting	Rack-mounting (optional) and wall-mounting (optional)

Environmental
Operating Temperature	with 35W CPU -40°C ~ 55°C [1] with 65W CPU -40°C ~ 35°C [1]
Storage Temperature	-40°C ~ 85°C
Humidity	10% ~ 90% , non-condensing
Vibration	EN 50155:2017/ IEC 61373, Category I, Class B – Body mounted
Shock	EN 50155:2017/ IEC 61373, Category I, Class B – Body mounted
EMC	EN 50121 (EN 50155 EMC) CE/FCC Class A, according to EN 55032 & EN 55035
EN 50155	All mandatory sections of EN 50155:2017 (110V)
EN 45545	EN 45545-2 (Fire protection on railway vehicles)

[1] For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required

LIST

Ordering Information

GT-92RL-H

EN50155 & EN45545 19″ rack mount railway GPU computer including NVIDIA® 2000 ADA, supporting Intel® 14th/ 13th / 12thGen Core™ processor, 43V to 160V DC input with isolation

Optional Accessories

Cbl-M12K5F-CordEnd4-180CM

M12 K-Code Female 5P to Cord End Terminal 4P, Lenght:180cm

Cbl-M12X8M-RJ45-CAT6A-500CM

M12( 8-pole-X-coded) to RJ45, CAT6A, Length: 500CM

Cbl-DB9F-2DB9M-15CM

DB9 (Female) to 2x DB9 (Male), Length: 15CM for CAN1/2

AccsyBx-SplicingConnector

Accessory box kits for Splicing Connector 2-Pole, included 10pcs

Rmkit-GT92

Rack-mount assembly for GT-92 series

Wmkit-GT92

Wall-mount assembly for GT-92 series

mPCIe-M2B

NGFF M.2 key B to mini-PCIe adapter with dual nano-SIM slots

mPCIe-M2E

NGFF M.2 key E to mini-PCIe adapter

mPCIe-M2M

NGFF M.2 key M to mini-PCIe adapter
