Nuvo-9200VTC Series Intel® 13/12세대 차량용PC

Intel® 13세대/12세대 Core™ 차량 내 컴퓨터(M12 4개/RJ45 4개/RJ45 PoE+ 포트 8개, 단일 슬롯 PCIe 카세트 포함)

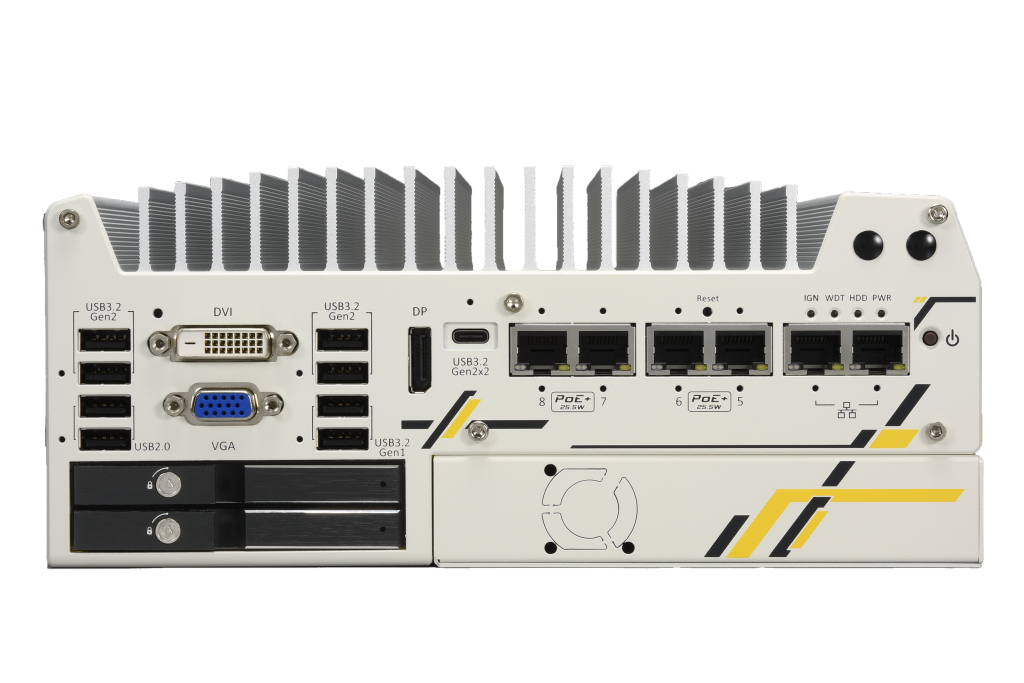

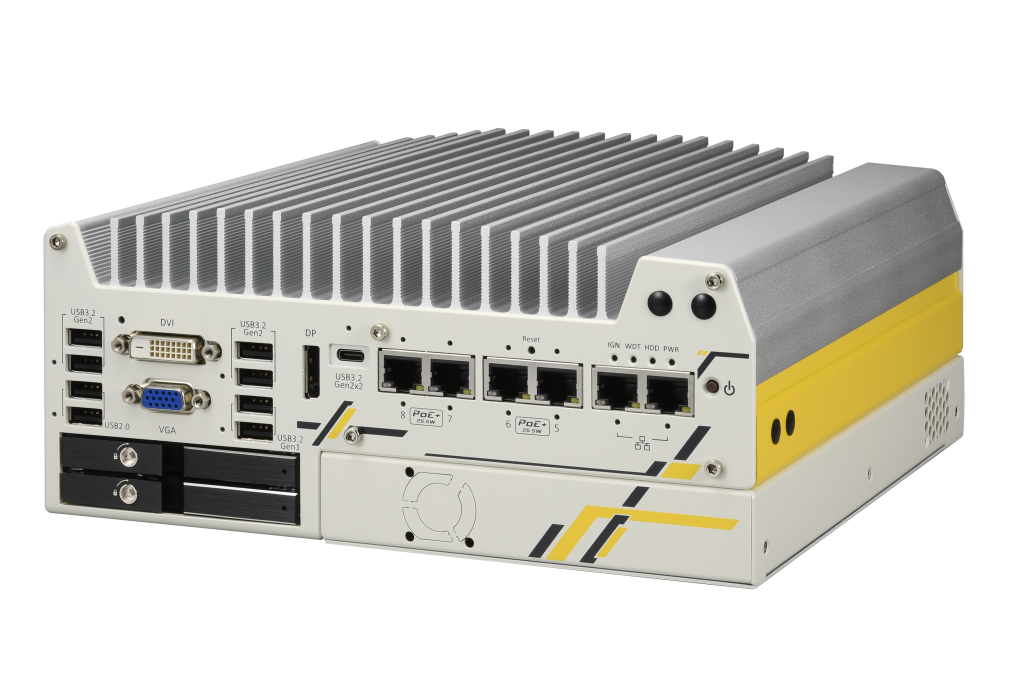

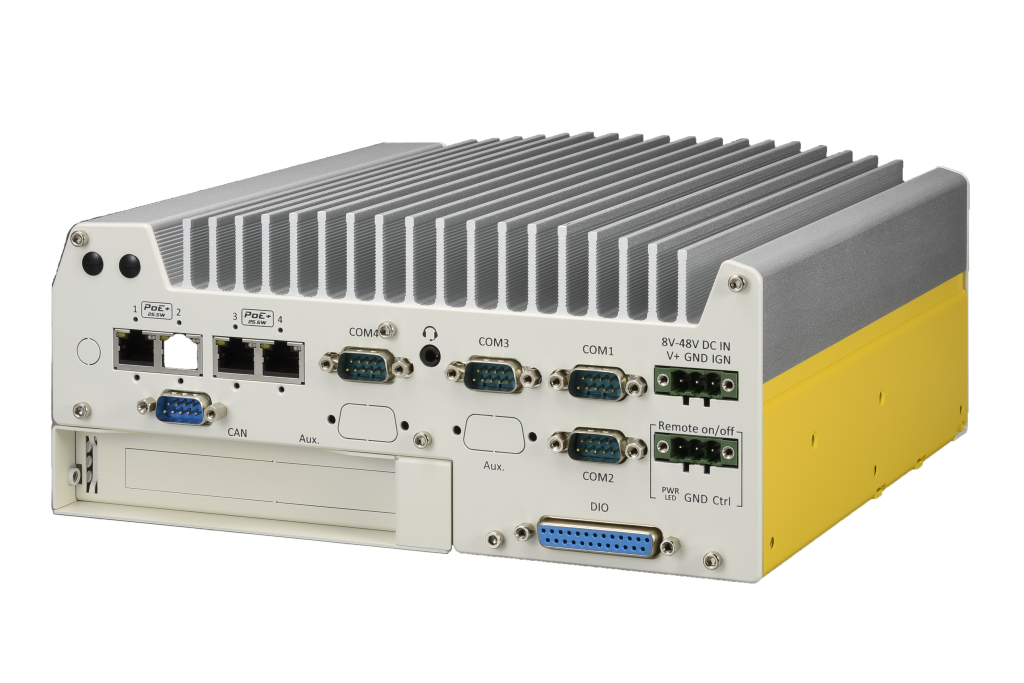

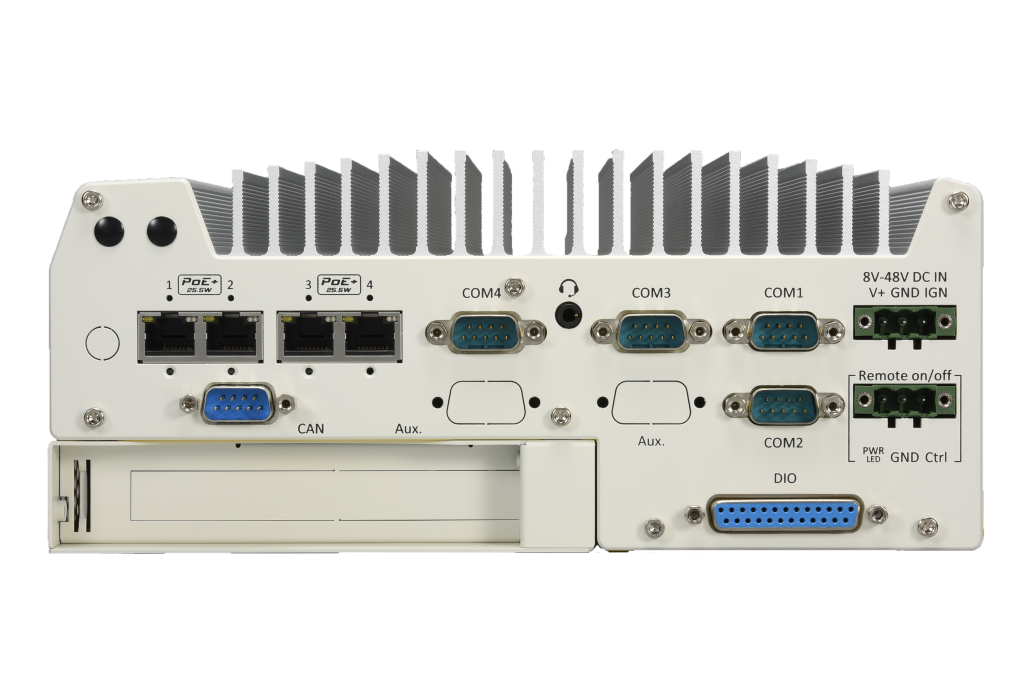

Nuvo-9200VTC Series Intel® 13/12세대 차량용PC

  • Supports Intel® 13th/12th-Gen Core™ 24C/ 32T 35W/ 65W LGA1700 CPU
  • 4x or 8x 802.3at PoE+ ports via M12 or RJ45 connectors
  • 1x USB 3.2 Gen2x2 type-C and 8x USB 3.2/ 2.0 type-A ports
  • On-board isolated CAN bus for in-vehicle communication
  • 4-CH isolated DI and 4-CH isolated DO
  • M.2 Gen4 x4 NVMe SSD slot
  • 2x hot-swappable SATA HDD trays, supporting RAID 0/ 1
  • 8V to 48V wide-range DC input with built-in ignition power control
  • Patented Cassette for PCIe add-on card accommodation
  • E-Mark certified and EN 50155 EMC compliant
Overview
Introduction

Nuvo-9200VTC는 Intel® 13세대/12세대 Core™ 프로세서를 기반으로 하는 Neousys의 최신 견고한 차량용 컨트롤러입니다. 최신 Intel® 7 포토리소그래피의 이점을 활용하는 최신 Core™ 데스크탑 프로세서는 최대 24개의 코어/32개의 스레드와 함께 제공되어 놀라운 연산 성능 향상을 제공합니다. DDR5 메모리 대역폭 처리량과 PCIe Gen4 NVMe 고속 디스크 읽기/쓰기를 결합하여 사용자는 이전 10세대 또는 11세대 플랫폼과 비교할 때 최대 1.8배의 전체 시스템 성능 향상을 기대할 수 있습니다.

산업용 팬리스 컴퓨터 Nuvo-9200VTC는 다양한 주변 장치, 연결 및 확장 유연성을 제공합니다. 2.5Gb 및 1Gb 이더넷 포트와 4개 또는 8개의 802.3at PoE+ 포트가 있어 IP 카메라와 같은 연결된 장치에 25W의 전력을 공급합니다. 또한 이 시스템은 충격/진동 환경에서 극도로 견고한 연결을 보장하기 위해 이더넷, USB 3.2 Gen1 및 USB 3.2 Gen2와 같은 I/O에 x 코딩된 M12 커넥터 및 나사 잠금 메커니즘을 갖추고 있습니다. 내부 확장에는 무선 통신을 위한 5G/4G, WiFi, GPS 및 CAN 모듈을 설치하기 위한 2개의 M.2 및 3개의 mini-PCIe 소켓이 있습니다.

무엇보다도 이 시스템은 E-Mark 인증을 받았으며 애드온 카드용 추가 PCIe 슬롯이 있는 특허 받은 카세트 모듈을 갖추고 있어 차내 애플리케이션에 훨씬 더 유연합니다. 산업용 팬리스 컴퓨터 Nuvo-9200VTC는 또한 2개의 핫스왑 가능한 SATA HDD 트레이, 차내 통신을 위한 격리된 CAN 버스, 센서/액추에이터 제어를 위한 격리된 DIO, 점화 전원 제어가 가능한 8V ~ 48V 광범위 DC 입력을 특징으로 합니다. 산업용 팬리스 컴퓨터 Nuvo-9200VTC 시리즈는 다양한 차량 내 애플리케이션을 위한 유연하고 안정적인 솔루션입니다.

Nuvo-9200VTC is Neousys’ latest rugged in-vehicle controller based on Intel® 13th/ 12th-Gen Core™ processors. Benefiting from cutting-edge Intel® 7 photolithography, the latest Core™ desktop processors come with up to 24 cores/ 32 threads, offering an incredible boost of computational performance. Combining DDR5 memory bandwidth throughput and PCIe Gen4 NVMe high-speed disk read/write, users can expect an overall system performance improvement of up to 1.8x when compared to previous 10th or 11th-Gen platforms.

Nuvo-9200VTC offers an assortment of peripherals, connections, and expansion flexibility. It has 2.5Gb and 1Gb Ethernet ports, and four or eight 802.3at PoE+ ports to supply 25W of power to connected devices such as IP cameras. The system also has x-coded M12 connectors and screw-lock mechanisms on I/Os like Ethernet, USB 3.2 Gen1 and USB 3.2 Gen2 to guarantee extreme rugged connectivity in shock/ vibration environments. Internal expansion wise, there are two M.2 and three mini-PCIe sockets to install 5G/ 4G, WiFi, GPS, and CAN module for wireless communication.

On top of all that, the system is E-Mark certified and has a patented Cassette module with an additional PCIe slot for an add-on card, making it that much more flexible for in-vehicle applications. Nuvo-9200VTC also features two hot-swappable SATA HDD trays, an isolated CAN bus for in-vehicle communication, isolated DIO for sensor/ actuator control, 8V to 48V wide-range DC input with ignition power control. The Nuvo-9200VTC series is a flexible and reliable solution for various in-vehicle applications.

Specifications
System Core
Processor Supporting Intel® 13th-Gen Core™ CPU(LGA1700 socket, 65W/ 35W TDP)
– Intel® Core™ i9-13900E/ i9-13900TE
– Intel® Core™ i7-13700E/ i7-13700TE
– Intel® Core™ i5-13500E/ i5-13400E/ i5-13500TE
– Intel® Core™ i3-13100E/ i3-13100TESupport Intel® 12th-Gen Core™ CPU(LGA1700 socket, 65W/ 35W TDP)
– Intel® Core™ i9-12900E/ i9-12900TE
– Intel® Core™ i7-12700E/ i7-12700TE
– Intel® Core™ i5-12500E/ i5-12500TE
– Intel® Core™ i3-12100E/ i3-12100TE
– Intel® Pentium® G7400E/ G7400TE
– Intel® Celeron® G6900E/ G6900TE
Chipset Intel® Q670E platform controller hub
Graphics Integrated Intel® UHD Graphics 770 (32EU)
Memory Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots)
AMT Supports Intel vPro/ AMT 16.0
TPM Supports dTPM 2.0



I/O Interface
Ethernet 1x 2.5G Ethernet by I225-ITand 1x Gigabit Ethernet by I219-LM with screw-lock
PoE+ 4x IEEE 802.3at Gigabit PoE+ ports by Intel® I210
– M12 X-coded connector (Nuvo-9200VTC)
– RJ45 connector (Nuvo-9204VTC)
4x IEEE 802.3at Gigabit PoE+ ports by Intel® I210 and 4x 2.5G PoE+ ports by I225-IT
– RJ45 connector (Nuvo-9208VTC)
USB 3.2 1x USB 3.2 Gen2x2 (20 Gbps) port in type-C connector with screw-lock
4x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors
2x USB 3.2 Gen1x1 (5 Gbps) ports in type-A connectors
USB 2.0 2x USB 2.0 ports
CAN Bus 1x isolated CAN 2.0 port
Video Port
(Integrated Graphics)
1x VGA, supporting 1920 x 1200 resolution
1x DVI-D, supporting 1920 x 1200 resolution
1x DisplayPort, supporting 4096 x 2304 resolution
Serial Port 2x software-programmable RS-232/ 422/ 485 ports (COM1/COM2)
2x RS-232 ports (COM3/COM4)
Audio 1x 3.5 mm jack for mic-in and speaker-out
Isolated DIO 4-CH isolated DI and 4-CH isolated DO



Storage Interface
SATA HDD 1x hot-swappable 2.5″ HDD tray (7mm HDD/ SSD) and 1x internal 2.5″ SATA ports
M.2 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD
Expansion Bus
PCI/PCI Express 1x PCIe x16 slot@Gen3, 16-lanes PCIe signals in Cassette
Mini PCI Express 1x full-size mini-PCIe socket
2x full-size mini-PCIe sockets (USB signals only) with internal SIM sockets
M.2 1x M.2 2242/3052 B key socket with SIM slot for M.2 5G/ 4G module
1x M.2 2242/3052 B key socket with SIM slot for M.2 4G module



Power Supply
DC Input 1x 3-pin pluggable terminal block for 8V to 48V DC input (IGN/ GND/ V+)
Ignition Control Built-in ignition power control
Remote Ctrl. & LED Output 1x 3-pin pluggable terminal block for remote control and PWR LED output



Mechanical
Dimension 240 mm (W) x 225 mm (D) x 103 mm (H)
Weight 3.9kg
Mounting Wall-mount with damping bracket



Environmental
Operating temperature With 35W CPU
-40°C ~ 70°C[1] (with 1 memory module installed)
-40°C ~ 60°C[2][3] ((with 2 memory modules installed)
With 65W CPU
-40°C ~ 50°C[2][3] (configured as 65W TDP with 2-slots memory)
Storage temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration EN 50155:2017/ IEC 61373, Category I, Class B – Body mounted
Shock EN 50155:2017/ IEC 61373, Category I, Class B – Body mounted
EMC E-Mark, EN 50121 (EN 50155 EMC)
CE/FCC Class A, according to EN 55032 & EN 55035



[1] Due to high heat generation of DDR5 memory, please configure the CPU to 35W mode and utilize only one memory slot, while operating at a temperature of 70°C.
[2] For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required. [3] For CPU operating at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to allow higher operating temperature.



Ordering Information
Nuvo-9200VTC

Intel® 13th/ 12th-Gen Core™ in-vehicle controller with 4x M12 PoE+ Ports, DIO, CAN bus and RAID, single-slot PCI Express Cassette

Nuvo-9204VTC

Intel® 13th/ 12th-Gen Core™ in-vehicle controller with 4x RJ45 PoE+ Ports, DIO, CAN bus and RAID, single-slot PCI Express Cassette

Nuvo-9208VTC

Intel® 13th/ 12th-Gen Core™ in-vehicle controller with 8x RJ45 PoE+ Ports, DIO, CAN bus and RAID, single-slot PCI Express Cassette

Optional Accessories
Cbl-M12X8M-RJ45F100CM

M12 (8-pole-X-coded) to RJ45 Female, CAT6A, Length : 100CM

Cbl-M12X8M-RJ45-CAT6A-500CM

M12 (8-pole-X-coded) to RJ45, CAT6A, Length : 500CM

Fankit-25

Fan assembly for 1-slot Cassette, 25x25x10 mm

PA-280W-ET2

280W AC/DC power adapter 24V/ 11.67A ; 16AWG/ 100cm; cord end terminals for terminal block, operating temperature : -30°C to 60°C.
