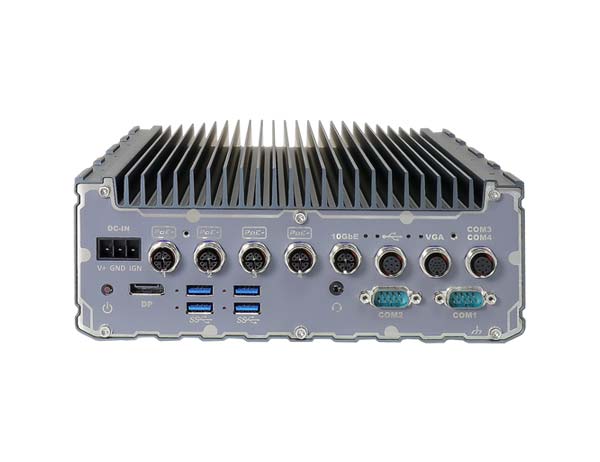

SEMIL-1300 Series Intel® Xeon E 9/8세대 팬리스 PC

Intel® Xeon® E or 9th/ 8th-Gen Core™ i7/ i5/ i3 CPU
2U half-rack fanless system, -40°C to 70°C operation
4x 802.3at Gigabit PoE+, VGA, 2x USB 2.0, 2x COM via M12 connectors
M.2 B key for 4G/ 5G module, M.2 E key for WiFi module
Patented supercapacitor-based uninterruptible power backup[1](SEMIL-1311J)
8~48V wide-range DC input with built-in ignition power control
MIL-STD-810G and EN 50155 EMC compliant

Overview

Introduction

Neousys의 SEMIL-1300 시리즈는 표준 2U 19 “하프 랙 폼 팩터 엔클로저에 M12 I/O 커넥터가 있는 견고한 산업용 Fanless PC입니다. Intel® Xeon® E 또는 9/8세대 Core ™ CPU로 구동되고 워크 스테이션급 Intel® C246 칩셋과 결합되어 최대 64GB DDR4 ECC/비 ECC 메모리를 지원하며 벽면 또는 랙 마운트에 최대 2개의 SEMIL을 나란히 장착할 수 있는 유연한 장착 옵션을 제공합니다.

산업용 Fanless PC SEMIL-1300 시리즈는 입증된 -40°C~70°C 팬리스 작동을 위해 Neousys의 동급 최고의 패시브 열 설계를 통합했습니다. 신뢰할 수 있고 비용 효율적이며 기성품으로도 구할 수 있는 M12 커넥터를 활용한 다양한 I/O 연결 기능을 제공합니다. 또한 충격 및 진동 환경에서 극도로 견고한 연결을 보장하는 나사 잠금 메커니즘이 있는 일반적인 I/O도 있습니다. 4개의 802.3at PoE+ 포트가 있으며, 각각 IP 또는 GigE 카메라와 같은 연결된 장치에 25W의 전원을 공급합니다. 산업용 Fanless PC SEMIL-1300은 4G/5G 및 WiFi5/WiFi6 무선 연결을 염두에 두고 설계되었으며, EN 50155를 준수하면서 차내 사용을 위한 점화 전원 제어와 함께 8-48V의 광범위한 DC 입력을 지원합니다.

또한 산업용 Fanless PC SEMIL-1311J에는 Neousys의 특허 기술인 SuperCAP 기반 UPS가 탑재되어 2500W/S의 저장된 에너지가 포함되어 있어 예기치 못한 정전 시에도 시스템을 지속하고 안전하게 종료할 수 있습니다. 불안정한 전력 환경에서 데이터 보호 및 애플리케이션을 위한 완벽한 솔루션입니다. 표준 하프 랙 설계, 입증된 광범위한 온도 작동 기능, 충격/진동 및 전원 중단으로부터 보호되는 산업용 Fanless PC SEMIL-1300 시리즈는 극과 극으로 구성된 배치를 위한 이상적인 강력한 솔루션입니다.

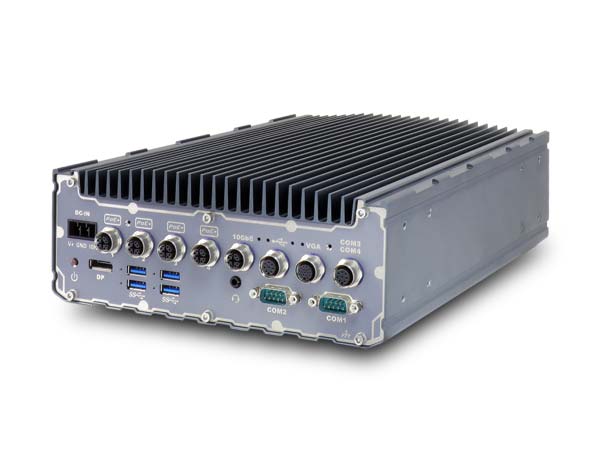

SEMIL-1300 series is a rugged fanless computer with robust M12 I/O connectors in a standard 2U 19″ half-rack form factor enclosure. Powered by Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU and coupled with workstation-grade Intel® C246 chipset, it supports up to 64 GB DDR4 ECC/non-ECC memory and offers flexible mounting options to wall or rack-mount up to two SEMILs side by side.

SEMIL-1300 series incorporates Neousys’ best-in-class passive thermal design for proven -40 °C to 70 °C fanless operation. It offers a variety of I/O connectivities utilizing M12 connectors that are reliably robust, cost-effective and can be obtained off-the-shelf. There are also generic I/Os with screwlock mechanisms to guarantee an extreme-rugged connection in shock and vibration environments. It has four 802.3at PoE+ ports, each supplying 25W of power to the connected device such as an IP or GigE camera. SEMIL-1300 is designed with 4G/5G and WiFi5/WiFi6 wireless connectivity in mind and it supports 8-48V wide-range DC input with ignition power control for in-vehicle use while complying with EN 50155.

In addition, SEMIL-1311J is equipped with Neousys’ patented SuperCAP-based UPS containing 2500 watt-second stored energy to sustain and safely shut down the system during unforeseen power outages. It is the perfect solution for data protection and applications in unstable power environments. With a standard half-rack design, proven wide temperature operation capability, protected against shock/ vibration and power interruption, Neousys’ SEMIL-1300 series is the ideal robust solution for extreme-rugged deployment.

#SEMIL-1300 #산업용PC #Fanless PC #스마트 팩토리 #초소형팬리스 #Edge AI

Specifications

SEMIL-1301	SEMIL-1311J

System Core (SEMIL-1311J)
Processor	Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket) – Xeon E 2278GE (8C/16T) / 2278GEL (8C/16T) / 2176G (6C/12T) – i7-9700E, i7-9700TE, i7-8700, i7-8700T – i5-9500E, i5-9500TE, i5-8500, i5-8500T – i3-9100E, i3-9100TE, i3-8100, i3-8100T
Chipset	Intel® C246 platform controller hub
Graphics	Integrated Intel® UHD Graphics 630
Memory	Up to 64 GB ECC/ non-ECC DDR4-2666/ 2400 SDRAM (two SODIMM sockets)
AMT	Supports AMT 12.0
TPM	Supports TPM 2.0

I/O Interface
PoE+	1x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I219 (M12 X-coded) 3x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded)
10 GbE Port(Build Option)	Optional: 1x 10 GbE port by Intel® X550AT controller (M12 X-coded)**
Native Video Port	1x VGA (M12 A-coded), supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution
Series Port	2x 3-wires RS-232 ports COM1 & COM2 (M12 A-coded) 1x software-programmable RS-232/ 422/ 485 port (COM3, DB9) 1x RS-232 port (COM4, DB9)
USB	3x USB 3.1 Gen1 2x USB 2.0 (M12 A-coded) 1x USB 2.0 (internal)
Audio	1x 3.5 mm jack for mic-in and speaker-out

Storage Interface
SATA HDD	2x Internal SATA port for 2.5″ HDD/ SSD installation, supporting RAID 0/ 1
mSATA	2x full-size mSATA port (mux with mini-PCIe)
M.2	1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation

Expansion Bus
Mini PCI-E	2x full-size mini PCI Express sockets (mux with mSATA) 1x M.2 3042/ 3052 B key socket for selected M.2 4G/ 5G module 1x M.2 2242/ 2252 E key for selected WiFi module

SEMIL-1301	SEMIL-1311J

Power Supply
DC Input	8V to 48V DC input
Ignition Control	Built-in ignition power control

Power Backup
Capacity	-	2500 watt-second

Mechanical
Dimension	220mm (W) x 310mm (D) x 86.5mm (H) (excl. rack-mount bracket)
Weight	5.8 kg	6 kg
Mounting	Rack-mounting and wall-mounting

Environmental
Operating Temperature	with 35W CPU -40°C ~ 70°C ** with >= 65W CPU -40°C ~ 70°C / * (configured as 35W TDP mode) -40°C ~ 50°C / *** (configured as 65W TDP mode)
Storage Temperature	-40°C ~85°C
Humidity	10%~90% , non-condensing
Vibration	MIL-STD-810G, Method 514.7, Category 4
Shock	MIL-STD-810G, Method 516.7, Procedure I
EMC	EN 50121 (EN 50155 EMC) CE/FCC Class A, according to EN 55032 & EN 55035

[2] For Xeon E 2176G/ 2278GE, i7-9700E, and i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
[3] For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.

LIST

Ordering Information

SEMIL-1301

Half-Rack Rugged Fanless Computer supporting Intel® Xeon® E or 9th/ 8th-Gen Core™ processor with M12 I/Os

SEMIL-1301-10G

Half-rack rugged fanless computer supporting Intel® Xeon® E or 9th / 8th-Gen Core™ processor with M12 I/Os and 10GbE port

SEMIL-1311J

Half-Rack Rugged Fanless Computer supporting Intel® Xeon® E or 9th/ 8th-Gen Core™ processor with M12 I/Os and SuperCAP UPS

SEMIL-1311J-10G

Half-rack rugged fanless computer supporting Intel® Xeon® E or 9th / 8th-Gen Core™ processor with M12 I/Os, SuperCAP UPS and 10GbE port

Optional Accessories

PA-160W-OW

160W AC-DC power adapter, 20V/8A; 18AWG/120cm; cord end terminals for terminal block, operating temperature : -30 to 70°C.

JPlate-SL

Joint plate assembly for SEMIL

Cblkit-M12

Click here to download the SEMIL-Cable-Kit datasheet
