4-Port GbE with 802.3at PoE+ MezIO™ Module
Specifications
| MezIO – G4P / MezIO – G4 | |
|---|---|
| Gigabit Ethernet Port | 4x GigE ports by 4x Intel® I210 controllers, supporting 9.5 kB jumbo frame |
| PoE Capability | Compliant with IEEE 802.3at-2009 (PoE+), each port delivers up to 25.5 W of power // – |
| Cable Requirement | CAT-5e or CAT-6 cable, 100 meters maximum |
Ordering Information

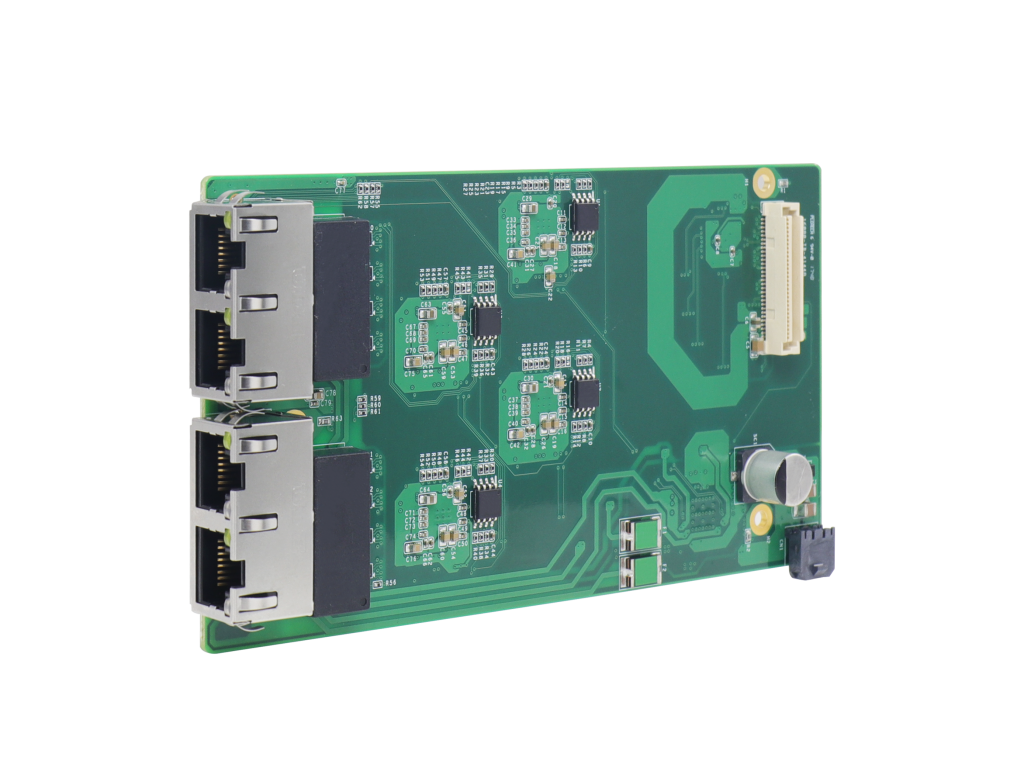

MezIO – G4P
4-Port GbE with 802.3at PoE+ MezIO™ module for Nuvo-7000 series and Nuvo-5000 series

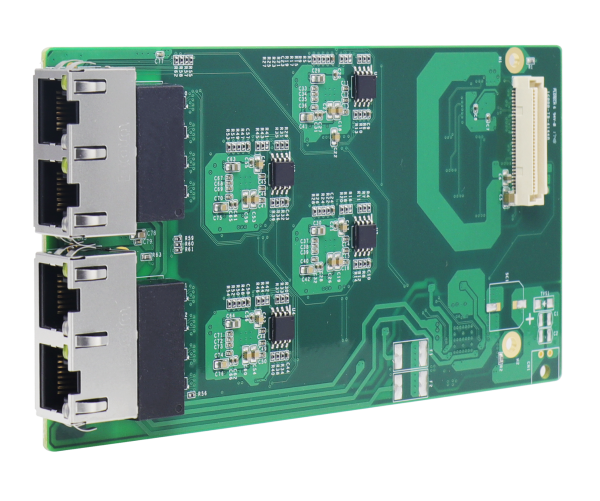

MezIO – G4
4-Port GbE MezIO™ module for Nuvo-7000 series and Nuvo-5000 series
