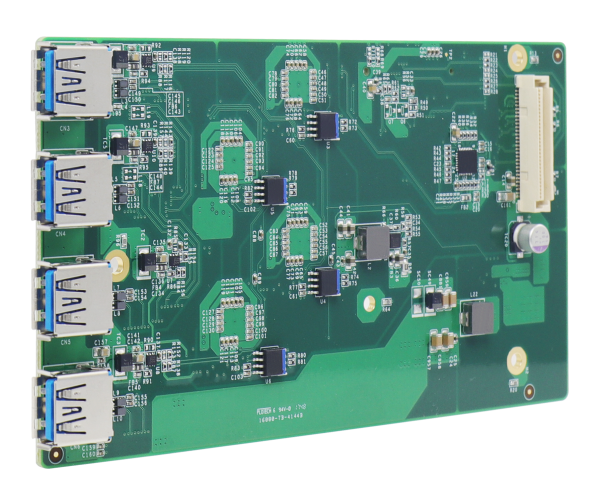

MezIO-U4

4-Port USB3.0 MezIO™ Module
  • 4 x USB3.0 ports by independent Renesas μPD720202 Host
    Controllers
  • Up to 5 Gbps each port (MezIO-U4-50)
  • Support up to 900 mA per port
Specifications
MezIO-U4-30 / MezIO-U4-50
USB Ports 4x USB3.0 ports, compatible with USB 2.0/1.1/1.0
USB Controller 2 x Renesas μPD720202 Host Controllers // 4 x Renesas μPD720202 Host Controllers
USB Connectors 4x USB3.0 Type-A connectors
USB Per-Port
Current Limit
900mA
Interface Signals 5 Gbps shared by two ports // 5 Gbps for each port



Ordering Information
MezIO-U4-30

4-port USB3.0 MezIO™ module for POC-500 series and POC-300 series

MezIO-U4-50

4-port USB3.0 MezIO™ module for Nuvo-7000 series and Nuvo-5000 series
