4x 2.5GbE PoE+/ 6x USB 3.2 포트 및 플랫탑 히트싱크를 갖춘 NVIDIA® Jetson Orin™ NX Edge AI 컴퓨터

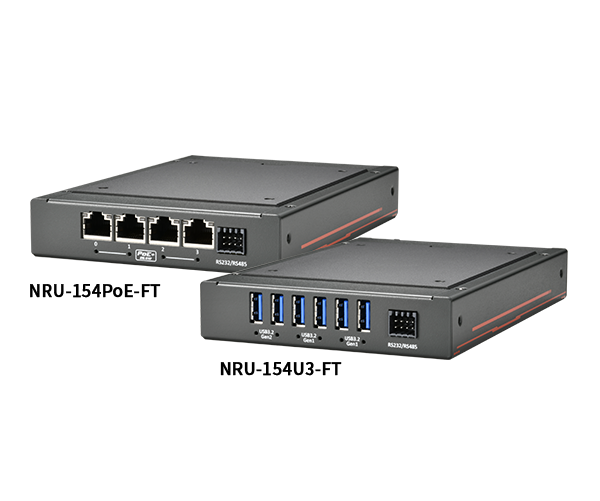

NRU-154PoE-FT/ NRU-156U3-FT (New!)
- Powered by NVIDIA® Jetson Orin™ NX bundled with JetPack 5.1
- Flattop heatsink design for conduction-cooled, in-cabinet deployment
- Up to 100 TOPS AI inference performance
- Full-bandwidth ports for camera connectivity: 4x 2.5GbE PoE+ ports (NRU-154PoE-FT) 6x USB 3.2 ports (NRU-156U3-FT)
- 1x RS-232 and 1x isolated RS-485
- 1x M.2 2242 M key NVMe for BSP and data storage
- -25°C to 60°C fanless operating temperature (with heat spreader attachment)
- No throttling at 60°C with Orin NX 20W TDP mode
Overview
Introduction
NRU-150-FT 시리즈는 Jetson Orin NX와 독립적인 2.5GbE PoE+ 또는 USB 3 카메라 연결을 통합한 소형 팬리스 에지 AI 컴퓨터입니다. 특수 플랫톱 방열판은 금속 가공, 식품 가공, 스마트 농업 또는 길가 애플리케이션을 지원하기 위해 밀봉된 인클로저 내부에 장착되도록 설계되었으며, 먼지, 금속 입자 또는 유체가 포함된 환경으로부터 보호할 수 있습니다.
NRU-150-FT 시리즈는 전력 효율적인 NVIDIA® Jetson Orin™ NX의 이점을 활용하여 25W 전력 패키지에서 최대 100 TOPS 추론 성능을 제공할 수 있습니다. NRU-154PoE-FT는 에지 검사를 위한 다양한 비디오 입력을 보완하기 위해 각 포트마다 전체 대역폭을 제공하며 IP 카메라 및 산업용 GigE 카메라용 4x 2.5GbE PoE+ 포트를 갖추고 있으며 NRU-156U3-FT는 산업용 USB3 카메라용 6x USB 3.2 포트를 갖추고 있습니다.
플랫탑 방열판 설계는 사용자가 밀봉된 인클로저 내부에 NRU-150-FT 시리즈를 장착하고 열을 외부 표면으로 전도할 수 있도록 하여 응용 분야 시나리오를 더욱 확장하고 -25~60°C의 넓은 온도에서 팬 없이 작동할 수 있도록 합니다. NRU-150-FT는 먼지가 많은 길가, 습도 농장 및 항구와 같은 환경에 적합합니다. 또한 금속, 목재, 식품, 화학 가공 등 다양한 AI 기반 공장 자동화에도 적용 가능합니다.
NRU-150-FT 시리즈는 카메라 연결을 위한 풀 대역폭 2.5GbE PoE+/ USB3 포트, 100 TOPS AI 추론 성능, 밀폐형 설치를 위한 독특한 플랫탑 히트싱크 및 광범위한 NVIDIA AI JetPack 툴킷을 통합하여 방진, 방수 또는 방염 보호가 필요한 가혹한 환경에서 엣지 검사의 가능성을 높였습니다.
The NRU-150-FT series is a compact, fanless edge AI computer incorporating Jetson Orin NX and independent 2.5GbE PoE+ or USB 3 camera connectivity. Its special flattop heatsink is designed to be mounted inside a sealed enclosure to aid metal processing, food processing, smart agriculture, or roadside applications, where it can be protected from environments that contain dust, metal particles or fluid.
Benefiting from the power efficient NVIDIA® Jetson Orin™ NX, the NRU-150-FT series can deliver up to 100 TOPS inference performance in a 25W power package. Offering full bandwidth each port to complement versatile video inputs for edge inspection, NRU-154PoE-FT features 4x 2.5GbE PoE+ ports for IP cameras and industrial GigE cameras, and NRU-156U3-FT features 6x USB 3.2 ports for industrial USB3 cameras.
The flattop heatsink design further expands application senarios by allowing users to mount the NRU-150-FT series inside a sealed enclosure and conduct the heat to the outer surface, offering a -25 to 60°C wide-temperature fanless operation. It makes NRU-150-FT suitable for environments such as dusty roadsides, humidity farms, and harbors. Moreover, it is also applicable to versatile AI-based factory automation for metal, wood, food, and chemical processing.
By integrating full-bandwidth 2.5GbE PoE+/ USB3 ports for camera connectivity, 100 TOPS AI inference performance, unique flattop heatsink for enclosed installation, and a vast array of NVIDIA AI JetPack toolkits, the NRU-150-FT series presents more possibilities for edge inspection in harsh environments, where dustproof, waterproof, or flameproof protection is needed.
Specifications
| NRU-154PoE-FT | NRU-156U3-FT | |||
| System Core | ||||
|---|---|---|---|---|
| Processor | NVIDIA® Jetson Orin™ NX system-on-module (SoM), comprising NVIDIA® Ampere GPU and ARM Cortex CPU | |||
| Memory | 8GB/ 16GB LPDDR5 @ 3200 MHz on SoM | |||
| Panel I/O Interface | ||||
|---|---|---|---|---|

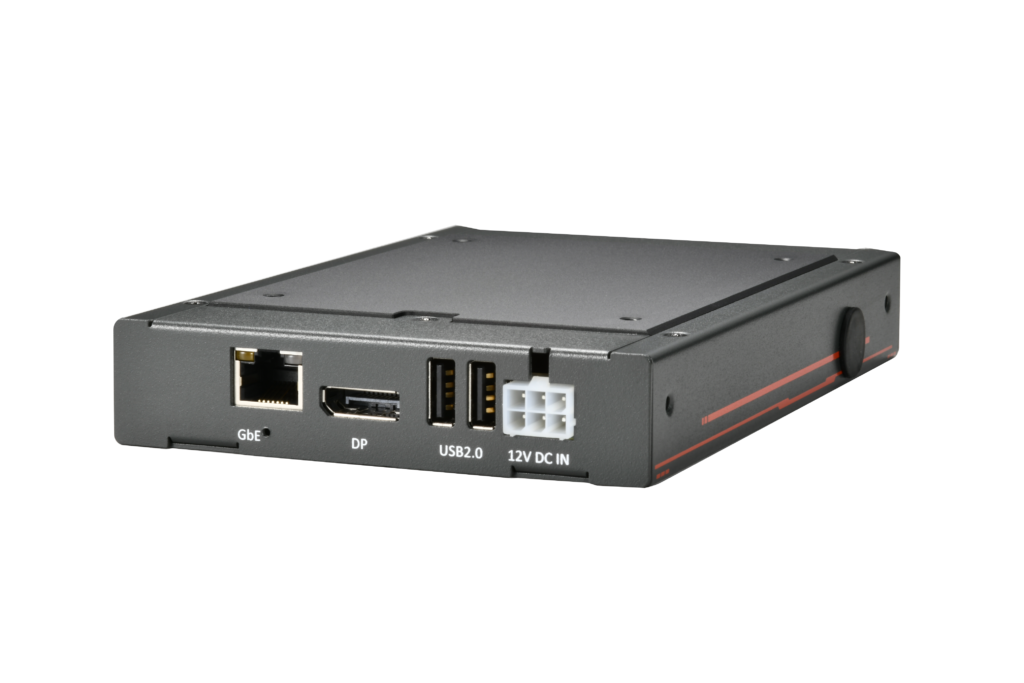

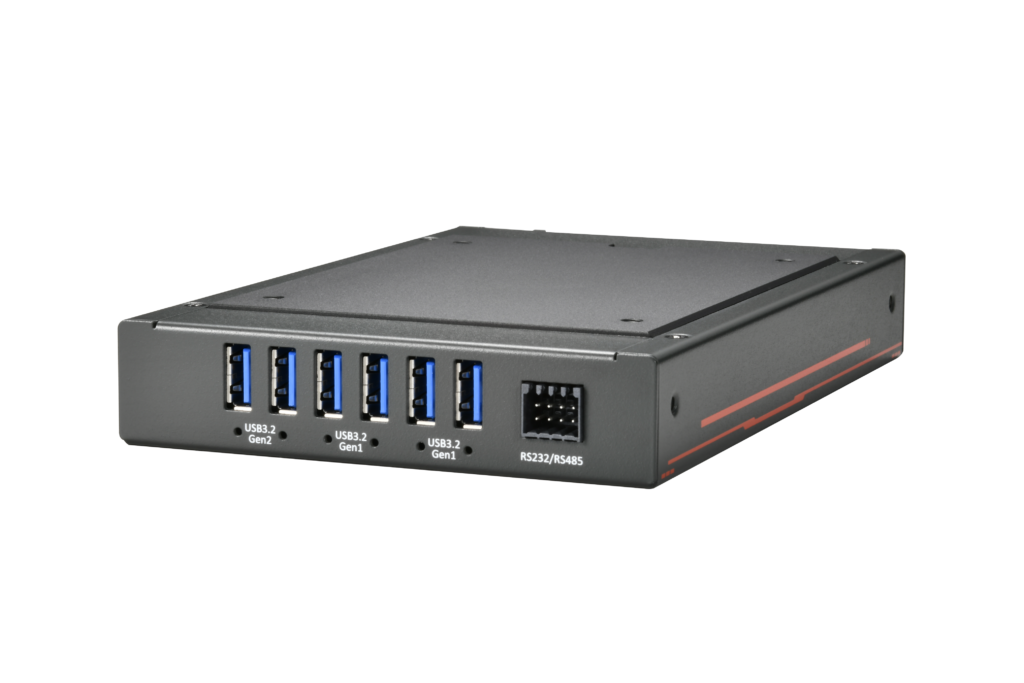

| USB | 2x USB 2.0 ports | 2x USB 3.2 Gen2 (10 Gbps) ports with screw-lock 4x USB 3.2 Gen1 (5 Gbps) por ts with screw-lock 2x USB 2.0 ports |
||

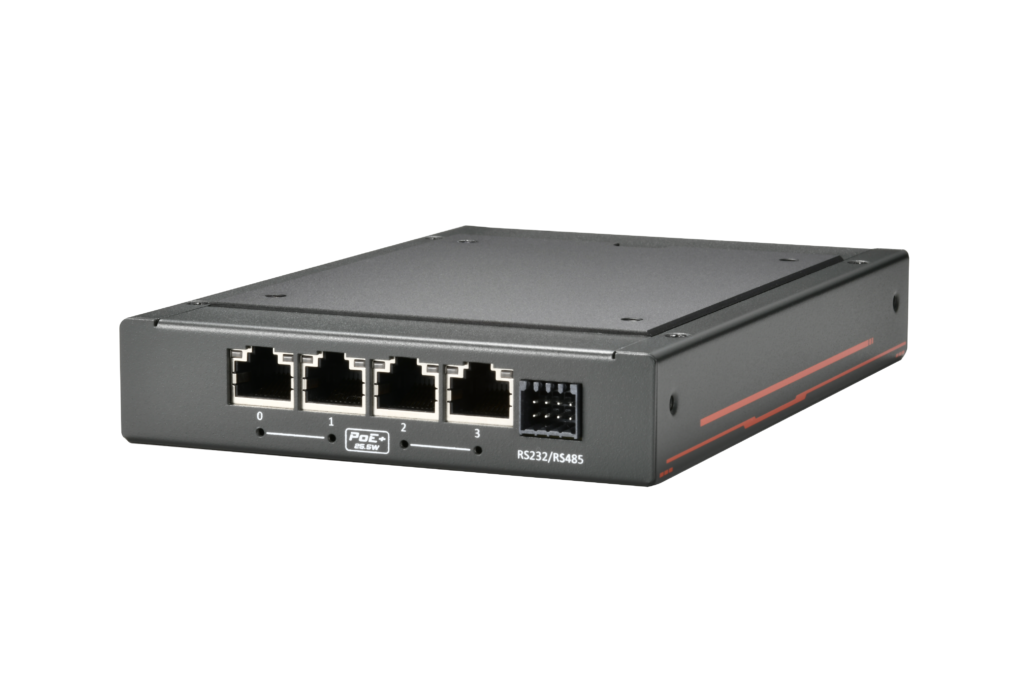

| Ethernet Port | Port 1: Gigabit Ethernet Port 2 to Port 5: 2.5 Gigabit Ethernet ports by Intel® I225 with screw-lock[1] |
1x Gigabit Ethernet | ||
| PoE Capability | IEEE 802.3at PoE+ PSE for Port 2 to Port 5, 50W total power budget | – | ||
| Serial Port | 1x RS-232 port and 1x isolated RS-485 port | |||
| Video Port | 1x DisplayPort, supporting 3840×2160 at 60Hz | |||
| DC Input | 12V DC power input | |||
| NRU-154PoE-FT | NRU-156U3-FT | |||
| Internal I/O Interface | ||||
|---|---|---|---|---|
| M.2 NVMe | 1x M.2 2242 M key socket (PCIe Gen4 x2) for NVMe SSD | |||
| USB | 1x micro USB (OTG) | |||
| Mechanical | |
|---|---|
| Dimension | 116 mm (W) x 171 mm (D) x 27 mm (H) (without wall-mount bracket) |
| Weight | 1.0 kg |
| Mounting | Wall-mount (standard) |
| Environmental | ||||
|---|---|---|---|---|
| Operating Temperature | -20°C to 60°C (20W TDP mode) fanless operating temperature while mounted on 50 x 50 x 0.2 cm metallic plate [2]/ [3] | |||
| Storage Temperature | -40°C ~ 85°C | |||
| Humidity | 10%~90% , non-condensing | |||
| Vibration | Operating, MIL-STD-810H, Method 514.8, Category 4 | |||
| Shock | Shock Operating, MIL-STD-810H, Method 516.8, Procedure I | |||
| EMC | EMC CE/FCC Class A, according to EN 55032 & EN 55035 | |||
[1] Due to I225-IT specification limitation, for systems running 2.5G Ethernet link speeds, please limit the operating temperature to 60°C.
[2] For sub-zero and over 60°C operating temperature, a wide temperature NVMe is required.
[3] Without heat conduction from the flattop heatsink, the fanless operating temperature is -20°C to 45°C (20W TDP mode)
Ordering Information
NRU-154-JON8
NVIDIA® Jetson Orin™ NX Edge AI Computer with 4x PoE+ GbE, flattop heatsink, Jetson Orin NX (8GB), and 128GB NVMe with pre-installed system image
NRU-154-JON16
NVIDIA® Jetson Orin™ NX Edge AI Computer with 4x PoE+ GbE, flattop heatsink, Jetson Orin NX (16GB), and 128GB NVMe with pre-installed system image
NRU-156-JON8
NVIDIA® Jetson Orin™ NX Edge AI Computer with 6x USB 3.2, flattop heatsink, Jetson Orin NX (8GB), and 128GB NVMe with pre-installed system image
NRU-156-JON16
NVIDIA® Jetson Orin™ NX Edge AI Computer with 6x USB 3.2, flattop heatsink, Jetson Orin NX (16GB), and 128GB NVMe with pre-installed system image
Optional Accessories
PA-60W-OW
60W AC/ DC power adapter 12V/ 5A; cord end terminals for terminal block, operating temperature: -30°C to 60°C
