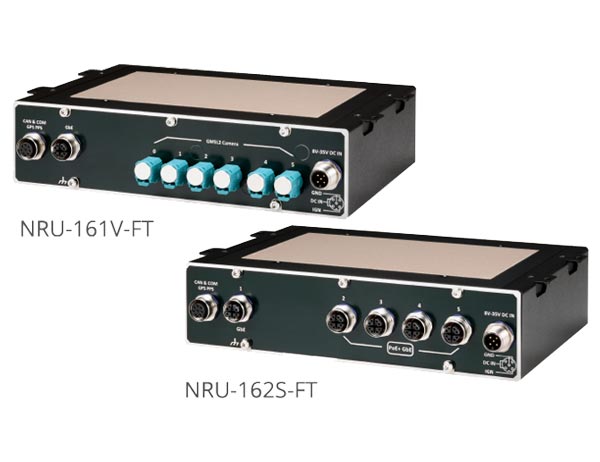

NRU-160-FT Series Jetson Orin™ NX/ Nano AI 플랫탑 히트싱크 엣지 AI 컴퓨터(New!)

6x GMSL2 또는 4x PoE+ GbE를 탑재한 NVIDIA Jetson Orin™ NX/ Nano 팬리스 플랫탑 히트싱크 엣지 AI 컴퓨터

NRU-160-FT Series Jetson Orin™ NX/ Nano AI 플랫탑 히트싱크 엣지 AI 컴퓨터(New!)

  • Powered by NVIDIA® Jetson Orin™ NX or Orin™ Nano SoM bundled with JetPack
  • 199×136×49 mm low-profile design with flattop heatsink
  • -25°C to 70°C fanless operation (no throttling at 70°C with 25W TDP mode) *
  • Supports 6x GMSL2 automotive cameras via FAKRA Z connectors (NRU-161V-FT)
  • 4x PoE+ GbE via M12 X-coded connectors (NRU-162S-FT)
  • 1x CAN FD and 1x RS232 via M12 A-coded connectors
  • 8V to 35V wide-range DC input
  • Compatible GMSL2 cameras with pre-built drivers
Overview
Introduction

Neousys의 산업용 Fanless PC NRU-160-FT는 방수형 스마트 농업용 케이스, 방진형 공장 캐비닛, 도로변 배치용 접속함 또는 야외 AMR용 로봇 섀시에 장착 시 전도 냉각에 최적화된 플랫탑 히트싱크가 장착된 Jetson Orin™ NX/Orin™ Nano Edge AI 컴퓨터입니다.



NVIDIA® Jetson Orin™ NX/Orin™ Nano로 구동되는 산업용 Fanless PC  NRU-160-FT 시리즈는 최대 100개의 스파스 TOPS(INT8) AI 추론을 제공하며, 25W의 전력 소비만으로 최대 18개의 1080p 비디오 스트림을 동시에 트랜스코딩할 수 있습니다. 자율 주행, ADAS 또는 AI 검사를 위해 다양한 카메라 및 센서와 연결하도록 설계된 산업용 Fanless PC  NRU-160-FT는 두 가지 모델로 출시됩니다. 산업용 Fanless PC  NRU-161V-FT는 특정 IMX390, ISX031 및 IMX490 CMOS 센서용 사전 구축된 드라이버를 갖춘 GMSL2 자동차 카메라 6대를 지원합니다. 산업용 Fanless PC  NRU-162S-FT는 IP 또는 산업용 GigE 카메라용 PoE+ GbE 포트 4개를 제공합니다. 다른 컴퓨터 또는 LiDAR로 데이터를 전송하기 위한 추가 M12 GbE 포트가 제공됩니다.



산업용 Fanless PC  NRU-160-FT는 특히 모바일 애플리케이션에서 캐비닛이나 로봇의 엣지 배치에 적합하도록 설계되었습니다. 평평한 상단 방열판은 금속 케이스를 방열판 확장 장치로 활용할 뿐만 아니라, 캐비닛 외부 온도(일반적으로 캐비닛 내부 온도보다 10~15°C 낮음)에서도 작동할 수 있도록 합니다. 또한, 199 x 136 x 49mm의 컴팩트한 로우프로파일 풋프린트는 좁은 공간에 이상적입니다. 모든 M12 및 FAKRA 커넥터는 안정적인 충격 및 진동 저항성을 제공합니다. 이 시스템은 8~35V의 넓은 DC 입력 범위, 점화 전원 제어, CAN FD 버스 포트 1개, RS-232 포트 1개를 지원합니다. 또한 CAN/COM/Wi-Fi 모듈용 mini-PCIe 소켓과 4G LTE/5G NR 모바일 통신 모듈용 M.2 B-키 소켓을 갖추고 있습니다.



플랫탑 히트싱크, Orin™ NX/Orin™ Nano AI 성능, 그리고 다양한 온보드 카메라 연결 기능을 통합하여 견고성, 성능, 그리고 비용의 균형을 이룹니다. 스마트 농업, 광업, 건설, 도로변 애플리케이션 및 엣지 검사를 위해 밀폐형 캐비닛 내벽에 장착되도록 설계된 즉시 구축 가능한 엣지 AI 플랫폼입니다.



The NRU-160-FT is a Jetson Orin™ NX/Orin™ Nano Edge AI computer with a flattop heatsink optimized for conduction cooling when mounted inside waterproof enclosures for smart agriculture, dustproof cabinets for factories, junction boxes for roadside deployment, or robot chassis for outdoor AMRs.



Powered by NVIDIA® Jetson Orin™ NX/ Orin™ Nano, the NRU-160-FT series delivers up to 100 sparse TOPS (INT8) of AI inference and can transcode up to eighteen 1080p video streams simultaneously with only 25W of power consumption. Designed to connect with a variety of cameras and sensors for autonomy, ADAS, or AI inspection, the NRU-160-FT comes in two models: the NRU-161V-FT, which supports six GMSL2 automotive cameras with pre-built drivers for selected IMX390, ISX031, and IMX490 CMOS sensors; and the NRU-162S-FT, which offers four PoE+ GbE ports for IP or industrial GigE cameras. An additional M12 GbE port is provided for data transmission to other computers or LiDAR.



The NRU-160-FT is designed for edge deployment in cabinets or robots, particularly in mobile applications. Its flattop heatsink not only leverages the metal enclosure as a heatsink extension but also allows the NRU-160-FT to operate at out-cabinet temperatures, typically 10–15 °C lower than in-cabinet temperatures, while its compact 199 × 136 × 49 mm low-profile footprint makes it ideal for confined spaces. All M12 and FAKRA connectors provide reliable shock and vibration resistance. The system supports an 8–35 V wide DC input range, ignition power control, one CAN FD bus port, and one RS-232 port. It also features a mini-PCIe socket for CAN/COM/Wi-Fi modules and an M.2 B-key socket for 4G LTE/5G NR mobile communication modules.



The integration of a flattop heatsink, Orin™ NX/ Orin™ Nano AI performance, and versatile onboard camera connectivity strikes a balance between ruggedness, performance, and cost. It is a ready-to-deploy edge AI platform designed to be mounted against the inner wall of a sealed cabinet for smart agriculture, mining, construction, roadside applications, and edge inspection.



#NRU_161V_FT #NRU_162S_FT #산업용PC Fanless PC #Flattop #Heatsink #Edge AI



Specifications



System Core
Processor NVIDIA® Jetson Orin™ NX system-onmodule(SOM), comprising NVIDIA® Ampere GPU and ARM Cortex CPU NVIDIA® Jetson Orin™ Nano systemon-module (SOM), comprising NVIDIA® Ampere GPU and ARM Cortex CPU
Memory 16GB/ 8GB LPDDR5 @ 3200 MHz on SOM 8GB/ 4GB LPDDR5 @ 2133 MHz on SOM
eMMC N/A
Panel I/O Interface
GMSL2 NRU-161V-FT

6x GMSL2 FAKRA Z connectors, supporting multiple configurations:

Configuration A. 6x AC-IMX390 (2MP@30FPS)

Configuration B. 6x AC-ISX031 (3MP@30FPS)

Configuration C. 4x AC-IMX490 (5MP@30FPS)
Ethernet Port NRU-161V-FT
1x Gigabit Ethernet port via M12 X-coded 8-pin connector

NRU-162S-FT
Port 0: 1x Gigabit Ethernet port via M12 X-coded 8-pin connector
Port 1 to Port 4: 4x GbE ports by Intel® I350-AM4 via M12 X-coded 8-pin connector
PoE+ NRU-162S-FT

IEEE 802.3at PoE+ PSE for Port 1 to Port 4 with 50W total power budget
USB 2x USB 2 ports via M12 A-coded 8-pin connector

1x USB Type C port
Video Port 1x VGA, supporting 1920×1080 at 60Hz via M12 A-coded 17-pin connector
Serial Port 1x RS-232 port via M12 A-coded 8-pin connector
CAN bus 1x CAN FD port via M12 A-coded 8-pin connector
Isolated DIO 1x isolated GPS PPS input via M12 A-coded 8-pin connector
Internal I/O Interface
Mini PCI Express 1x full-size mini PCI Express socket (PCIe + USB 2.0 signal)
M.2 1x M.2 3042/3052 B key (USB 3.2 Gen1 + USB 2.0 signal) for LTE/ 5G module with dual micro SIM support
Storage
M.2 NVMe 1x M.2 2242 M key socket (PCIe Gen 3×1) for NVMe SSD
Power Supply
DC Input 8V to 35V DC input and ignition power control via M12 A-coded, 5-pin connector (IGN/ GND/ V+) [1]
Mechanical
Dimension 199 mm (W) x 136 mm (D) x 49 mm (H)
Weight 1.5 kg
Mounting Wall-mount (standard) [4]



Environmental
Operating Temperature -25°C to 70°C with passive cooling (25W TDP mode) [2][3]
-With full CPU+GPU stressing: Non-throttling at 70°C with 25W TDP mode
Storage Temperature -40°C to 85°C
Humidity 10% to 90%, non-condensing
Vibration  MIL-STD-810H, Method 514.8, Category 4
Shock MIL-STD-810H, Method 516.8, Procedure I
EMC CE/ FCC Class A, according to EN 55032 & EN 55035

[1] The required DC input range is 8V to 35V when the system load is under 60W. The required DC input range is 12V to 35V when the system load is between 60W to 96W. The required DC input range is 20V to 35V when the system load is between 96W to 160W.



[2] For sub-zero and over 60°C operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.



[3] The system was tested while mounted on a 60 (W) x 60 (D) x 0.3 (H) cm aluminum plate in an elevated-temperature environment to simulate in-cabinet conditions.



[4] Wall-mount bracket is integrated as part of the chassis design.

LIST
Ordering Information
NRU-161V-FT

NVIDIA® Jetson Orin™ NX/ Nano Fanless Flattop Heatsink Edge AI Computer with 6x GMSL2

NRU-162S-FT

NVIDIA® Jetson Orin™ NX/ Nano Fanless Flattop Heatsink Edge AI Computer with 4x PoE+ GbE

Jetson Module Option

Options for Different Jetson Orin™ NX and Jetson Orin™ Nano SKUs

NVMe Option

Options for Different Capacities of M.2 2242 NVMe Storage

Optional Accessories
GMSL2 cameras

The system compatible with a wide range of GMSL2 2D and 3D cameras with pre-built driver, including TIER IV, e-con, StereoLabs, Intel RealSense. For the complete list, please click on this link(https://www.neousys-tech.com/en/gmsl2-camera-support-with-pre-built-driver)

PA-60W-OW

60W AC/DC power adapter 12V/5A; cord end terminals for terminal block, operating temperature: -30 to 60°C

PA-160W-OW

160W AC/DC power adapter 20V/8A; 18AWG/120cm; cord end terminals for terminal block, operating temperature: -30 to 70°C
