350W NVIDIA® RTX™ GPU 카드, Intel® 13/12세대 Core™ CPU 및 3개의 PCle 확장 슬롯을 지원하는 산업용 엣지 AI 컴퓨터

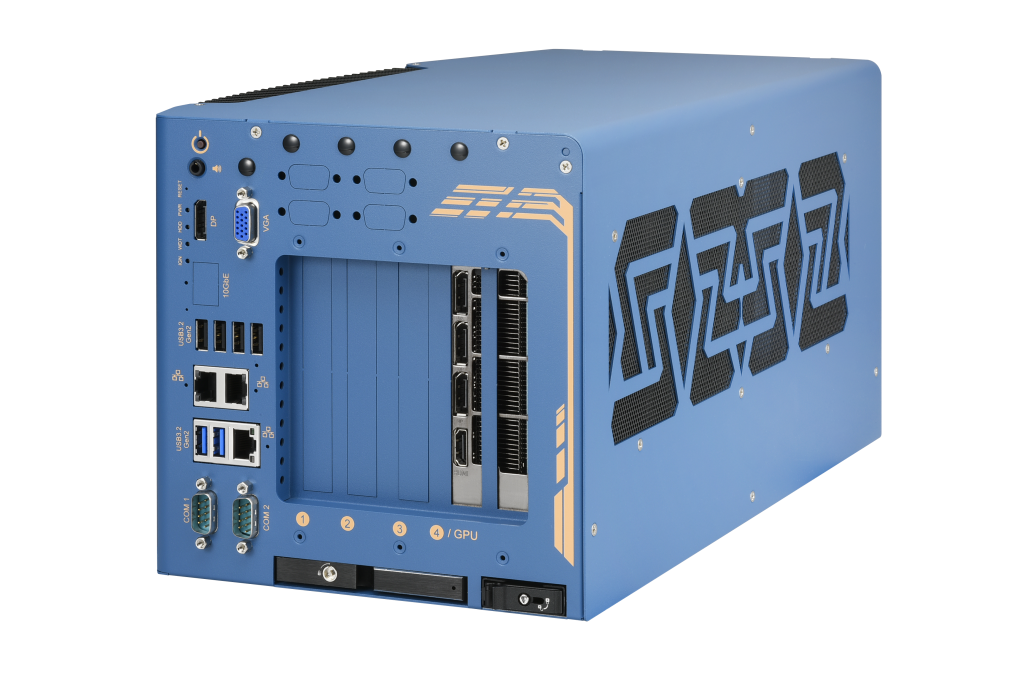

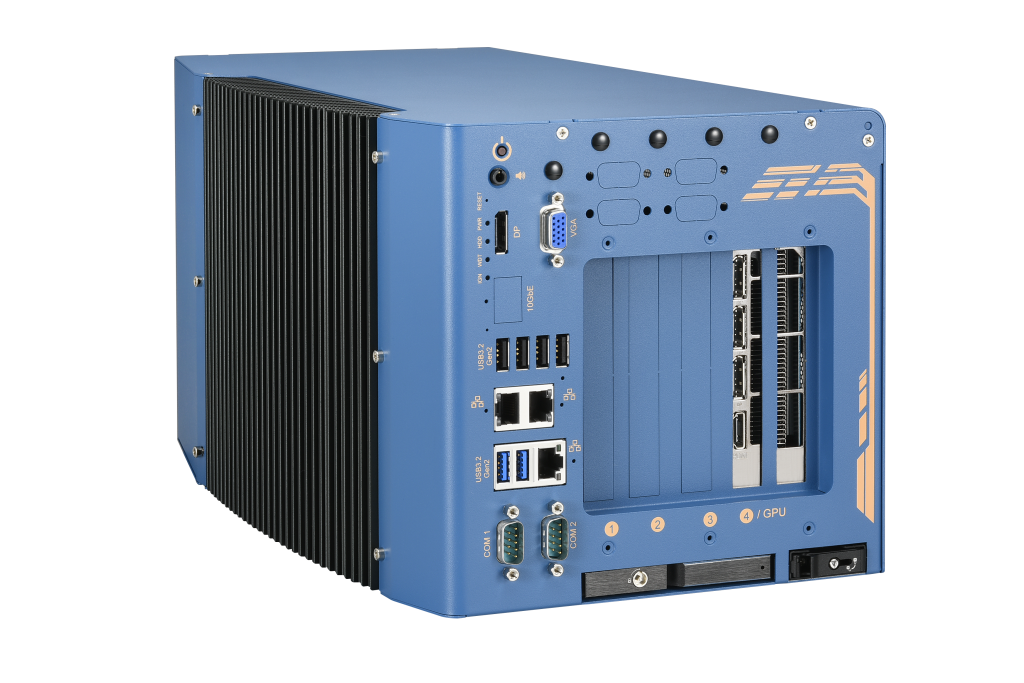

Nuvo-10108GC RTX40 시리즈 GPU PC (New!)
- Supports single NVIDIA® 350W GPU with Gen4 x16 signal and dedicated GPU-locking bracket
- Intel® 13th/ 12th-Gen Core™ 35W/ 65W LGA1700 CPU
- Up to 64GB ECC/ non-ECC DDR5 4800 with Intel R680E chipset (2x SODIMM)
- Three x8 PCIe slots (Gen3 x4) for add-on cards
- 6x USB 3.2, 2x 2.5GbE, 1x GbE, and 1x optional 10GbE
- Two front-accessible storage options: 1x 2.5″ SATA tray and 1x optional NVMe tray
- 8V to 48V wide-range DC input with ignition power control
- Rugged, -25°C to 60°C operation
Overview
Introduction
Nuvo-10108GC는 자율 주행 및 AI-기반 공장 자동화에 맞춰 최상의 CPU 및 GPU 성능을 보이는 산업용 러기다이즈드 엣지 AI 컴퓨터에 대한 대응으로 탄생한 제품입니다. Intel® 13/12세대 CPU 및 FP32에서 각각 최대 48 TFLOPS 또는 91 TFLOPS에 이르는 GPU 성능을 제공하는NVIDIA® RTX™ 40 시리즈 또는 최신 RTX™ 6000 Ada GPU를 최대한 활용할 수 있습니다.
최대 24 코어 및 32 스레드의 Intel® 13/23세대 CPU로 구동되는 산업용 컴퓨터 Nuvo-10108GC는 이전 Intel® 10세대 또는 11세대 플랫폼에 비해 최대 2배의 컴퓨팅 성능을 제공합니다. 또한, Nuvo-10108GC는 미션-크리티컬 컴퓨테이션(예: 도심의 자율 주행 교통)을 전달하기 위해 ECC 메모리를 지원합니다. -25°C ~ 60°C의 광범위한 러기드 온도 작동을 보장할 수 있도록 CPU 및 GPU에 맞는 입증된 열 분산 설계를 이어받았습니다. Nuvo-10108GC에는 온-하이웨이 및 오프-하이웨이 어플리케이션에서의 지속적인 충격/진동 환경을 견디기 위해, GPU를 섀시와 고정시키는 혁신적인 GPU 홀딩 브래킷과 고주파 진동을 흡수하기 위한 특허 받은 댐핑 브래킷을 갖추고 있습니다.
산업용 컴퓨터 Nuvo-10108GC에는 또한 USB3.2 Gen2 6개, 2.5GbE/GbE 3개 및 (옵션) 10GbE 같은 다양한 I/O가 있습니다. 확장성 측면에서 Nuvo-10108GC은 GMSL2 또는 산업용 카메라 프레임 그래버 및 다양한 확장 카드용 PCIe 확장슬롯 3개를 제공합니다. 또한, CAN Bus/COM/WiFi 확장용 풀 사이즈 mini-PCI Express 소켓 2개와 4G LTE, 5G NR 모듈로 모바일에 연결하기 위한 M.2 B-key socket 1개도 제공합니다. 데이터 스토리지 측면에서, Nuvo-10108GC는 NVMe용M.2 2280 M-key Socket(PCIe Gen4 x) 과 전면 접속 가능한 2.5″ SATA HDD/SSD Hot-Swap Tray 및 (옵션) M.2 2280 Gen4 x4 NVMe Tray를 제공합니다.
Intel의 13/12세대 플랫폼, 최신 NVIDIA® RTX™ GPU과 산업 등급의 성능, 그리고 풍부한 I/O와 확장성을 가진 써멀/기계식 설계가 적용된 산업용 컴퓨터 Nuvo-10108GC는 현대 AI 어플리케이션을 위해 전례 없는 GPU와 CPU 컴퓨팅 성능을 제공하는 러기드 엣지 AI 플랫폼입니다.
Nuvo-10108GC is Neousys’ response to the ruggedized Edge AI computer with extreme CPU and GPU performance for autonomous driving and AI-powered factory automation. It leverages an Intel® 13th/ 12th-Gen CPU and an NVIDIA® RTX™ 40 series or the latest RTX™ 6000 Ada GPU, offering single-precision GPU performances up to 48 TFLOPS or 91 TFLOPS, respectively.
Powered by an Intel® 13th/ 12th-Gen CPU with up to 24 cores and 32 threads, Nuvo-10108GC offers up to twice the performance compared to previous Intel® 10th or 11th-Gen platforms. In addition, Nuvo-10108GC supports ECC memory to deliver mission-critical computation, e.g., automated driving in urban traffic. It inherits a proven thermal dissipation design for the CPU and GPU to guarantee rugged, -25°C to 60°C wide-temperature operation. To withstand continuous shaking and juddering conditions in on-highway and off-highway applications, Nuvo-10108GC features an innovative GPU locking bracket to fasten the GPU with the chassis, and Neousys’ patented damping bracket to absorb high-frequency vibration.
Nuvo-10108GC also features an abundance of I/Os, such as 6x USB3.2 Gen2, 3x 2.5GbE/GbE, and 1x optional 10GbE. Expansion-wise, Nuvo-10108GC offers 3x additional PCIe slots for GMSL2/ industrial camera frame grabbers and various add-on cards. Also, it provides 2x full-size mini PCI Express sockets for CAN bus/ COM/ WiFi expansion and 1x M.2 B key sockets for mobile connectivity with 4G LTE, 5G NR modules. In terms of data storage, Nuvo-10108GC offers an M.2 2280 M socket for Gen4x4 NVMe, and dual front-accessible storage options, including a 2.5″ SATA HDD/SSD and an optional M.2 2280 Gen4x4 NVMe tray.
By utilizing Intel’s 13th/ 12th-Gen platform, state-of-the-art NVIDIA® RTX™ GPU, and Neousys’ industrial-grade power, thermal and mechanical designs with rich I/O and expansion, Nuvo-10108GC is a rugged edge AI platform that offers unprecedented GPU and CPU computing power for modern AI applications.
Specifications
| System Core | |
|---|---|
| Processor | Supporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) – Intel® Core™ i9-13900E/ i9-13900TE / i9-13900 – Intel® Core™ i7-13700E/ i7-13700TE / i7-13700 – Intel® Core™ i5-13500E/ i5-13400E/ i5-13500TE / i5-13400 – Intel® Core™ i3-13100E/ i3-13100TE / i3-13100Supporting Intel® 12th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) – Intel® Core™ i9-12900E/ i9-12900TE/ i9-12900 – Intel® Core™ i7-12700E/ i7-12700TE/ i7-12700 – Intel® Core™ i5-12500E/ i5-12500TE/ i5-12500 – Intel® Core™ i3-12100E/ i3-12100TE /i3-12100 – Intel® Pentium® G7400E/ G7400TE – Intel® Celeron® G6900E/ G6900TE |
| Chipset | Intel® R680E Platform Controller Hub |
| Graphics | Integrated Intel® UHD Graphics 770 (32EU) / 730 (24EU) |
| Memory | Up to 64GB ECC/ non-ECC DDR5 4800 SDRAM (two SODIMM slots) |
| AMT | Supports Intel vPro/ AMT 16.0 |
| TPM | Supports dTPM 2.0 |
| I/O Interface | |
|---|---|
| Ethernet | 2x 2.5G Ethernet by I226-IT and 1x Gigabit Ethernet by I219-LM |
| 10G Ethernet | Optional 10GBASE-T port by Marvell AQC113CS, supporting NBASE-T (5G/ 2.5G) and 1000BASE-T |
| USB 3.2 | 6x USB 3.2 Gen2x1 (10 Gbps) ports |
| USB 2.0 | 1x USB 2.0 ports (internal for dongle use) |
| Serial Port | 2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2) |
| Video Port (Integrated Graphics) | 1x VGA output, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| Storage Interface | |
|---|---|
| SATA HDD | 1x front-accessible, hot-swappable HDD trays for 2.5″ HDD/ SSD installation |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD 1x Optional front-accessible M.2 2280 M key tray (PCIe Gen4 x4) for NVMe SSD |
| Expansion Bus | |
|---|---|
| PCI Express | 1x PCIe x16 slot @Gen4, 16-lanes with 6.5 mm slot width. The standard GPU locking bracket is designed for NVIDIA® RTX™ A4000, A5000, A6000, 6000 Ada, and selected RTX 40 Series GPU cards. 3x PCIe x8 slots @Gen3, 4-lanes |
| M.2 | 1x M.2 2242/3052 B key socket with internal SIM sockets |
| mini-PCIe | 2x full-size mini PCI Express sockets with internal SIM sockets |
| Power Supply | |
|---|---|
| DC Input | 3-pin + 4-pin pluggable terminal block for 8V to 48V DC input with ignition control |
| Mechanical | |
|---|---|
| Dimension | 214 mm (W) x 400 mm (D) x 196 mm (H) (without damping bracket) |
| Weight | 6.2 kg (excluding damping bracket) |
| Mounting | Wall-mount with damping brackets |
| Environmental | |
|---|---|
| Operating Temperature | With 35W CPU and NVIDIA® 350W GPU -25°C to 60°C [1] with 65W CPU and NVIDIA® 350W GPU -25°C ~ 60°C[1][2](with optional fan kit) -25°C ~ 50°C[1][2](without optional fan kit) |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | MIL-STD-810H, Method 514.8, Category 4 (with damping bracket) |
| Shock | MIL-STD-810H, Method 516.8, Procedure I (with damping bracket) |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 |
[1] For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
[2] For 65W CPUs, the optional fan kit is recommended for operating at ambient temperatures higher than 50°C.
Ordering Information
Nuvo-10108GC
Industrial-grade Edge AI Platform supporting an NVIDIA® RTX series 350W GPU Card, Intel® 13th/12th-Gen Core™ processor with 3x additional PCIe slots
Optional 10GbE and M.2 2280 M key tray (PCIe Gen4 x4)
Optional Accessories
AccsyBx-FAN Nuvo10108GC
Fan assembly for Nuvo-10108GC and Nuvo-10208GC series, 92x92x25 mm
TY-NVMe Nuvo10108GC
M.2 NVMe 2230/42/60/80 SSD Tray
Cblkit-GPWR-N10108C
GPU power cable kit compatible with RTX A4000, A5000, and RTX A6000 for the Nuvo-10108GC. Wafer ATX3.0 PCIe 5.0
12VHPWR(12+4P) to x2 Wafer 4.2 6P + 2P, Black, 20AWG, -20°C to +80°C, Length: 35cm
Optional 1x10GbE
PA-600W-ENC
600W AC/DC power adapter 24V/25A; cord end terminals for terminal block, operating temperature : -20°C to 70°C.
PA-1000W
AC/DC power supply providing 1000W output power for 90V – 264V AC input voltage and offers rated voltage 24V
