단일 600W GPU를 지원하는 산업용 엣지 AI 컴퓨터로, Intel® 14·13·12세대 Core™ 프로세서 및 추가 PCIe 슬롯 3개 지원

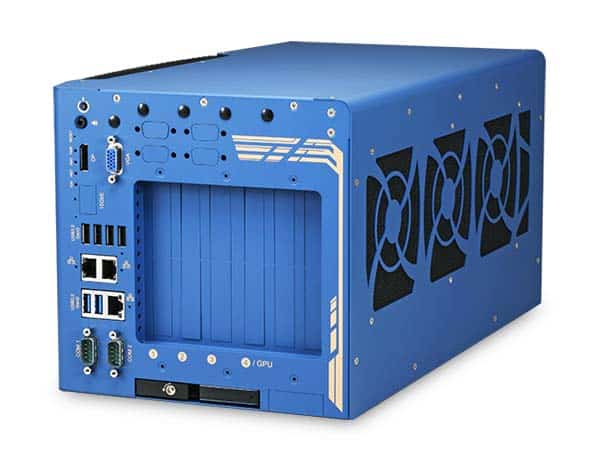

Nuvo-10109GC Series (New!) RTX50 시리즈 GPU PC

Supports single 600W GPU with Gen4 x16 signal and dedicated GPU-locking bracket
Intel® 14th/ 13th/ 12th-Gen Core™ 35W/ 65W LGA1700 CPU
Up to 128GB ECC/ non-ECC DDR5 4800 with Intel R680E chipset (2x SODIMM)
Three x8 PCIe slots with Gen3 x4 signal for add-on cards
6x USB 3.2, 2x 2.5GbE, 1x GbE, and 1x optional 10GbE
Two front-accessible storage options: 1x 2.5" SATA tray and 1x optional NVMe tray
9V to 32V wide-range DC input with ignition power control
Rugged, -25°C to 60°C operation

Overview

Introduction

Neousys의 산업용 Fanless PC Nuvo-10109GC는 NVIDIA의 최신 600W Blackwell GPU를 위해 설계된 Neousys의 대폭 강화된 엣지 AI 플랫폼으로, FP4 기반 LLM 추론 및 생성형 AI 작업에서 최대 4,000 AI TOPS를 제공하며, 자율주행 및 AI 기반 컴퓨터 비전 애플리케이션을 위해 최대 125 TFLOPS의 성능을 제공합니다.

산업용 Fanless PC Nuvo-10109GC는 다양한 설치 환경에서 600W GPU를 안정적으로 지원하기 위해 충분한 전력 용량과 향상된 과도 응답 특성을 제공하는 완전히 새로운 전원 설계를 적용했습니다. 이를 통해 시스템과 GPU가 요구하는 높은 전력 조건을 충족합니다. 또한 9V~32V의 넓은 DC 입력 전압 범위 전 구간에서 정격 출력 전력을 유지하여, 12V 및 24V 차량용 전원과의 직접적인 호환성을 제공하며 전압 변동 환경에서도 안정적인 동작을 보장합니다.

산업용 Fanless PC Nuvo-10109GC는 데이터 통신을 위한 10G 및 1G 이더넷 포트를 포함한 다양한 I/O 연결성을 제공하며, 전면 접근이 가능한 2.5인치 SATA SSD 트레이와 고속 스토리지를 위한 선택 사양의 M.2 2280 Gen4 x4 NVMe 슬롯을 지원합니다. 이는 센서 데이터 로깅이나 VIL/HIL 테스트 애플리케이션에 이상적입니다. 또한 GPU 장착 슬롯 외에 Gen3 x4 PCIe 슬롯 3개를 추가로 제공하여, GMSL2 프레임 그래버, 차량용 이더넷 어댑터, 고급 카메라 프레임 그래버 등 다양한 기능 모듈을 통합한 올인원 시스템 구축에 있어 시스템 통합업체에 큰 이점을 제공합니다.

기구적으로 산업용 Fanless PC Nuvo-10109GC는 강화된 섀시 구조와 개선된 GPU 고정 브래킷 및 댐핑 브래킷을 적용하여, 진동과 충격 환경에서도 구조적 신뢰성과 장기적인 내구성을 보장합니다.
600W GPU와 다수의 확장 슬롯을 안정적으로 지원하는 전기적 견고함과 결합되어, Nuvo-10109GC는 엣지 AI 플랫폼의 새로운 이정표를 제시하며, 고정형 및 이동형 환경 모두에서 끊임없이 진화하는 AI 애플리케이션을 위한 탁월한 AI 성능을 제공합니다.

Nuvo-10109GC is Neousys’big enhancement of edge AI platform designed for NVIDIA’s latest 600W Blackwell GPU, delivering up to 4000 AI TOPS for FP4 LLM inference and generative AI, or 125 TFLOPS for autonomous driving and AI-based computer vision applications.

To support a 600W GPU in diverse installation environments, Nuvo-10109GC incorporates a brand-new power design that delivers ample power capacity and enhanced transient response, meeting the demanding power requirements of both the system and GPU. More importantly, it maintains full-rated power output across a wide 9V to 32V DC input range, enabling direct compatibility with 12V and 24V automotive power sources and ensuring stable operation under voltage fluctuations.

Nuvo-10109GC also offers versatile I/O connectivity, including 10G and 1G Ethernet ports for data communication, and a front-accessible 2.5″ SATA SSD tray, an optional M.2 2280 Gen4x4 NVMe slot for high-speed storage—ideal for sensor data logging or VIL/HIL testing applications. Additionally, it provides three Gen3x4 PCIe slots beyond the GPU installation slot, benefiting system integrators in building all-in-one systems by incorporating other functional modules such as GMSL2 frame grabbers, automotive Ethernet adapters, or high-end camera frame grabbers.

Mechanically, Nuvo-10109GC features a reinforced chassis with an improved GPU retention bracket and damping bracket to ensure structural reliability and long-term durability under vibration and shock. Combined with its electrical robustness for 600W GPU and multiple expansion slots, Nuvo-10109GC marks a new milestone in edge AI platforms, delivering exceptional AI performance for ever-evolving AI applications in both stationary and mobile environments.

#Nuvo-10109GC #산업용PC #Fanless PC #RTX5090 #RTX5080 #GPU #스마트 팩토리 #자율주행 #Edge AI

Specifications

System Core
Processor	Supporting Intel® 14th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) – Intel® Core™ i9-14900/ i9-14900T – Intel® Core™ i7-14700/ i7-14700T – Intel® Core™ i5-14500/ i5-14400/ i5-14500T – Intel® Core™ i3-14100/ i3-14100T Supporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) – Intel® Core™ i9-13900/ i9-13900E or TE – Intel® Core™ i7-13700/ i7-13700E or TE – Intel® Core™ i5-13500/ i5-13400E/ i5-13500E or TE – Intel® Core™ i3-13100/ i3-13100E or TE Support Intel® 12th-Gen Core™ CPU (LGA1700 socket, 35W/ 65W TDP) – Intel® Core™ i9-12900/ i9-12900E or TE – Intel® Core™ i7-12700/ i7-12700E or TE – Intel® Core™ i5-12500/ i5-12500E or TE – Intel® Core™ i3-12100/ i3-12100E or TE – Intel® Pentium® G7400/ G7400E or TE – Intel® Celeron® G6900/ G6900E or TE
Chipset	Intel® R680E Platform Controller Hub
Graphics	Integrated Intel® UHD Graphics 770 (32EU) / 730 (24EU)
Memory	Up to 128GB ECC/ non-ECC DDR5 4800 SDRAM (up to 2x 64GB SODIMM modules)[1]
AMT	Supports Intel vPro/ AMT 16.0
TPM	Supports dTPM 2.0

I/O Interface
Ethernet	2x 2.5G Ethernet by I226-IT and 1x Gigabit Ethernet by I219-LM
10G Ethernet (optional)	Optional 10GBASE-T port by Marvell AQC113CS, supporting NBASE-T (5G/ 2.5G) and 1000BASE-T
USB 3.2	6x USB 3.2 Gen2x1 (10 Gbps) ports
USB 2.0	1x USB 2.0 ports (internal for dongle use)
Serial Port	2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2)
Video Port (Integrated Graphics)	1x VGA output, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution
Audio	1x 3.5 mm jack for mic-in and speaker-out

Storage Interface
SATA HDD	1x front-accessible, hot-swappable HDD trays for 2.5″ HDD/ SSD installation
M.2	1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD 1x Optional front-accessible M.2 2280 M key tray (PCIe Gen4 x4) for NVMe SSD

Expansion Bus
PCI Express	1x PCIe x16 slot @Gen4, 16-lanes (70 mm slot width) GPU locking bracket for RTX Pro 6000, RTX 5090, 5080, 5070Ti, 5070 and selected GPU Cards 3x PCIe x8 slots @Gen3, 4-lanes
M.2	1x M.2 2242/3052 B key socket with internal SIM sockets
mini-PCIe	2x full-size mini PCI Express sockets with internal SIM sockets

Power Supply
DC Input	3-pin + 4-pin pluggable terminal block for 9V to 32V DC input with ignition control

Mechanical
Dimension	224 mm (W) x 400 mm (D) x 196 mm (H) (without damping bracket)
Weight	7.1 kg
Mounting	Wall-mount with damping brackets

Environmental
Operating Temperature	With 35W CPU and NVIDIA 600W GPU: -25°C to 60°C [1] With 65W CPU and NVIDIA 600W GPU: -25°C to 60°C [1][2] (with optional fan kit) -25°C to 50°C [1][2] (without optional fan kit)
Storage Temperature	-40°C ~ 85°C
Humidity	10%~90% , non-condensing
Vibration	MIL-STD-810H, Method 514.8, Category 4 (with damping bracket)
Shock	MIL-STD-810H, Method 516.8, Procedure I (with damping bracket)
EMC	CE/FCC Class A, according to EN 55032 & EN 55035

[1] For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
[2] For 65W CPUs, the optional fan kit is recommended for operating at ambient temperatures higher than 50°C.

LIST

Expansion PCIe Cards:

Ordering Information

Nuvo-10109GC

Industrial Edge AI Computer Supporting Single 600W GPU, Intel® 14th/ 13th/ 12th-Gen Core™ Processor with Three Additional PCIe Slots

Optional 10GbE and M.2 2280 M key tray (PCIe Gen4 x4)

Optional Accessories

AccsyBx-FAN-Nuvo10109GC

Fan assembly for Nuvo-10109GC series, 92x92x25 mm

AccsyBx-Cardholder-10109GC-xx

Nuvo-10109GC GPU bracket kits for selected GPU cards, Please contact Neousys for more information.

TY-NVMe-Nuvo10109GC

M.2 NVMe 2230/42/60/80 SSD Tray for Nuvo-10109GC
