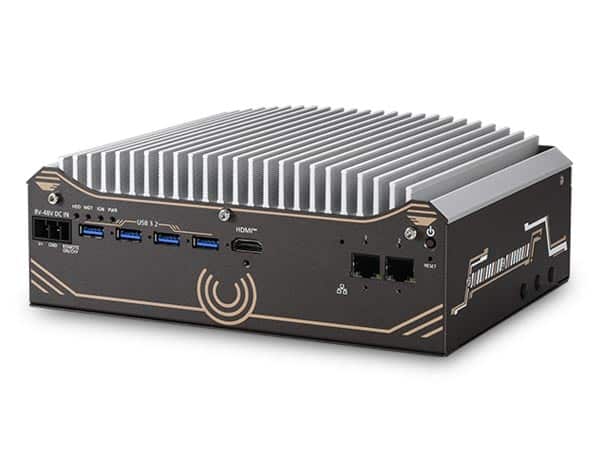

Intel® Core™ Ultra 200S 기반의 2.5GbE 포트 2개와 USB 3.2 포트 4개를 갖춘 소형 팬리스 컴퓨터

Nuvo-11501, Intel® Core™ Ultra 200 Series 팬리스 컴퓨터 (New)

Supports Intel® Core™ Ultra 200S series 35W/ 65W LGA1851 CPU
Compact 212 x 165 x 80 mm footprint
Rugged, -10°C to 60°C fanless operation
Up to 64GB DDR5 6400 memory
8V to 48V wide-range DC input

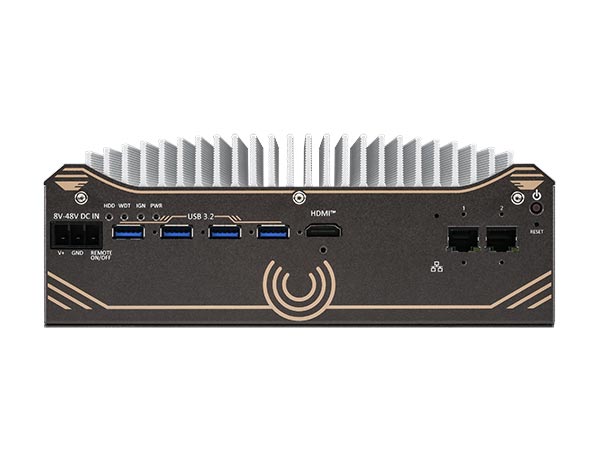

2x 2.5GbE and 4x USB3.2 Gen1 with screw-lock
Supports 1x M.2 2280 Gen4x4 NVMe and 1x 3.5"/2.5" SATA HDD/SSD storage
HDMI + DP dual display outputs

Overview

Introduction

Neousys의 산업용 팬리스 PC Nuvo-11501은 Intel® Core™ Ultra 200S 시리즈 프로세서를 기반으로 하는 경제적이고 컴팩트한 팬리스 임베디드 AI 컴퓨터입니다. 최첨단 CPU 성능, 비용 효율성, 최소한의 I/O, 유연한 스토리지 옵션을 요구하는 머신 비전 또는 공장 자동화 애플리케이션에 이상적인 솔루션입니다.

최신 Core™ Ultra 200S 프로세서를 탑재한 산업용 팬리스 PC Nuvo-11501은 TSMC의 첨단 3nm 공정 기술 덕분에 이전 세대 대비 전력 소비는 80%에 불과하면서도 약 120%에 달하는 성능을 제공합니다. 뛰어난 CPU 성능 외에도 Core™ Ultra 200S 시리즈는 통합 신경처리장치(NPU)를 갖추고 있어, 규칙 기반 알고리즘과 함께 향상된 AI 추론 기능을 제공함으로써 최신 머신 비전 애플리케이션의 요구를 충족합니다.

산업용 팬리스 PC Nuvo-11501은 산업용 애플리케이션에 필요한 기본 I/O 기능을 제공하며, 여기에는 듀얼 2.5GbE 포트, 듀얼 디스플레이 포트, 네 개의 USB 3.2 포트가 포함됩니다. 또한 고속 OS 읽기/쓰기 작업을 위한 Gen4 x4 M.2 NVMe 슬롯과, 대용량 스토리지를 위한 내부 2.5″/3.5″ SSD/HDD 베이를 갖추고 있어 데이터 로깅이나 비디오 녹화에 적합합니다. 내부 확장을 위해 COM 포트, Wi-Fi 또는 5G/4G LTE 연결을 추가할 수 있는 두 개의 mPCIe 슬롯과 하나의 M.2 E-Key 슬롯도 제공합니다.

검증된 열 설계와 핵심 I/O 기능을 결합한 산업용 팬리스 PC Nuvo-11501은 다양한 산업용 애플리케이션에 최적화된 견고하고 컴팩트하며 경제적인 컴퓨팅 솔루션을 제공합니다.

The Nuvo-11501 is a cost-effective, compact, fanless embedded AI computer powered by an Intel® Core™ Ultra 200S series processor. It is an ideal solution for machine vision or factory automation applications that demand cutting-edge CPU performance, cost efficiency, minimal I/O, and flexible storage options.

Powered by the latest Core™ Ultra 200S processors, the Nuvo-11501 delivers nearly 120% of the performance while consuming only 80% of the power compared to the previous generation, thanks to TSMC’s advanced 3nm process technology. In addition to its superior CPU performance, the Core™ Ultra 200S series also features an integrated Neural Processing Unit (NPU), providing enhanced AI inference capabilities alongside rule-based algorithms to meet the demands of modern machine vision applications.

The Nuvo-11501 offers essential I/O functions for industrial application needs, including dual 2.5GbE ports, dual display ports, and four USB 3.2 ports. Additionally, it features a Gen4 x4 M.2 NVMe slot for high-speed OS read/write operations, along with an internal 2.5″/3.5″ SSD/HDD bay for high-capacity storage—ideal for data logging or video recording. For internal expansion, it provides two mPCIe slots and one M.2 E-Key slot for adding COM ports, Wi-Fi, or 5G/ 4G LTE connectivity.

Combining a proven thermal design with essential I/O functionality, the Nuvo-11501 delivers a rugged, compact, and budget-friendly computing solution tailored for a wide range of industrial applications.

#Nuvo-11501 #산업용PC #Fanless PC #팬리스 컴퓨터 #Intel Core Ultra 200 #2x 2.5GbE #4x USB3.2 #스마트 팩토리 #Edge AI

Specifications

System Core
Processor	Supports Intel® Core™ Ultra 200S series CPU (LGA 1851 socket), 35W and 65W TDP – Intel® Core™ Ultra 9 285/285T – Intel® Core™ Ultra 7 265/265T – Intel® Core™ Ultra 5 245/245T
Chipset	Intel® H810 platform controller hub
Graphics	Integrated Intel Xe LPG Graphics
AI Engine	Integrated neural processing unit
Memory	Up to 64GB DDR5 6400 memory via one SODIMM slot
TPM	fTPM 2.0 (standard) / dTPM 2.0 (optional)

I/O Interface
Ethernet	2x 2.5GBASE-T Ethernet ports with screw-lock by Intel® I226-V GbE controllers Port 2 supports Wake-on-LAN (WOL)
USB	4x USB 3.2 Gen1 (5 Gbps) ports with screw-lock 2x USB 2.0 ports
Video Port (Integrated Graphics)	1x HDMI, supporting 3840 x 2160 resolution 1x DisplayPort, supporting 3840 x 2160 resolution (The DisplayPort does not support DP++. Use an active DP-to-HDMI adapter for HDMI output.)
Serial Port	1x software-programmable RS-232/422/485 ports (COM1) 3x 3-wire RS-232 ports (COM2/ 3/ 4) or 1x RS-422/ 485 port (COM2)

Internal Expansion Bus
M.2 E	1x M.2 2230 E key socket for WiFi module
Mini PCI Express	2x full-size mini PCI Express sockets with internal SIM sockets

Storage Interface
SATA HDD	1x Internal SATA port for 1x 3.5″ HDD or 1x 2.5″ HDD/ SSD
M.2 M	1x M.2 2280 M key socket (PCIe Gen4x4) for NVMe SSD

Power Supply
DC Input	1x 3-pin pluggable terminal block for 8V to 48V DC input with optional ignition power control [1]

Mechanical
Dimension	212 mm (W) x 165 mm (D) x 80 mm (H)
Weight	2.5 kg (excluding wall mount kit)
Mounting	Wall-mount (optional) or DIN-rail mount (optional)

Environmental
Operating Temperature	With 35W CPU -10°C to 60°C [2] With 65W CPU (installation of the optional fan kit isvrecommended) -10°C to 60°C [2]/[3]
Storage Temperature	-40°C ~85°C
Humidity	10%~90% , non-condensing
Vibration	MIL-STD-810H, Method 514.8, Category 4
Shock	MIL-STD-810H, Method 516.8, Procedure I
EMC	CE/FCC Class A, according to EN 55032 & EN 55035

[1] The maximum input current for each pin is 20A
[2] For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
[3] For 65W CPUs, the optional fan kit is recommended for operating at ambient temperatures higher than 50°C.

LIST

Ordering Information

Nuvo-11501

Intel® Core™ Ultra 200S compact fanless computer featuring 2x 2.5GbE, 4x USB 3.2

Optional Accessories

DINRAIL-31

DIN-rail mounting assembly for Nuvo-11501 and Nuvo-9501 series

Wmkit-H-Nuvo9501

Wall mount assembly for Nuvo-11501 and Nuvo-9501 series

AccsyBx-FAN-Nuvo11531_11501

Fan kit with 92mm x 92mm fan for Nuvo-11588/ Nuvo-11531/ Nuvo-11501 series

PA-160W-BM

AC-DC power adapter 20V/8A; 18AWG/120cm; cord end terminals for terminal block

PA-280W-ET2

280W AC/DC power adapter 24V/ 11.67A ; 16AWG/ 100cm; cord end terminals for terminal block, operating temperature : -30°C to 60°C.(recommended for 65W CPU)
