4x 2.5GbE, 4x USB3.2 및 1x 핫스왑 가능 HDD 트레이를 갖춘 Intel® 13/12세대 Core™ CPU 소형 팬리스 플랫탑 히트싱크 컴퓨터

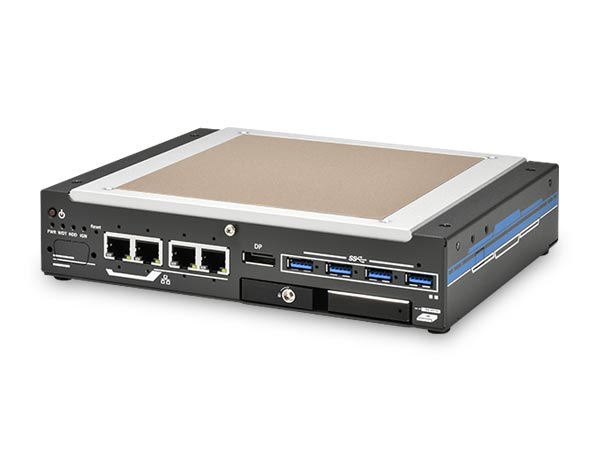

Nuvo-9531FT 13/12세대 플랫 탑 방열판 산업용컴퓨터

212 x 165 x 45 mm low-profile design with flattop heatsink
Intel® 13th/12th-Gen Core™ 65W/ 35W LGA1700 CPU
Rugged, -25°C to 60°C fanless operation
4x 2.5GbE with optional PoE+ and 4x USB3.2 Gen 1 with screw-lock
1x M.2 2280 Gen4 x4 NVMe and 1x hot-swappable HDD tray for storage
4-CH isolated DI and 4-CH isolated DO
VGA + DP dual display output
Optional ignition power control

Overview

Introduction

Nuvo-9531FT는 수동 열 방출을 위해 플랫탑 방열판을 활용하는 팬 없는 컴퓨터의 새로운 범주입니다. 환기가 제한된 금속 캐비닛, 방수 상자 또는 방폭 케이스 내부에 설치되도록 설계되었습니다. 플랫탑 히트싱크와 상단의 비접착식 열 패드를 사용하면 Nuvo-9531-FT에서 발생하는 열이 캐비닛 외부 표면으로 효과적으로 전도되어 최적의 작동 온도를 유지할 수 있습니다.

Nuvo-9531FT는 최대 24개 코어/32개 스레드로 Intel® 13세대 프로세서를 지원하여 이전 Intel® 10세대 또는 11세대 플랫폼에 비해 거의 두 배 향상된 성능을 제공합니다. PoE+ PSE 옵션이 포함된 4개의 2.5GbE와 머신 비전 및 감시 애플리케이션을 위한 다중 카메라 연결을 위한 4개의 USB3.2 Gen1 포트와 같은 풍부한 I/O 기능을 갖추고 있습니다. 또한 최대 7000MB/s의 읽기/쓰기 속도를 갖춘 NVMe SSD를 지원하는 Gen4 x4 M.2가 특징입니다. 시스템을 끄거나 섀시를 분해하지 않고도 스토리지 드라이브를 핫스왑할 수 있는 핫스왑 가능 HDD 트레이; WiFi 또는 5G/4G 무선 통신 모듈을 설치하기 위한 미니 PCIe 2개와 M.2 E 키 슬롯 1개. 또한 이 시스템에는 산업용 임베디드 애플리케이션 요구 사항에 맞는 8x DIO, 2x COM 포트 및 듀얼 디스플레이 출력이 장착되어 있습니다.

뛰어난 컴퓨팅 성능, 풍부한 I/O 연결, 컴팩트함, 고유한 플랫탑 방열판을 결합한 Nuvo-9531FT는 기존 팬리스 컴퓨터에는 부족한 밀폐된 캐비닛이나 제한된 공간에 배포된 애플리케이션에 적합합니다.

Nuvo-9531FT is a new category of fanless computer utilizing flattop heatsink for passive heat dissipation. It is designed to be installed inside a metal cabinet, waterproof box or explosion-proof case, where ventilation is limited. With the flattop heatsink and the non-adhesive thermal pad on top, heat generated by Nuvo-9531-FT can be effectively conducted to the outer surface of the cabinet to maintain optimum operating temperature.

Nuvo-9531FT supports Intel® 13th Gen processors with up to 24 cores/ 32 threads to deliver almost double the performance when compared to previous Intel® 10th or 11th Gen platforms. It has rich I/O functions such as four 2.5GbE with optional PoE+ PSE and four USB3.2 Gen1 ports for multiple camera connectivity for machine vision and surveillance applications. In addition, it features a Gen4 x4 M.2 to support an NVMe SSD with read/ write speeds up to 7000 MB/s; a hot-swappable HDD tray to hot-swap the storage drive without turning off the system or dismantling the chassis; two mini PCIe and one M.2 E key slots to install WiFi or 5G/ 4G wireless communication modules. The system is also equipped with 8x DIO, 2x COM ports, and dual display outputs for your industrial embedded application needs.

Combining excellent computing performance, abundant I/O connections, compactness, and a unique flattop heatsink, Nuvo-9531FT is perfect for applications deployed in a sealed cabinet or confined space, where traditional fanless computers fall short.

Specifications

System Core
Processor	Supporting Intel® 12th-Gen Alder Lake Core™ CPU (LGA1700 socket, 35W/ 65W TDP) – Intel® Core™ i9-12900E/ i9-12900TE – Intel® Core™ i7-12700E/ i7-12700TE – Intel® Core™ i5-12500E/ i5-12500TE – Intel® Core™ i3-12100E/ i3-12100TE – Intel® Pentium® G7400E/ G7400TE – Intel® Celeron® G6900E/ G6900TE Supporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) – Intel® Core™ i9-13900E/ i9-13900TE – Intel® Core™ i7-13700E/ i7-13700TE – Intel® Core™ i5-13500E/ i5-13400E/ i5-13500TE – Intel® Core™ i3-13100E/ i3-13100TE
Chipset	Intel® H610E platform controller hub
Graphics	Integrated Intel® UHD Graphics 770 (32EU) / 730 (24EU)
Memory	Up to 32GB non-ECC DDR4 3200 SDRAM (one SODIMM slot)
TPM	Supports dTPM 2.0

I/O Interface
Ethernet	4x 2.5GBASE-T Ethernet ports by Intel® I226-IT GbE controllers
PoE+	Optional IEEE 802.3at PoE+ PSE for 4×2.5GbE ports 100 W total power budget
USB	4x USB 3.2 Gen1 (5 Gbps) ports 2x USB 2.0 ports
Video Port (Integrated Graphics)	1x VGA output, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution
Serial Port	1x software-programmable RS-232/422/485 ports (COM1) 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2)
Audio	1x 3.5 mm jack for mic-in and speaker-out
Isolated	4-CH isolated DI and 4-CH isolated DO

Expansion Bus
Mini PCI Express	2x full-size mini PCI Express sockets with internal SIM sockets
M.2 E key	1x M.2 2230 E key socket for WiFi5, WiFi6 or Google edge TPU module

Storage interface
SATA HDD	1x hot-swappable 2.5″ HDD/ SSD tray for 7mm HDD/ SSD
M.2	1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD

Power Supply
DC Input	1x 3-pin pluggable terminal block for 8 to 48V DC input with optional ignition power control

Mechanical
Dimension	212 mm (W) x 165 mm (D) x 45 mm (H)
Weight	2.4kg
Mounting	Wall-mount (standard) or DIN-rail mount (optional)

Environmental
Operating temperature	with 35W CPU -25°C ~ 60°C [1][2] with 65W CPU -25°C ~ 60°C[1][2](configured as 35W TDP)
Storage temperature	-40°C ~ 85°C
Humidity	10% ~ 90% , non-condensing
Vibration	MIL-STD-810H, Method 514.8, Category 4
Shock	MIL-STD-810H, Method 516.8, Procedure I
EMC	CE/FCC Class A, according to EN 55032 & EN 55035

[1] For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
[2] The system was tested while mounted on an aluminum panel measuring 60(W) x 60(D) x 0.3(H) cm in a high temperature environment to simulate in-cabinet conditions. For more information, please refer to the user manual.

LIST

Ordering Information

Nuvo-9531FT

Intel® 13th/12th-Gen Core™ i9/ i7/ i5/ i3 compact fanless computer with 4x 2.5GbE , 4x USB3.2 Gen 1, a hot-swappable HDD tray and flattop heatsink

Optional ignition power control and 802.3at PoE+ PSE for 4x 2.5GbE ports

Optional Accessories

PA-160W-OW

160W AC-DC power adapter 20V/8A; 18AWG/120cm; cord end terminals for terminal block, operating temperature: -30°C to 70°C

PA-280W-ET2

280W AC/DC power adapter 24V/ 11.67A ; 16AWG/ 100cm; cord end terminals for terminal block, operating temperature : -30°C to 60°C.(recommended for 65W CPU)

Wmkit-Nuvo-9531-FT

Wall mounting assembly for Nuvo-9531-FT
