저렴한 IP66 방수 컴퓨터, Intel® 13/12세대 Core™ CPU 지원, 4개의 M12 PoE+ 및 듀얼 모드 Type-C DisplayPort/USB 3.2 포트 제공

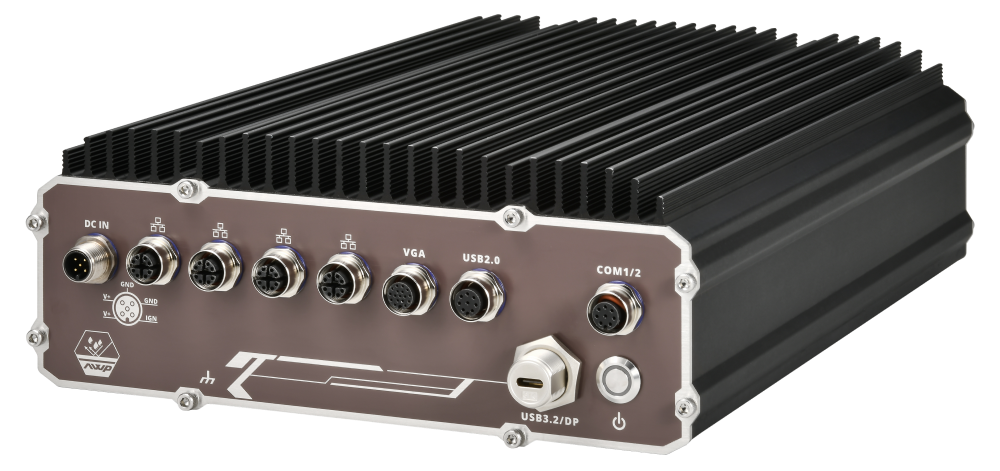

Nuvo-9650AWP Series IP66 방수 산업용 컴퓨터 (New!)

Intel® 13th /12th-Gen Core™ 24C/ 32T 35W/ 65W CPU
Affordable IP66-rated design for waterproof and dustproof Up to 96GB DDR5 4800 SODIMM
-25°C to 70°C wide-temperature fanless operation
3x 2.5Gb and 1x Gb Ethernet ports via M12 X-coded connectors, with 802.3at PoE+ option
1x waterproof USB3.2 Type-C port supporting alternative mode for DisplayPort and USB3.2 dual output
8V to 48V DC input with built-in ignition power control

Overview

Introduction

Nuvo-9650AWP는 극심하고 까다로운 환경에 맞게 설계된 Intel® 13/12세대 코어™ 프로세서를 탑재한 가성비 높은 IP66 방수 컴퓨터입니다. 세련됐지만 견고한 방수 섀시와 표준화된 케이블 키트를 갖춘 Nuvo-9650AWP는 작동 온도 확장, 충격/진동 대비, 먼지와 습도, 염분에 대한 견고한 저항성을 포함한 핵심적인 성능 강화를 진행하고서도 저렴한 총획득비용(TCO)을 달성하여 더욱 진보한 산업용 컴퓨터를 새로 정의합니다.

Nuvo-9650AWP는 방수 가능한 M12 커넥터를 채택하여 다수의 2.5GbE/GbE, USB 2.0, Isolated RS-232 및 RS-422/485 포트를 포함하여 일반 애플리케이션 요구 사항에 맞는 풍부한 I/O 기능을 제공합니다. 또한 5 Gbps USB3 데이터 전송 속도와 4K DisplayPort 영상 출력을 겸하는Type-C 포트가 있으며 커넥터는 특수 방수 처리되어 있습니다.더욱이, Nuvo-9650AWP에는 점화 전원 컨트롤 기능이 내장된 8~48V의 광범위한 DC 입력을 지원하며 농업용 차량 및 광산용 트럭과 같은 오프로드 차량 설치를 위해 MIL-STD-810H 충격/진동 인증을 준수합니다.

IP66 방수 성능이 임베디드 컴퓨터와 통합되어 먼지나 액체에 대한 노출이 우려되는 환경에서 컴퓨터를 사용해야 하는 제약을 제거합니다. 합리적인 가격의 방수 설계를 통해 예산에 민감한 프로젝트의 총획득비용(TCO) 부담을 대폭 줄일 수 있는 Nuvo-9650AWP는 견고한 성능과 비용 사이에서 최적점을 제시하는 임베디드 컴퓨터의 새로운 범주를 정의합니다.

Nuvo-9650AWP is a cost-effective IP66 waterproof computer with Intel® 13th/12th-Gen Core™ processor designed for harsh and demanding environments. Thanks to its streamlined waterproof chassis and standardized cable kit, Nuvo-9650AWP redefines affordable total cost of ownership (TCO) for industrial computing with significant enhancements including ruggedness against extended operating temperature, intensive shock and vibration, dust, humidity and salinity.

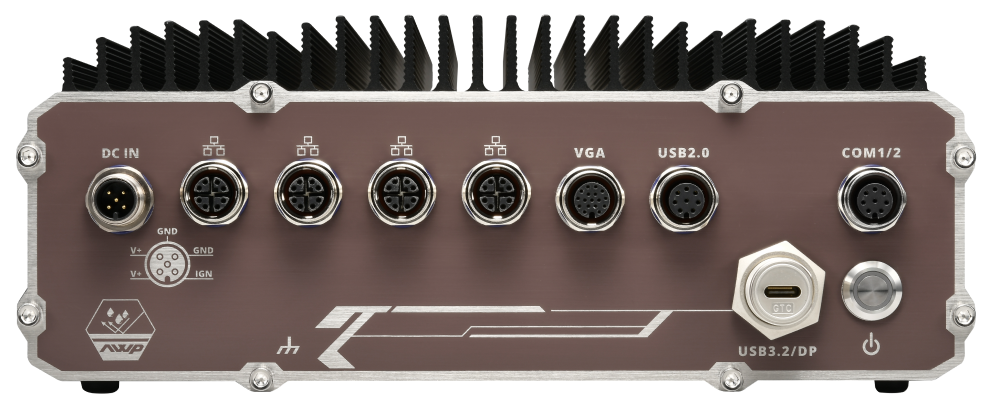

Nuvo-9650AWP offers abundant I/O functionality for generic application requirements, including multiple 2.5GbE/ GbE, USB 2.0 and isolated RS-232 and RS-422/485 ports, all through waterproof M12 connectors. It also has a specialized waterproof type-C connector supporting Type-C alternative mode, or it can enable both 5 Gbps USB3 data transmission speed and 4K DisplayPort video output via a Type-C hub. Moreover, Nuvo-9650AWP is equipped with 8-48V wide-range DC input with ignition power control, and is compliant with MIL-STD-810H shock/ vibration certification for invehicle installation, such as mining trucks and farming vehicles.

The integration of IP66 waterproof capability with embedded computer eliminates environmental limitations where exposure to dust or liquids may be of concern. Its affordable waterproof design further reduces the gap in TCO for budget-conscious projects which is defining a new category of embedded computer that strikes a sweetspot between ruggedness performance and cost.

Specifications

System Core
Processor	Supporting Intel® 13th-Gen Core™ CPU(LGA1700 socket, 65W/ 35W TDP) – Intel® Core™ i9-13900E/ i9-13900TE – Intel® Core™ i7-13700E/ i7-13700TE – Intel® Core™ i5-13500E/ i5-13400E/ i5-13500TE – Intel® Core™ i3-13100E/ i3-13100TE Supporting Intel® 12th-Gen Core™ CPU(LGA1700 socket, 65W/ 35W TDP) – Intel® Core™ i9-12900E/ i9-12900TE – Intel® Core™ i7-12700E/ i7-12700TE – Intel® Core™ i5-12500E/ i5-12500TE – Intel® Core™ i3-12100E/ i3-12100TE – Intel® Pentium® G7400E/ G7400TE – Intel® Celeron® G6900E/ G6900TE
Chipset	Intel® H610E platform controller hub
Graphics	Integrated Intel® UHD Graphics 770 (32EU) / 730 (24EU)
Memory	Up to 96 GB DDR5 4800 SDRAM (two SODIMM slots)
TPM	Supports dTPM 2.0

I/O Interface
Ethernet	1x Gigabit Ethernet port by Intel® I219-LM (M12 X-coded) 3x 2.5G Ethernet ports by Intel® I226-IT (M12 X-coded)
PoE+	Optional IEEE 802.3at PoE+ PSE for 4x 2.5GbE/GbE ports 100 W total power budget
USB3.2	1x USB 3.2 Gen1 (5 Gbps) port in type-C waterproof connector 1x reserved USB 3.2 Gen1 type-A connector (rear side)
USB 2.0	2x USB 2.0 (M12 A-coded) 1x USB 2.0 (internal)
Video Port (Integrated Graphics)	1x DisplayPort in type-C waterproof connector, supporting 4096 x 2304 resolution 1x VGA (M12 A-coded), supporting 1920 x 1200 resolution 1x reserved DisplayPort, supporting 4096 x 2304 resolution (rear side)
Serial Port	1x isolated RS-232 port (COM1) 1x isolated RS-422/485 ports (COM2) via M12 A-coded, 8-pin connector

Storage interface
SATA HDD	2x Internal SATA port for 2.5″ HDD/ SSD installation
M.2	1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD

Expansion Bus
Mini PCI Express	2x full-size mini PCI Express socket (PCIe + USB2)
M.2 B key	1x M.2 2242/3052 B key socket with SIM slot for M.2 5G/ 4G module

Power Supply
DC Input	8V to 48V DC input with built-in ignition power control

Mechanical
Dimension	225mm (W) x 286mm (D) x 90mm (H)
Weight	5.25 kg
Mounting	wall-mounting (Optional)

Environmental
Operating temperature	Operating Temperature with 35W CPU* -25°C ~ 70°C with 65W CPU* -25°C ~ 70°C (configured as 35W TDP mode) -25°C ~ 50°C (configured as 65W TDP mode)
Storage temperature	-40°C ~ 85°C
Humidity	10% ~ 90% , non-condensing
Vibration	MIL-STD-810H, Method 514.8, Category 4
Shock	MIL-STD-810H, Method 516.8, Procedure I
EMC	CE/FCC Class A, according to EN 55032 & EN 55035

* For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.

LIST

Ordering Information

Nuvo-9650AWP

Affordable IP66 waterproof Intel® 13th/12th-Gen Core™ computer with 4x 2.5GbE/GbE and USB3.2 Type-C ports supporting DP display

Nuvo-9650AWP-PoE

Affordable IP66 waterproof Intel® 13th/12th-Gen Core™ computer with 4x M12 PoE+ and USB3.2 Type-C ports supporting DP display

Optional Accessories

PA-160W-OW

160W AC-DC power adapter 20V/8A; 18AWG/120cm; cord end terminals for terminal block, operating temperature: -30°C to 70°C. (recommended for 35W CPU)

PA-280W-CW6P-2P

280W AC-DC power adapter 24V 11.67A, 85~264VAC, -30~+70°C w/ Wafer FML6P to 2P End Terminal cable for AWP/ SEMIL (recommended for 65W CPU or 35W CPU with PoE+ option)

Cblkit-M12-Nuvo-9650AWP

Nuvo-9650AWP M12 cable kit, including 4x Cbl-M12X8M-RJ45F-100CM, 1x Cbl-M12A8M-2U2TA-180CM1, 1x Cbl-M12A17M-VGA-180CM2, 1x Cbl-M12A8M-2DB9M-180CM, 1x Cbl-M12A5F-OW3-180CM

Cblkit-M12-Nuvo-9650AWP-PoE

Nuvo-9650AWP-PoE M12 cable kit, including 4x Cbl-M12X8M-RJ45F-100CM, 1x Cbl-M12A8M-2U2TA-180CM1, 1x Cbl-M12A17M-VGA-180CM2, 1x Cbl-M12A8M-2DB9M-180CM, 1x Cbl-M12L5F-OW5-180CM

Cbl-TpCPlug-DPM-1M

TypeC Male Plug to DP Male Cable, Length : 1M

Cbl-TpCPlug-U3TA-50CM

TypeC Male Plug to USB3.0 Type-A FML, Length: 50CM

Cbl-TpCPlug-U3TC-50CM

Waterproof TypeC Male Plug to USB Type-C FML Cable, Length : 50CM

Wmkit-Nuvo9650AWP

Wall mounting assembly for Nuvo-9650AWP
