150W NVIDIA® RTX GPU 및 Intel® Core™ 프로세서(2세대/14세대/13세대/12세대)를 지원하는 견고한 AI 추론 플랫폼

Nuvo-9160GC NVIDIA GPU Fanless PC

Supports Intel® Core™ processor (Series 2) with P-cores / 14/ 13/ 12th-Gen 24C/ 32T 35W/ 45W/ 65W CPU
Supports NVIDIA® RTX series GPU card up to 150W TDP
-25°C to 60°C wide temperature rugged operation
5x 2.5GbE and 1xGbE with optional PoE+ (ports 3~6)
1x USB 3.2 Gen2x2 type-C and 6x USB 3.2 type-A ports
M.2 2280 M key socket (Gen4x4) supporting NVMe SSD
Accommodates two 2.5" SATA HDD/ SSD with RAID 0/ 1 support
MezIO™ interface for add-on expansion

Overview

Introduction

Neousys의 산업용 Fanless PC Nuvo-9160GC는 인텔® 코어™ 프로세서(2세대, P-코어/14세대/13세대/12세대 플랫폼)와 최대 150W의 NVIDIA® RTX™ GPU 카드를 활용하여 탁월한 CPU 및 GPU 성능을 제공하는 견고한 Edge AI 산업용 Fanless PC입니다. 시스템의 기본 및 옵션 GPU 브래킷은 NVIDIA® RTX™ Pro 2000, RTX 2000E Ada 및 RTX™ Pro 4000 SFF를 포함한 다양한 GPU 카드를 지원합니다. GPU 브래킷은 불안정한 환경에서도 뛰어난 충격 및 진동 저항성을 제공하도록 설계되었습니다.

최첨단 Intel® 7 포토리소그래피 기술의 혜택을 받는 Intel® 14세대/13세대/12세대 프로세서는 최대 24코어/32스레드를 제공하여 이전 Intel® 11세대/10세대 CPU 대비 최대 두 배의 성능을 제공합니다. 또한, 최신 Intel® Core™ 프로세서(시리즈 2)는 P-코어를 탑재하여 최대 12개의 P-코어와 E-코어가 없는 P-코어 전용 아키텍처를 도입함으로써 애플리케이션이 더 많은 고성능 코어를 활용하여 향상된 컴퓨팅 기능을 구현할 수 있도록 합니다. 최신 NVIDIA® 150W RTX™ GPU는 생산 라인 비전 검사, 감시 또는 ITS를 위한 지능형 비디오 분석, 자율 이동 로봇(AMR)과 같이 여러 대의 카메라를 사용하는 실시간 AI 추론 애플리케이션을 지원합니다.

산업용 Fanless PC Nuvo-9160GC는 -25°C에서 60°C까지의 온도 범위에서 안정적인 시스템 작동을 보장하는 검증된 열 설계를 갖추고 있습니다. 마더보드는 패시브 쿨링 방식을 채택했으며, 150W GPU 카드는 확장 카세트 방식으로 냉각됩니다. 6개의 GigE 카메라(또는 IP 카메라)와 8개의 USB3 카메라를 지원하여 다양한 비전 기반 AI 애플리케이션 구축에 이상적입니다. 또한 최대 7000MB/s의 초고속 읽기/쓰기 속도를 제공하는 M.2 2280 Gen4x4 NVMe SSD 1개와 저장 용량 확장을 위한 2개의 2.5인치 SATA HDD/SSD를 포함한 유연한 데이터 저장 옵션을 제공합니다.

향상된 성능과 포괄적인 I/O를 갖춘 산업용 Fanless PC Nuvo-9160GC는 공장 자동화, 스마트 농업 및 자율 기계와 같은 산업 환경을 위한 완벽한 엣지 AI 추론 플랫폼입니다.

Nuvo-9160GC is a rugged edge AI computer that delivers superior CPU and GPU performance by leveraging Intel® Core™ processor (Series 2) with P-cores/14th/13th/12th-Gen platform and an NVIDIA® RTX™ GPU card up to 150W. The system’s standard and optional GPU brackets can accommodate selected GPU cards including NVIDIA® RTX™ Pro 2000 , RTX 2000E Ada and RTX™ Pro 4000 SFF. The GPU bracket is designed to secure the GPU card to provide excellent shock and vibration resistance in volatile conditions.

Benefiting from the cutting-edge Intel® 7 photolithography, Intel®’s 14th/13th/12th Gen processors offer up to 24 cores/ 32 threads to provide up to double the performance when compared to previous Intel® 11th/ 10th Gen CPUs. In addition, the latest Intel® Core™ processor (Series 2) with P-cores introduces a P-core only architecture with up to 12 P-cores and no E-cores, allowing applications to leverage more high-performance cores for enhanced computing capability. The latest NVIDIA® 150W RTX™ GPUs fuel realtime AI inference applications involving multiple cameras such as production line vision inspection, intelligent video analytics for surveillance or ITS, or autonomous mobile robot (AMR).

Nuvo-9160GC has a proven thermal design to guarantee reliable system operation from -25°C to 60°C. It features a passive-cooling design for the motherboard and the expansion cassette design for the 150W GPU card. The support of six GigE cameras (or IP cameras) and eight USB3 cameras makes Nuvo-9160GC ideal for various visionbased AI application deployments. It also provides flexible data storage options, including one M.2 2280 Gen4x4 NVMe providing up to 7000 MB/s extreme read/write speeds and two 2.5″ SATA HDD/SSD to expand storage capacity.

With performance enhancements and comprehensive I/Os, Nuvo-9160GC is the perfect edge AI inference platform for industrial environments from factory automation, smart agriculture, and autonomous machines.

Nuvo-9160GC 제작 블로그 링크입니다.(클릭)

#Nuvo-9160GC #산업용PC #Fanless PC #RTX3050 #RTX4060 #RTXA2000 #RTX2000 #RTX4000 #스마트 팩토리 #Edge AI

Specifications

System Core
Processor	Supporting Intel® Core™ processor (Series 2) with P-cores (LGA1700 socket, 65W/ 45W TDP) – Intel® Core™ 9 273PE/ 273PTE – Intel® Core™ 7 253PE/ 253PTE – Intel® Core™ 5 223PE/ 223PTE Supporting Intel® Core™ processor (Series 2) (LGA1700 socket, 65W/ 45W TDP) – Intel® Core™ 7 251E/ 251TE – Intel® Core™ 5 221E/ 221TE – Intel® Core™ 3 201E/ 201TE Supporting Intel® 14th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) – Intel® Core™ i9-14900/ i9-14900T – Intel® Core™ i7-14700/ i7-14700T – Intel® Core™ i5-14500/ i5-14400/ i5-14500T – Intel® Core™ i3-14100/ i3-14100T Supporting Intel® 13th-Gen Core™ CPU[1] (LGA1700 socket, 65W/ 35W TDP) – Intel® Core™ i9-13900E/ i9-13900TE – Intel® Core™ i7-13700E/ i7-13700TE – Intel® Core™ i5-13500E/ i5-13400E/i5-13500TE – Intel® Core™ i3-13100E/ i3-13100TE
Chipset	Intel® Q670E Platform Controller Hub
Graphics	Integrated Intel® UHD Graphics 770 (32EU)
Memory	Up to 128 GB DDR5 4800 SDRAM (two SODIMM slots)
AMT	Supports Intel vPro/ AMT 16.0
TPM	Supports dTPM 2.0

I/O Interface

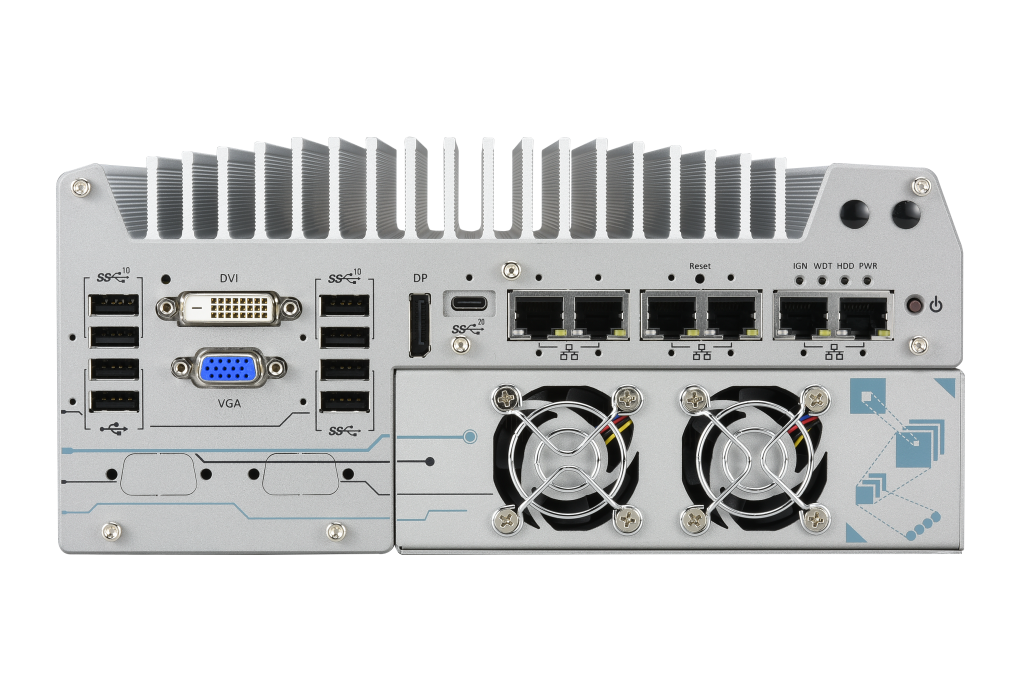

Ethernet Port	5x 2.5G Ethernet by I226-IT/ I225-IT and 1x Gigabit Ethernet by I219-LM with screw-lock
POE+	Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6. 100W total power budget
USB 3.2	1x USB 3.2 Gen2x2 (20 Gbps) port in type-C connector with screw-lock 4x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors 2x USB 3.2 Gen1x1 (5 Gbps) ports in type-A connectors
USB 2.0	2x USB 2.0 ports
Video Port (Integrated Graphics)	1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution

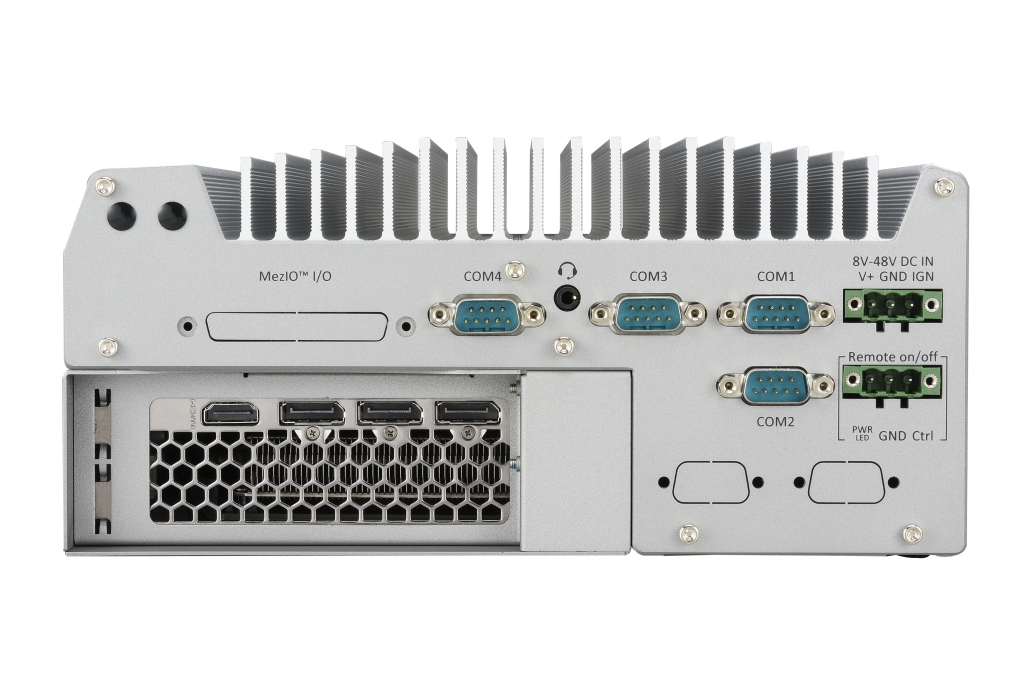

Serial Port	2x software-programmable RS-232/ 422/ 485 ports (COM1/COM2) 2x RS-232 ports (COM3/COM4)
Audio	1x 3.5 mm jack for mic-in and speaker-out

Storage interface
SATA HDD	2x internal SATA port for 2.5″ HDD/ SSD installation, supporting RAID 0/ 1
M.2	1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD

Expansion Bus
PCI Express	1x PCIe x16 slot@Gen3, 16-lanes PCIe signals in Cassette for installing an NVIDIA® graphics card up to 150W TDP (Max. graphics card dimension is 178mm(L)x117mm(W), dual slot allocation)
Mini PCI Express	1x full-size mini PCI Express socket
M.2	1x M.2 3042/3052 B key socket with SIM slot for M.2 4G/ 5G module
Expandable I/O	1x MezIO™ expansion port for Neousys MezIO™ modules

Power Supply
DC Input	1x 3-pin pluggable terminal block for 8 to 48V DC input
Remote Ctrl. & LED Output	1x 3-pin pluggable terminal block for remote control and PWR LED output

Mechanical
Dimension	240 mm (W) x 225 mm (D) x 110.5 mm (H)
Weight	3.89 kg
Mounting	Wall-mount (standard) or damping bracket (optional)

Environmental
Operating temperature	With 35W/45W CPU and 150W GPU -25°C to 60°C[3][4] With 65W CPU and 150W GPU -25°C to 60°C[3][4] (configured as 35W TDP) -25°C to 50°C[3][4] (configured as 65W TDP)
Storage Temperature	-40°C ~ 85°C
Humidity	10% ~ 90% , non-condensing
Vibration	Operating, MIL-STD-810G, Method 514.6, Category 4 (with optional damping bracket)
Shock	Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II (with optional damping bracket)
EMC	CE/FCC Class A, according to EN 55032 & EN 55035

[1] A BIOS update may be required for the system to recognize 14th/13th-Gen processors. Please contact Neousys Technology for more information.

[2]The system is designed to tolerant 8V to 48V voltage fluctuation. The minimal nominal voltage is required with different system configuration. For system with 35W CPU and 150W GPU, 12V or above nominal DC voltage is recommended. For a system with a 65W CPU and 150W GPU, with or without additional PoE+ PD and/or high-watt PCIe cards, a nominal DC voltage of 24V or above is recommended. Alternatively, users may select an appropriate DC input voltage by considering both the 16A current limitation of the DC input connector and the total system power load.

[3] For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.

[4] For CPU operating at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to allow higher operating temperature.

LIST

Ordering Information

Nuvo-9160GC

Ruggedized AI Inference Platform supporting 150W NVIDIA® RTX™ GPU and Intel® Core™ processor (Series 2) /14th/13th/12th-Gen Processor

PoE+

Option Option of 802.3at PoE+ PSE for 2.5GbE port 3 ~ port 6

Supported MezIO™ Modules

Neousys MezIO® module offers computer signals, power rails and control signals via a high-speed connector. It transforms Neousys embedded systems into application-specific systems with application-oriented I/Os such as RS-232/422/485, isolated DIO and ignition power control.

Optional Accessories

Dmpbr-Nuvo9160

Neousys’ patented damping brackets assembly for Nuvo-9160GC

AccsyBx-Cardholder-9160GC-xx

Nuvo-9160GC GPU bracket kits for NVIDIA® RTX™ 2000 Ada, RTX 2000E Ada , RTX™ 4000 SFF Ada and other selected GPU. Please contact Neousys for more information.

PA-280W-ET2

280W AC/DC power adapter 24V/11.67A; 16AWG/100cm; cord end terminals for terminal block, operating temperature : -30°C to 60°C.

PA-600W-ENC

600W AC/DC power adapter 24V/25A; cord end terminals for terminal block, operating temperature : -20°C to 70°C.
