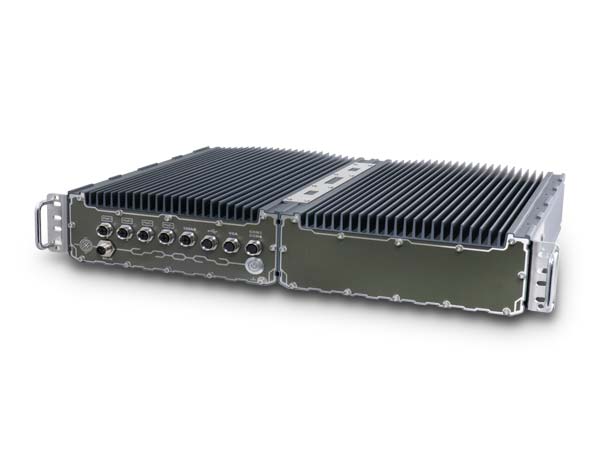

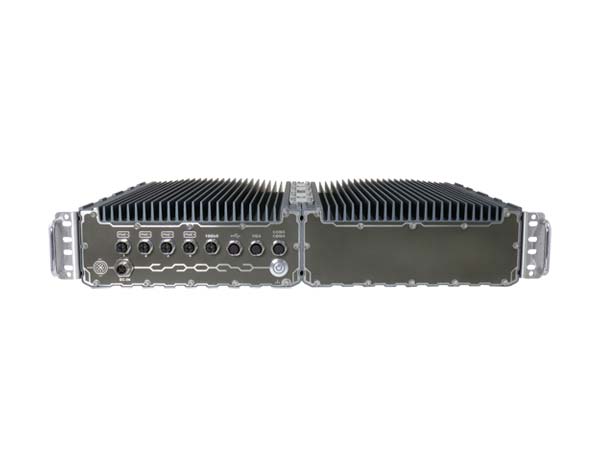

SEMIL-1700GC Series RTX A2000/Tesla T4지원 방수 PC

IP67 waterproof GPU computer with NVIDIA® RTX A2000/ Tesla T4/ Quadro P2200
Intel® Xeon® E or 9th/ 8th-Gen Core™ i7/ i5/ i3 CPU
Patented waterproof 2U 19″ chassis for rack or wall-mount*
Guaranteed non-throttling GPU performance up to 62°C ambient
Up to eight 802.3at Gigabit PoE+ ports via M12 X-coded connectors
VGA, USB 2.0 and COM ports via M12 A-coded connectors
8~48V wide-range DC input with built-in ignition power control
MIL-STD-810G and EN 50155 certified

Overview

Introduction

SEMIL-1700GC 시리즈는 NVIDIA® RTX A2000, Tesla T4 또는 Quadro P2200을 기본으로 장착하고도 가장 까다로운 환경에서도 운용 가능한 세계 최초의 IP67 방수 및 방진 등급의 인퍼런스 서버 중 하나입니다. 러기드 엣지 AI 솔루션에 새로운 차원의 견고함을 선사하며 Neousys 혁신의 새 장을 여는 제품입니다. Intel® Xeon® E 또는 9th/8th-Gen Core™ CPU를 탑재하는 시스템은 다양한 환경 조건에서 사용되는 진보된 엣지 AI 애플리케이션을 위해 탁월한 CPU와 GPU 성능을 제공합니다. SEMIL-1700GC 시리즈는 -40°C ~ 70°C 환경에서의 팬리스 작동을 보증하는 Neousys의 특허 써멀 시스템 아키텍처*를 특징으로 하며 2U 19” 견고한 케이스의 랙 마운트 또는 월 마운트가 가능합니다.

SEMIL-1700GC 시리즈는 정교한 써멀 설계로 RTX A2000, Tesla T4 또는 Quadro P2200 GPU에서 발생하는 열을 방출하여 고온 환경에서도 최대의 GPU 성능을 확보합니다. 부식을 방지하기 위해 스테인리스 스틸/알루미늄 섀시를 사용하였으며, 특수한 O링과 특허받은 퓨전 메커니즘을 더하여 뛰어난 내구성과 완벽한 밀폐 구조를 자랑합니다. SEMIL-1700GC 시리즈는 802.3at Gigabit PoE+, VGA, USB. COM 포트, 옵션으로 추가할 수 있는 10G Ethernet 등 다양한 I/O 커넥티비티를 제공하며, 충격과 진동이 있는 환경에서도 방수/방진 및 견고한 연결을 위해 모두 M12 커넥터를 사용합니다. 더불어, NVMe SSD용 M.2, 2.5” SATA 스토리지 베이, 8-48V 광범위 DC 입력 및 빌트-인 점화 전원 컨트롤을 갖추었며 특히 미육군 밀리터리 스펙인 MIL-STD-810G 및 EN 50155인증을 획득했습니다.

SEMIL의 러기드 GPU 인퍼런스 가속 성능이 상상 가능한 극도로 거친 조건의 엣지에서도 실시간 AI 인퍼런스 애플리케이션을 실현했습니다. 강력한 CPU/GPU, 튼튼한 IP67 방수/방진 등급, 진정한 팬리스 광범위 온도 작동, 견고한 M12 커넥터, 표준 2U 19” 랙으로 무장한 SEMIL-1700GC 시리즈는 지금까지 도달하지 못했던 곳에 AI를 배치하는 전례 없는 가능성을 펼칩니다.

SEMIL-1700GC series is one of the world’s first IP67-rated, waterproof and dustproof inference server with pre-installed NVIDIA® Tesla T4 or Quadro P2200 for the most demanding environments. It is a brand new page in Neousys’ chapter of innovations as it represents a new level of robustness for rugged edge AI solutions. Coupled with Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU, the system delivers excellent CPU and GPU performances for advanced edge AI applications in various environmental settings. SEMIL-1700GC series features Neousys’ patented system architecture* to guarantee -25°C to 70°C fanless operation in a rack or wall-mountable 2U 19″ enclosure.

SEMIL-1700GC series features a sophisticated thermal design to dissipate the heat generated by Tesla T4 or Quadro P2200 GPU to ensure maximum GPU performance in high-temperature environments. It has a corrosion-proof, stainless steel/ aluminum chassis with molded o-rings plus patented fusion mechanism design to offer extraordinary durability and watertight construction. SEMIL-1700GC series offers a variety of I/O connectivities, including 802.3at Gigabit PoE+, VGA, USB, COM ports and optional 10G Ethernet, all using M12 connectors for water-proof and extreme-rugged connectivity in shock and vibration conditions. Additionally, it features M.2 for NVMe SSD, 2.5″ SATA storage accommodation, 8-48V wide-range DC input with ignition power control and complies with MIL-STD-810G and EN 50155.

The inference acceleration of rugged GPU computers actualized real-time AI inference applications at the edge, where extremely rough conditions are expected. By combining powerful CPU/ GPU, robust IP67 protection, true fanless wide-temperature operation, rugged M12 connectors, and standard 2U 19″ rack, SEMIL-1700GC series reveals unprecedented possibilities of deploying AI to places that have yet to be reached.

Specifications

System Core
	SEMIL-1744GC	SEMIL-1724GC	SEMIL-1748GC	SEMIL-1728GC
Processor	Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket) – Xeon E 2278GE (8C/16T) / 2278GEL (8C/16T) / 2176G (6C/12T) – i7-9700E, i7-9700TE, i7-8700, i7-8700T – i5-9500E, i5-9500TE, i5-8500, i5-8500T – i3-9100E, i3-9100TE, i3-8100, i3-8100T
Chipset	Intel® C246 platform controller hub
Graphics	Integrated Intel® UHD Graphics 630
Acceleration GPU	NVIDIA® Tesla T4	NVIDIA® RTX A2000/ Quadro P2200	NVIDIA® Tesla T4	NVIDIA® RTX A2000/ Quadro P2200
Memory	Up to 64 GB ECC/ non-ECC DDR4-2666/ 2400 SDRAM(two SODIMM sockets)
AMT	Supports AMT 12.0
TPM	Supports TPM 2.0

I/O Interface
PoE+	1x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I219 (M12 X-coded)
PoE+	3x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded)	7x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded)
10 GbE Port(Build Option)	Optional: 1x 10 GbE port by Intel® X550AT controller (M12 X-coded)**
Native Video Port	1x VGA (M12 A-coded), supporting 1920 x 1200 resolution
Series Port	2x 3-wires RS-232 ports COM1 & COM2 (M12 A-coded)
USB	2x USB 2.0 (M12 A-coded) 1x USB 2.0 (internal)	4x USB 2.0 (M12 A-coded) 1x USB 2.0 (internal)
Audio	–	1x mic-in and speaker-out (M12 A-coded)

Storage Interface
SATA HDD	2x Internal SATA port for 2.5″ HDD/ SSD installation, supporting RAID 0/ 1
mSATA	2x full-size mSATA port (mux with mini-PCIe)
M.2	1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation

Expansion Bus
Mini PCI-E	2x full-size mini PCI Express socket (mux with mSATA)		2x full-size mini PCI Express socket (mux with mSATA) 2x full-size mini PCI Express socket

Power Supply
DC Input	8V to 48V DC input (M12 S-coded)
Ignition Control	Built-in ignition power control (IGN/ GND signal via M12 serial port connector)

Mechanical
Dimension	440mm (W) x 310mm (D) x 86.5mm (H) (excl. rack-mount bracket)
Weight	12Kg	12.2Kg
Mounting	Rack-mounting and wall-mounting

Environmental
Operating Temperature	with 35W CPU -40°C ~ 70°C ** with >= 65W CPU -40°C ~ 70°C / * (configured as 35W TDP mode) -40°C ~ 50°C / *** (configured as 65W TDP mode)
Storage Temperature	-40°C ~85°C
Humidity	10%~90% , non-condensing
Vibration	MIL-STD-810G, Method 514.7, Category 4
Shock	MIL-STD-810G, Method 516.7, Procedure I
EMC	EN-50155, CE/FCC Class A, according to EN 55032 & EN 55035

** For optional 10GbE support, please contact BemaxTechnology
*** For Xeon E 2176G/ 2278GE, i7-9700E, and i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
**** For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required

LIST

Ordering Information

SEMIL-1724GC-A2K

IP67 Waterproof GPU Computer supporting NVIDIA® RTX A2000 and Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU with 4x M12 PoE+ ports

SEMIL-1728GC-A2K

IP67 Waterproof GPU Computer supporting NVIDIA® RTX A2000 and Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU with 8x M12 PoE+ ports

SEMIL-1744GC

IP67 Waterproof GPU Computer supporting NVIDIA® Tesla T4 and Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU with 4x M12 PoE+ ports

SEMIL-1724GC

IP67 waterproof GPU computer supporting NVIDIA® Quadro P2200 and Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU with 4x M12 PoE+ ports

SEMIL-1748GC

IP67 waterproof GPU computer supporting NVIDIA® Tesla T4 and Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU with 8x M12 PoE+ ports

SEMIL-1728GC

IP67 Waterproof GPU Computer supporting NVIDIA® Quadro P2200 and Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU with 8x M12 PoE+ ports

Optional Accessories

M12-Cable-Kit

4x PoE+, VGA, 2x USB2.0 (by Y-cable), 2x COM (by Y-cable) and DC power cables

PA-280W-ET2

280W AC/DC power adapter 24V/11.67A; 16AWG/100cm; cord end terminals for terminal block, operating temperature : -30°C to 60°C
