19" /2랙 마운트 타입의 IP69K 등급 방수 컴퓨터, Intel® 14/13/12세대 Core™ 프로세서를 지원하며 2개의 M12 10GbE 및 4개의 M12 PoE+ 포트 제공

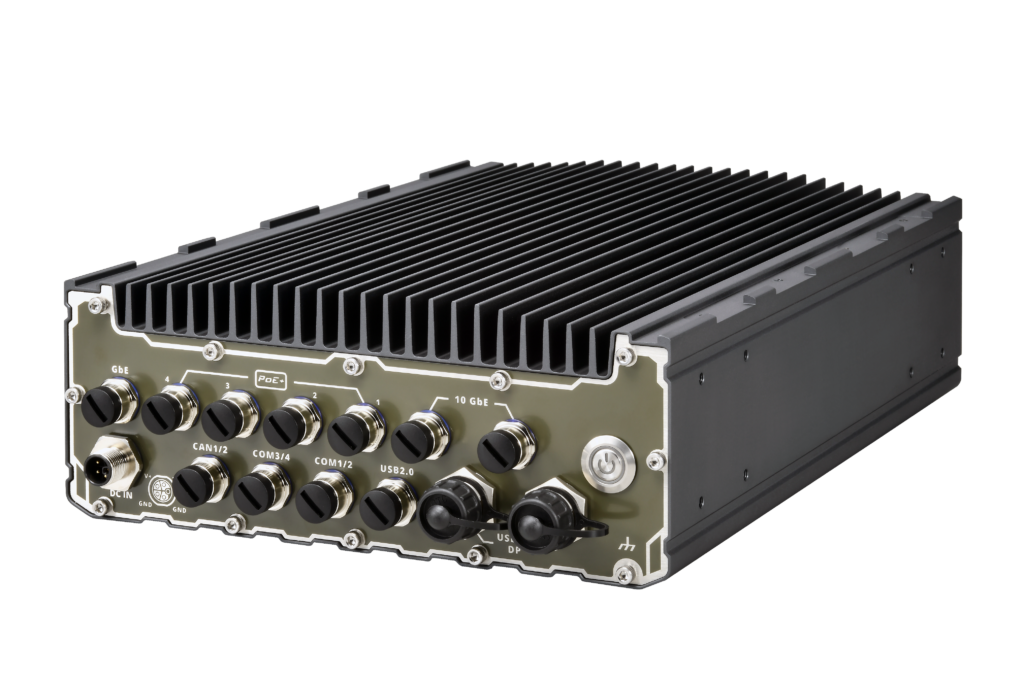

SEMIL-2000 Series IP69K 등급 방수 산업용 컴퓨터 (New!)

IP69K waterproof computer
-40°C to 70°C wide-temperature fanless operation

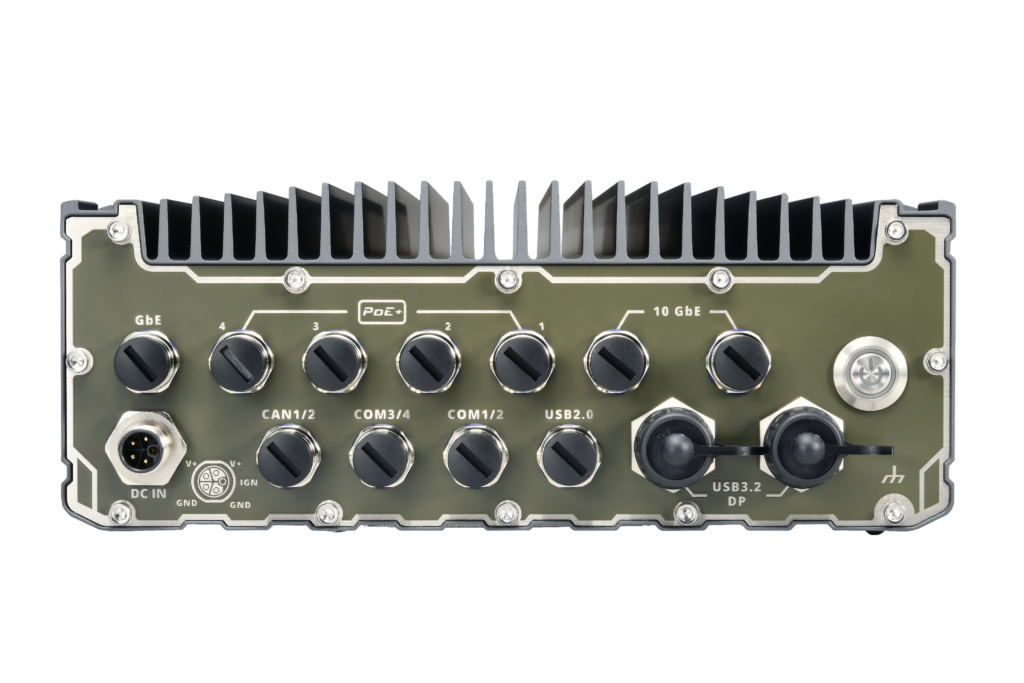

2x 10GbE, 1x GbE, and 4x 2.5GbE PoE+ via M12 X-coded connectors
2x SocketCAN and 2x USB3.2 Gen1 Type-C w/ DP alternative mode
8 to 48V wide-range DC input with reverse polarity protection and built-in ignition power control
MIL-STD-810H compliant

Overview

Introduction

SEMIL-2000은 IP69K 등급의 방진 및 방수성능을 가진 2U 19″/2 랙 마운트 폼 팩터로서 극도로 견고한 임베디드 플랫폼입니다. SEMIL-2000GC는 팬리스 PC로서 -40°C ~ 70°C의 광범위한 환경 온도 범위에서 작동을 보장하는 Neousys(네오시스)의 동급 최고 써멀 설계와 DisplayPort 출력 전환이 가능한 2개의 5Gbps Type-C 포트를 가지고 있습니다.

SEMIL-2000은 Intel의 14/13/12세대 CPU로 구동되는 플랫폼입니다. 이 플랫폼은 성능과 효율 코어 하이브리드 조합이 특징인 Intel® 7 포토리소그래피 공정의 데스크탑 프로세서의 이점을 활용하며 최대 64GB DDR5 메모리를 지원할 수 있습니다.

이 시스템은 부식 방지 스테인리스 스틸과 알루미늄 섀시를 채택하여 습기와 염분에 매우 강합니다. 충격 및 진동 환경에서 극도로 견고한 연결을 보장하도록 모든 M12 커넥터를 활용하여 SocketCAN 드라이버가 포함된 CAN Bus 2.0 2개, USB 3.2 2개, 이더넷 7개(10GbE 2개 포함) 및 연결된 장치에 포트당 25.5W의 전력을 공급하는 802.3at PoE+ 포트 4개와 같은 다양한 I/O 연결성을 제공합니다. 내부에는 NVMe SSD를 지원하는 M.2 M-Key 소켓과 기능 확장을 위한 mini-PCIe 소켓이 있습니다. 또한, SEMIL-2000GC는 2개의 2.5″ SATA SDD/HDD 장착 공간, 점화 전원 컨트롤 기능이 내장된 8-48V의 광범위한 DC 입력 특성을 지원하며 MIL-STD-810H 표준을 준수합니다.

SEMIL-2000 is an extreme-rugged embedded platform with IP69K dustproof and waterproof design in a 2U 19″/2 rack-mount form factor. SEMIL-2000GC features Neousys’ best-in-class thermal design to ensure fanless operation from -40°C to 70°C wide-range temperatures, two 5Gbps Type-C ports with alternative DisplayPort signal outputs.

SEMIL-2000 is powered by Intel’s 14th/ 13th/ 12th-Gen platform. The platform benefits from Intel® 7 photolithography, the latest Core™ desktop processors come with a hybrid configuration consisting of performance and efficient cores, and it can support up to 64GB DDR5 memory.

The system adopts a corrosion-proof stainless steel and aluminum chassis to counteract moisture and salinity. Utilizing all M12 connectors to guarantee extreme-rugged connection in shock and vibration environments, it offers a variety of I/O connectivity, two CAN bus 2.0 with SocketCAN driver, two USB 3.2, seven Ethernet (including two 10GbE), and four 802.3at PoE+ ports to supply 25.5W of power per port to connected compatible devices. Internal expansion-wise, it has an M.2 M-key socket to support NVMe SSD and mini-PCIe sockets for extending feature sets. Additionally,SEMIL-2000 features two 2.5″ SATA SDD/ HDD accommodation, 8-48V wide-range DC input with ignition power control, and it is in compliance with MIL-STD-810H standards.

Specifications

System Core
Processor	Supporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) – Intel® Core™ i9-13900E/ i9-13900TE – Intel® Core™ i7-13700E/ i7-13700TE – Intel® Core™ i5-13500E/ i5-13400E/i5-13500TE – Intel® Core™ i3-13100E/ i3-13100TE Supporting Intel® 12th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) – Intel® Core™ i9-12900E/ i9-12900TE – Intel® Core™ i7-12700E/ i7-12700TE – Intel® Core™ i5-12500E/ i5-12500TE – Intel® Core™ i3-12100E/ i3-12100TE – Intel® Pentium® G7400E/ G7400TE – Intel® Celeron® G6900E/ G6900TE
Chipset	Intel® Q670E platform controller hub
Graphics	Integrated Intel® UHD Graphics 770 (32EU)
Memory	Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots)
AMT	Supports Intel vPro/ AMT 16.0
TPM	Supports dTPM 2.0

I/O Interface
Ethernet	2x 10GbE Ethernet by X550-AT2 (with WoL) (M12 X-coded) 4x 2.5GbE Ethernet by Intel I226-IT (PoE+) (M12 X-coded) 1x GbE Ethernet by Intel I219-LM (with WoL) (M12 X-coded)
PoE+	4x IEEE 802.3at PoE+ PSE with 100 W total power budget
CAN Bus	2x isolated CAN 2.0 port, supporting SocketCAN in Linux
USB	2x Type-C USB 3.2 Gen1x1 (5Gbps) ports (shared DisplayPort) 2x USB 2.0 ports (M12 A-coded)
Video Port	2x Type-C USB connector supporting DP output (shared USB3.2 Gen1x1)
Serial Port	2x isolated 3-wire RS-232 ports (COM1/ COM2) 1x isolated 3-wire RS232 (COM3) & 1x RS-422/ 485 port (COM4)

Storage Interface
SATA HDD	2x Internal SATA port for 2.5″ HDD/ SSD installation, supporting RAID 0/ 1
M.2 NVMe	1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD

Internal Expansion Bus
Mini PCI-E	3x full-size mini PCI Express socket with SIM slot
M.2	1x M.2 2242/3052 B key socket with dual SIM slot for M.2 5G/ 4G module 1x M.2 2230 E key socket for Wi-Fi

Power Supply
DC Input	8V to 48V DC input, with reverse polarity protection (M12 L-coded)
Ignition Control	Built-in ignition power control(IGN/ GND signal via M12 L-coded connector)

Mechanical
Dimension	220mm (W) x 310mm (D) x 90.5mm (H)
Weight	6Kg
Mounting	Rack-mounting (optional) and wall-mounting (standard)

Environmental
Operating temperature	With 35W CPU -40°C to 70°C With CPU operating >= 65W CPU -40°C to 70°C (configured as 35W TDP mode) -40°C to 60°C (configured as 65W TDP mode)
Storage temperature	-40°C ~ 85°C
Humidity	10% ~ 90% , non-condensing
Vibration	MIL-STD-810H, 514.8C-IV. Category 4
Shock	MIL-STD-810H, 516.8 Procedure I
EMC	EN 50121 (EN 50155 EMC) CE/FCC Class A, according to EN 55032 & EN 55024
Ingress Protection	IP69K

* For 65W CPUs, the recommended DC input range is 18V to 48V.
** For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.

LIST

Ordering Information

SEMIL-2007

19″/2 rack mount IP69K waterproof computer supporting Intel® 14th/ 13th/ 12th-Gen Core™ processor with 2x M12 10GbE and 4x M12 PoE+ ports

Optional Accessories

PA-280W-CW6P-2P

280W AC-DC power adapter 24V 11.67A, 85~264VAC, -30~+70°C w/ Wafer FML6P to 2P End Terminal cable for AWP/SEMIL

PA-600W-C4PY-4P

600W AC-DC power adapter 24V 25A, 85~264VAC, -20~+70°C, w/ 4PY Terminal to 4P End Terminal cable for AWP/SEMIL

JPlate-SL

Joint plate for dual SEMIL assembly (for SEMIL-2000)

Rmkit-SL

Rack mount for single SEMIL (for SEMIL-2000)
