NVIDIA® L4가 내장된 19" 랙 마운트 타입의 IP69K 등급 방수 컴퓨터, Intel® 14/13/12세대 Core™ 프로세서를 지원하며 2개의 M12 10GbE 및 4개의 M12 PoE+ 포트 제공

SEMIL-2000GC Series NVIDIA® L4 장착 IP69K 등급 방수 산업용 컴퓨터 (New!)

IP69K waterproof GPU computer with NVIDIA® L4 GPU
-40°C to 70°C wide-temperature fanless operation
2x 10GbE, 1x GbE, and 4x 2.5GbE PoE+ via M12 X-coded connectors
2x SocketCAN and 2x USB3.2 Gen1 Type-C w/ DP alternative mode
8 to 48V wide-range DC input with reverse polarity protection and built-in ignition power control
MIL-STD-810H compliant

Overview

Introduction

SEMIL-2000GC는 IP69K 등급의 방진 및 방수성능을 가진 2U 19″ 랙 마운트 폼 팩터로서 극도로 견고한 엣지 AI 플랫폼입니다. SEMIL- 2000GC는 Neousys(네오시스)의 동급 최고 열 설계를 통합하여 팬리스 PC로서 -40°C ~ 70°C의 광범위한 환경 온도에서 최대의 GPU 성능을 보장합니다. 또한 이 시스템은 Tesla T4보다 최대 2.5배 성능이 향상된 NVIDIA® L4 GPU와 통합되어 있습니다.

SIntel의 14/13/12세대 플랫폼을 기반으로 하는 SEMIL-2000GC는 성능과 효율 코어 하이브리드 조합이 특징인 Intel® 7 포토리소그래피 공정 CPU의 이점을 활용하는 동시에 최대 64GB DDR5 메모리를 지원합니다.

SEMIL-2000GC는 부식 방지 스테인리스 스틸과 알루미늄 섀시를 채택하여 습기와 염분에 매우 강합니다. 모든 포트에 충격 및 진동 환경에서 극도로 견고한 연결성을 제공하는 M12 커넥터를 장착한 이 제품은, SocketCAN 드라이버가 있는 CAN Bus 2.0 2개, USB 3.2 2개, 이더넷 7개(10GbE 2개 포함) 및 연결된 장치에 포트당 25.5W의 전력을 공급하는 802.3at PoE+ 포트 4개를 포함하고 있습니다. 내부에는 NVMe SSD를 지원하는 M.2 M-Key 소켓과 기능 확장을 위한 mini-PCIe 소켓이 있습니다. 또한, SEMIL-2000GC는 2개의 2.5″ SATA SDD/HDD 장착 공간, 점화 전원 컨트롤 기능이 내장된 8-48V의 광범위한 DC 입력 특성을 지원하며 MIL-STD-810H 표준을 준수합니다.

SEMIL-2000GC is an extreme-rugged IP69K dustproof and waterproof edge AI platform in a 2U 19″ rack-mount form factor. SEMIL- 2000GC incorporates Neousys’ best-in-class thermal design to ensure fanless maximum GPU performance in wide range -40°C to 70°C temperatures. The system is also integrated with an NVIDIA® L4 GPU that offers up to 2.5 times the performance over Tesla T4.

Powered by Intel’s 14th/ 13th/ 12th-Gen platform, SEMIL-2000GC benefits from Intel® 7 photolithography with performance and efficient core hybrid performances while supporting up to 64 GB DDR5 memory.

SEMIL-2000GC adopts a corrosion-proof stainless steel and aluminum chassis to counteract moisture and salinity. By utilizing M12 connectors, it offers extremely rugged connections in shock and vibration environments with two CAN bus 2.0 with SocketCAN driver, two USB 3.2, seven Ethernet(including two 10GbE), and four 802.3at PoE+ ports to supply 25.5W of power per port to connected compatible devices. Internally, there is an M.2 M-key socket to support NVMe SSD and mini-PCIe sockets for extending feature sets. Additionally, SEMIL-2000GC features two 2.5″ SATA SDD/ HDD accommodation, 8-48V wide-range DC input with ignition power control, and it is also in compliance with MIL-STD-810H standards.

Specifications

System Core
Processor	Supporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) – Intel® Core™ i9-13900E/ i9-13900TE – Intel® Core™ i7-13700E/ i7-13700TE – Intel® Core™ i5-13500E/ i5-13400E/i5-13500TE – Intel® Core™ i3-13100E/ i3-13100TE Supporting Intel® 12th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) – Intel® Core™ i9-12900E/ i9-12900TE – Intel® Core™ i7-12700E/ i7-12700TE – Intel® Core™ i5-12500E/ i5-12500TE – Intel® Core™ i3-12100E/ i3-12100TE – Intel® Pentium® G7400E/ G7400TE – Intel® Celeron® G6900E/ G6900TE
Chipset	Intel® Q670E platform controller hub
Graphics	Integrated Intel® UHD Graphics 770 (32EU)
Acceleration GPU	NVIDIA® L4 GPU
Memory	Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots)
AMT	Supports Intel vPro/ AMT 16.0
TPM	Supports dTPM 2.0

I/O Interface

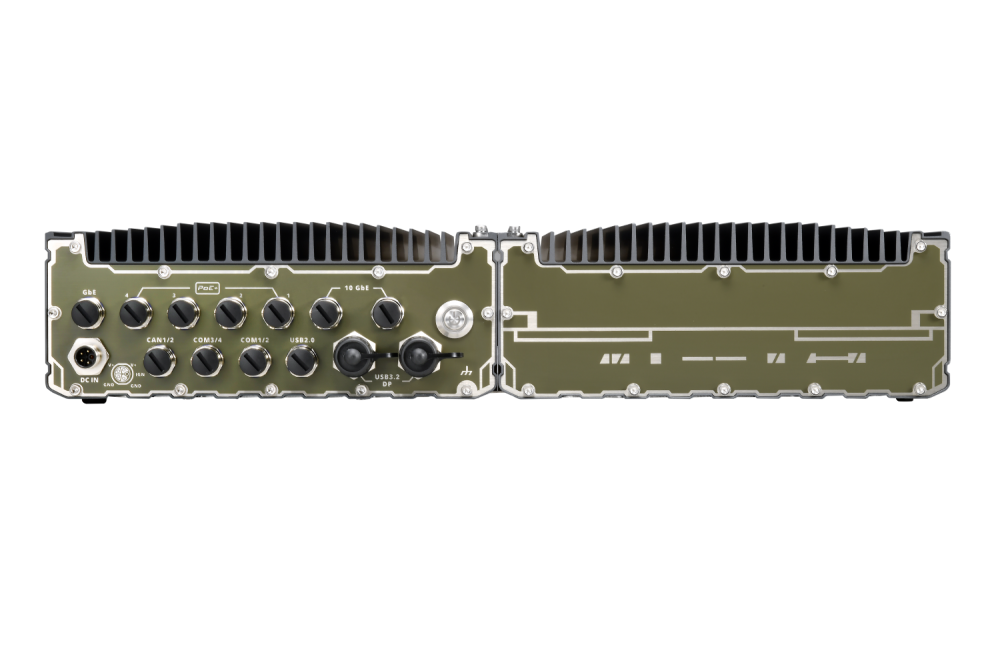

Ethernet	2x 10GbE Ethernet by X550-AT2 (with WoL) (M12 X-coded) 4x 2.5GbE Ethernet by Intel I226-IT (PoE+) (M12 X-coded) 1x GbE Ethernet by Intel I219-LM (with WoL) (M12 X-coded)
PoE+	4x IEEE 802.3at PoE+ PSE with 100 W total power budget
CAN Bus	2x isolated CAN 2.0 port, supporting SocketCAN in Linux
USB	2x Type-C USB 3.2 Gen1x1 (5Gbps) ports (shared DisplayPort) 2x USB 2.0 ports (M12 A-coded)
Video Port	2x Type-C USB connector supporting DP output (shared USB3.2 Gen1x1)
Serial Port	2x isolated 3-wire RS-232 ports (COM1/ COM2) 1x isolated 3-wire RS232 (COM3) & 1x RS-422/ 485 port (COM4)

Storage Interface
SATA HDD	2x Internal SATA port for 2.5″ HDD/ SSD installation, supporting RAID 0/ 1
M.2 NVMe	1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD

Internal Expansion Bus
Mini PCI-E	3x full-size mini PCI Express socket with SIM slot
M.2	1x M.2 2242/3052 B key socket with dual SIM slot for M.2 5G/ 4G module 1x M.2 2230 E key socket for Wi-Fi

Power Supply
DC Input	8V to 48V DC input, with reverse polarity protection (M12 L-coded)
Ignition Control	Built-in ignition power control(IGN/ GND signal via M12 L-coded connector)

Mechanical
Dimension	440mm (W) x 310mm (D) x 90.5mm (H) (excl. rack-mount bracket)
Weight	12Kg

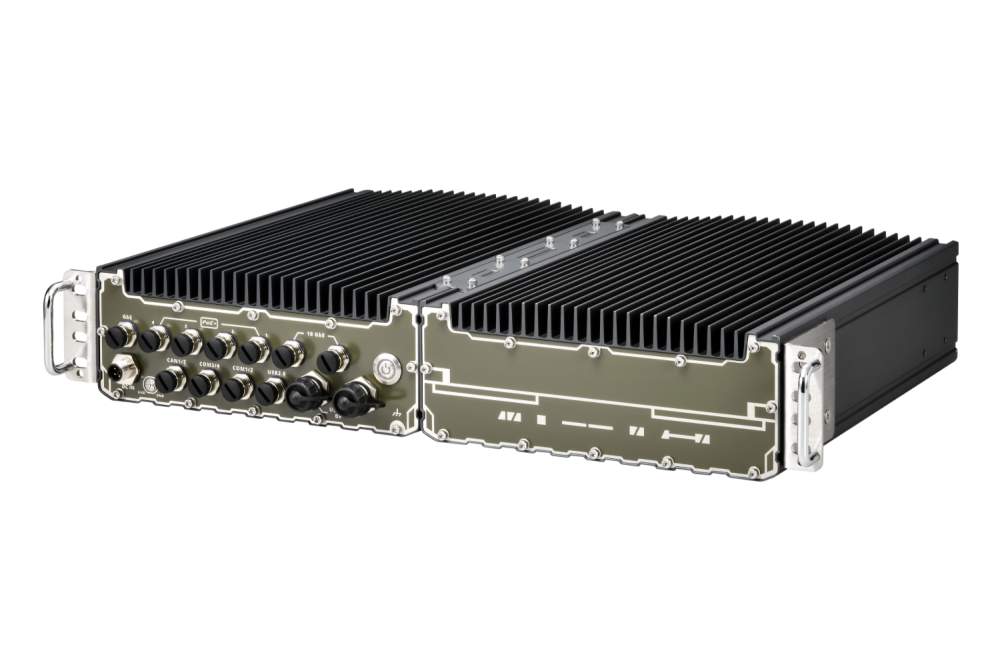

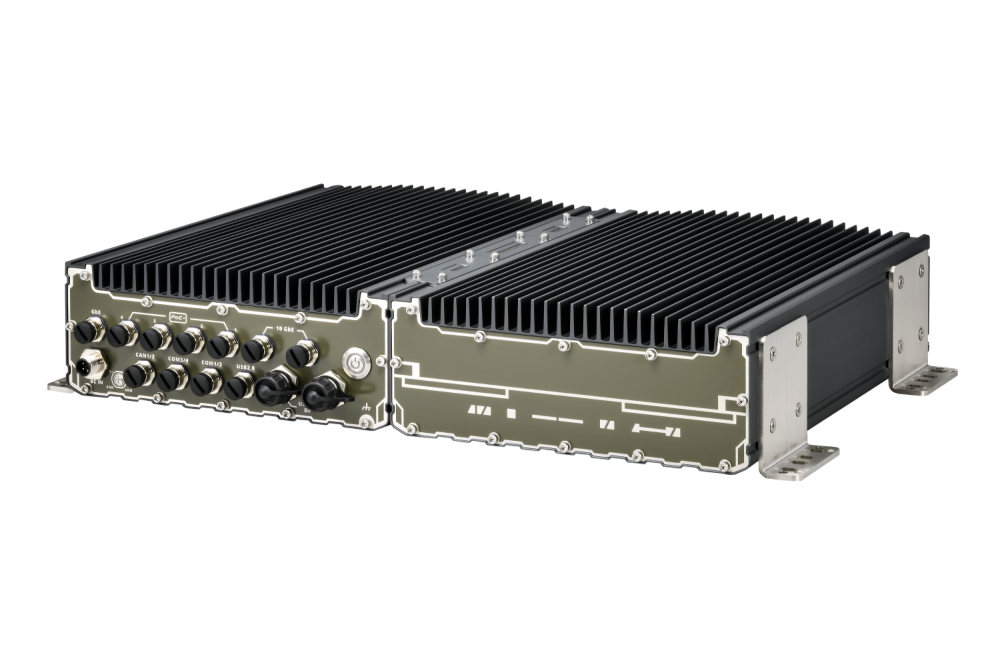

Mounting	Rack-mounting (standard) and wall-mounting (standard)

Environmental
Operating temperature	With 35W CPU -40°C to 70°C With CPU operating >= 65W CPU -40°C to 70°C (configured as 35W TDP mode) -40°C to 60°C (configured as 65W TDP mode)
Storage temperature	-40°C ~ 85°C
Humidity	10% ~ 90% , non-condensing
Vibration	MIL-STD-810H, 514.8C-IV. Category 4
Shock	MIL-STD-810H, 516.8 Procedure I
EMC	EN 50121 (EN 50155 EMC) CE/FCC Class A, according to EN 55032 & EN 55024
Ingress Protection	IP69K

* For 65W CPUs, the recommended DC input range is 18V to 48V.
** For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.

LIST

Ordering Information

SEMIL-2047GC

19″ rack mount IP69K waterproof computer including NVIDIA® L4, supporting Intel® 14th/ 13th/ 12th-Gen Core™ processor with 2x M12 10GbE and 4x M12 PoE+ ports

Optional Accessories

PA-280W-CW6P-2P

280W AC-DC power adapter 24V 11.67A, 85~264VAC, -30~+70°C w/ Wafer FML6P to 2P End Terminal cable for AWP/SEMIL

PA-600W-C4PY-4P

600W AC-DC power adapter 24V 25A, 85~264VAC, -20~+70°C, w/ 4PY Terminal to 4P End Terminal cable for AWP/SEMIL
