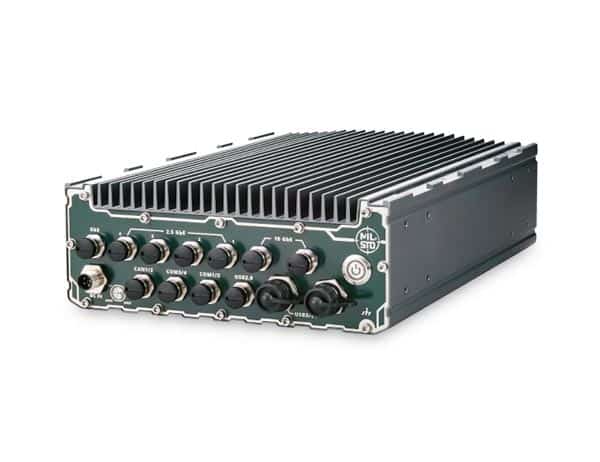

인텔® 14세대 / 13세대 / 12세대 코어™ 프로세서를 지원하는 2U 19인치/2 랙마운트형 IP69K 미션 크리티컬 컴퓨터

SEMIL-2200 Series (New!) Intel 12/13/14th 지원 2U IP69K 미션 크리티컬 컴퓨터

2U IP69K mission critical computer
Up to 128 GB ECC/ non-ECC DDR5 4800 SDRAM
-40°C to 70°C wide-temperature fanless operation
2x 10GbE, 4x 2.5GbE, 1x GbE via M12 X-coded connectors
2x SocketCAN and 2x USB3.2 Gen1 Type-C w/ DP alternative mode
9V to 36V wide-range DC input with built-in ignition power control
MIL-STD-810H, MIL-STD-461G, MIL-STD-1275D compliant

Overview

Introduction

Neousys의 산업용 Fanless SEMIL-2200 시리즈는 까다로운 환경에서도 안정적으로 작동하도록 설계된 첨단 AI 지원 미션 크리티컬 컴퓨터입니다. 2U 19인치/2 랙마운트 섀시에 장착된 이 시스템은 IP69K 등급으로, 먼지와 물에 완벽하게 보호되며 -40°C에서 70°C의 극한 온도에서도 안정적으로 작동할 수 있습니다. 산업용 Fanless SEMIL-2200 시리즈는 인텔 14세대, 13세대, 또는 12세대 프로세서를 탑재하고 최대 128GB의 ECC/Non-ECC DDR5 메모리를 지원하여 탁월한 연산 성능과 효율성을 제공합니다.

산업용 Fanless SEMIL-2200 시리즈는 습기와 염분으로부터 보호하기 위해 부식 방지 스테인리스 스틸과 알루미늄 섀시를 사용했습니다. 견고한 M12 커넥터는 충격과 진동에 강해 가혹한 산업 환경이나 현장 적용에 적합합니다. 또한 듀얼 CAN 버스 2.0, 다수의 USB 3.2 포트, 그리고 2개의 10GbE를 포함한 총 7개의 이더넷 포트를 통해 고속 장치와의 폭넓은 연결성을 제공합니다.

산업용 Fanless SEMIL-2200 시리즈는 MIL-STD-810H 규격을 준수하여 극한의 온도, 습도, 진동, 충격에도 견딜 수 있음이 입증되었습니다. 또한 MIL-STD-461G 표준을 충족하여 전자기 간섭(EMI)에 대한 내성을 보장합니다. 이동형 또는 차량 탑재 환경에서의 응용을 위해 MIL-STD-1275D 규격 요구사항도 충족합니다. 탁월한 성능, 견고한 구조, 그리고 엄격한 군용 규격 준수를 바탕으로 산업용 Fanless SEMIL-2200 시리즈는 높은 신뢰성과 내구성이 요구되는 미션 크리티컬 환경에서 최적의 솔루션을 제공합니다.

SEMIL-2200 series is a cutting-edge, AI-enabled mission-critical computer engineered for demanding environments. Housed in a 2U 19″/2 rackmount chassis, this IP69K-rated system is impervious to dust, water, and capable of flawless operations in -40°C to 70°C environments. The SEMIL-2200 series is powered Intel’s 14th, 13th, or 12th generation processors and supports up to 128GB ECC/ non-ECC DDR5 memory to offer exceptional computing power and efficiency.

The system employs a corrosion-resistant stainless steel and aluminum chassis to safeguard against moisture and salinity. Its ruggedized M12 connectors can withstand shock and vibration, making it ideal for harsh industrial and field applications. Its comprehensive connectivity options include dual CAN bus 2.0, multiple USB 3.2, and seven Ethernet ports including two 10GbE to connected high-speed devices.

The SEMIL-2200 series is MIL-STD-810H compliant, proven to withstand extreme temperatures, humidity, vibration, and shock. Additionally, it complies with MIL-STD-461G standards, ensuring immunity to electromagnetic interference. For applications in mobile or vehicular environments, this platform meets the requirements of MIL-STD-1275D. With its exceptional performance, rugged construction, and adherence to stringent military standards, the SEMIL-2200 series is the ideal solution for critical applications demanding reliability and durability in mission-critical environments.

#SEMIL-2000 #산업용PC #Fanless PC #IP69K 등급 #방수 #방진 #스마트 팩토리 #Edge AI

Specifications

System Core
Processor	Supporting Intel® 14th-Gen Core™ CPU (LGA1700 socket, 35W TDP) – Intel® Core™ i9-14900T – Intel® Core™ i7-14700T – Intel® Core™ i5-14500T – Intel® Core™ i3-14100T Supporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 35W TDP) – Intel® Core™ i9-13900TE – Intel® Core™ i7-13700TE – Intel® Core™ i5-13500TE – Intel® Core™ i3-13100TE Supporting Intel® 12th-Gen Core™ CPU (LGA1700 socket, 35W TDP) – Intel® Core™ i9-12900TE – Intel® Core™ i7-12700TE – Intel® Core™ i5-12500TE – Intel® Core™ i3-12100TE
Chipset	Intel® R680E platform controller hub
Graphics	Integrated Intel® UHD Graphics 770 (32EU)
Memory	Up to 128 GB ECC/ non-ECC DDR5 4800 SDRAM (two SODIMM slots)
AMT	Supports Intel vPro/ AMT 16.0
TPM	Supports dTPM 2.0

I/O Interface
Ethernet	2x 10GbE Ethernet by X550-AT2 (with WoL) (M12 X-coded) 4x 2.5GbE Ethernet by Intel I226-IT (M12 X-coded) 1x GbE Ethernet by Intel I219-LM (with WoL) (M12 X-coded)
CAN Bus	2x isolated CAN 2.0 port, supporting SocketCAN in Linux
USB	2x Type-C USB 3.2 Gen1x1 (5Gbps) ports (shared DisplayPort) 2x USB 2.0 ports (M12 A-coded)
Video Port	2x Type-C USB connector supporting DP output (shared USB3.2 Gen1x1)
Serial Port	2x isolated 3-wire RS-232 ports (COM1/ COM2) 1x isolated 3-wire RS232 (COM3) & 1x RS-422/ 485 port (COM4)

Storage Interface
SATA HDD	2x Internal SATA port for 2.5” HDD/ SSD installation, supporting RAID 0/ 1
M.2 NVMe	1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD

Internal Expansion Bus
Mini PCI-E	3x full-size mini PCI Express socket with SIM slot
M.2	1x M.2 2242/3052 B key socket with dual SIM slot for M.2 5G/ 4G module 1x M.2 2230 E key socket for Wi-Fi

Power Supply
DC Input	9V to 36V DC input with reverse polarity protection (M12 L-coded)
Ignition Control	Built-in ignition power control (IGN/ GND signal via M12 L-coded connector)

Mechanical
Dimension	220mm (W) x 310mm (D) x 90.5mm (H) (excl. rack-mount bracket)
Weight	6.2Kg
Mounting	Rack-mounting (standard) and wall-mounting (standard)

Environmental
Operating temperature	-40°C to 70°C
Storage temperature	-40°C ~ 85°C
Humidity	10% ~ 90% , non-condensing
Vibration	MIL-STD-810H, 514.8C-IV. Category 4
Shock	MIL-STD-810H: 516.8 Procedure I
EMC	MIL-STD-461G: – CE102 (10kHz~10MHz) – RE102 (2MHz~18GHz) – RS103 (2MHz~18GHz, 50V/m)
Electrical Systems	MIL-STD-1275D: Normal operating mode (ripples, surges, spikes)
Ingress Protection	IP69K

LIST

Ordering Information

SEMIL-2207

2U 19″/2 rack mount IP69K mission critical computer supporting Intel® 14th/ 13th/ 12th-Gen Core™ processor with 2x M12 10GbE and 4x M12 2.5GbE ports

Optional Accessories

Cbl-TpCPlug-DPM-1M

TypeC Male Plug to DP Male Cable, Length : 1M

Cbl-TpCPlug-U3TA-50CM

TypeC Male Plug to USB3.0 Type-A FML, Length: 50CM

Cbl-TpCPlug-UTpCF-50CM

TypeC Male Plug to USB Type-C FML Cable, Length : 50CM

Cbl-M12X8M-RJ45-500CM

M12( 8-pole-X-coded) to RJ45, CAT6, Length : 500CM

Cbl-M12A8M-2U2TA-180CM1

M12 (8-pole-A-coded) to 2xUSB 2.0 type A (female), Length: 180CM

Cbl-M12A8M-2DB9M_OW2-180CM1

M12 A-Code Male 8P to x2 DB9 Male+2P, Length: 180CM

Cbl-M12A8M-2DB9M-180CM

M12 (8-pole-A-coded male) to 2x DB9 male, Length: 180CM

Cbl-M12L5F-CordEnd5-180CM

M12 L-Code 5P(FML) to Cord End Terminal 5P, Length: 1.8M

JPlate-SL

Joint plate for dual SEMIL assembly (for SEMIL-2000)

Rmkit-SL

Rack mount for single SEMIL (for SEMIL-2000)

PA-280W-CW6P-2P

280W AC-DC power adapter 24V 11.67A, 85~264VAC, -30~+70°C w/ Wafer FML6P to 2P End Terminal cable for AWP/SEMIL

Cblkit-M12-SEMIL2007 (SEMIL-2000 M12 cable kit)

7x Cbl-M12X8M-RJ45-500CM

2x Cbl-M12A8M-2DB9M_OW2-180CM1(COM1/2 & CAN1/2)

1x Cbl-M12L5F-CordEnd5-180CM

1x Cbl-M12A8M-2U2TA-180CM1

1x Cbl-M12A8M-2DB9M-180CM (COM3/4)
