NVIDIA® L4를 포함하고 Intel® 14/ 13/ 12세대 Core™ 프로세서를 지원하는 2U 19인치 랙 장착형 IP69K 미션 크리티컬 GPU 컴퓨터

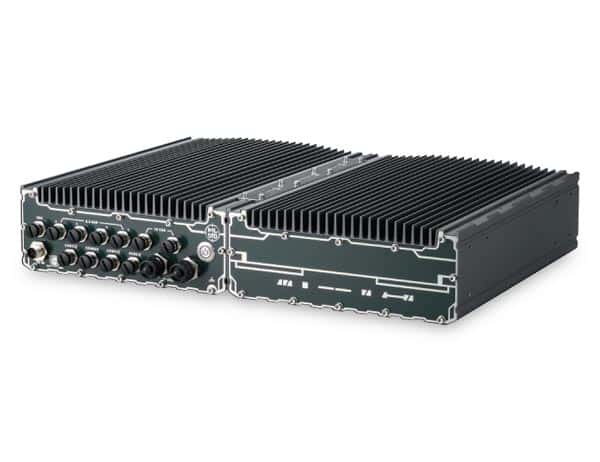

SEMIL-2200GC Series (New!) NVIDIA® L4 지원 2U IP69K 미션 크리티컬 GPU 컴퓨터

2U IP69K mission critical GPU computer with NVIDIA® L4 GPU
Up to 128 GB ECC/ non-ECC DDR5 4800 SDRAM
-40°C to 70°C wide-temperature fanless operation
2x 10GbE, 4x 2.5GbE, 1x GbE via M12 X-coded connectors
2x SocketCAN and 2x USB3.2 Gen1 Type-C w/ DP alternative mode
9V to 36V wide-range DC input with built-in ignition power control
MIL-STD-810H, MIL-STD-461G, MIL-STD-1275D compliant

Overview

Introduction

Neousys의 산업용 Fanless PC SEMIL-2200GC는 까다로운 환경을 위해 설계된 최첨단 AI 지원 미션 크리티컬 컴퓨터입니다. 2U 19인치 랙 장착형 섀시에 내장된 이 IP69K 등급 시스템은 먼지, 물에 영향을 받지 않으며 -40°C ~ 70°C 환경에서 완벽하게 작동할 수 있습니다. 산업용 Fanless PC SEMIL-2200GC는 스로틀링 지점인 58°C까지 GPU 성능을 유지할 수 있습니다. 핵심에는 NVIDIA® L4 GPU가 있으며, Intel의 14세대, 13세대 또는 12세대 프로세서와 결합되어 탁월한 컴퓨팅 성능과 효율성을 제공합니다.

산업용 Fanless PC SEMIL-2200GC는 습기와 염분으로부터 보호하기 위해 내식성 스테인리스 스틸 및 알루미늄 섀시를 사용합니다. 견고한 M12 커넥터는 충격과 진동을 견딜 수 있어 혹독한 산업 및 현장 애플리케이션에 이상적입니다. 포괄적인 연결 옵션에는 듀얼 CAN 버스 2.0, 다중 USB 3.2, 그리고 고속 장치를 연결하기 위한 2개의 10GbE를 포함한 7개의 이더넷 포트가 포함됩니다.

산업용 Fanless PC SEMIL-2200GC는 MIL-STD-810H를 준수하여 극한의 온도, 습도, 진동 및 충격을 견딜 수 있음이 입증되었습니다. 또한 MIL-STD-461G 표준을 준수하여 전자기 간섭에 대한 내성을 보장합니다. 모바일 또는 차량 환경에서의 애플리케이션의 경우, 이 플랫폼은 MIL-STD-1275D의 요구 사항을 충족합니다. 탁월한 성능, 견고한 구조, 엄격한 군사 표준 준수를 통해 산업용 Fanless PC SEMIL-2200GC는 안정성, 내구성 및 고급 AI 기능을 요구하는 중요 애플리케이션을 위한 이상적인 솔루션입니다.

SEMIL-2200GC is a cutting-edge, AI-enabled mission-critical computer engineered for demanding environments. Housed in a 2U 19-inch rackmount chassis, this IP69K-rated system is impervious to dust, water, and capable of flawless operations in -40°C to 70°C environments. The SEMIL-2200GC can sustain GPU performance up to its 58°C throttling point. At its core lies an NVIDIA® L4 GPU, and coupled with Intel’s 14th, 13th, or 12th generation processors to offer exceptional computing power and efficiency.

The SEMIL-2200GC employs a corrosion-resistant stainless steel and aluminum chassis to safeguard against moisture and salinity. Its ruggedized M12 connectors can withstand shock and vibration, making it ideal for harsh industrial and field applications. Its comprehensive connectivity options include dual CAN bus 2.0, multiple USB 3.2, and seven Ethernet ports including two 10GbE to connected high-speed devices.

The SEMIL-2200GC is MIL-STD-810H compliant, proven to withstand extreme temperatures, humidity, vibration, and shock. Additionally, it complies with MIL-STD-461G standards, ensuring immunity to electromagnetic interference. For applications in mobile or vehicular environments, this platform meets the requirements of MIL-STD-1275D. With its exceptional performance, rugged construction, and adherence to stringent military standards, the SEMIL-2200GC is the ideal solution for critical applications demanding reliability, durability, and advanced AI capabilities.

#SEMIL- 2200GC #산업용PC #Fanless PC #방수 #방진 #IP69K #Edge AI #MIL-STD-810H #MIL-STD-461G #MIL-STD-1275D

Specifications

System Core
Processor	Supporting Intel® 14th-Gen Core™ CPU (LGA1700 socket, 35W TDP) – Intel® Core™ i9-14900T – Intel® Core™ i7-14700T – Intel® Core™ i5-14500T – Intel® Core™ i3-14100T Supporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 35W TDP) – Intel® Core™ i9-13900TE – Intel® Core™ i7-13700TE – Intel® Core™ i5-13500TE – Intel® Core™ i3-13100TE Supporting Intel® 12th-Gen Core™ CPU (LGA1700 socket, 35W TDP) – Intel® Core™ i9-12900TE – Intel® Core™ i7-12700TE – Intel® Core™ i5-12500TE – Intel® Core™ i3-12100TE
Chipset	Intel® R680E platform controller hub
Graphics	Integrated Intel® UHD Graphics 770 (32EU)
Acceleration GPU	NVIDIA® L4 GPU
Memory	Up to 128 GB ECC/ non-ECC DDR5 4800 SDRAM (two SODIMM slots)
AMT	Supports Intel vPro/ AMT 16.0
TPM	Supports dTPM 2.0

I/O Interface
Ethernet	2x 10GbE Ethernet by X550-AT2 (with WoL) (M12 X-coded) 4x 2.5GbE Ethernet by Intel I226-IT (M12 X-coded) 1x GbE Ethernet by Intel I219-LM (with WoL) (M12 X-coded)
CAN Bus	2x isolated CAN 2.0 port, supporting SocketCAN in Linux
USB	2x Type-C USB 3.2 Gen1x1 (5Gbps) ports (shared DisplayPort) 2x USB 2.0 ports (M12 A-coded)
Video Port	2x Type-C USB connector supporting DP output (shared USB3.2 Gen1x1)
Serial Port	2x isolated 3-wire RS-232 ports (COM1/ COM2) 1x isolated 3-wire RS232 (COM3) & 1x RS-422/ 485 port (COM4)

Storage Interface
SATA HDD	2x Internal SATA port for 2.5” HDD/ SSD installation, supporting RAID 0/ 1
M.2	1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD

Internal Expansion Bus
Mini PCI-E	3x full-size mini PCI Express socket with SIM slot
M.2	1x M.2 2242/3052 B key socket with dual SIM slot for M.2 5G/ 4G module 1x M.2 2230 E key socket for Wi-Fi

Power Supply
DC Input	9V to 36V DC input with reverse polarity protection (M12 L-coded)
Ignition Control	Built-in ignition power control (IGN/ GND signal via M12 L-coded connector)

Mechanical
Dimension	440mm (W) x 310mm (D) x 90.5mm (H) (excl. rack-mount bracket)
Weight	12.2Kg
Mounting	Rack-mounting (standard) and wall-mounting (standard)

Environmental
Operating temperature	-40°C to 70°C
Storage temperature	-40°C ~ 85°C
Humidity	10% ~ 90% , non-condensing
Vibration	MIL-STD-810H, 514.8C-IV. Category 4
Shock	MIL-STD-810H: 516.8 Procedure I
EMC	MIL-STD-461G: – CE102 (10kHz~10MHz) – RE102 (2MHz~18GHz) – RS103 (2MHz~18GHz, 50V/m)
Electrical Systems	MIL-STD-1275D: Normal operating mode (ripples, surges, spikes)
Ingress Protection	IP69K

LIST

Ordering Information

SEMIL-2247GC

2U 19″ rack mount IP69K mission critical GPU computer including NVIDIA® L4, supporting Intel® 14th/ 13th/ 12th-Gen Core™ processor with 2x M12 10GbE and 4x M12 2.5GbE ports

Optional Accessories

Cbl-TpCPlug-DPM-1M

TypeC Male Plug to DP Male Cable, Length : 1M

Cbl-TpCPlug-U3TA-50CM

TypeC Male Plug to USB3.0 Type-A FML, Length: 50CM

Cbl-TpCPlug-UTpCF-50CM

TypeC Male Plug to USB Type-C FML Cable, Length : 50CM

Cbl-M12X8M-RJ45-500CM

M12( 8-pole-X-coded) to RJ45, CAT6, Length : 500CM

Cbl-M12A8M-2U2TA-180CM1

M12 (8-pole-A-coded) to 2xUSB 2.0 type A (female), Length: 180CM

Cbl-M12A8M-2DB9M_OW2-180CM1

M12 A-Code Male 8P to x2 DB9 Male+2P, Length: 180CM

Cbl-M12A8M-2DB9M-180CM

M12 (8-pole-A-coded male) to 2x DB9 male, Length: 180CM

Cbl-M12L5F-CordEnd5-180CM

M12 L-Code 5P(FML) to Cord End Terminal 5P, Length: 1.8M

Cblkit-M12-SEMIL2007 (SEMIL-2000 M12 cable kit)

7x Cbl-M12X8M-RJ45-500CM

2x Cbl-M12A8M-2DB9M_OW2-180CM1(COM1/2 & CAN1/2)

1x Cbl-M12L5F-CordEnd5-180CM

1x Cbl-M12A8M-2U2TA-180CM1

1x Cbl-M12A8M-2DB9M-180CM (COM3/4)

PA-280W-CW6P-2P

280W AC-DC power adapter 24V 11.67A, 85~264VAC, -30~+70°C w/ Wafer FML6P to 2P End Terminal cable for AWP/SEMIL
