산업용 10세대 Mini-ITX 마더보드 Q470EI-IM-A

Intel 10세대 Core™ i9/i7/i5/i3 LGA1200 mini-ITX 마더보드

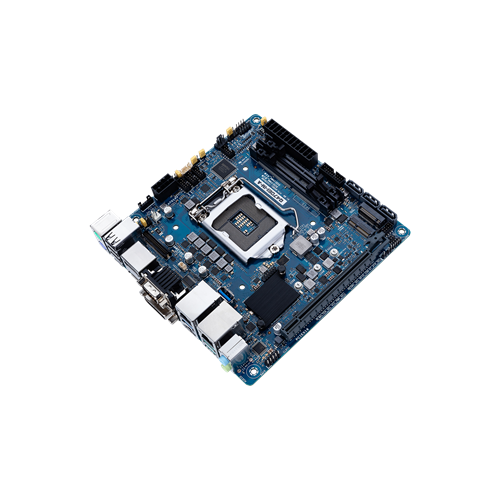

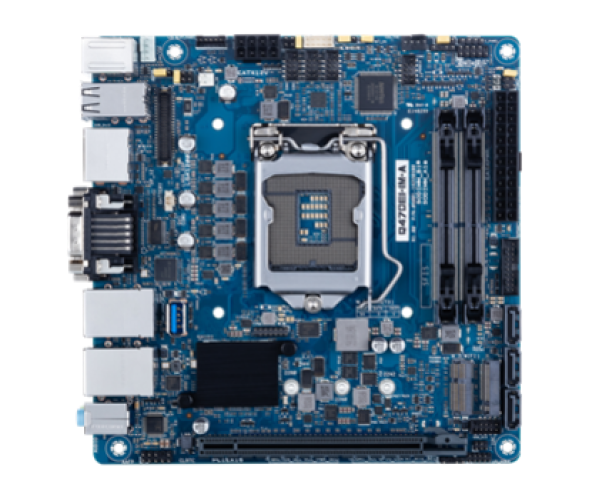

산업용 10세대 Mini-ITX 마더보드 Q470EI-IM-A

  • Q470E mini-ITX motherboard LGA1200 Socket for The 10th
    Generation Intel® Core™ i9/ i7/ i5/ i3/ Pentium® /Celeron®
    Processors
  • Supports 3 displays configuration by multiple interface: 2*DP/
    LVDS(eDP)
  • 7 years of longevity with extended product life cycles
  • Advanced I/O and connectivity features
  • Wide temperature range endurance: 0–60°C
Specifications
Processor System
CPU
  • LGA1200 Socket for The 10th Generation Intel® Core™ i9/ i7/ i5/ i3/ Pentium® /Celeron® Processors Supports 14nm CPU Max. 65W TDP
CHIPSET
  • Intel® Q470E Chipset



Memory
Technology
  • DDR4 2933/2666/2400/2133 MHz
Max.
  • Overall: 64GB, Per Module:32GB
Socket
  • 2 x SO-DIMM



Display
DP
  • 2, Supports DP 1.4
DVI-D
  • 1
eDP/LVDS
  • 1 x Header (Support either eDP or LVDS ; switched by BIOS)



Expansion Slot
PCIe
  • 1 x PCIe 3.0/2.0 x16 Slot (Bifurcation Support: 16x to 8x+8x or 8x+4x+4x)
M.2
  • 1 x M.2 Socket 1 with E key, Type 2230 for WIFI/BT device (PCIe & CNVi)
  • 1 x M.2 Socket 3 with M key, Type 2242/2260/2280 (PCIe x4 & SATA mode)



Ethernet
Speed
  • 10/100/1000 Mbps
Controller
  • 1 x Intel® I210AT/Intel® I211AT, 1 x Intel® I219LM
Teaming
  • Yes
Connector
  • 2 x RJ-45



Audio
Codec
  • Realtek ALC 887 /ALC 897* High Definition Audio
Connector
  • Line-Out, Line-In



Storage
SATA port
  • 3 x SATA Gen 3.0, Up to 6Gb/s
M.2
  • 1 x M.2 Socket 3 with M key, Type 2242/2260/2280 (PCIe x4 & SATA mode)



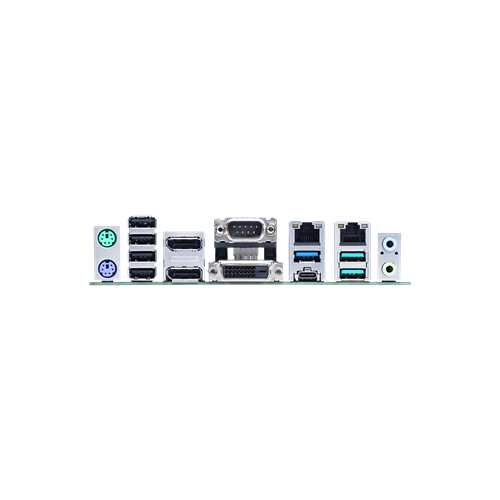

Rear I/O
DP
  • 2
DVI-D
  • 1
USB3.2 Gen2
  • 3 (2*Type A, 1*Type C)
USB3.2 Gen1
  • 1 (Type A)
USB 2.0
  • 4 (Type A)
Ethernet
  • 2 x RJ45
Serial Port
  • 1 (RS232/422/485)
Audio jack
  • 2
PS/2
  • 1 x Keyboard, 1x Mouse



Internal Connector
Serial Port Header
  • 4 x COM Header (1 x RS232/422/485, 3 x RS232)
USB3.2 Gen1
  • 1 x USB3.2 Gen1 Stick Connector
  • 1 x Header Support Additional 2 x USB3.2 Gen1 Ports
USB2.0
  • 1 x Header Support Additional 2 x USB2.0 Ports
power connector
  • 1 x 8-pin ATX Power Connector, 1 x 24-pin ATX Power Connector



Watchdog Timer
H/W
  • YES
Security
TPM
  • 1 x SPI TPM header



Power
Power Type
  • ATX
  • DC-IN*
    *Support by power transfer card “EMA-DCB-A”.
    Please contact your sales window for order information



Operating System
Microsoft Windows
  • Windows® 10 (64bit ) / Win10 IoT Enterprise
Linux
  • Ubuntu, RedHat Enterprise, Fedora Workstation, OpenSUSE



Environment
Operating Temperature
  • 0~60° C
Non-Operating Temperature
  • -40~85° C
Relative Humidity
  • 0%~85%



Dimension
Form Factor
  • Mini-ITX, 170 x 170 mm



Certification
Safety
  • CE, FCC
