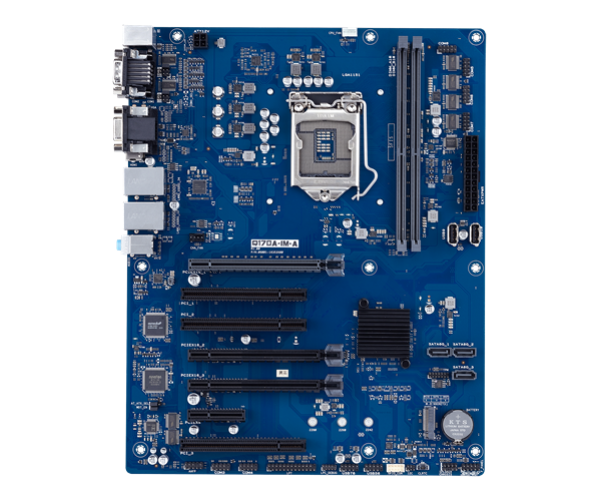

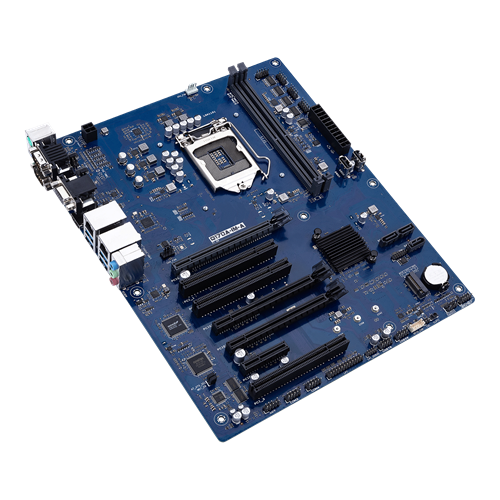

Q170A-IM-A 산업용 6/7세대 마더보드

Intel 6/7세대 Core™ i7/i5/i3 LGA 1151 ATX 마더보드

Q170A-IM-A 산업용 6/7세대 마더보드

  • Supports Intel® 7th/6th Gen Core™ processors (LGA1151) with the
    Intel Q170 chipset
  • Up to 8 COM ports, includes 2*RS-232/422/485
  • Supports 3*PCIe x16, 1*PCIe x4 and 3*PCI expansion slots
  • Wide range of operating temperatures (0°~60°)
  • Seven years of longevity with extended product life cycles
Specifications
Processor System
CPU
  • Intel® Socket 1151 for 7th/6th Generation Core™ i7/i5/i3/Pentium®/Celeron® Processors supports Intel® 14 nm CPU, support max. 65W TDP
CHIPSET
  • Intel® Q170 chipset



Memory
Technology
  • DDR4 2400/2133 MHz
Max.
  • 32GB
Socket
  • 2 x U-DIMM



Display
VGA
  • 1, Supports up to 1920 x 1200 @60Hz
HDMI
  • 1, Supports up to 4096 x 2160 @ 24Hz
Dual Display
  • VGA+HDMI(Default)



Expansion Slot
PCIe
  • 1 x PCIe 3.0/2.0 x16 slot (x16 mode)
  • 2 x PCIe 3.0/2.0 x16 slot (x4 mode)
  • 1 x PCIe 3.0/2.0 x4 slot
PCI
  • 3 x PCI
M.2
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280(SATA mode)



Ethernet
Speed
  • 10/100/1000Mbps
Controller
  • 1 x Intel® I219LM, 1 x Intel® I211AT, supports WOL/PXE
Connector
  • 2 x RJ-45



Audio
Codec
  • Realtek ALC897
Connector
  • Line-Out, Line-In, Mic in



Storage
SATA port
  • 3 x SATA Gen 3.0, up to 6Gb/s

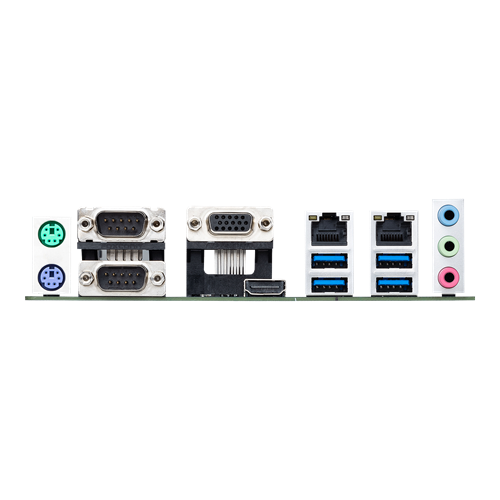

Rear I/O
VGA
  • 1
HDMI
  • 1
USB 3.2 Gen1
  • 4
Ethernet
  • 2
Serial Port
  • 2(RS232/422/485)
Audio jack
  • 3
PS/2
  • 1 x Keyboard Port, 1 x Mouse Port



Internal Connector
Serial Port
  • 6 (RS232)
USB2.0
  • 2 x Header Support Additional 4 x USB2.0 Connectors
  • 2 x Stick Socket
Power Connector
  • 1 x 4-pin ATX Power Connector, 1 x 24-pin ATX Power Connector
Watchdog Timer
H/W
  • YES



Security
TPM
  • 1 x SPI TPM header



Power
Power Type
  • AT/ATX mode



Operating System
Microsoft Windows
  • Windows 7 (32/64bit) / Windows 10 (64bit ) / Win10 IoT Enterprise
Linux
  • Ubuntu, Red Hat Enterprise, Fedora Workstation, Open SUSE



Environment
Operating Temperature
  • 0~60° C
Non-Operating Temperature
  • -40~85° C
Relative Humidity
  • Operational humidity: 40° C @ 95%



Dimension
Form Factor
  • ATX, 305 x 244 mm



Certification
EMI & Safety
  • CE, FCC
