산업용 10세대 M-ATX 마더보드 IMB-1313

Intel 10세대 Core™ i9/i7/i5/i3 LGA1200 M-ATX 마더보드

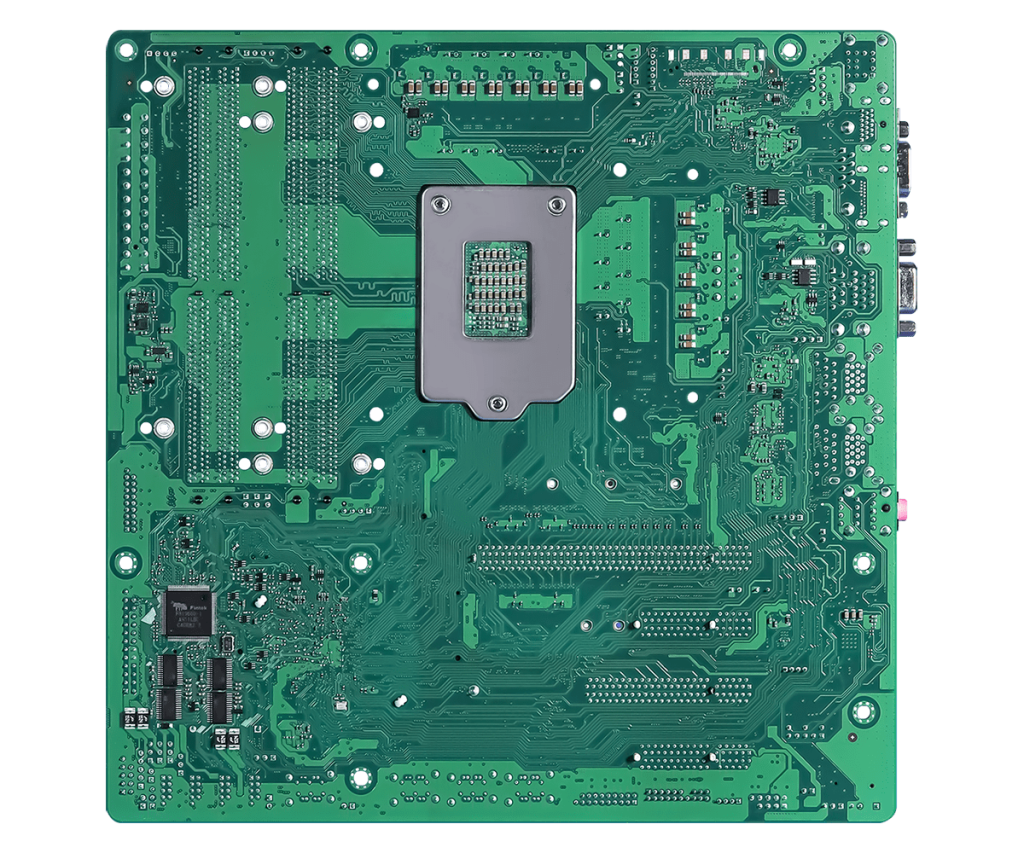

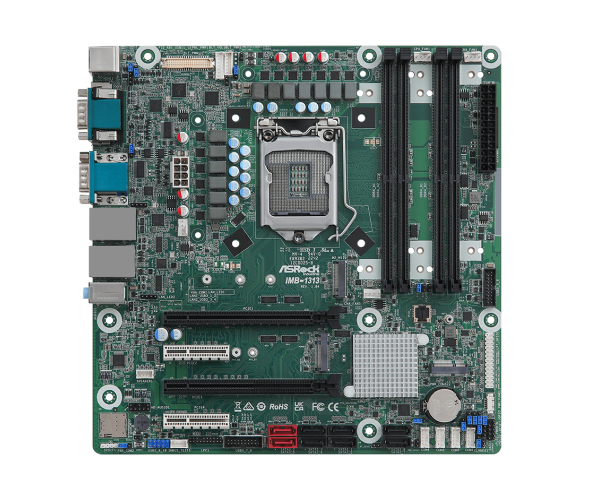

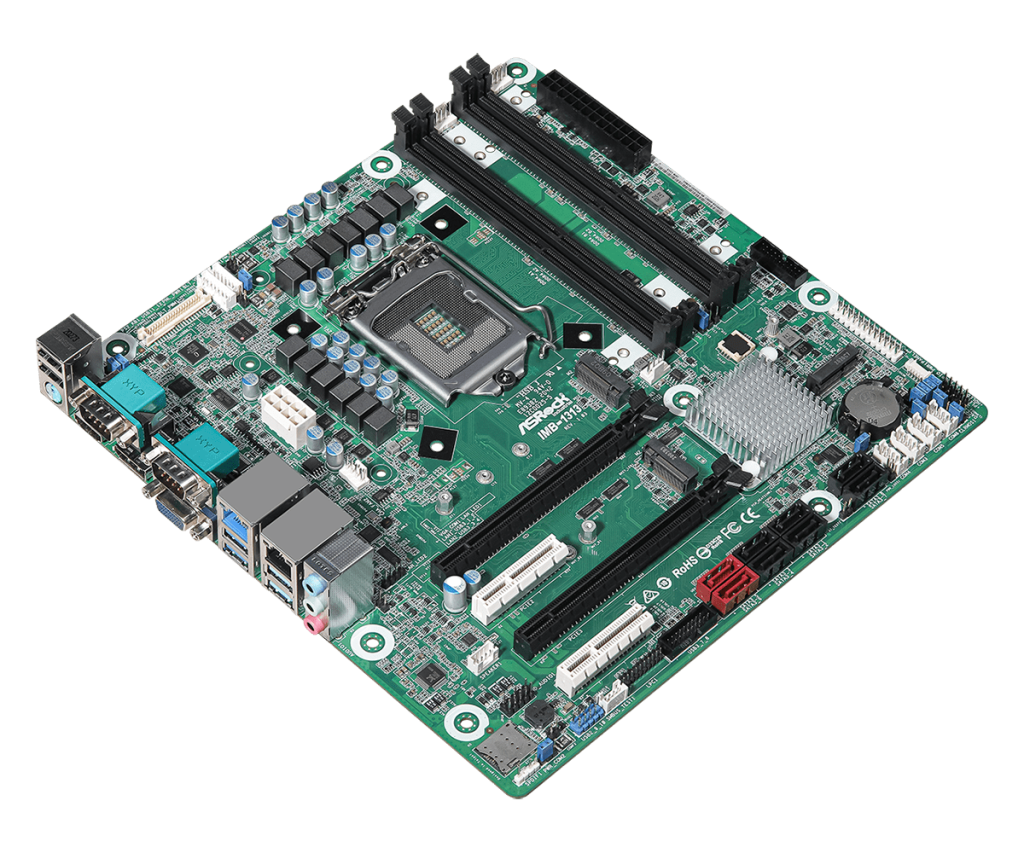

산업용 10세대 M-ATX 마더보드 IMB-1313

  • Intel® 10th Gen (Comet lake-S) Core™ Processors with Q470E
    chipset
  • 4 x 288-pin Long-DIMM, Support Dual Channel DDR4 2933 (i9 /
    i7 CPU) / 2666 (i5 / i3 CPU) / 2400 (Pentium / Celeron CPU), up to
    128GB
  • 1 x PCIe x16 Gen3, 1 x PCIe x8 Gen3, 2 x PCIe x4 Gen3
  • 4 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 4 x USB 2.0
  • 8 x SATA3, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 6 x COM
  • 1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN
  • Support Triple display, 1 x DP 1.2, 1 x VGA, 1 x LVDS (eDP 1.4
    optional), 1 x HDMI 2.0a
  • TPM 2.0 onboard
  • Supports Intel® vPro, AMT, RAID 0/1/5/10
  • ATX-PWR (24+8-pin)
Specifications
Processor System
CPU
  • Intel® 10th Gen (Cometlake-S) Core™ Processors, up to 125 W
CHIPSET
  • Intel® Q470E



Memory
Technology
  • Dual Channel DDR4 2933 / 2666 / 2400 MHz
    – Intel Core i9 / i7 CPUs support DDR4 up to 2933 MHz
    – Intel Core i5 / i3 CPUs support DDR4 up to 2666 MHz
    – Intel Pentium / Celeron CPU support DDR4 up to 2400 MHz
Max.
  • 128GB
Socket
  • 4 x 288-pin Long-DIMM



Display
Controller
  • Intel® UHD Graphics
HDMI
  • HDMI 2.0a, Max resolution up to 4096 x 2160 @60Hz
DisplayPort
  • DisplayPort 1.2 , DP++ Max resolution up to 4096 x 2160@60Hz
VGA
  • Max resolution up to 1920 x 1200@60Hz
LVDS
  • Dual channel 24 bit up to 1920 x 1200@60Hz
MultiDisplay
  • Triple Display
eDP
  • eDP 1.4, Max resolution up to 4096 x 2304@60Hz



Expansion Slot
PCIe
  • 2 x PCIe Gen3 Slots (PCIE1 / PCIE3: single at x16 (PCIE1); dual at x8 (PCIE1)/ x8 (PCIE3))
    (PCIE1: Support riser card x8 / x8, x8 / x4 / x4)
  • 2 x PCIe x4 Gen3
M.2
  • 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
  • 1 x M.2 (Key B, 3042 / 3052) with PCIe x1 / USB 3.2 Gen1 / USB 2.0 and SIM for 4G / 5G
SIM Socket
  • 1 x SIM socket connected to M.2 Key B



Ethernet
Controller/ Speed
  • LAN1: Intel® I225LM with 10/100/1000/2500 Mbps
  • LAN2: Intel® I219LM with 10/100/1000 Mbps, support AMT / vPro
Connector
  • 2 x RJ-45



Audio
Interface
  • Realtek ALC887/ALC897 HD, High Definition Audio. Line-In / Line-Out / Mic-In



Storage
M.2
  • 1 x M.2 (Key M, 2242 / 2260 / 2280) with SATA and PCIe x4 for SSD
    * Shared with SATA3_5 / SATA3_6 Ports
    – When using M.2 PCIe x4 SSD, both SATA3_5 and SATA_6 Ports are disabled
    – When using M.2 SATA SSD, only SATA3_5 Port is disabled, and SATA3_6 Port is available
SATA
  • 8 x SATA3 (6Gb/s)
    *Only SATA3_1 ~ SATA3_6 Ports support RAID function
RAID
  • Intel® SATA RAID 0/1/5/10

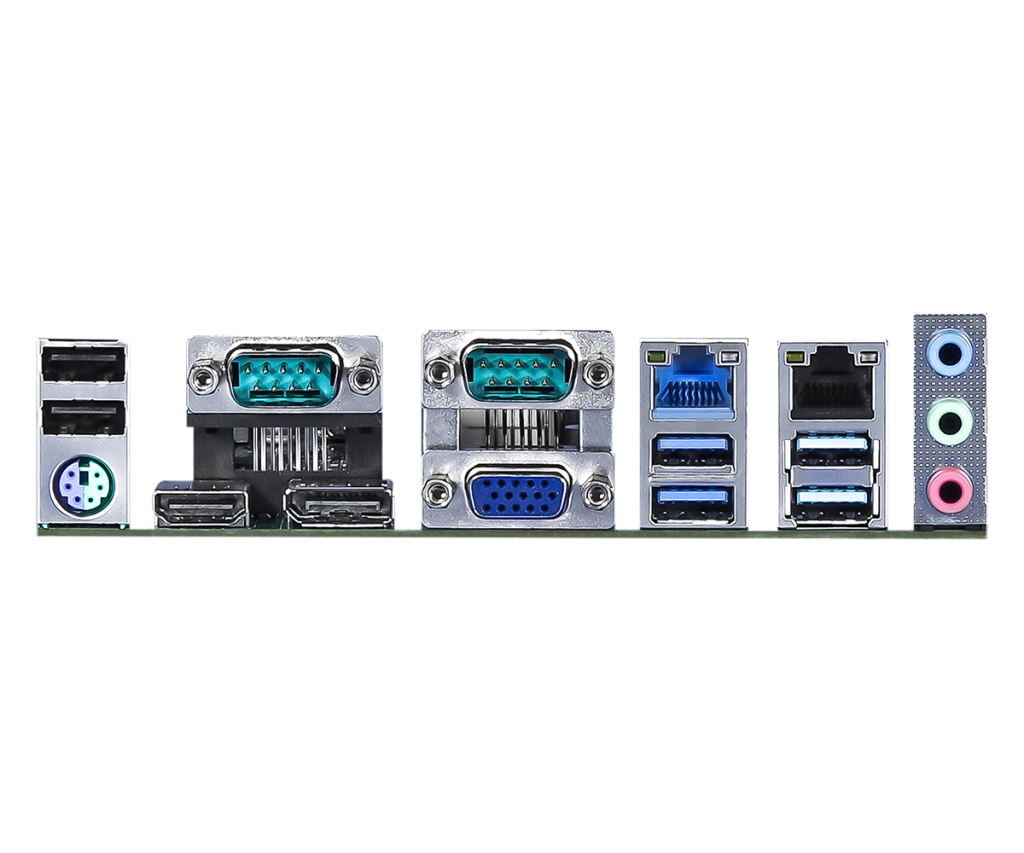

Rear I/O
HDMI
  • 1 x HDMI 2.0a
DisplayPort
  • 1 x DP 1.2
VGA
  • 1
Ethernet
  • 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB
  • 4 x USB 3.2 Gen2, 2 x USB2.0
Audio
  • 3 ( Line-In, Line-Out, Mic-In )
COM
  • 2 x COM (RS-232/422/485)
PS/2
  • 1



Internal Connector
USB
  • 4 x USB 3.2 Gen1 (2 x USB 3.2 Gen1 header)
  • 6 x USB 2.0 (3 x 2.54 pitch header)
COM
  • 4 x COM (RS-232)
Parallel
  • 1 (shared with GPIO)
GPIO
  • 8 x GPI, 8 x GPO (shared with LPT header)
TPM
  • TPM 2.0 onboard
LVDS
  • 1
Speaker Header
  • 1
eDP
  • 1 (BOM Option support)



Watchdog Timer
Output
  • From Super I/O to drag RESETCON#
Interval
  • 256 Segments, 0, 1, 2, …255sec



Power Requirements
Input PWR
  • ATX PWR (24+8-pin)
Power On
  • AT/ATX Supported
    – AT : Directly PWR on as power input ready
    – ATX : Press button to PWR on after power input ready



Environment
Operating Temperature
  • 0~60° C
Storage Temp
  • -40~85° C
Operating Humidity
  • 5% ~ 90%
Storage Humidity
  • 5% ~ 90%



Form Factor
Dimensions
  • Micro-ATX (9.6-in x 9.6-in, 24.4 cm x 24.4 cm)
