산업용 12/13세대 ATX 마더보드 H610A-IM-A

Intel 12/13세대 Core™ i9/i7/i5/i3 LGA 1700 ATX 마더보드

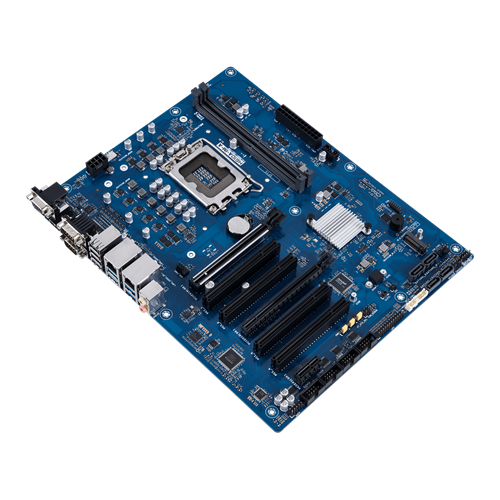

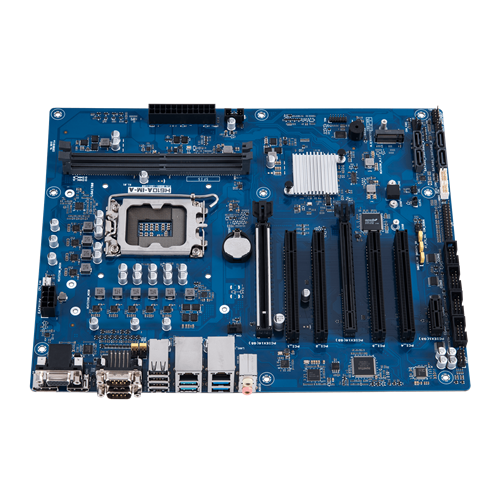

산업용 12/13세대 ATX 마더보드 H610A-IM-A

  • H610 ATX motherboard, LGA1700 socket for Intel® 12th Gen
    Core™ i9/ i7/ i5/ i3/ Pentium® /Celeron® Processors, Max. 125W
    TDP
  • 2 x U-DIMM up to 64 GB DDR4 up to 3200 Mhz
  • Supports 3 displays configuration by multiple interface: VGA / HDMI
    / DP
  • Supports 1 x PCIe5.0 x16 slots, 1 x PCIe3.0/2.0 x16 slots(x 4 mode),
    1 x PCIe3.0/2.0 x 1 slot, 4 x PCI
  • Advanced I/O and connectivity features
  • 7 years of longevity with extended product life cycles
  • Wide temperature range endurance: 0–60°C
Specifications
Processor System
CPU
  • LGA1700 Socket for Intel® Core™ i9/ i7/ i5/ i3/ Pentium® /Celeron® Processors
    Max. 125W TDP
CHIPSET
  • Intel® H610 chipset



Memory
Technology
  • Up to DDR4 2400/2666/2933/3200 MHzz
Max.
  • 64GB
Socket
  • 2 x U-DIMM



Display
HDMI
  • 1, Supports HDMI 2.1 up to 4096 x 2160 @ 60 Hz
VGA
  • 1, up to 1092 x 1200 @ 60 Hz
DP
  • 1, up to 4096 x 2160 @ 60 Hz
Triple Display
  • DP+HDMI+VGA(default)



Expansion Slot
PCIe x16
  • 1 x PCIe 5.0 x16 slot
PCIe x4
  • 1 x PCIe 3.0/2.0 x16 slot (x4 mode)
    1 x PCIe 3.0/2.0 x1 slot
PCI
  • 4 x PCI slot
M.2
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280(SATA / PCIe x 1 mode)



Ethernet
Speed
  • 10/100/1000Mbps
Controller
  • 1 x Intel® I219V, 1 x Intel® I210AT
Connector
  • 2 x RJ-45



Audio
Codec
  • Realtek ALC897 High Definition Audio
Connector
  • Line-Out, Mic-In



Storage
SATA port
  • 4 x SATA Gen 3.0, up to 6Gb/s
M.2
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280(SATA/PCIe x 1 mode)

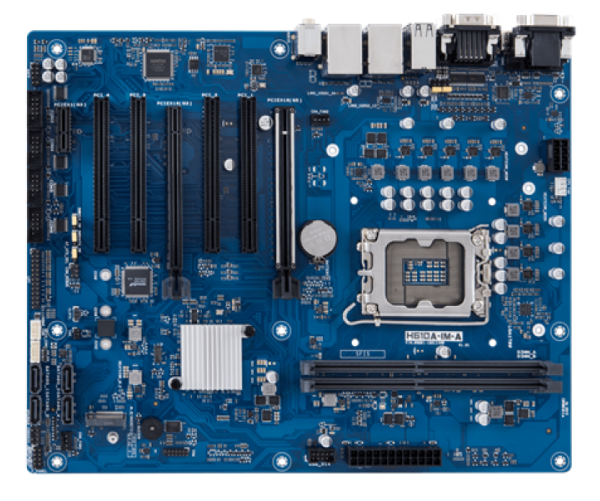

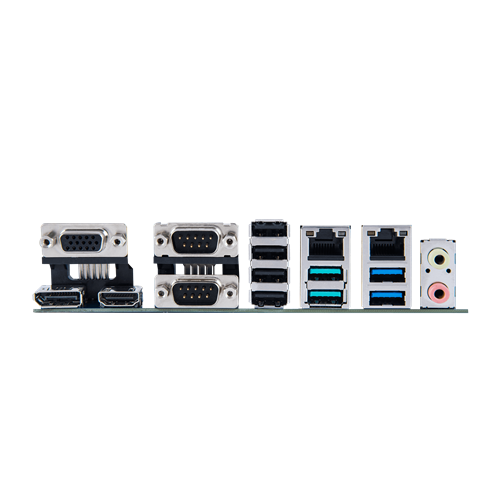

Rear I/O
HDMI
  • 1
VGA
  • 1
DP
  • 1
USB 3.2
  • 4(2 x USB 3.2 Gen2, 2 x USB 3.2 Gen1)
USB 2.0
  • 4
Ethernet
  • 2
Serial Port
  • 2(RS232/422/485)
Audio jack
  • 2



Internal Connector
Serial Port
  • 4 (RS232)
USB2.0
  • 1 x Header Support Additional 2 x USB2.0 Connectors
CPU Fan Connector
  •  1, support additional 2 x USB2.0 connectors
Chassis Fan Header
  • 2 (PWM Mode)
Chassis Intrusion Header
  • 1
Front Panel Audio Header
(AAFP)
  • 1
System Panel Header
  • 1 (10-1 Pin)
Buzzer
  • 1
Clear CMOS Jumper
  • 1
COM Debug Header
  • 2 (PWM Mode)
Header
  • 1
Parallel
  • 1
GPIO Header
  • 1 (8 Bit)
PS/2
  • 1
AT/ATX Select Header
  • 1
Power Connector
  • 2 X 4-pin ATX Power Connector, 1 X 24-pin ATX Power Connector



Watchdog Timer
H/W
  • YES



Security
TPM
  • 1 x SPI TPM header



Power
Power Type
  • both ATX/AT mode



Operating System
Microsoft Windows
  • Windows® 10 (64bit ) / Win10 IoT Enterprise
Linux
  • Ubuntu, RedHat Enterprise, Fedora Workstation, OpenSUSE



Environment
Operating Temperature
  • 0~60° C
Non-Operating Temperature
  • -40~85° C
Relative Humidity
  • 10%~95%



Dimension
Form Factor
  • ATX



Certification
Safety
  • CE, FCC
