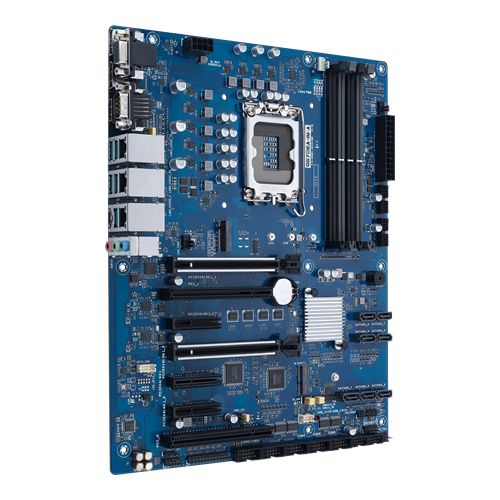

산업용 12/13세대 ATX 마더보드 Q670EA-IM-A

Intel 12/13세대 Core™ i9/i7/i5/i3 LGA 1700 ATX 마더보드

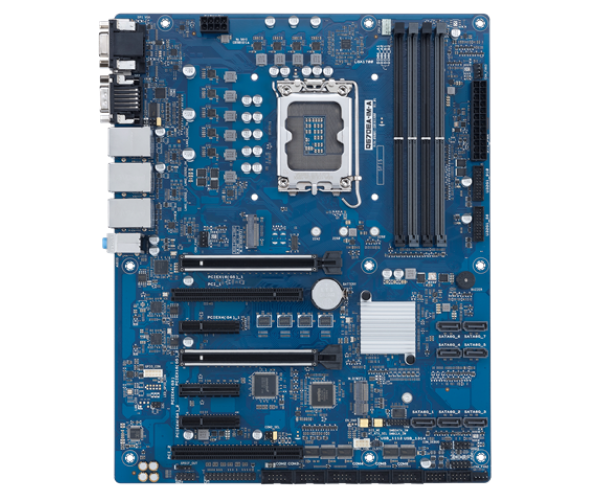

산업용 12/13세대 ATX 마더보드 Q670EA-IM-A

  • Supports up to 125-watt Intel® 12th Gen processors
  • 2x PCIe® x16 slots support dual graphic cards
  • Four U-DIMM slots for up to 128 GB 4400 MHz DDR5
  • Supports VGA, HDMI®, and DisplayPort™
  • Seven-year longevity supply program
  • Advanced I/O and connectivity features
  • Wide temperature range endurance: 0–60° C
Specifications
Processor System
CPU
  • LGA1700 Socket for Intel® Core™ i9/ i7/ i5/ i3/ Pentium® /Celeron® Processors
    Max. 125W TDP
CHIPSET
  • Intel® Q670E Chipset



Memory
Technology
  • DDR5 4400MT/s (2DPC – 1DIMM 1R&2R)
    4000MT/s (2DPC – 2DIMM 1R)
    3600MT/s (2DPC – 2DIMM 2R)
Max.
  • 128GB
Socket
  • 4 x U-DIMM



Display
Display Port
  • 2, Supports DP++ 1.4, up to 3840 x 2160 @ 60Hz
HDMI
  • 1, Supports 2.1, up to 4096 X 2160 @ 60Hz
VGA
  • 1
Multiple displays
  • Max.4 displays, VGA+Dual DP.+HDMI



Expansion Slot
PCIe
  • 1 x PCIe 5.0 x16 Slot (1 x16 mode/ 2 x8 mode)
    1 x PCIe 4.0 x4 Slot (x4 mode, open slot)
    1 x PCIe 5.0 x16 Slot (x8 mode)
    1 x PCIe 3.0 x4 Slot (x4 mode, open slot)
    1 x PCIe 4.0 x4 Slot (x4 mode, open slot)
PCI
  • 2
M.2
  • 1 x M.2 M key, Type 2242/2260/2280 (PCIe x4 /SATA mode) supports NVMe
    1 x M.2 E key, type 2230 for WIFI/BT device (only support Intel® CNVi)
    *If install CNVI Wifi card on M.2 E key slot, USB port14 will be disabled.



Ethernet
Speed
  • 10/100/1000/2500 Mbps
Controller
  • 1 x Intel® i210AT
    1 x Intel® i226V
    1 x Intel® i226LM (Intel vPro supported)
Connector
  • 3 x RJ-45



Audio
Codec
  • Realtek ALC897



Storage
SATA port
  • 7 x SATA Gen 3.0, Up to 6Gb/s, Support RAID 0,1,5,10

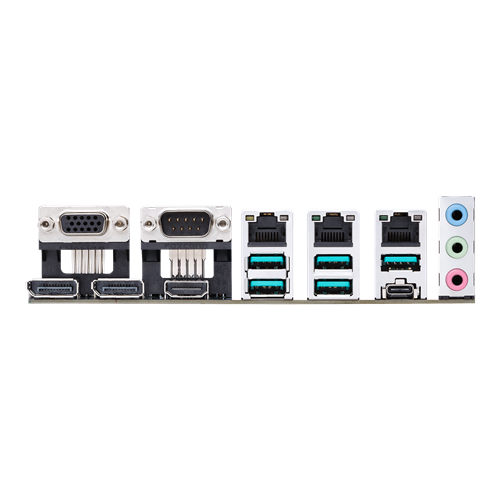

Rear I/O
Display Port
  • 2, Supports DP++ 1.4, up to 3840 x2160 @ 60Hz
HDMI
  • 1, Supports 2.1, up to 4096 X 2160 @ 30Hz
VGA
  • 1
USB 3.2 Gen2
  • 6 (5 x type A, 1 x Type C)
Ethernet
  • 3 x RJ45
Serial Port
  • 1 (RS232/422/485)
Audio jack
  • 3 (Line-Out, Line-In, Mic in)



Internal Connector
COM Header
  • 5 x COM Headers (1 x RS232/422/485, 4 x RS232)
USB3.0 Gen1
  • 2 x Headers Support Additional 4 x USB3.2 Gen1 Ports
USB2.0
  •  2 x Headers Support Additional 4 x USB2.0 Ports
CPU Fan/ Chassis Fan
  • 1 x Header (PWM Mode) / 3 x Headers (PWM Mode)
Power connector
  • 1 x 24-pin ATX Power connector, 1 x 8-pin ATX 12V Power connector



Watchdog Timer
H/W
  • YES



Security
TPM
  • 1 x SPI TPM header



Power
Power Type
  • AT mode/ ATX mode



Operating System
Microsoft Windows
  • Windows® 10 (64bit) / Windows® IoT enterprise
Linux
  • Ubuntu, RedHat Enterprise, Fedora Workstation, OpenSUSE



Environment
Operating Temperature
  • 0~60° C
Non-Operating Temperature
  • -40~85° C
Relative Humidity
  • Operational humidity: 40°C@10%~95%



Mechanical
Dimensions
  • ATX, 305 x 244 mm



Certification
Safety
  • EMC (CLASS B)
Safety
  • CE-LVD
