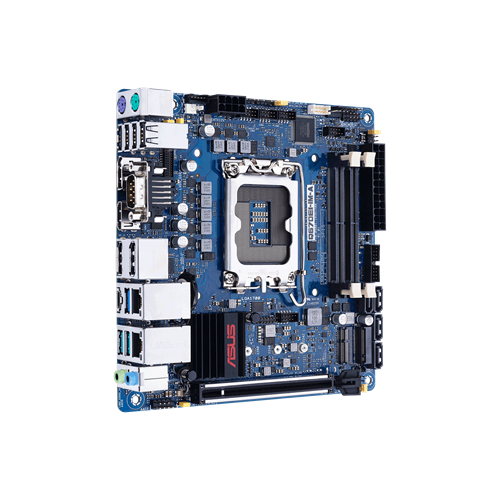

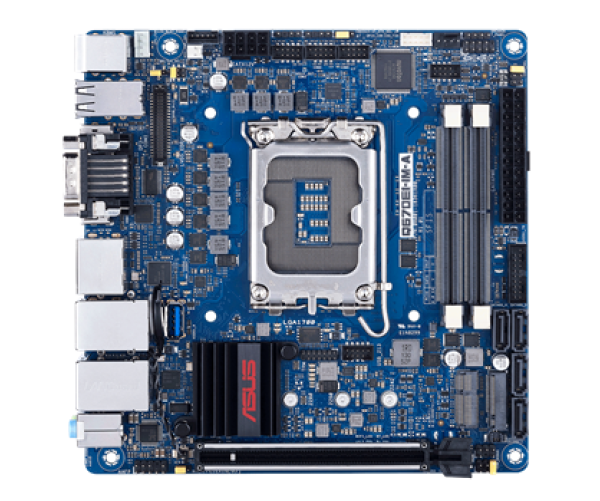

산업용 12/13세대 Mini-ITX 마더보드 Q670EI-IM-A

Intel 12/13세대 Core™ i9/i7/i5/i3 LGA 1700 mini-ITX 마더보드

산업용 12/13세대 Mini-ITX 마더보드 Q670EI-IM-A

  • Support up to 65W Intel® 12th Gen. CPU
  • Dual DDR5 SO-DIMM
  • Support PCIe Gen 5 *16 slot
  • Up to four displays: DP*3/HDMI
  • M.2 M key, M.2 E key
  • Up to 7-year longevity supply PDF download
Specifications
Processor System
CPU
  • LGA1700 Intel® 13th & 12th Gen. Core™ i9/ i7/ i5/ i3/ Pentium® /Celeron® Processors
    Max. 65W TDP
CHIPSET
  • Intel® Q670E Chipset



Memory
Technology
  • Up to DDR5 4800 MHz
Max.
  • 2 x 32GB (Total 64GB)
Socket
  • 2 x SO-DIMM



Display
Display Port
  • 3, Supports DP 1.4, up to 8K resolution
HDMI
  • 1, Supports HDMI 2.0
eDP/LVDS
  • 1 x Header (Support either eDP or LVDS ; switched by BIOS)
Multiple displays
  • Max.4 displays, VGA+Dual DP.+HDMI



Expansion Slot
PCIe
  • 1 x PCIe 5.0 x16 Slot (Bifurcation Support: 16x to 8x+8x)
M.2
  • 1 x M.2 E key, Type 2230 for WIFI/BT device (PCIe & CNVi)
    1 x M.2 M key, Type 2242/2260/2280 (PCIe x4 & SATA mode)



Ethernet
Speed
  • 10/100/1000/2500 Mbps
Controller
  • 1 x Intel® i210AT (co-lay i211AT), 1 x Intel® I225LM (Intel vPro supported)
Teaming
  • Yes
Connector
  • 2 x RJ-45



Audio
Codec
  • Realtek ALC897 High Definition Audio
Connector
  • Line-Out, Line-In



Storage
SATA port
  • 4 x SATA Gen 3.0, Up to 6Gb/s, Support RAID 0,1,5,10



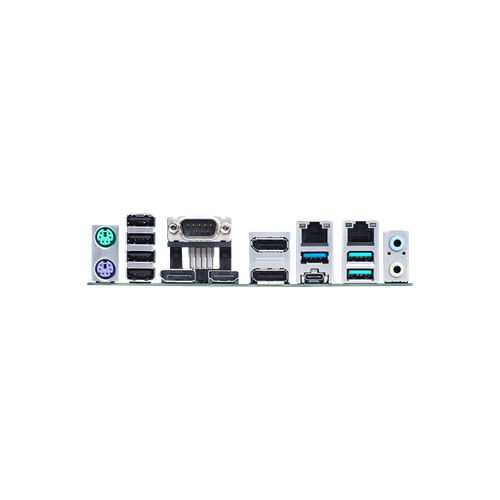

Rear I/O
Display Port
  • 3
HDMI
  • 1
USB3.2 Gen2
  • 3 (2*Type A, 1*Type C)
USB 3.2 Gen1
  • 1 (Type A)
USB2.0
  • 4 (Type A)
Ethernet
  • 2 x RJ45
Serial Port
  • 1 (RS232/422/485)
Audio jack
  • 2
PS/2
  • 1 x Keyboard, 1x Mouse



Internal Connector
Serial Port Header
  • 4 x COM Header (1 x RS232/422/485, 3 x RS232)
CPU Fan/ Chassis Fan
  • 1 x Header (PWM Mode) / 1 x Header (PWM Mode)



Watchdog Timer
H/W
  • YES



Security
TPM
  • 1 x SPI TPM header



Power
Power Type
  • ATX
    12V DC-IN*
    *Support by power transfer card “EMA-DCB-A”. Please contact your sales window for order information.



Operating System
Microsoft Windows
  • Windows® 10 (64bit)
Linux
  • Ubuntu, RedHat Enterprise, Fedora Workstation, OpenSUSE



Environment
Operating Temperature
  • 0~60° C
Non-Operating Temperature
  • -40~85° C
Temperature Relative Humidity
  • 5%~95%



Mechanical
Form Factor
  • Mini-IX, 170 x 170 mm



Certification
Safety
  • CE (CLASS B), FCC (CLASS B)
