Intel 8/9세대 Core™ Q370 chipset Micro-ATX 마더보드

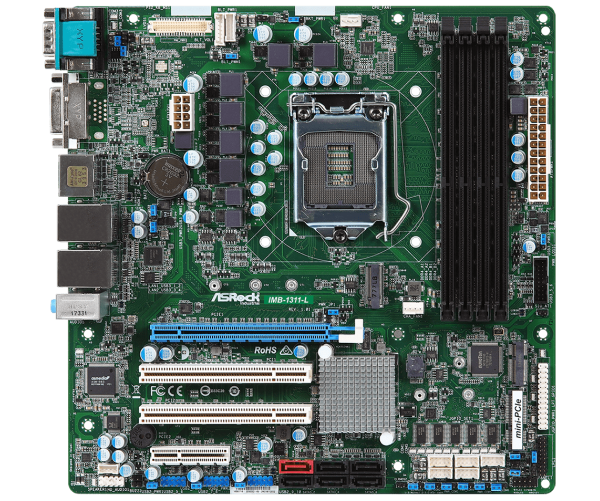

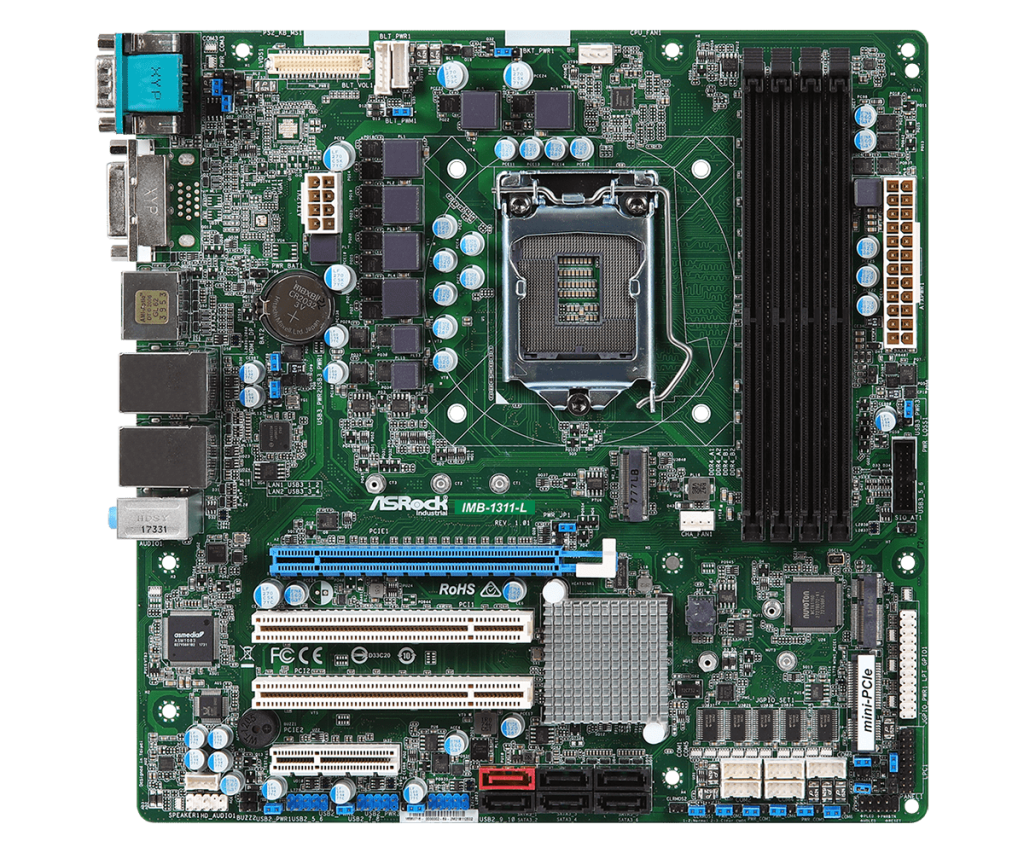

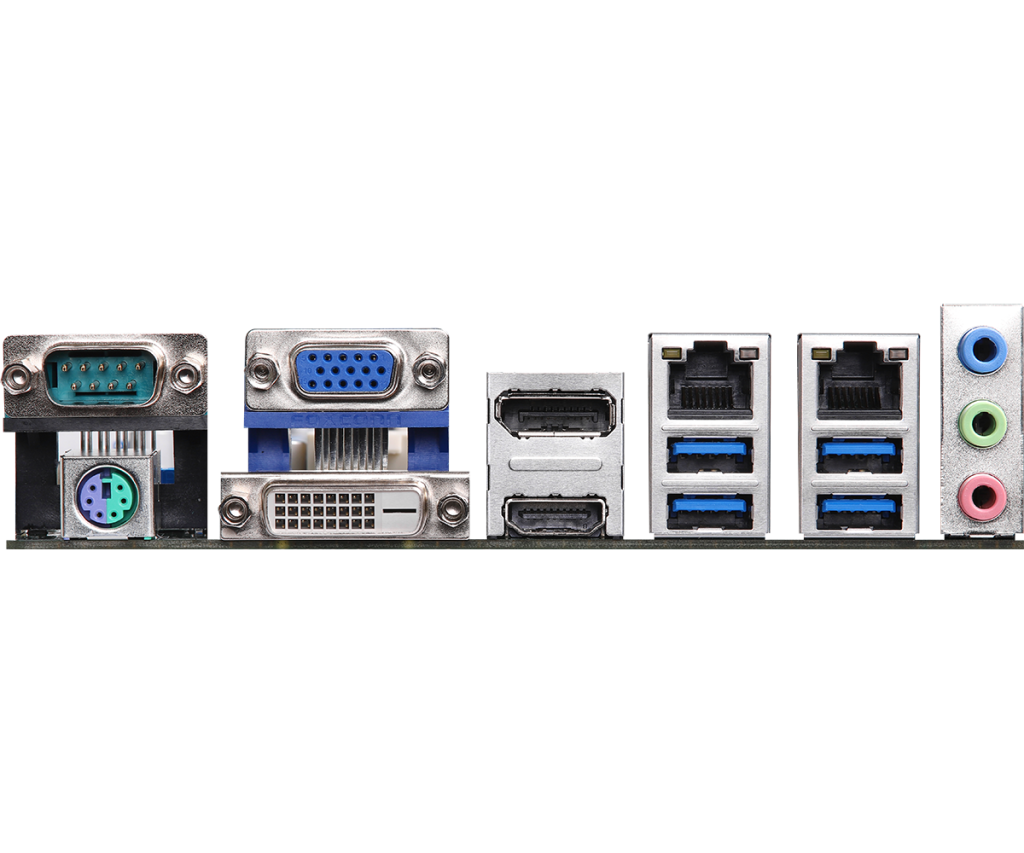

산업용 8/9세대 Micro-ATX 마더보드 IMB-1311-L

Intel® 9th/ 8th Gen (Coffee Lake-S) Core™ Processors with Q370
chipset
4 x 288-pin Long-DIMM up to128GB* DDR4 2666MHz
1 x PCIe x16 (Gen3), 1 x PCIe x4 (Gen3), 2 x PCI, 6 x USB 3.1 Gen1,
6 x USB 2.0,
1 x M.2 Key E, 1 x mini-PCIe, 1 x M.2 Key M, 6 x COM, 6 x SATA3
2 x Intel 1 Gigabit LAN
Supports triple display, 1 x HDMI 1.4, 1 x DP 1.2, 1 x VGA, 1 x
LVDS, 1 x DVI-D (IMB-1311-L)
Supports triple display, 1 x HDMI 1.4, 1 x DP 1.2, 1 x eDP, 1 x DVI-D
(IMB-1311-D)
TPM 2.0 onboard IC
Supports Intel® vPro, AMT, RAID 0/1/5/10
ATX PWR

Specifications

Processor System
CPU	Intel® 9th/ 8th Gen (Coffee Lake-S) Core™ Processors, up to 65W
CHIPSET	Intel® Q370
Socket	LGA1151
BIOS	AMI SPI 128 Mbit

Memory
Technology	Dual Channel DDR4 2666 MHz
Capacity	128GB* * Intel Core i9/i7/i5 CPUs support up to 128GB (32GB per DIMM) Intel Core i3/Pentium/Celeron CPUs support up to 64GB (16GB per DIMM)
Socket	4 x 288-pin Long-DIMM

Graphics
Controller	Coffee Lake integrated graphics
HDMI	HDMI 1.4 Max resolution up to 4096×2160@24Hz
Display Port	DisplayPort 1.2, DP++ Max resolution up to 4096×2304@60Hz
VGA	Max resolution up to 1920×1200@60Hz
LVDS	Dual channel 24 bit up to 1920×1200@60Hz
DVI-D	Max resolution up to 1920×1200@60Hz
Multi Display	Triple Display

Expansion Slot
PCIe	1 x PCIe x16 (Gen3, Support riser card x8/x8, x8/x4/x4) 1 x PCIe x4 (Gen3)
PCI	2
mini-PCIe	1 x Full/Half size with PCIe x1 and USB 2.0
M.2	1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless

Audio
Interface	Realtek ALC887, High Definition Audio. Line-out,Mic-in,Line-in

Ethernet
Controller/ Speed	LAN1: 1 x Intel® I210 with 10/100/1000 Mbps LAN2: 1 x Intel® I219LM with 10/100/1000 Mbps, supports AMT/vPro
Connector	2 x RJ-45

Internal Connector
USB	2 x USB 3.1 (Gen1) (1 x USB3.1 header) 6 x USB 2.0 (3 x 2.54 pitch header)
COM	COM1, 2, 4, 5, 6(RS232)
Parallel	1 (shared with GPIO)
GPIO	8 x GPI, 8 x GPO (shared with LPT header
TPM	TPM 2.0 onboard IC
LVDS	1
Speaker Header	1

Storage
M.2	1 x M.2 (Key M, 2242/2260/2280) with PCIe x4 and shared SATA3 for SSD
SATA	6 x SATA3 (6Gb/s), SATA3_1 shared with M.2 Key M
RAID	Intel® SATA RAID 0/1/5/10

Watchdog Timer
Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, …255sec

Power Requirements
Input PWR	ATX PWR (24+8-pin)
Power On	AT/ATX Supported – AT : Directly PWR on as power input ready – ATX : Press button to PWR on after power input ready
