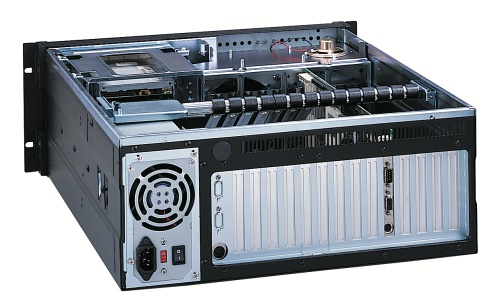

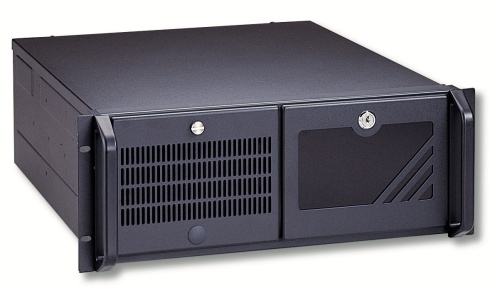

BMR-40L-Q6A 12/13세대 4U 랙마운트 컴퓨터

산업용 12/13세대 4U PC

BMR-40L-Q6A 12/13세대 4U 랙마운트 컴퓨터

  • ATX, Supports up to 125W Intel® 12/13th Gen processors
  • 2x PCIe® x16 slots support dual graphic cards
  • Four U-DIMM slots for up to 128 GB 4400 MHz DDR5
  • Seven-year longevity supply program
  • Advanced I/O and connectivity features
  • Wide temperature range endurance: 0–60° C
  • Dimensions (W x H x D): 483 x 177 x 510mm
Specifications
Processor System
Processor
  • Supports up to 125W Intel® 12/13th Gen processors
CHIPSET
  • Intel® Q670E Chipset
System Memory
Memory Capacity
  • Four U-DIMM slots for up to 128 GB 4400 MHz DDR5



Expansion Slots
PCI-Express
  • 1 x PCIe 5.0 x16 Slot (1 x16 mode/ 2 x8 mode)
  • 1 x PCIe 4.0 x4 Slot (x4 mode, open slot)
  • 1 x PCIe 5.0 x16 Slot (x8 mode)
  • 1 x PCIe 3.0 x4 Slot (x4 mode, open slot)
  • 1 x PCIe 4.0 x4 Slot (x4 mode, open slot)
PCI
  • 2 x PCI



Integrated On-Board
SATA, M.2
  • 7 x SATA Gen 3.0, Up to 6Gb/s, Support RAID 0,1,5,10
  • 1 x M.2 M key, Type 2242/2260/2280 (PCIe x4 /SATA mode) supports NVMe
  • 1 x M.2 E key, type 2230 for WIFI/BT device (only support Intel® CNVi)
Network
  • 1 x Intel® i210AT
  • 1 x Intel® i226V
  • 1 x Intel® i226LM (Intel vPro supported)



Font Panel
LED Indicators
  • LEDs for Power ON/OFF, HDD Activity



Drive Bays
Peripheral Bay
  • 3x 5.25″ CD-ROM & 1x 3.5″ FDD & 1x 3.5″ HDD (Optional)



Power Supply
Power
  • Single 350~1200W (Option)



Cooling System
System Fan
  • 1x (120mm = 108.0CFM ea.) Fan (One Optional Opening for Extra 120mm Fan)



Dimensions
W x H x D
  • 483 x 177 x 510mm (19.0″ x 7.0″ x 20.1″)



Dimensions
W x H x D
  • 483 x 177 x 510mm (19.0″ x 7.0″ x 20.1″)
