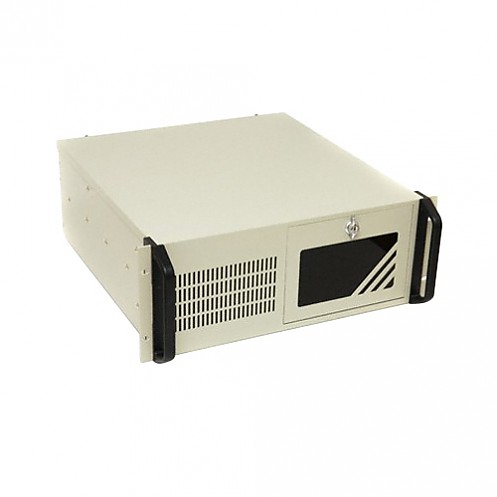

BMR-40S-1712 Intel® Core™ 12/13/14세대 지원 4U 랙마운트 컴퓨터

산업용 Intel® Core™ Processor Series 2 및 12/13/14세대 지원 4U PC

BMR-40S-1712 Intel® Core™ 12/13/14세대 지원 4U 랙마운트 컴퓨터

  • ATX, Support up to 125W Intel® Core™ Processor Series 2 and 12/13/14th Gen. CPU
  • 4 x U-DIMM up to 128 GB DDR4 3200 MHz
  • Supports Triple display, 1 x HDMI 2.0b, 1 x DP1.4a, 1 x VGA
  • Supports 1 x PCIe x16 (Gen4), 1 x PCIe x8 (Gen4), 2 x PCIe x4 (Gen4), 1 x PCIe x4 (Gen3), 2 x PCI, 6 x COM, 12 x USB
  • Dimensions (W x H x D): 483 x 177 x 451mm
Specifications
Processor System
Processor
  • ATX, Support up to 125W Intel® Core™ Processor Series 2 and 12/13/14th Gen. CPU
CHIPSET
  • Intel® Q670 Chipset
System Memory
Memory Capacity
  • 4 x U-DIMM up to 128 GB DDR4 3200 MHz



Expansion Slots
PCI-Express
  • 1 x PCIe x16 (Gen4), 1 x PCIe x8 (Gen4), 2 x PCIe x4 (Gen4), 1 x PCIe x4 (Gen3), 2 x PCI



Integrated On-Board
SATA, M.2
  • 4 x SATA3 (6Gb/s)
  • 1 x M.2 (Key M, 3042/2260/2280/22110/25110) with PCIe Gen4 x4 for SSD
Network
  • LAN1: Intel® I225LM/I226LM with 10/100/1000/2500 Mbps, supports vPro
  • LAN2: Intel® I225LM/I225V/I226V with 10/100/1000/2500 Mbps



Font Panel
LED Indicators
  • LEDs for Power ON/OFF, HDD Activity



Drive Bays
Peripheral Bay
  • 3x 5.25″ CD-ROM & 1x 3.5″ FDD



Power Supply
Power
  • Single 350~1200W (Option)



Cooling System
System Fan
  • 2x (92mm = 51.0CFM ea.) Hot Swap Fans



Dimensions
W x H x D
  • 483 x 177 x 451mm (19.0″ x 7.0″ x 17.8″)
