PPC-S152PF, 산업용 터치 패널PC

15″ IP65 Full Frame Stainless Steel Projected Capacitive Touch Panel PC with Intel® Celeron® J1900 Processor

PPC-S152PF, 산업용 터치 패널PC

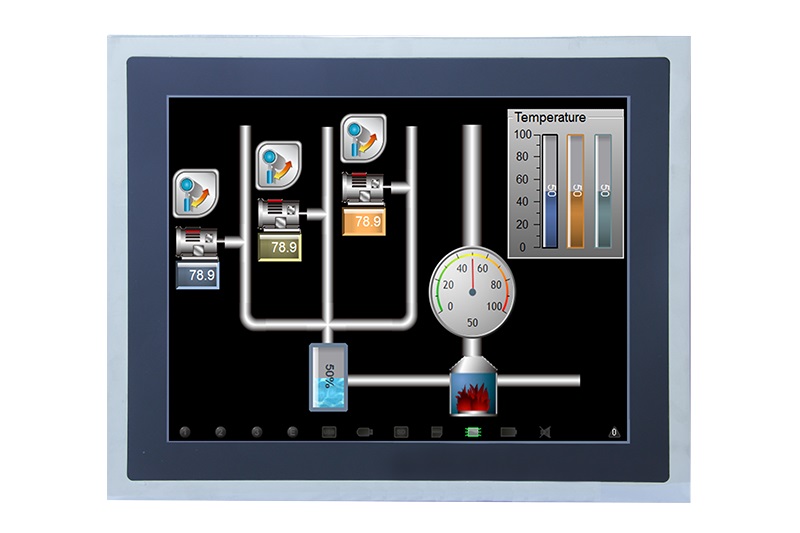

  • 15” XGA LED Panel with Projected Capacitive Touch Display
  • Intel® Celeron® Processor J1900

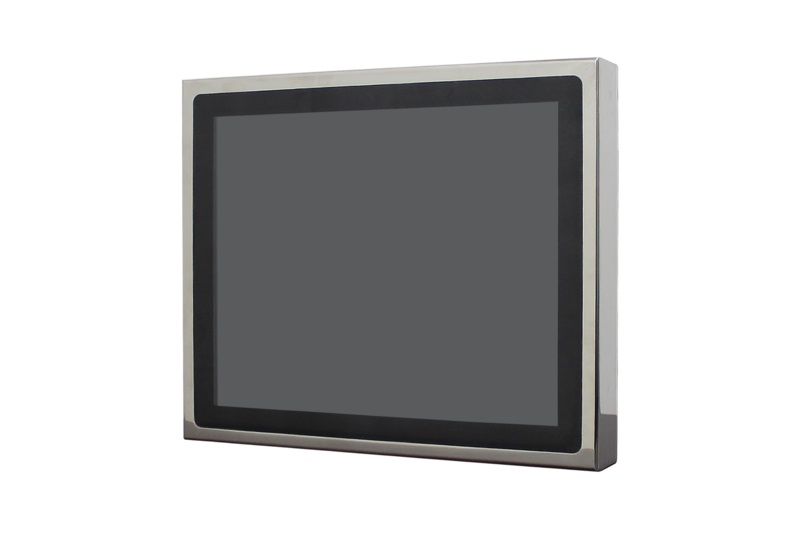

  • Full Frame Stainless Steel IP65 Waterproof Front Cover
  • Completely Flat Front Panel Design
  • Two-finger Touch Control while Wearing Gloves

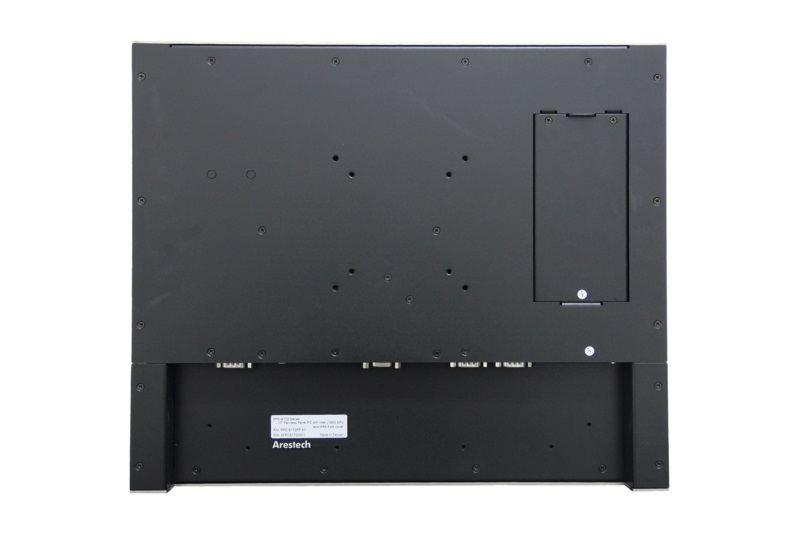

  • VESA Mounting
Specifications
Model PPC-S152P
Processor System CPU Intel® Celeron® Processor J1900
Frequency Quad-Core up to 2.0 GHz
L2 Cache 2 MB
System Chipset N/A
BIOS UEFI
Memory Technology DDR3L 1333 MHz SDRAM
Max. Capacity 8 GB
Socket 1 (204-pin SO-DIMM)
Display Panel Size 15” LED Panel
Resolution 1024 x 768 (XGA)
Viewing Angle 80 x 80 (H) x 60 x 80 (V)
Brightness 300 (cd/m2)
Color Support 16.7M
Contrast Ratio 800:1
Response Time 8 (msec)
VGA Up to 1920 x 1200
HDMI HDMI 1.4a up to 1920 x 1200
Dual Display LCD + VGA or LCD + HDMI
Touchscreen Type Projected Capacitive
Surface Hardness 7 Mohs
Transparency 90% (±3%)

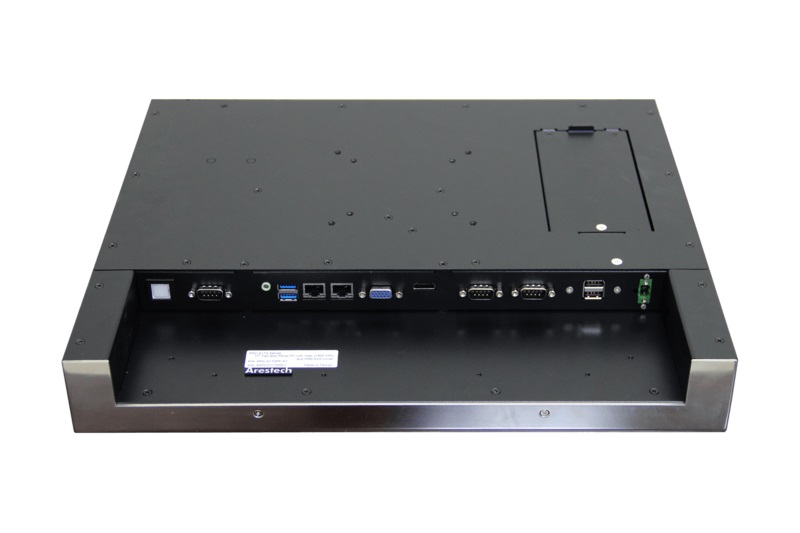

I/O Interface USB 2 USB 3.0, 2 USB 2.0
Serial Port 3 COM (2 RS-232, 1 RS-232/422/485)
Mini PCIe 2 Mini PCIe (1 Full Size and 1 half-size)
Ethernet Controller Dual GbE, 2GbE 10/100/1000 Mbps (Realtek RTL8111G-CG)
Audio Chipset Realtek ALC662 High Definition Audio (HD)
Connector Line out
Storage SATA II 1 Internal 2.5” HDD/SSD
Power Power Supply Voltage 9-36 V DC input
Power Connector Type 2-Pin Thermal Block
Power Consumption (Typical) 1.53 A @ 12 V (18.4W)
Power Consumption (Max) 1.8 A @ 12 V (21.6W)
Battery Lithium 3 V / 210 mAH
Environment Operating Temperature -20~60° C (-4~140° F) w/ 2.5″ Extended Temperature SSD
Storage Temperature -40~85° C (-40~185° F)
Humidity 5~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Certification CE, FCC Class A
General Ingress Protection Front cover IP65, Full Frame stainless steel
Dimensions (L x W x H) 386 x 308 x 60 mm (15.20” x 12.13” x 2.36”)
Weight 4.93 kg (10.87 lb)
Operating System Windows 7/8.1/10, WES7-E/P, WE8S, Ubuntu 14.04





Packing List

Description
1 x PPC-S152PF
1 x Driver CD
1 x Power Adapter





Ordering Information

Part No. Description
PPC-S152PF-A1 15” Fanless Projected Capacitive Touch Panel PC, IP65 Stainless Steel Full Frame Protection, Intel® Celeron® J1900 2.0 GHz Processor





Optional Items

Part No. Description
ACS-PS-US Power Cable 3-PIN, 180cm, USA Type
ACS-PS-EU Power Cable 3-pin, 180cm, Euro Type
ACS-PS-CN Power Cable 3-pin, 180cm, China Type
ACS-100-STD VESA Table Stand
