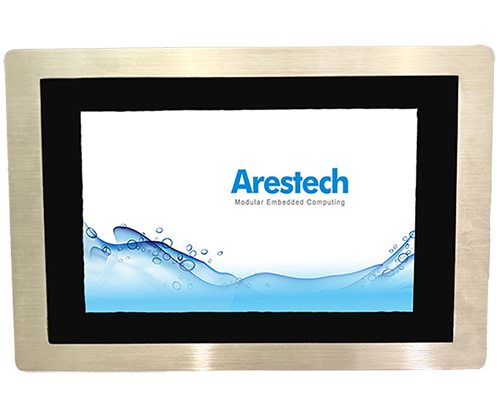

21.5” Front Panel IP66 Stainless Steel Panel PC with Intel® Core™ i5-1235U Processor
PPC-S2112, 21.5” 패널PC / IP66 Core™ i5-1235U
- 21.5” 1920 x 1080 Resolution, 250nits Panel
- Intel® Core™ i5-1235U onboard Processor
- True Flat, Easy-to-clean Front Panel Design
- 304 Stainless Steel Front Panel (Optional 316) + SECC Back Cover
- IP66 Rated Front Panel
- Support Projected Capacitive and Resistive Touchscreen
- Support VESA and Panel Mounting
Specifications
| Model | PPC-S2112PW | PPC-S2112RW | |
|---|---|---|---|
| Processor System | CPU | Intel® Core™ i5-1235U Processor | |
| Frequency | up to 4.40GHz | ||
| BIOS | UEFI | ||
| TPM | fTPM (Optional for dTPM) | ||
| Memory | Technology | Dual Channel DDR4 3200MHz (un-buffered and non-ECC) | |
| Max. Capacity | Support up to 64GB | ||
| Type | 2 x 260-pin SO-DIMM | ||
| Panel | Panel Type | 21.5″ FHD LCD | |
| Aspect Ratio | 16:9 | ||
| Resolution | 1920 x 1080 | ||
| Brightness | 250cd/m² | ||
| Color | 16.7M | ||
| Contrast Ratio | 5000:1 | ||
| Viewing Angle | 178 (H) x 178 (V) | ||
| Backlight MTBF (typ.) | 30,000Hrs | ||
| Touchscreen | Touchscreen Type | Projected Capacitive (P-CAP) | 5-wire Resistive |
| Surface Hardness | 7Mohs | 3Mohs | |
| Transparency | 90% (±3%) | 80% (±3%) | |
| I/O Interface | Ethernet | 2 x 2.5GbE LAN Ports (Intel® I226-V) | |
| HDMI | 2 x HDMI 2.0, Max Resolution 4096 x 2160 | ||
| Serial Port | 1 x RS232/422/485 (Optional for additional 2 x RS232/422/485) | ||
| USB | 4 x USB3.2 Gen2 | ||
| Audio | N/A | ||
| Storage | 2.5″ SSD/HDD | Internal 1 x 2.5” SSD/HDD | |
| M.2 | Internal 1 x M.2 2280 M-Key (PCIe Gen 4×4, SATA) | ||
| Expansion | Mini-PCIe | 1 x Full-Size Mini-PCIe with SIM slot (PCIe, USB2.0 and SIM) | |
| M.2 |
1 x M.2 2280 M-Key (PCIe Gen 4×4, SATA) 1 x M.2 2230 E-Key |
||
| Power | Power Mode | AT/ATX | |
| Power Supply Voltage | 9~36V DC Input | ||
| Power Connector Type | 1 x DC Power Connector, 1 x 2-pin Terminal Block | ||
| Environment | Operating Temperature | -20C ~ +60°C | |
| Storage Temperature | -30C ~ +70°C | ||
| Humidity | 10% ~ 95%, Non-condensing | ||
| Vibration | 2.16Grms, 5 – 500Hz, 0.5hr/axis | ||
| Shock | 20G, half sine, 11ms | ||
| General | Certification | CE/FCC Class A | |
| Ingress Protection | Front Panel IP66 | ||
| Material | 304 Stainless Steel Front Panel (316 for option) + SECC Back Cover | ||
| Mounting | VESA (100 x 100mm) / Panel | ||
| Dimensions (W x H x D) | 568 x 364 x 58.5mm | ||
| Net Weight | 10kg | ||
| Operating System | Windows 10 IoT, Windows 11 (IoT/Professional), Linux | ||
