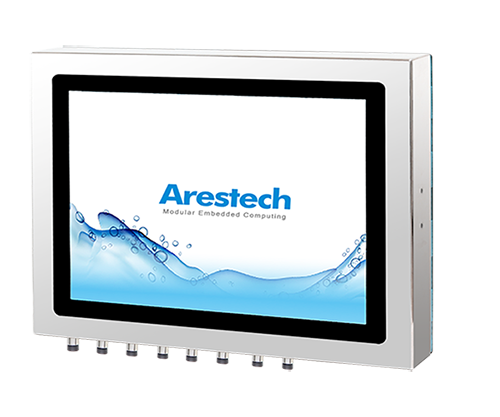

19" IP66/69K Stainless Steel Panel PC with Intel® Core™ i5-1235U Processor
PPC-Z1912, 19” 패널PC / IP66/ 69K Core™ i5-1235U
- Intel® Core™ i5-1235U Onboard Processor
- True Flat, Easy-to-clean Front Bezel Design
- Grade 304 Stainless Steel Enclosure (Grade 316 for option)
- IP66/69K Rated with M12 Connectors
- Support Projected Capacitive and Resistive Touch
- Support VESA, Yoke, and Wall Mounting
Specifications
| Model | PPC-Z1912P | PPC-Z1912R | |
|---|---|---|---|
| Processor System | CPU | Intel® Core™ i5-1235U Processor | |
| Frequency | up to 4.40GHz | ||
| BIOS | UEFI | ||
| TPM | fTPM (Optional for dTPM) | ||
| Memory | Technology | Dual Channel DDR4 3200MHz (un-buffered and non-ECC) | |
| Max. Capacity | Support up to 64GB | ||
| Type | 2 x 260-pin SO-DIMM | ||
| Panel | Panel Type | 19″ SXGA LCD | |
| Aspect Ratio | 4:3 | ||
| Resolution | 1280 x 1024 | ||
| Brightness | 350cd/m² | ||
| Color | 16.7M | ||
| Contrast Ratio | 1000:1 | ||
| Viewing Angle | 170 (H) x 160 (V) | ||
| Backlight MTBF (typ.) | 70,000Hrs | ||
| Touchscreen | Touchscreen Type | Projected Capacitive (P-CAP) | Touchscreen |
| Surface Hardness | 7Mohs | 3Mohs | |
| Transparency | 90% (±3%) | 80% (±3%) | |
| I/O Interface | Ethernet | 2 x 2.5GbE (Intel® I226-V) (M12 Connector) | |
| Serial Port | 2 x RS232/422/485 (M12 Connector) | ||
| USB | 2 x USB2.0 (from 1 x M12 Connector)
1 x USB3.2 Gen2 (M12 Connector) |
||
| Audio | N/A | ||
| Storage | 2.5″ SSD/HDD | Internal 1 x 2.5” SSD/HDD (SATA RAID 0/1) | |
| M.2 | Internal 1 x M.2 2280 M-Key (PCIe Gen 4×4, SATA) | ||
| Expansion | Mini-PCIe | 1 x Full-Size Mini-PCIe with SIM slot (PCIe, USB2.0 and SIM) | |
| M.2 |
1 x M.2 2280 M-Key (PCIe Gen 4×4, SATA) 1 x M.2 2230 E-Key |
||
| Power | Power Mode | AT/ATX | |
| Power Supply Voltage | 9~36V DC Input | ||
| Power Connector Type | M12 Connector | ||
| Environment | Operating Temperature | -10C ~ +60°C | |
| Storage Temperature | -30C ~ +70°C | ||
| Humidity | 10% ~ 95%, Non-condensing | ||
| Vibration | 2.16Grms, 5 – 500Hz, 0.5hr/axis | ||
| Shock | 20G, half sine, 11ms | ||
| General | Certification | CE/FCC Class A | |
| Ingress Protection | Full System IP66/69K | ||
| Material | Full SUS304 Stainless Steel (Optional SUS316) | ||
| Mounting | VESA (100 x 100mm) / Yoke / Wall | ||
| Dimensions (W x H x D) | 499 x 420 x 66.5mm | ||
| Net Weight | 10.0kg | ||
| Operating System | Windows 10 IoT, Windows 11 (IoT/Professional), Linux | ||
Ordering Information
| Part No. | Description |
|---|---|
| PPC-Z1912P | 19″ 4:3 (1280 x 1024) SXGA, 350nits, P-CAP Touch, Full Stainless Steel 304, Intel® Core™ i5-1235U, M12 Connectors (2 x 2.5GbE, 2 x RS232/422/485, 1 x USB3.2, 1 x USB2.0 (x2), 9~36VDC) |
| PPC-Z1912R | 19″ 4:3 (1280 x 1024) SXGA, 350nits, 5-wire Resistive Touch, Full Stainless Steel 304, Intel® Core™ i5-1235U, M12 Connectors (2 x 2.5GbE, 2 x RS232/422/485, 1 x USB3.2, 1 x USB2.0 (x2), 9~36VDC) |
