서버

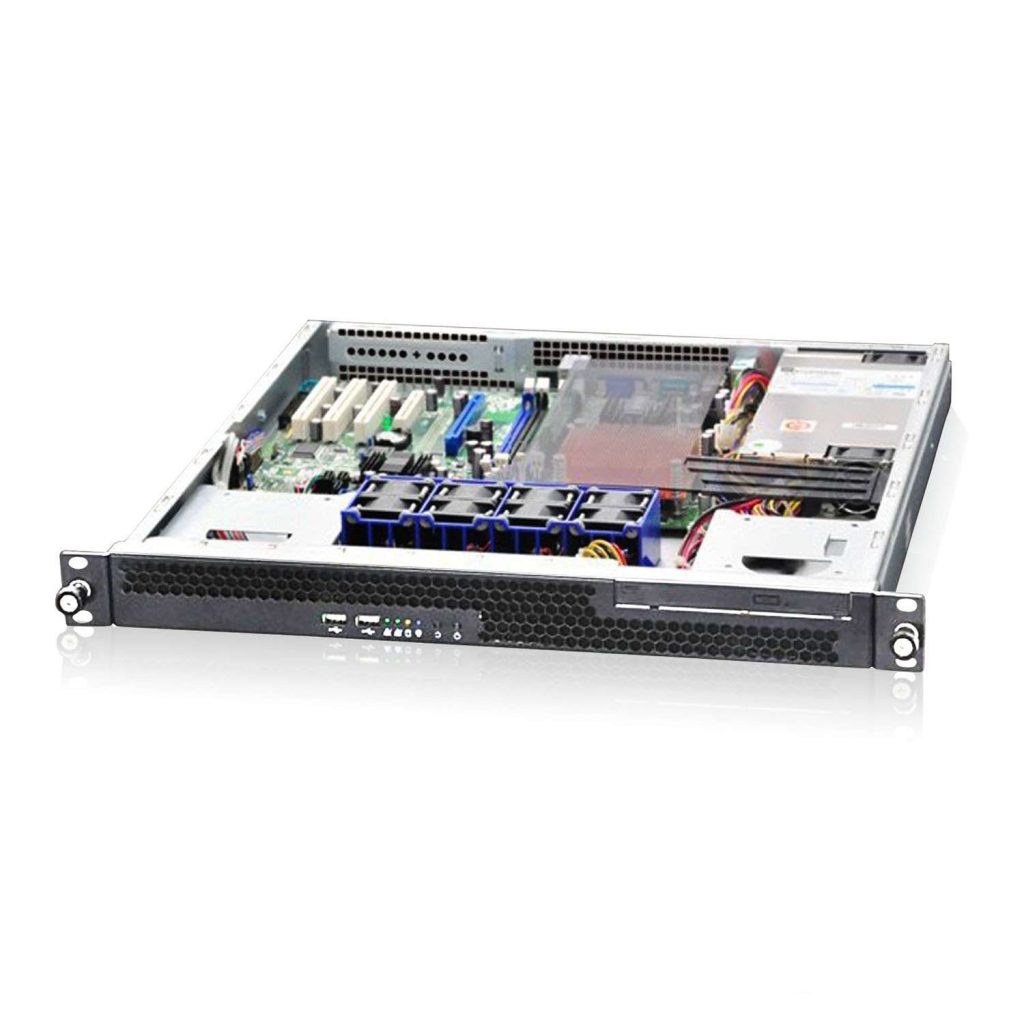

BMS 1102-450(R)

2x 2.5" or 2x 3.5" HDD/SSD 지원 1U Server chassis

BMS 1102-450(R)

  • 1U Rackmount server chassis series with 450mm depth
  • Supports 1x full-height full-length PCIe cards
  • High-performance 4x 4028 cooling fans with anti-vibration mechanism and optional up to 4x 4056 middle fans
  • Smart system fan controlled by intelligent temperature management
  • Internal SAS and SATA 2x 2.5″ or 3.5″ fixed with bracket
  • 1 Slim laptop optical drive bay Support
  • Supports 1U Single PSU or 1+1 Redundant PSU
Specifications
BMS 1102-450(R)
Chassis Form Factor
  • 1U Rackmount
Serverboar
  • CEB (12″x10.5″), ATX (12″x9.6″) and micro ATX (9.6″x9.6″)
PSU Form Factor
  • 1U Single or 1+1 Redundant
Backplane SGPIO
  • Not Supports
HDD Backplan
  • Not Supports
HDD Drive Hot-swap
  • Internal compatible with SAS and SATA 2x 2.5″ or 2x 3.5″ fixed with bracket
Cooling Fans
  • Default 4x 4028 middle fans (Max. 4x 4056 by option)
Temperature Control
  • Supports system smart fan control by Server board
Expansion Slots
  • Default 1xfull-height PCIe cards support
Indicator
  • 2x USB 2.0, 1x Power Switch, 1x Reset, 1x Power LED, 1x HDD LED, 2x LAN Indicators
Metal Thickness
  • 1mm SGCC
Net Weight
  • 5.0kg
Chassis Dimensions (HxWxD)
  • 450mm x 433mm x 43mm
